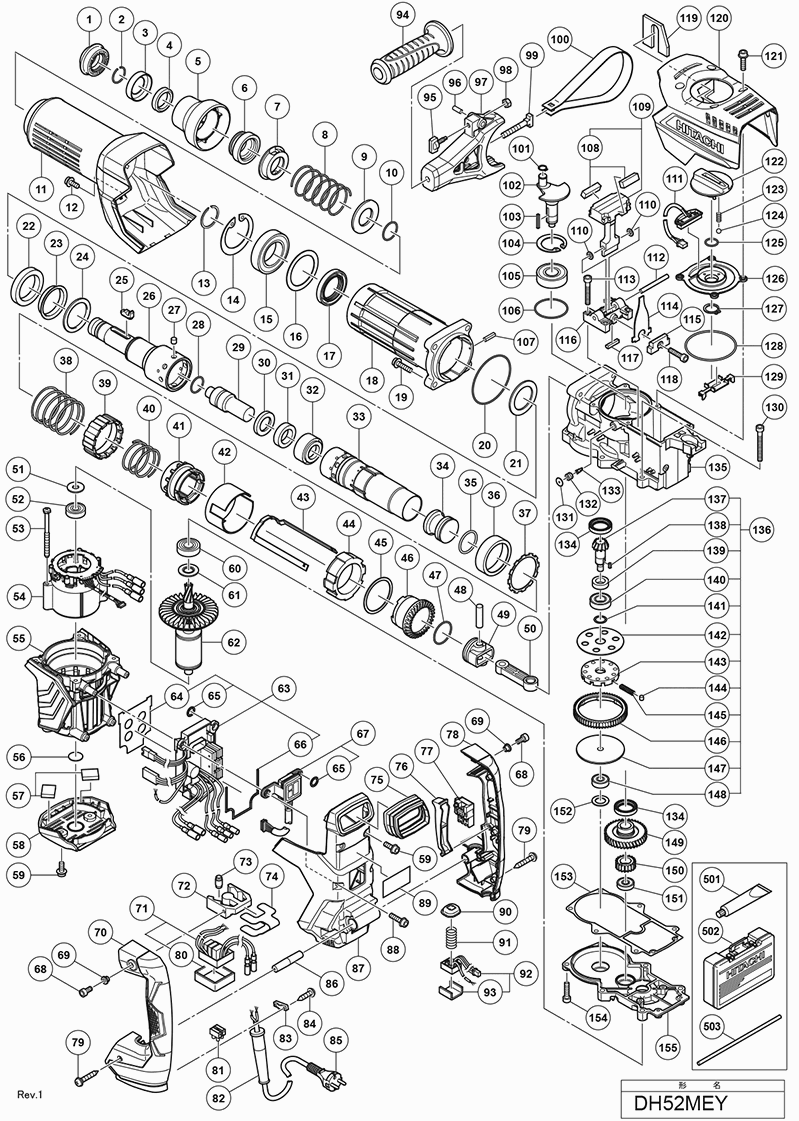

Dessins des Hikoki DH52MEY
Liste de pièces de rechange des Hikoki DH52MEY
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Couvercle Avant H 45/h 60ma/mr | ||||
1 | 337562 | 2.85 | 3.42 | |
Anneau de retenue | ||||
2 | 318590 | 1.65 | 1.98 | |
Rondelle de retenue | ||||
3 | 338155 | 4.80 | 5.76 | |
Amortisseur de retenue (a) | ||||
4 | 339053 | 9.75 | 11.70 | |
Verrouillage H45mr | ||||
5 | 338154 | 1.80 | 2.16 | |
Plus disponible, pas de remplacement | ||||
6 | 338153 | |||
Plaque de poussée | ||||
7 | 339051 | 13.05 | 15.66 | |
Ressort de retenue | ||||
8 | 339052 | 1.95 | 2.34 | |
Support de ressort (a) | ||||
9 | 337557 | 1.20 | 1.44 | |
Joint torique (S-26) | ||||
10 | 872470 | 1.65 | 1.98 | |
Couvercle du Boîtier du Cylindre | ||||
11 | 338198 | 14.25 | 17.10 | |
Vis Allen Hd M5x12 | ||||
12 | 998471 | 1.05 | 1.26 | |
Circlips Ø 40 mm | ||||
13 | 318582 | 5.10 | 6.12 | |
Anneau de retenue D68 | ||||
14 | 338200 | 4.95 | 5.94 | |
Roulement à billes 6008ddu | ||||
15 | 339063 | 14.93 | 17.91 | |
Bague Pour Palier | ||||
16 | 338201 | 1.35 | 1.62 | |
Joint Spi | ||||
17 | 318588 | 6.45 | 7.74 | |
Carter de cylindre | ||||
18 | 338199 | 21.45 | 25.74 | |
Vis M.8*35 | ||||
19 | 990083 | 1.05 | 1.26 | |
O Ring Dh 40ma | ||||
20 | 338222 | 1.05 | 1.26 | |
Porte-amortisseur de retenue | ||||
21 | 338204 | 5.55 | 6.66 | |
Rondelle | ||||
22 | 338203 | 4.20 | 5.04 | |
Manchon amortisseur | ||||
23 | 339064 | 1.05 | 1.26 | |
Rondelle d'amortisseur de retenue | ||||
24 | 338202 | 5.40 | 6.48 | |
Pas d'informations disponibles, non commandable | ||||
25 | 337554 | |||
Manchon de retenue | ||||
26 | 338205 | 45.10 | 54.12 | |
Broche à aiguille D8 | ||||
27 | 338210 | 1.95 | 2.34 | |
Joint Torique | ||||
28 | 986104 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
29 | 338206 | |||
Pas d'informations disponibles, non commandable | ||||
30 | 338207 | |||
Amortisseur | ||||
31 | 328887 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
32 | 338208 | |||
Cylindre | ||||
33 | 338209 | 44.69 | 53.62 | |
Frappeur | ||||
34 | 338214 | 14.58 | 17.49 | |
Porte-ressort (b) | ||||
36 | 338211 | 15.54 | 18.64 | |
Rondelle de blocage à ressort | ||||
37 | 338216 | 1.20 | 1.44 | |
Ressort de verrouillage | ||||
38 | 338217 | 1.50 | 1.80 | |
Manchon de verrouillage | ||||
39 | 338215 | 1.20 | 1.44 | |
Ressort d'embrayage | ||||
40 | 338212 | 1.50 | 1.80 | |
Embrayage | ||||
41 | 338213 | 37.81 | 45.38 | |
Douille (1) | ||||
42 | 338218 | 1.04 | 1.24 | |
Coulisseau (1) | ||||
43 | 338235 | 3.45 | 4.14 | |
Métal (a) | ||||
44 | 338219 | 10.65 | 12.78 | |
Rondelle en métal | ||||
45 | 338220 | 1.05 | 1.26 | |
Roue Conique (1) | ||||
46 | 338221 | 13.80 | 16.56 | |
Joint Torique | ||||
47 | 328880 | 4.80 | 5.76 | |
Goupille | ||||
48 | 338228 | 4.35 | 5.22 | |
Piston | ||||
49 | 328877 | 7.05 | 8.46 | |
Bielle | ||||
50 | 328878 | 7.05 | 8.46 | |
Rondelle | ||||
51 | 944954 | 1.05 | 1.26 | |
Roulement Cr12v H90sc | ||||
52 | 6201VV | 6.45 | 7.74 | |
Vis Ø5*60 | ||||
53 | 961501 | 1.04 | 1.24 | |
Ensemble Stator Fet Pcb 100v-127v depuis 2.2015 | ||||
54 | 340921 | 42.35 | 50.82 | |
Ensemble de capteurs de stator Pcb 100v-127v | ||||
54 | 340898 | 41.39 | 49.66 | |
Ensemble de capteurs de stator Pcb 220v-240v | ||||
54 | 340899 | 41.39 | 49.66 | |
Carter | ||||
55 | 338168 | 22.96 | 27.56 | |
Joint anti-poussière | ||||
56 | 333225 | 1.05 | 1.26 | |
Emballage (b) | ||||
57 | 339065 | 1.04 | 1.24 | |
Couvercle | ||||
58 | 338170 | 2.40 | 2.88 | |
Vis 5x14 | ||||
59 | 998485 | 1.05 | 1.26 | |
Rondelle | ||||
61 | 980700 | 1.04 | 1.24 | |
Rotor | ||||
62 | 360992 | 149.19 | 179.02 | |
Contrôleur 100v-127v | ||||
63 | 338188 | 96.94 | 116.32 | |
Contrôleur 220v-240v | ||||
63 | 338189 | 96.94 | 116.32 | |
Contrôleur 100v-127v | ||||
63 | 339186 | 96.11 | 115.34 | |
Feuille de caoutchouc (c) | ||||
64 | 339056 | 2.25 | 2.70 | |
Feuille de caoutchouc (a) | ||||
65 | 339055 | 1.04 | 1.24 | |
Feuille de caoutchouc (d) | ||||
66 | 339057 | 1.65 | 1.98 | |
Assemblage de panneau Incl.65 | ||||
67 | 338184 | 14.40 | 17.28 | |
Boulon à tête sphérique M5x12 auto-verrouillable | ||||
68 | 991690 | 1.05 | 1.26 | |
Entretoise | ||||
69 | 991711 | 1.05 | 1.26 | |
Poignée (a) | ||||
70 | 338173 | 5.55 | 6.66 | |
Ensemble de filtres PCB 100v-127v | ||||
71 | 338180 | 12.45 | 14.94 | |
Ensemble de filtres PCB 220v-240v | ||||
71 | 338181 | 12.45 | 14.94 | |
Support | ||||
72 | 310123 | 11.85 | 14.22 | |
Caoutchouc d'amortissement de poignée | ||||
73 | 310124 | 4.20 | 5.04 | |
Support de poignée Pour Esp,ind,ina | ||||
74 | 338162 | 1.04 | 1.24 | |
Soufflets | ||||
75 | 338176 | 4.80 | 5.76 | |
Gachette (1) | ||||
76 | 337588 | 1.04 | 1.24 | |
Commutateur | ||||
77 | 337587 | 13.95 | 16.74 | |
Poignée (b) | ||||
78 | 338174 | 5.55 | 6.66 | |
Vis Ø 4*25 noir | ||||
79 | 307028 | 1.05 | 1.26 | |
Emballage de filtre | ||||
80 | 339058 | 1.20 | 1.44 | |
Domino | ||||
81 | 958308Z | 5.55 | 6.66 | |
Entree De Cable Ø 10,7 | ||||
82 | 940778 | 2.10 | 2.52 | |
Armure de cordon D11.2 | ||||
82 | 331335 | 1.20 | 1.44 | |
Serre Cable | ||||
83 | 960266 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
84 | 984750 | |||
Pas d'informations disponibles, non commandable | ||||
85 | 930053 | |||
Arbre de poignée | ||||
86 | 338175 | 1.04 | 1.24 | |
Couvercle Arrière | ||||
87 | 338197 | 7.35 | 8.82 | |
Vis M5*16 (g23sc2/se2/sc3/vb13y) | ||||
88 | 994192 | 1.04 | 1.24 | |
Bouton-poussoir | ||||
90 | 338171 | 1.05 | 1.26 | |
Ressort | ||||
91 | 338172 | 1.05 | 1.26 | |
Platine de verrouillage (a) incl. 93 | ||||
92 | 338185 | 8.70 | 10.44 | |
Emballage (a) | ||||
93 | 339059 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
94 | 330209 | |||
Boulon à ailettes | ||||
95 | 337577 | 1.04 | 1.24 | |
Monter | ||||
97 | 338239 | 4.35 | 5.22 | |
Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
98 | 949556 | 1.05 | 1.26 | |
Boulon Dh 40yb | ||||
99 | 333227 | 13.58 | 16.29 | |
BANDE | ||||
100 | 338238 | 6.00 | 7.20 | |
Circlips Ø12 (x10) paquet de 10 | ||||
101 | 939542 | 1.50 | 1.80 | |
Vilebrequin | ||||
102 | 338224 | 26.68 | 32.01 | |
Clavette 3x3x25 | ||||
103 | 328869 | 1.65 | 1.98 | |
Circlips Dh-50sa | ||||
104 | 948227 | 1.35 | 1.62 | |
Roulement à billes 6204dducmps2s | ||||
105 | 6204DD | 9.00 | 10.80 | |
Joint torique (f) W6v3/w6va3 | ||||
106 | 338227 | 1.05 | 1.26 | |
Goupille Ø2x8 Nr 90gc | ||||
107 | 949859 | 1.20 | 1.44 | |
Amortisseur de Poids | ||||
108 | 339112 | 2.25 | 2.70 | |
Poids Ass'y Incl.108 | ||||
109 | 339067 | 47.44 | 56.92 | |
Bague | ||||
110 | 338191 | 1.04 | 1.24 | |
Sur carte de verrouillage (b) | ||||
111 | 338179 | 7.35 | 8.82 | |
Broche de poids | ||||
112 | 338192 | 3.90 | 4.68 | |
Vis 5x30 | ||||
113 | 306061 | 1.05 | 1.26 | |
Ressort à lames (a) | ||||
114 | 338187 | 1.05 | 1.26 | |
Ressort | ||||
115 | 328906 | 6.45 | 7.74 | |
Plaque De Base | ||||
116 | 338190 | 10.35 | 12.42 | |
Butoir de Poids | ||||
117 | 338194 | 1.04 | 1.24 | |
Vis M5*16 | ||||
118 | 990079 | 1.05 | 1.26 | |
Joint en feutre (d) | ||||
119 | 339050 | 2.25 | 2.70 | |
Couvercle de manivelle | ||||
120 | 338237 | 4.35 | 5.22 | |
Boulon à tête hex. (avec bride) M5x18 | ||||
121 | 338177 | 1.04 | 1.24 | |
Levier de changement | ||||
122 | 338159 | 2.10 | 2.52 | |
Ressort de levier | ||||
123 | 337567 | 1.04 | 1.24 | |
Bille d'acier D4.76 (10 pièces) | ||||
124 | 959149 | 1.04 | 1.24 | |
O Ring (s-18) | ||||
125 | 878885 | 1.05 | 1.26 | |
Support de l'arbre de levier | ||||
126 | 338236 | 9.45 | 11.34 | |
Bague D20 (10 pièces) | ||||
127 | 939547 | 3.90 | 4.68 | |
O Ring Dh 22vb/20dv | ||||
128 | 338160 | 1.05 | 1.26 | |
Plaque de Changement | ||||
129 | 338234 | 1.05 | 1.26 | |
Vis M6*45 | ||||
130 | 986940 | 1.05 | 1.26 | |
Emballage en feutre (c) | ||||
131 | 339062 | 1.04 | 1.24 | |
Vis à tête | ||||
132 | 339061 | 6.75 | 8.10 | |
VALVE | ||||
133 | 995396 | 1.80 | 2.16 | |
Joint Spi | ||||
134 | 328867 | 4.80 | 5.76 | |
Carter de vilebrequin | ||||
135 | 338223 | 39.74 | 47.68 | |
Slip Clutch Ass'y Incl.94,115,116,118-126 | ||||
136 | 338242 | 62.84 | 75.40 | |
Pignon conique | ||||
137 | 338229 | 7.80 | 9.36 | |
Clavette 3*3*8 | ||||
138 | 944109 | 1.70 | 2.04 | |
Collier | ||||
139 | 338230 | 1.35 | 1.62 | |
Roulement A Bille | ||||
140 | 6202DD | 6.75 | 8.10 | |
Bague | ||||
141 | 313058 | 1.05 | 1.26 | |
Rondelle | ||||
142 | 338231 | 2.25 | 2.70 | |
Porte-Engrenages | ||||
143 | 318554 | 10.20 | 12.24 | |
Goupille Ø 6*6 | ||||
144 | 313057 | 4.20 | 5.04 | |
Ressort | ||||
145 | 329095 | 1.65 | 1.98 | |
Second Pignon Dh 22vb | ||||
146 | 338232 | 13.95 | 16.74 | |
Entretoise (1) | ||||
147 | 338233 | 12.75 | 15.30 | |
Première vitesse | ||||
149 | 338225 | 31.08 | 37.29 | |
Second Pignon Dh 22vb | ||||
150 | 338226 | 5.70 | 6.84 | |
Roulement A Bille | ||||
151 | 629VVM | 5.85 | 7.02 | |
Bague | ||||
152 | 944525 | 1.05 | 1.26 | |
Emballage d'étanchéité | ||||
153 | 338240 | 1.05 | 1.26 | |
Boulon à tête hexagonale Seal Lock M6x22 | ||||
154 | 321313 | 1.65 | 1.98 | |
Couvercle d'engrenage | ||||
155 | 338241 | 17.60 | 21.12 | |
Graisse (tube 30 Grammes) | ||||
501 | 981840 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
502 | 339066 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 971786 | |||
Graisse pour marteau-perceuse (70g) | ||||
601 | 308471 | 12.75 | 15.30 | |
Graisse (pot de 500 grammes) | ||||
602 | 980927 | 73.01 | 87.62 | |
Pas d'informations disponibles, non commandable | ||||
603 | 320859 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 318085 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 313448 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 313456 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 313449 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 313457 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 313450 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 313458 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 313451 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 313459 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 313452 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 313460 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 313453 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 313461 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 313454 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 313462 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 313455 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 313463 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 944460 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 944461 | |||
Pas d'informations disponibles, non commandable | ||||
623 | 993038 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 944500 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
626 | 313465 | |||
Pas d'informations disponibles, non commandable | ||||
627 | 955994 | |||
Pas d'informations disponibles, non commandable | ||||
628 | 955995 | |||
Pas d'informations disponibles, non commandable | ||||
629 | 955996 | |||
Pas d'informations disponibles, non commandable | ||||
630 | 955997 | |||
Pas d'informations disponibles, non commandable | ||||
631 | 955998 | |||
Pas d'informations disponibles, non commandable | ||||
632 | 955999 | |||
Pas d'informations disponibles, non commandable | ||||
633 | 956000 | |||
Pas d'informations disponibles, non commandable | ||||
634 | 956001 | |||
Pas d'informations disponibles, non commandable | ||||
635 | 955154 | |||
Pas d'informations disponibles, non commandable | ||||
636 | 955166 | |||
Pas d'informations disponibles, non commandable | ||||
637 | 955155 | |||
Pas d'informations disponibles, non commandable | ||||
638 | 955167 | |||
Pas d'informations disponibles, non commandable | ||||
639 | 956002 | |||
Pas d'informations disponibles, non commandable | ||||
640 | 956003 | |||
Pas d'informations disponibles, non commandable | ||||
641 | 955157 | |||
Pas d'informations disponibles, non commandable | ||||
642 | 955168 | |||
Pas d'informations disponibles, non commandable | ||||
643 | 956004 | |||
Pas d'informations disponibles, non commandable | ||||
644 | 956005 | |||
Pas d'informations disponibles, non commandable | ||||
645 | 955159 | |||
Pas d'informations disponibles, non commandable | ||||
646 | 955169 | |||
Pas d'informations disponibles, non commandable | ||||
647 | 956006 | |||
Pas d'informations disponibles, non commandable | ||||
648 | 956007 | |||
Pas d'informations disponibles, non commandable | ||||
649 | 956728 | |||
Pas d'informations disponibles, non commandable | ||||
650 | 956743 | |||
Pas d'informations disponibles, non commandable | ||||
651 | 313466 | |||
Pas d'informations disponibles, non commandable | ||||
652 | 313467 | |||
Pas d'informations disponibles, non commandable | ||||
653 | 956009 | |||
Pas d'informations disponibles, non commandable | ||||
654 | 955165 | |||
Pas d'informations disponibles, non commandable | ||||
655 | 321813 | |||
Pas d'informations disponibles, non commandable | ||||
656 | 313468 | |||
Pas d'informations disponibles, non commandable | ||||
657 | 303334 | |||
Pas d'informations disponibles, non commandable | ||||
658 | 930515 | |||
Pas d'informations disponibles, non commandable | ||||
659 | 313469 | |||
Pas d'informations disponibles, non commandable | ||||
660 | 313470 | |||
Pas d'informations disponibles, non commandable | ||||
661 | 313471 | |||
Pas d'informations disponibles, non commandable | ||||
662 | 313472 | |||
Pas d'informations disponibles, non commandable | ||||
663 | 313473 | |||
Pas d'informations disponibles, non commandable | ||||
664 | 313474 | |||
Pas d'informations disponibles, non commandable | ||||
665 | 313475 | |||
Pas d'informations disponibles, non commandable | ||||
666 | 313476 | |||
Pas d'informations disponibles, non commandable | ||||
667 | 313478 | |||
Pas d'informations disponibles, non commandable | ||||
668 | 313477 | |||
Pas d'informations disponibles, non commandable | ||||
669 | 313479 |
