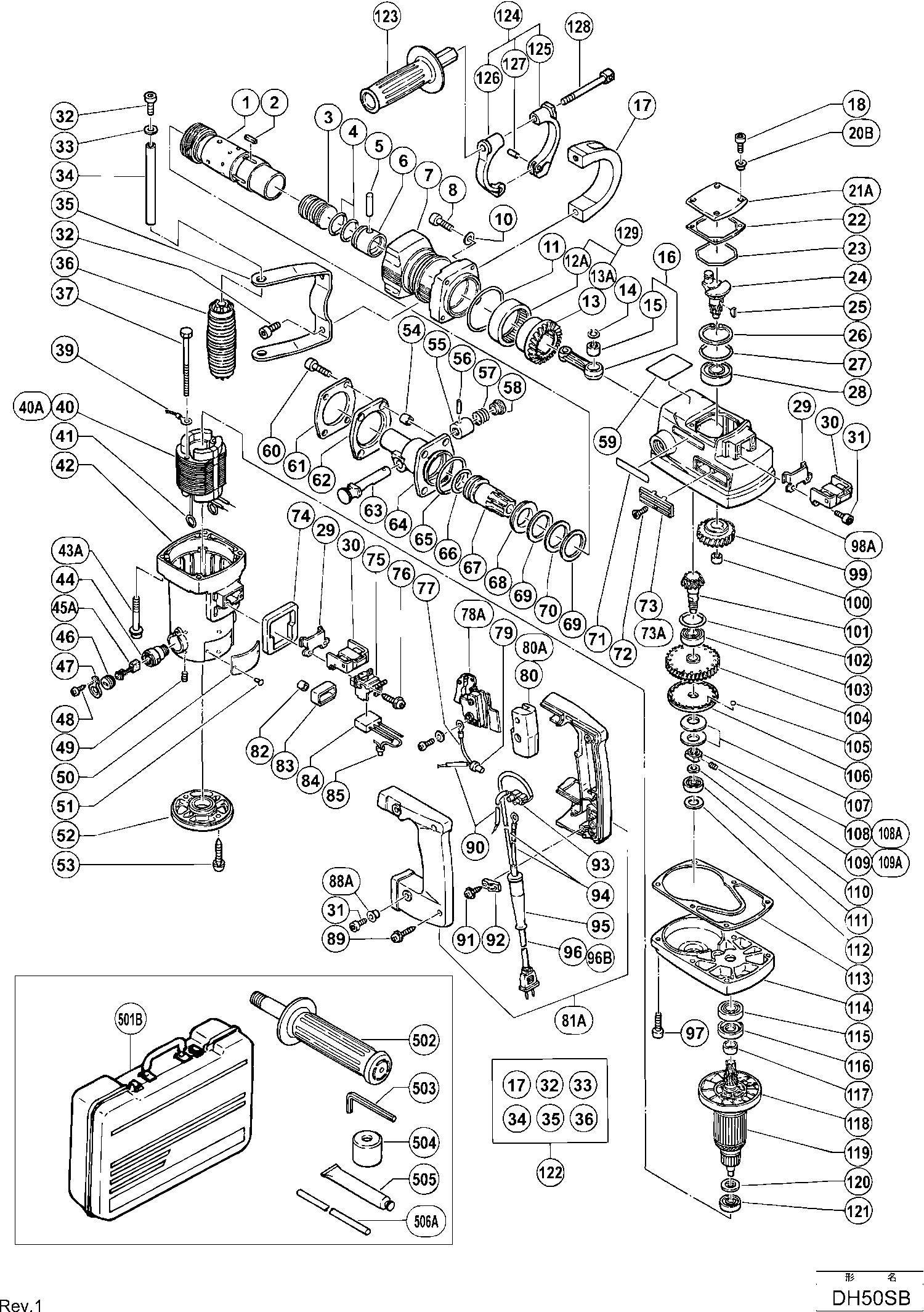

Dessins des Hikoki DH50SB
Liste de pièces de rechange des Hikoki DH50SB
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Cylindre | ||||
1 | 993231 | 239.11 | 286.94 | |
Clavette 3*3*20 Till 4.2002 | ||||
2 | 971750 | 1.05 | 1.26 | |
Frappeur H60ma/ka | ||||
3 | 993252 | 46.75 | 56.10 | |
O Ring Dh 22vb/20dv | ||||
4 | 985773 | 7.95 | 9.54 | |
Broche | ||||
5 | 955593 | 3.00 | 3.60 | |
Piston | ||||
6 | 985772 | 52.53 | 63.03 | |
Plus disponible, pas de remplacement | ||||
7 | 993247 | |||
Verrouillage d'étanchéité Hex. Douille | ||||
8 | 993237 | 1.05 | 1.26 | |
Rondelle M.6 (x10) paquet de 10 | ||||
10 | 949432 | 1.05 | 1.26 | |
Joint Torique | ||||
11 | 985779 | 2.40 | 2.88 | |
Roulement A Aiguilles | ||||
12A | 327733 | 26.68 | 32.01 | |
Pignon | ||||
13 | 985775 | 78.79 | 94.54 | |
Troisième Pignon | ||||
13A | 327736 | 78.79 | 94.54 | |
Circlips Ø12 (x10) paquet de 10 | ||||
14 | 939542 | 1.50 | 1.80 | |
Roulement Aiguilles Dh38ya/45sa | ||||
15 | 980756 | 10.65 | 12.78 | |
Bielle | ||||
16 | 985771 | 43.86 | 52.64 | |
Pas d'informations disponibles, non commandable | ||||
17 | 986960 | |||
Vis M4*12 For Switch Holder (t2.6 Steel Plate) | ||||
18 | 983162 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
20B | 990146 | |||
Couvercle H 41sa | ||||
21A | 991716 | 7.95 | 9.54 | |
Joint | ||||
22 | 980749 | 1.05 | 1.26 | |
Joint Thorique Phu | ||||
23 | 980744 | 2.55 | 3.06 | |
Vilebrequin | ||||
24 | 985763 | 64.21 | 77.06 | |
Goupille 3X13 | ||||
25 | 932815 | 1.35 | 1.62 | |
Circlips Dh-50sa | ||||
26 | 948227 | 1.35 | 1.62 | |
O-ring Dh-50sa | ||||
27 | 985765 | 1.95 | 2.34 | |
Roulement à billes 6204dducmps2s | ||||
28 | 6204DD | 9.00 | 10.80 | |
Plaque | ||||
29 | 980750 | 17.05 | 20.46 | |
Amortisseur Poignee | ||||
30 | 980727 | 14.10 | 16.92 | |
Vis M.5*14 | ||||
31 | 984509 | 1.05 | 1.26 | |
Vis M8x20 par paquet de 10 | ||||
32 | 949656 | 5.55 | 6.66 | |
Pas d'informations disponibles, non commandable | ||||
33 | 986963 | |||
Arbre pour support de poignée | ||||
34 | 986962 | 14.03 | 16.83 | |
Support G23se For Noise Suppressor | ||||
35 | 986961 | 14.70 | 17.64 | |
Poignée | ||||
36 | 944951 | 8.40 | 10.08 | |
Vis M 12v | ||||
37 | 961400 | 1.04 | 1.24 | |
Terminal For Sui,gbr,ita,ger,aus,nor,swe,fin,den, | ||||
39 | 986277 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
40 | 985471C | |||
Inducteur H-55sa Includ.98 For Gbr,frg,fra,hol,de | ||||
40A | 985471F | 78.79 | 94.54 | |
Raccord | ||||
41 | 937623 | 1.04 | 1.24 | |
Carcasse | ||||
42 | 985435 | 107.94 | 129.52 | |
Boulon Hd M6x60 | ||||
43A | 994085 | 1.65 | 1.98 | |
S/e Porte Balais | ||||
44 | 983362 | 6.45 | 7.74 | |
Jeu De Charbons H55sa | ||||
45A | 999071 | 14.40 | 17.28 | |
Bouchon Charbon | ||||
46 | 961781 | 2.55 | 3.06 | |
Protect.bouchon Phu-45 | ||||
47 | 981959 | 2.40 | 2.88 | |
Vis | ||||
48 | 958715 | 1.04 | 1.24 | |
Vis de réglage hexagonale M5x8 | ||||
49 | 938477 | 1.05 | 1.26 | |
Rivet D2,5x4,8 (10 pièces) | ||||
51 | 949510 | 1.04 | 1.24 | |
Couvercle H-55sa | ||||
52 | 985437 | 24.61 | 29.54 | |
Vis Dh 38yf | ||||
53 | 985480 | 1.05 | 1.26 | |
Bague | ||||
54 | 986892 | 5.25 | 6.30 | |
Logement De Ressort Dh38yd/h60ka | ||||
55 | 993241 | 18.70 | 22.44 | |
Goupille Ø4*20 Till 10.1987 (till 9.1987 For Aus, | ||||
56 | 943364 | 1.05 | 1.26 | |
Clips H 25pv | ||||
57 | 993242 | 1.65 | 1.98 | |
Butee Dh50sb/h60ka | ||||
58 | 993243 | 7.95 | 9.54 | |
Vis H-90sa | ||||
60 | 986894 | 1.05 | 1.26 | |
Plus disponible, pas de remplacement | ||||
61 | 986891 | |||
Pas d'informations disponibles, non commandable | ||||
62 | 986890 | |||
Clavette H65sd/h65sd2 | ||||
63 | 993240 | 58.44 | 70.12 | |
Couvercle avant | ||||
64 | 993236 | 253.69 | 304.42 | |
Plaq.en Caoutchouc (1) | ||||
65 | 986896 | 1.65 | 1.98 | |
Joint Torique | ||||
66 | 986882 | 10.20 | 12.24 | |
Plus disponible, pas de remplacement | ||||
67 | 993232 | |||
Rondelle Amortisseur Dh38yf/45sa | ||||
68 | 993235 | 12.45 | 14.94 | |
Amortisseur | ||||
69 | 993234 | 5.25 | 6.30 | |
Bague | ||||
70 | 993233 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
71 | 957561 | |||
SEAL LOCK PLATTE VIS M4X12 | ||||
72 | 993244 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
73 | 980735 | |||
Pas d'informations disponibles, non commandable | ||||
73A | 991713 | |||
Joint | ||||
74 | 980751 | 1.35 | 1.62 | |
Passe Fil H55sa/65sb/sd | ||||
75 | 985469 | 8.70 | 10.44 | |
Vis H 55sa | ||||
76 | 985605 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
77 | 983276Z | |||
Interrupteur Dh38ya/h90se/h70sa For Usa | ||||
78A | 992891 | 22.83 | 27.39 | |
Connecteur 50092 | ||||
79 | 959141 | 3.75 | 4.50 | |
Support Inter Phu-45 Till 7.1988 | ||||
80 | 981869 | 6.30 | 7.56 | |
Pas d'informations disponibles, non commandable | ||||
80A | 990082 | |||
Poignée pour DH50SA et DH50SB (ancien 993238) | ||||
81A | 993254 | 43.86 | 52.64 | |
Support de câble | ||||
83 | 985474 | 2.40 | 2.88 | |
Condensateur | ||||
84 | 994273 | 4.29 | 5.14 | |
Connecteur 50091 | ||||
85 | 959140 | 3.30 | 3.96 | |
Entretoise | ||||
88A | 991711 | 1.05 | 1.26 | |
Plus disponible, pas de remplacement | ||||
89 | 981814 | |||
Vis Ø4*20 | ||||
91 | 982095 | 1.04 | 1.24 | |
Serre Cable | ||||
92 | 960266 | 1.04 | 1.24 | |
Connecteur Till 10.1999 For Aus | ||||
93 | 938307 | 2.13 | 2.55 | |
Entree De Cable Ø 10,7 | ||||
95 | 940778 | 2.10 | 2.52 | |
Plus disponible, pas de remplacement | ||||
96 | 500391Z | |||
Pas d'informations disponibles, non commandable | ||||
96B | 500434Z | |||
Vis Dh-38 | ||||
97 | 992803 | 1.05 | 1.26 | |
Carter de Vilebrequin | ||||
98A | 987020 | 73.01 | 87.62 | |
Engrenage | ||||
99 | 985764 | 32.18 | 38.61 | |
Roulement A Aiguilles | ||||
100 | 939299 | 10.65 | 12.78 | |
Pignon | ||||
101 | 985770 | 61.33 | 73.59 | |
O Ring (s-36) | ||||
102 | 984483 | 1.65 | 1.98 | |
Roulement A Bille | ||||
103 | 6202DD | 6.75 | 8.10 | |
Plus disponible, pas de remplacement | ||||
104 | 985766 | |||
Bille d'acier D6.35 (10 pièces) | ||||
105 | 959150 | 1.35 | 1.62 | |
Plaque | ||||
106 | 985767 | 37.95 | 45.54 | |
Ressort | ||||
107 | 985768 | 2.55 | 3.06 | |
Ecrou | ||||
108 | 985783 | 7.95 | 9.54 | |
Pas d'informations disponibles, non commandable | ||||
108A | 300042 | |||
Vis Ø 5x6 Till 2.1986 | ||||
109 | 962782 | 1.04 | 1.24 | |
Vis Dh 50sa1 | ||||
109A | 985033 | 1.05 | 1.26 | |
Bague | ||||
110 | 944516 | 1.04 | 1.24 | |
Roulement à billes 629mc2e | ||||
111 | 629MC2 | 4.65 | 5.58 | |
Bague | ||||
112 | 944525 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
113 | 985769 | |||
Boîtier d'engrenage (985762) | ||||
114 | 993248 | 50.46 | 60.56 | |
Roulement | ||||
115 | 6202VV | 7.05 | 8.46 | |
Joint H-55sa | ||||
116 | 985439 | 10.95 | 13.14 | |
Rondelle H-55sa | ||||
117 | 985438 | 20.76 | 24.92 | |
Ventilateur | ||||
118 | 985482 | 7.35 | 8.82 | |
ARMATURE 115 VOLT (ANCIEN 985472J) | ||||
119 | 985472U | 180.81 | 216.98 | |
ARMATURE 220-230 VOLT (ANCIEN 985472G) | ||||
119 | 985472E | 160.46 | 192.56 | |
Rondelle H-55sa | ||||
120 | 985436 | 1.05 | 1.26 | |
Roulement à billes 6200 Vv | ||||
121 | 6200VV | 6.15 | 7.38 | |
Poignée d'arc | ||||
122 | 986959 | 78.79 | 94.54 | |
Pas d'informations disponibles, non commandable | ||||
123 | 985477 | |||
Collier Complet H-55sa Includ.1,2,28 (since 1.200 | ||||
124 | 985464 | 20.76 | 24.92 | |
Porte-poignée | ||||
125 | 985475 | 10.95 | 13.14 | |
Porte-poignée | ||||
126 | 985476 | 10.20 | 12.24 | |
GOUPILLE ROULANTE D6X25 (10 PIÈCES) | ||||
127 | 949747 | 4.50 | 5.40 | |
Pas d'informations disponibles, non commandable | ||||
128 | 985465 | |||
Troisième engrenage & Roulement à aiguilles | ||||
129 | 327737 | 105.05 | 126.06 | |
Pas d'informations disponibles, non commandable | ||||
501B | 319784 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 956259 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 872422 | |||
Couvercle anti-poussière | ||||
504 | 993245 | 6.75 | 8.10 | |
Graisse (tube 30 Grammes) | ||||
505 | 981840 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
506A | 971786 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 985374 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 985375 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 985376 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 993230 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 985377 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 985378 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 985383 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 985398 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 985381 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 985382 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 985384 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 985385 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 985386 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 985379 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 985380 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 955159 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 987013 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 955165 | |||
Pas d'informations disponibles, non commandable | ||||
620A | 318085 | |||
Graisse (pot de 500 grammes) | ||||
621 | 980927 | 73.01 | 87.62 | |
Kit de service DH50SB | ||||
622 | 993255 | 122.51 | 147.02 | |
Kit de service DH50SB | ||||
622S | 993255 | 122.51 | 147.02 | |
Pas d'informations disponibles, non commandable | ||||
623 | 320859 |
