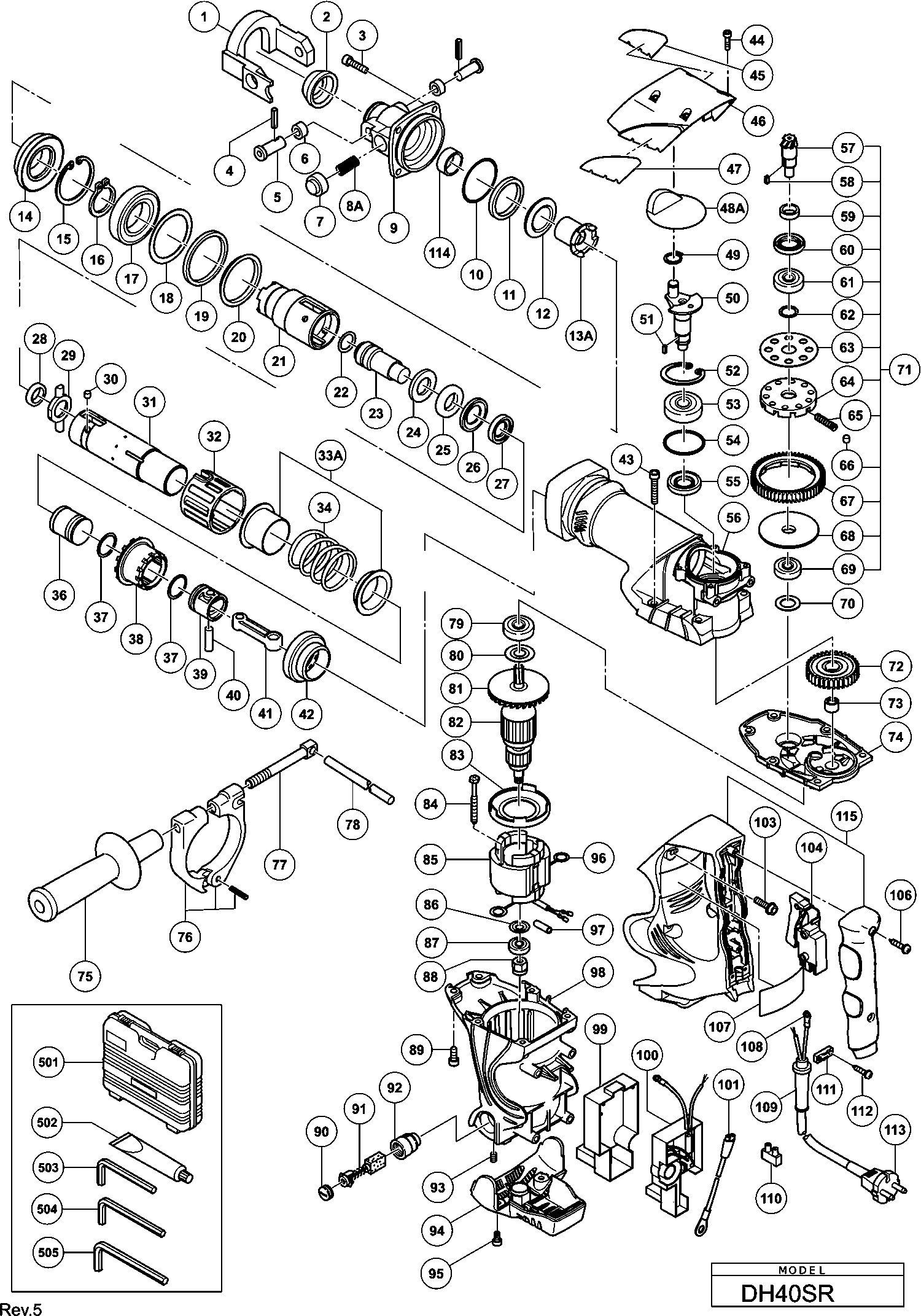

Dessins des Hikoki DH40SR
Liste de pièces de rechange des Hikoki DH40SR
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Etrier H 41sa | ||||
1 | 990131 | 35.06 | 42.08 | |
Housse Anti-Poussière | ||||
2 | 322078 | 1.65 | 1.98 | |
Vis Ø 16x25 | ||||
3 | 981942 | 1.65 | 1.98 | |
Goupille H 41sa | ||||
4 | 991697 | 1.05 | 1.26 | |
Axe D Etrier H 41sa | ||||
5 | 990135 | 11.85 | 14.22 | |
Amortisseur H 41sa | ||||
6 | 990134 | 2.40 | 2.88 | |
Bouton-poussoir | ||||
7 | 990133 | 9.60 | 11.52 | |
Ressort | ||||
8A | 331239 | 1.05 | 1.26 | |
Boîtier Avant | ||||
9 | 321844 | 160.46 | 192.56 | |
O Ring (1as-60) Since 9.1979 | ||||
10 | 956996 | 3.00 | 3.60 | |
Amortisseur | ||||
11 | 321843 | 4.80 | 5.76 | |
Porte-pilote | ||||
12 | 321842 | 13.50 | 16.20 | |
GUIDE ENTRAINEMENT | ||||
13A | 321841 | 35.06 | 42.08 | |
Joint d'huile | ||||
14 | 321840 | 6.75 | 8.10 | |
Bague de retenue pour trou D62 | ||||
15 | 321839 | 3.30 | 3.96 | |
Rondelle Elastique | ||||
16 | 948131 | 1.65 | 1.98 | |
Roulement | ||||
17 | 6007DD | 14.25 | 17.10 | |
Bague Acier Dh 40mr | ||||
18 | 321297 | 3.30 | 3.96 | |
Bague Vry-38 | ||||
19 | 981859 | 3.00 | 3.60 | |
Pas d'informations disponibles, non commandable | ||||
20 | 321838 | |||
Manchon de marteau | ||||
21 | 321837 | 61.33 | 73.59 | |
O Ring Dh 40ma | ||||
22 | 313396 | 4.80 | 5.76 | |
Second Frappeur | ||||
23 | 321833 | 18.43 | 22.11 | |
Pas d'informations disponibles, non commandable | ||||
24 | 321836 | |||
Amortisseur | ||||
25 | 321835 | 6.45 | 7.74 | |
Support d'amortisseur | ||||
26 | 321834 | 8.10 | 9.72 | |
Porte-amortisseur (b) | ||||
27 | 321856 | 7.65 | 9.18 | |
Amortisseur | ||||
28 | 321832 | 3.45 | 4.14 | |
Bague coulissante | ||||
29 | 321831 | 18.56 | 22.28 | |
Goupille Ø 6*6 | ||||
30 | 313057 | 4.20 | 5.04 | |
Cylindre | ||||
31 | 321827 | 144.79 | 173.74 | |
Manchon coulissant (b) | ||||
32 | 321830 | 6.45 | 7.74 | |
Ensemble Manchon Coulissant (a) | ||||
33A | 326512 | 31.90 | 38.28 | |
Pas d'informations disponibles, non commandable | ||||
34 | 321828 | |||
Frappeur H60ma/ka | ||||
36 | 321976 | 15.26 | 18.32 | |
Joint Torique | ||||
37 | 986104 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
38 | 321975 | |||
Piston | ||||
39 | 321284 | 6.45 | 7.74 | |
Goupille | ||||
40 | 980708 | 2.40 | 2.88 | |
Bielle | ||||
41 | 321285 | 4.80 | 5.76 | |
Pignon | ||||
42 | 321296 | 58.44 | 70.12 | |
Vis M6*45 | ||||
43 | 986940 | 1.05 | 1.26 | |
Vis M4*12 For Switch Holder (t2.6 Steel Plate) | ||||
44 | 983162 | 1.05 | 1.26 | |
Capot Dh 40mr | ||||
46 | 321315 | 13.75 | 16.50 | |
Joint en caoutchouc | ||||
48A | 335023 | 1.04 | 1.24 | |
Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
49 | 939540 | 1.95 | 2.34 | |
Exentrique Dh 40mr | ||||
50 | 321275 | 55.41 | 66.50 | |
Clavette 3*3*8 | ||||
51 | 944109 | 1.70 | 2.04 | |
Circlips | ||||
52 | 948391 | 1.65 | 1.98 | |
Roulement à billes 6203dducmav2s | ||||
53 | 6203DD | 7.65 | 9.18 | |
O-ring H 41sa | ||||
54 | 996363 | 1.65 | 1.98 | |
Plus disponible, pas de remplacement | ||||
55 | 321274 | |||
Cylindre | ||||
56 | 321826 | 107.94 | 129.52 | |
Petit Pignon Dh 40mr | ||||
57 | 321278 | 27.23 | 32.67 | |
Clavette 3*3*8 | ||||
58 | 944109 | 1.70 | 2.04 | |
Bague | ||||
59 | 321279 | 8.40 | 10.08 | |
Joint Dh 40yb | ||||
60 | 313050 | 3.90 | 4.68 | |
Roulement A Billes | ||||
61 | 6002DD | 7.05 | 8.46 | |
Bague | ||||
62 | 313058 | 1.05 | 1.26 | |
Rondelle | ||||
63 | 313053 | 3.60 | 4.32 | |
Disque D Embrayage | ||||
64 | 321281 | 17.88 | 21.45 | |
Ressort | ||||
65 | 321282 | 1.65 | 1.98 | |
Broche | ||||
66 | 320343 | 3.30 | 3.96 | |
Roue D Embrayage Dh 40mr | ||||
67 | 321280 | 28.88 | 34.65 | |
Bague De Calage | ||||
68 | 321283 | 14.30 | 17.16 | |
Roulement A Bille | ||||
69 | 629VVM | 5.85 | 7.02 | |
Bague | ||||
70 | 944525 | 1.05 | 1.26 | |
Embrayage Complet Includ.57-59,61-69 | ||||
71 | 321277 | 137.09 | 164.50 | |
Engrenage | ||||
72 | 321276 | 28.05 | 33.66 | |
Roulement A Aiguilles | ||||
73 | 939299 | 10.65 | 12.78 | |
Carter | ||||
74 | 321319 | 40.84 | 49.00 | |
Pas d'informations disponibles, non commandable | ||||
75 | 313078 | |||
Collier Dh 40yb | ||||
76 | 313079 | 16.09 | 19.30 | |
Boulon Dh 40yb | ||||
77 | 313080 | 11.85 | 14.22 | |
Pas d'informations disponibles, non commandable | ||||
78 | 971786 | |||
Roulement à billes 6201dducmav2s | ||||
79 | 6201DD | 6.30 | 7.56 | |
Joint | ||||
80 | 302429 | 1.05 | 1.26 | |
Ventilateur Dh 40fr | ||||
81 | 321640 | 6.45 | 7.74 | |
Induit 230v | ||||
82 | 360591E | 110.83 | 132.99 | |
Baffle | ||||
83 | 321320 | 3.30 | 3.96 | |
Vis D5*55 | ||||
84 | 953174 | 1.04 | 1.24 | |
Inducteur Dh 40mr Includ.96 | ||||
85 | 340542E | 69.99 | 83.98 | |
Rondelle | ||||
86 | 982631 | 1.04 | 1.24 | |
Roulement A Billes | ||||
87 | 608VVM | 5.70 | 6.84 | |
Aimant | ||||
88 | 318721 | 17.60 | 21.12 | |
Boulon à tête hexagonale Seal Lock M6x22 | ||||
89 | 321313 | 1.65 | 1.98 | |
Bouchon Charbon H41sa Vb13y | ||||
90 | 935829 | 1.05 | 1.26 | |
Charbons Autorupteurs (1 paire) | ||||
91 | 999073 | 14.40 | 17.28 | |
S/e Porte Balais | ||||
92 | 971001 | 6.45 | 7.74 | |
Vis de réglage hexagonale M5x8 | ||||
93 | 938477 | 1.05 | 1.26 | |
Carter Inferieur Dh 40mr | ||||
94 | 321321 | 10.20 | 12.24 | |
Vis à tête creuse avec joint d'étanchéité M5x10 | ||||
95 | 877839 | 1.05 | 1.26 | |
Raccord | ||||
96 | 930703 | 2.40 | 2.88 | |
Tube | ||||
97 | 321322 | 1.65 | 1.98 | |
Carter | ||||
98 | 321318 | 102.16 | 122.60 | |
Boîtier (b) | ||||
99 | 321858 | 4.80 | 5.76 | |
Circuit régulateur 230v pour l'Europe | ||||
100 | 321862 | 145.89 | 175.06 | |
Fil interne | ||||
101 | 317113 | 3.30 | 3.96 | |
Vis 5x14 | ||||
103 | 998485 | 1.05 | 1.26 | |
Commutateur | ||||
104 | 313093 | 14.30 | 17.16 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
106 | 301653 | 1.04 | 1.24 | |
Borne | ||||
108 | 980063 | 1.04 | 1.24 | |
Entree De Cable Ø 10,7 | ||||
109 | 940778 | 2.10 | 2.52 | |
Protecteur de câble D8.2 (ancien 958049z) | ||||
109 | 958049 | 1.04 | 1.24 | |
Connecteur Till 10.1999 For Aus | ||||
110 | 938307 | 2.13 | 2.55 | |
Serre Cable | ||||
111 | 960266 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
112 | 984750 | |||
Pas d'informations disponibles, non commandable | ||||
113 | 500424Z | |||
Douille en métal | ||||
114 | 324481 | 3.00 | 3.60 | |
Jeu de poignées (ancien 321859) | ||||
115 | 335739 | 16.91 | 20.30 | |
Pas d'informations disponibles, non commandable | ||||
501 | 321325 | |||
Graisse (tube 30 Grammes) | ||||
502 | 981840 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
503 | 943277 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 944458 | |||
Pas d'informations disponibles, non commandable | ||||
505 | 944459 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 985721 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 985720 | |||
Pas d'informations disponibles, non commandable | ||||
