Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki DH40MEY2'. De là, vous pouvez commander directement toutes les pièces souhaitées.De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

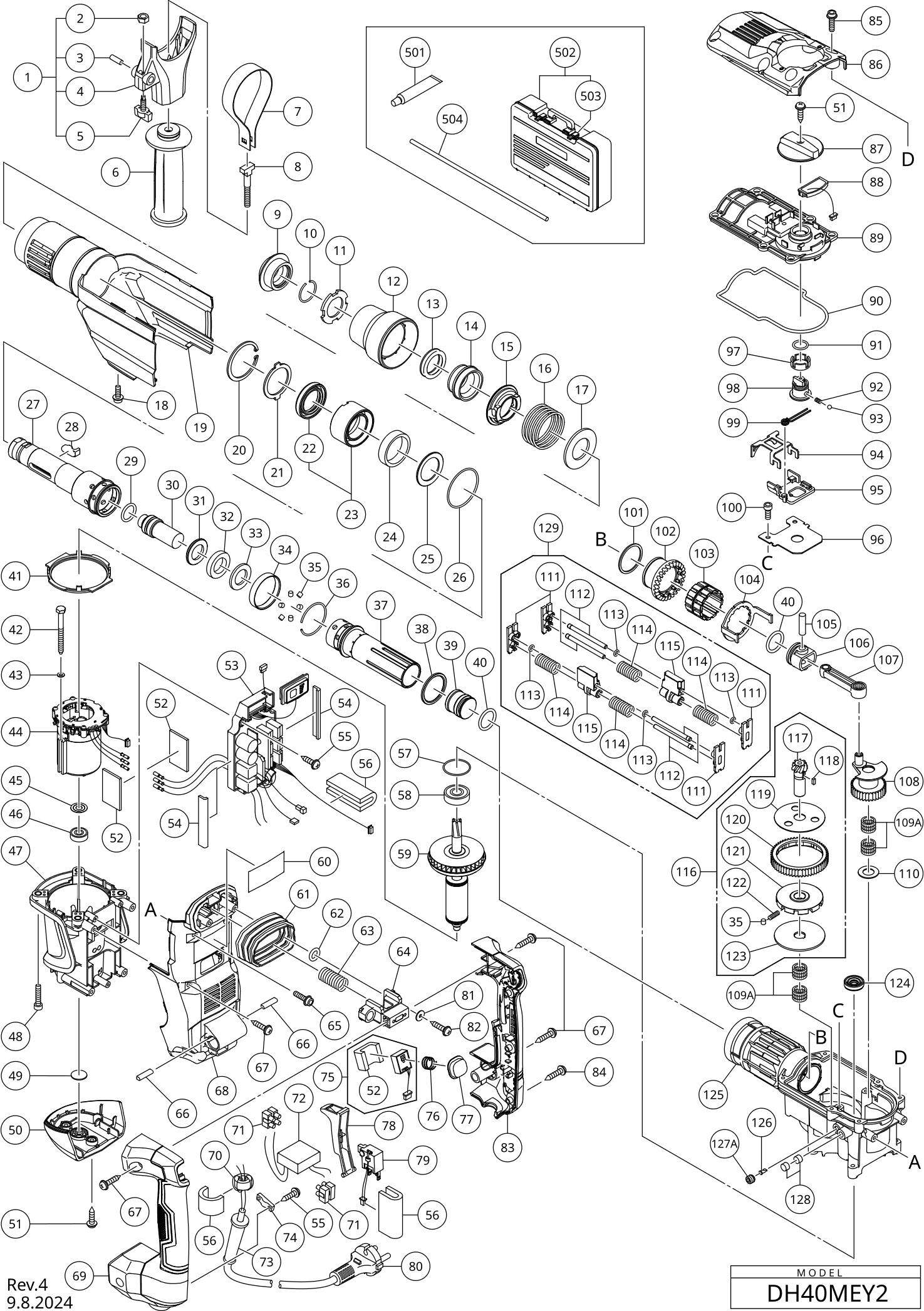

Dessins des Hikoki DH40MEY2
Liste de pièces de rechange des Hikoki DH40MEY2
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| MOUNT ASS'Y NEW | ||||
| *1 | 380209 | 2.34 | 2.81 | |
| Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
| *2 | 949556 | 1.05 | 1.26 | |
| Goupille Ø2x8 Nr 90gc | ||||
| *3 | 949859 | 1.20 | 1.44 | |
| STATOR SENSOR PCB SET 220V-240V NEW | ||||
| *44 | 341170E | 32.78 | 39.34 | |
| Boulon à ailettes | ||||
| *5 | 337577 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| *504 | 971786 | |||
| Emballage (a) | ||||
| *52 | 339059 | 1.04 | 1.24 | |
| CONTROLLER SET 220V-240V NEW | ||||
| *53 | 380642 | 82.72 | 99.26 | |
| Support Except For Usa,can | ||||
| *56 | 317492 | 1.65 | 1.98 | |
| FILTER PCB SET 220V-240V NEW | ||||
| *72 | 380341 | 9.60 | 11.52 | |
| Entree De Cable Ø 10,1 | ||||
| *73 | 938051 | 1.04 | 1.24 | |
| Cordon 5m 2 X 1,0 W/fiche 13a/250v Pour Gbr | ||||
| *80 | 500440Z | 20.49 | 24.58 | |
| MOUNT NEW | ||||
| 4 | 380324 | 1.74 | 2.09 | |
| SIDE HANDLE NEW | ||||
| 6 | 380210 | 4.44 | 5.33 | |
| BAND NEW | ||||
| 7 | 380208 | 2.58 | 3.10 | |
| Boulon Dh 40yb | ||||
| 8 | 331247 | 4.20 | 5.04 | |
| Couvercle Avant H 45/h 60ma/mr | ||||
| 9 | 371151 | 1.80 | 2.16 | |
| Anneau de retenue | ||||
| 10 | 318590 | 1.65 | 1.98 | |
| Rondelle de retenue | ||||
| 11 | 371138 | 1.95 | 2.34 | |
| GRIP NEW | ||||
| 12 | 381003 | 3.72 | 4.46 | |
| Amortisseur de retenue (a) | ||||
| 13 | 337559 | 1.05 | 1.26 | |
| BIT LOCK HOLDER NEW | ||||
| 14 | 380375 | 4.80 | 5.76 | |
| THRUST PLATE NEW | ||||
| 15 | 380374 | 6.54 | 7.85 | |
| Ressort de retenue | ||||
| 16 | 337556 | 1.50 | 1.80 | |
| Support de ressort (a) | ||||
| 17 | 371145 | 1.04 | 1.24 | |
| Vis Allen Hd M5x12 | ||||
| 18 | 998471 | 1.05 | 1.26 | |
| CYLINDER COVER NEW | ||||
| 19 | 380344 | 6.66 | 7.99 | |
| Anneau de retenue pour trou D52 | ||||
| 20 | 967270 | 1.05 | 1.26 | |
| STOPPER WASHER NEW | ||||
| 21 | 380373 | 1.00 | 1.20 | |
| OIL SEAL (B) NEW | ||||
| 22 | 380370 | 1.00 | 1.20 | |
| METAL ASS'Y NEW | ||||
| 23 | 380369 | 8.76 | 10.51 | |
| RETAINER DAMPER (B) NEW | ||||
| 24 | 380371 | 1.00 | 1.20 | |
| RETAINER DAMPER WASHER NEW | ||||
| 25 | 380372 | 2.58 | 3.10 | |
| Joint Torique | ||||
| 26 | 331244 | 1.05 | 1.26 | |
| RETAINER SLEEVE NEW | ||||
| 27 | 380361 | 30.20 | 36.24 | |
| Verrou de Bit | ||||
| 28 | 370654 | 4.95 | 5.94 | |
| O Ring Dh 40ma | ||||
| 29 | 313396 | 4.80 | 5.76 | |
| SECOND HAMMER NEW | ||||
| 30 | 380362 | 6.54 | 7.85 | |
| DAMPER WASHER NEW | ||||
| 31 | 380363 | 2.58 | 3.10 | |
| DAMPER NEW | ||||
| 32 | 380364 | 3.30 | 3.96 | |
| DAMPER HOLDER NEW | ||||
| 33 | 380365 | 1.74 | 2.09 | |
| NEEDLE SLEEVE NEW | ||||
| 34 | 380367 | 2.46 | 2.95 | |
| Aiguille (10) | ||||
| 35 | 331217 | 1.05 | 1.26 | |
| Rondelle | ||||
| 36 | 323073 | 1.65 | 1.98 | |
| CYLINDER NEW | ||||
| 37 | 380366 | 17.98 | 21.58 | |
| THRUST WASHER (B) NEW | ||||
| 38 | 380368 | 2.46 | 2.95 | |
| STRIKER NEW | ||||
| 39 | 380355 | 3.72 | 4.46 | |
| Joint Torique | ||||
| 40 | 986104 | 1.05 | 1.26 | |
| FAN GUIDE NEW | ||||
| 41 | 380337 | 1.00 | 1.20 | |
| Vis Ø 4x65 | ||||
| 42 | 963712 | 1.04 | 1.24 | |
| Rondelle de boulon M4 (noir) Pour 220v-240v | ||||
| 43 | 323210 | 1.05 | 1.26 | |
| Rondelle | ||||
| 45 | 982631 | 1.04 | 1.24 | |
| Roulement A Billes | ||||
| 46 | 608VVM | 5.70 | 6.84 | |
| HOUSING NEW | ||||
| 47 | 380334 | 11.94 | 14.33 | |
| Boulon à six pans creux avec frein filet M6x30 | ||||
| 48 | 993496 | 1.05 | 1.26 | |
| Joint anti-poussière | ||||
| 49 | 333263 | 1.04 | 1.24 | |
| TAIL COVER DH40MEY2 NEW | ||||
| 50 | 380336 | 1.38 | 1.66 | |
| Pas d'informations disponibles, non commandable | ||||
| 51 | 307811 | |||
| PACKING (B) NEW | ||||
| 54 | 381004 | 1.00 | 1.20 | |
| TAPPING SCREW D4X16 (W/FLANGE) NEW | ||||
| 55 | 375308 | 1.00 | 1.20 | |
| O-ring Dh 25v/vtp 18 | ||||
| 57 | 872767 | 1.65 | 1.98 | |
| Roulement à billes 6201dducmav2s | ||||
| 58 | 6201DD | 6.30 | 7.56 | |
| ROTOR (B) NEW | ||||
| 59 | 361227 | 47.36 | 56.83 | |
| RUBBER DEMPER | ||||
| 61 | 375306 | 2.70 | 3.24 | |
| O Ring Dh 40ma | ||||
| 62 | 322808 | 1.65 | 1.98 | |
| HANDLE SPRING NEW | ||||
| 63 | 380388 | 1.00 | 1.20 | |
| HANDLE HOLDER NEW | ||||
| 64 | 380389 | 1.00 | 1.20 | |
| Vis M5*16 (g23sc2/se2/sc3/vb13y) | ||||
| 65 | 994192 | 1.04 | 1.24 | |
| Butoir de Poids | ||||
| 66 | 338194 | 1.04 | 1.24 | |
| Vis autotaraudeuse D5x20 avec bride (noir) | ||||
| 67 | 302089 | 1.05 | 1.26 | |
| BACK COVER NEW | ||||
| 68 | 380387 | 5.40 | 6.48 | |
| HANDLE (A) NEW | ||||
| 69 | 380643 | 4.92 | 5.90 | |
| Pas d'informations disponibles, non commandable | ||||
| 71 | 958308Z | |||
| Serre Cable | ||||
| 74 | 960266 | 1.04 | 1.24 | |
| ON LOCK PCB (A) ASS'Y | ||||
| 75 | 380888 | 8.76 | 10.51 | |
| VEER | ||||
| 76 | 375321 | 1.00 | 1.20 | |
| Bouton-poussoir | ||||
| 77 | 338171 | 1.05 | 1.26 | |
| TRIGGER NEW | ||||
| 78 | 380342 | 1.00 | 1.20 | |
| SWITCH NEW | ||||
| 79 | 381005 | 11.58 | 13.90 | |
| Rondelle (1) | ||||
| 81 | 374772 | 1.04 | 1.24 | |
| Vis auto-taraudeuse (avec bride) D5x25 (noir) | ||||
| 82 | 305558 | 1.04 | 1.24 | |
| HANDLE (B) NEW | ||||
| 83 | 380644 | 4.68 | 5.62 | |
| Vis à tarauder D4x20 avec bride (noir) | ||||
| 84 | 301653 | 1.04 | 1.24 | |
| Boulon à tête hex. (avec bride) M5x18 | ||||
| 85 | 338177 | 1.04 | 1.24 | |
| CRANK COVER NEW | ||||
| 86 | 380386 | 4.68 | 5.62 | |
| CHANGE LEVER NEW | ||||
| 87 | 380645 | 3.30 | 3.96 | |
| ON LOCK PCB (B) NEW | ||||
| 88 | 380646 | 8.16 | 9.79 | |
| LEVER HOLDER NEW | ||||
| 89 | 380390 | 2.10 | 2.52 | |
| SEAL RING NEW | ||||
| 90 | 380385 | 2.82 | 3.38 | |
| Joint Torique | ||||
| 91 | 338312 | 1.20 | 1.44 | |
| Ressort de levier | ||||
| 92 | 337567 | 1.04 | 1.24 | |
| Balle en acier D5 | ||||
| 93 | 370239 | 1.04 | 1.24 | |
| Bille d'acier D4.76 (10 pièces) | ||||
| 93A | 959149 | 1.04 | 1.24 | |
| HOOK NEW | ||||
| 94 | 380384 | 1.08 | 1.30 | |
| SLIDER NEW | ||||
| 95 | 380382 | 1.00 | 1.20 | |
| CRANK PLATE NEW | ||||
| 96 | 380357 | 1.08 | 1.30 | |
| BALL HOLDER NEW | ||||
| 97 | 380381 | 2.46 | 2.95 | |
| LEVER SHAFT NEW | ||||
| 98 | 380380 | 1.26 | 1.51 | |
| CLUTCH SPRING NEW | ||||
| 99 | 380383 | 1.00 | 1.20 | |
| Vis M.5*14 | ||||
| 100 | 984509 | 1.05 | 1.26 | |
| METAL WASHER NEW | ||||
| 101 | 380358 | 1.00 | 1.20 | |
| BEVEL GEAR NEW | ||||
| 102 | 380359 | 9.00 | 10.80 | |
| CLUTCH NEW | ||||
| 103 | 380360 | 3.84 | 4.61 | |
| LOCK PLATE NEW | ||||
| 104 | 380356 | 2.70 | 3.24 | |
| Goupille Dh 38ms | ||||
| 105 | 331221 | 1.05 | 1.26 | |
| Piston | ||||
| 106 | 326369 | 3.30 | 3.96 | |
| Assemblage de bielle incl.40 | ||||
| 107 | 337535 | 11.25 | 13.50 | |
| CRANK GEAR NEW | ||||
| 108 | 380348 | 18.20 | 21.84 | |
| NEEDLE CAGE (OUD 380346) | ||||
| 109A | 382313 | 4.80 | 5.76 | |
| THRUST WASHER (A) NEW | ||||
| 110 | 380347 | 1.00 | 1.20 | |
| WEIGHT HOLDER NEW | ||||
| 111 | 380376 | 1.00 | 1.20 | |
| WEIGHT SHAFT NEW | ||||
| 112 | 380377 | 2.34 | 2.81 | |
| O Ring | ||||
| 113 | 307292 | 1.05 | 1.26 | |
| WEIGHT SPRING NEW | ||||
| 114 | 380378 | 1.00 | 1.20 | |
| WEIGHT NEW | ||||
| 115 | 380379 | 5.16 | 6.19 | |
| SLIP CLUTCH ASS'Y NEW | ||||
| 116 | 380349 | 26.56 | 31.87 | |
| BEVEL PINION NEW | ||||
| 117 | 380350 | 4.80 | 5.76 | |
| Clavette 3*3*8 | ||||
| 118 | 944109 | 1.70 | 2.04 | |
| CLUTCH WASHER NEW | ||||
| 119 | 380351 | 1.00 | 1.20 | |
| SECOND GEAR NEW | ||||
| 120 | 380352 | 7.92 | 9.50 | |
| GEAR HOLDER NEW | ||||
| 121 | 380353 | 8.04 | 9.65 | |
| Ressort | ||||
| 122 | 321282 | 1.65 | 1.98 | |
| SPACER NEW | ||||
| 123 | 380354 | 4.08 | 4.90 | |
| OIL SEAL (A) NEW | ||||
| 124 | 380339 | 1.00 | 1.20 | |
| CRANK CASE NEW | ||||
| 125 | 380338 | 46.92 | 56.30 | |
| VALVE | ||||
| 126 | 995396 | 1.80 | 2.16 | |
| Vis à tête | ||||
| 127A | 371179 | 17.46 | 20.96 | |
| FELT NEW | ||||
| 128 | 380345 | 1.00 | 1.20 | |
| WEIGHT SET | ||||
| 129 | 382071 | 24.42 | 29.30 | |
| Graisse (tube 30 Grammes) | ||||
| 501 | 981840 | 8.40 | 10.08 | |
| Pas d'informations disponibles, non commandable | ||||
| 502 | 380421 | |||
| Pince | ||||
| 503 | 372113 | 1.80 | 2.16 | |
| MOUNT ASS'Y NEW | ||||
| 601 | 380209 | 2.34 | 2.81 | |
| Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
| 602 | 949556 | 1.05 | 1.26 | |
| Goupille Ø2x8 Nr 90gc | ||||
| 603 | 949859 | 1.20 | 1.44 | |
| Boulon à ailettes | ||||
| 604 | 337577 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 605 | 971786 | |||
