Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki DH40FR'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

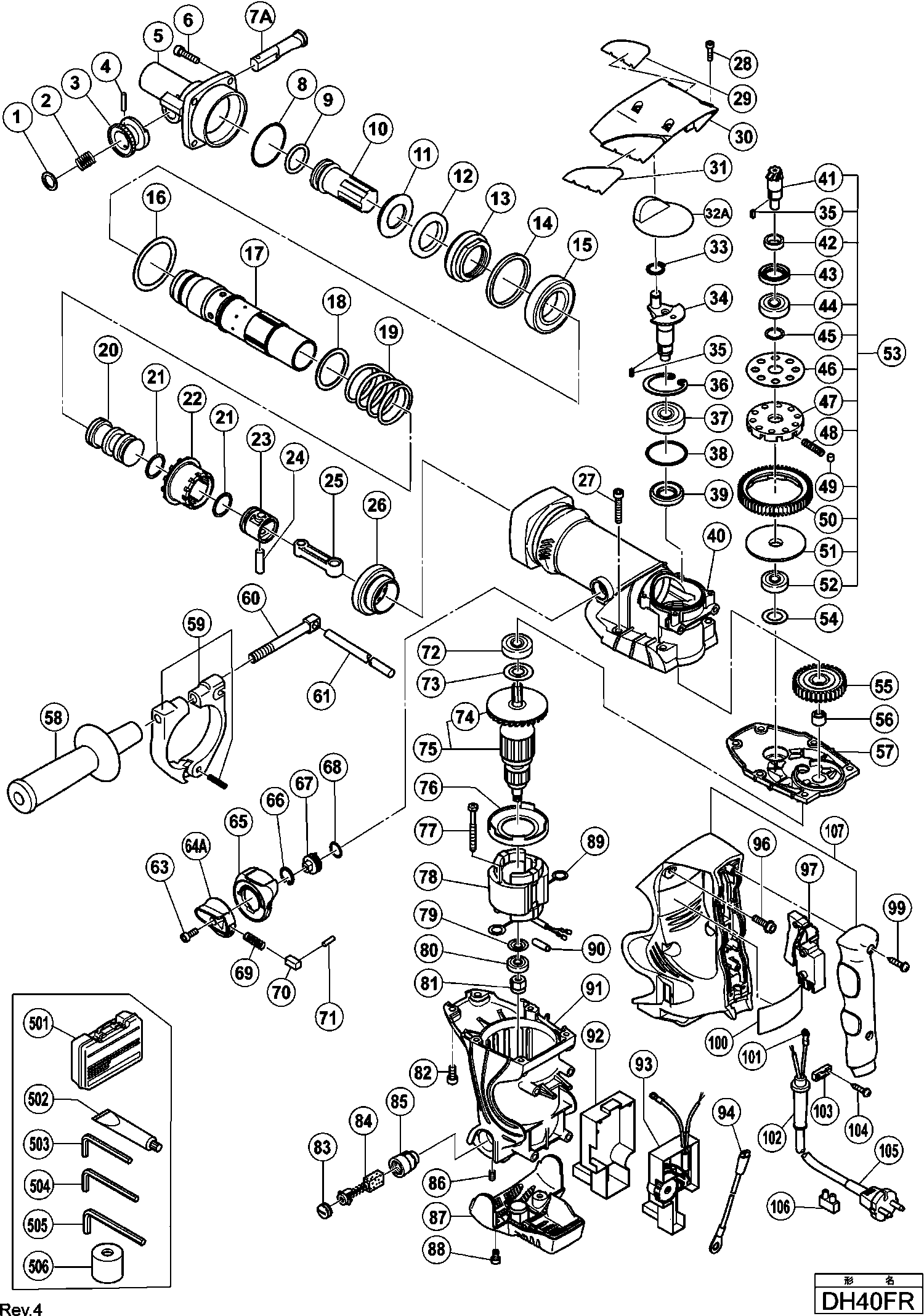

Dessins des Hikoki DH40FR
Liste de pièces de rechange des Hikoki DH40FR
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Rondelle Dh 38yf | ||||
1 | 983242 | 1.05 | 1.26 | |
Ressort H 45sa Till 3.1995 | ||||
2 | 981937 | 1.05 | 1.26 | |
Bouton | ||||
3 | 983241 | 35.06 | 42.08 | |
Goupille Ø4*20 Till 10.1987 (till 9.1987 For Aus, | ||||
4 | 943364 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
5 | 322159 | |||
Vis Ø 16x25 | ||||
6 | 981942 | 1.65 | 1.98 | |
Verrou Dh 38ya | ||||
7A | 985372 | 58.44 | 70.12 | |
O Ring (1as-60) Since 9.1979 | ||||
8 | 956996 | 3.00 | 3.60 | |
O-ring Dh 38ya | ||||
9 | 981857 | 5.85 | 7.02 | |
Second Frappeur | ||||
10 | 985370 | 93.36 | 112.04 | |
Rondelle | ||||
11 | 981862 | 10.20 | 12.24 | |
Amortisseur Dh 38ya | ||||
12 | 322497 | 2.85 | 3.42 | |
Ecrou Vry-38 | ||||
13 | 981860 | 26.68 | 32.01 | |
Bague Vry-38 | ||||
14 | 981859 | 3.00 | 3.60 | |
Roulement | ||||
15 | 6007DD | 14.25 | 17.10 | |
Bague Acier Dh 40mr | ||||
16 | 321297 | 3.30 | 3.96 | |
Cylindre | ||||
17 | 322156 | 110.83 | 132.99 | |
Pas d'informations disponibles, non commandable | ||||
18 | 322158 | |||
Ressort | ||||
19 | 321294 | 4.80 | 5.76 | |
Pas d'informations disponibles, non commandable | ||||
20 | 322157 | |||
Joint Torique | ||||
21 | 986104 | 1.05 | 1.26 | |
Embrayage | ||||
22 | 321295 | 43.86 | 52.64 | |
Piston | ||||
23 | 321284 | 6.45 | 7.74 | |
Goupille | ||||
24 | 980708 | 2.40 | 2.88 | |
Bielle | ||||
25 | 321285 | 4.80 | 5.76 | |
Pignon | ||||
26 | 321296 | 58.44 | 70.12 | |
Vis M6*45 | ||||
27 | 986940 | 1.05 | 1.26 | |
Vis M4*12 For Switch Holder (t2.6 Steel Plate) | ||||
28 | 983162 | 1.05 | 1.26 | |
Capot Dh 40mr | ||||
30 | 321315 | 13.75 | 16.50 | |
Joint en caoutchouc | ||||
32A | 335023 | 1.04 | 1.24 | |
Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
33 | 939540 | 1.95 | 2.34 | |
Exentrique Dh 40mr | ||||
34 | 321275 | 55.41 | 66.50 | |
Clavette 3*3*8 | ||||
35 | 944109 | 1.70 | 2.04 | |
Circlips | ||||
36 | 948391 | 1.65 | 1.98 | |
Roulement à billes 6203dducmav2s | ||||
37 | 6203DD | 7.65 | 9.18 | |
O-ring H 41sa | ||||
38 | 996363 | 1.65 | 1.98 | |
Plus disponible, pas de remplacement | ||||
39 | 321274 | |||
Pas d'informations disponibles, non commandable | ||||
40 | 322155 | |||
Petit Pignon Dh 40mr | ||||
41 | 321278 | 27.23 | 32.67 | |
Bague | ||||
42 | 321279 | 8.40 | 10.08 | |
Joint Dh 40yb | ||||
43 | 313050 | 3.90 | 4.68 | |
Roulement A Billes | ||||
44 | 6002DD | 7.05 | 8.46 | |
Bague | ||||
45 | 313058 | 1.05 | 1.26 | |
Rondelle | ||||
46 | 313053 | 3.60 | 4.32 | |
Disque D Embrayage | ||||
47 | 321281 | 17.88 | 21.45 | |
Ressort | ||||
48 | 321282 | 1.65 | 1.98 | |
Broche | ||||
49 | 320343 | 3.30 | 3.96 | |
Roue D Embrayage Dh 40mr | ||||
50 | 321280 | 28.88 | 34.65 | |
Bague De Calage | ||||
51 | 321283 | 14.30 | 17.16 | |
Roulement A Bille | ||||
52 | 629VVM | 5.85 | 7.02 | |
Embrayage Complet Includ.57-59,61-69 | ||||
53 | 321277 | 137.09 | 164.50 | |
Bague | ||||
54 | 944525 | 1.05 | 1.26 | |
Engrenage | ||||
55 | 321276 | 28.05 | 33.66 | |
Roulement A Aiguilles | ||||
56 | 939299 | 10.65 | 12.78 | |
Carter | ||||
57 | 321319 | 40.84 | 49.00 | |
Pas d'informations disponibles, non commandable | ||||
58 | 313078 | |||
Collier Dh 40yb | ||||
59 | 313079 | 16.09 | 19.30 | |
Boulon Dh 40yb | ||||
60 | 313080 | 11.85 | 14.22 | |
Pas d'informations disponibles, non commandable | ||||
61 | 971786 | |||
Vis M4*12 For Switch Holder (t2.6 Steel Plate) | ||||
63 | 983162 | 1.05 | 1.26 | |
Levier de changement | ||||
64A | 331545 | 3.75 | 4.50 | |
Pas d'informations disponibles, non commandable | ||||
65 | 322160 | |||
Clip De Retenue (1) | ||||
66 | 311229 | 1.05 | 1.26 | |
Axe Dh 40mr | ||||
67 | 321307 | 16.09 | 19.30 | |
O Ring | ||||
68 | 873095 | 1.04 | 1.24 | |
Ressort | ||||
69 | 321310 | 1.65 | 1.98 | |
Teton Dh 40mr | ||||
70 | 321311 | 1.65 | 1.98 | |
Teton Dh 40mr | ||||
71 | 321312 | 1.65 | 1.98 | |
Roulement à billes 6201dducmav2s | ||||
72 | 6201DD | 6.30 | 7.56 | |
Joint | ||||
73 | 302429 | 1.05 | 1.26 | |
Ventilateur Dh 40fr | ||||
74 | 321640 | 6.45 | 7.74 | |
Induit 230v | ||||
75 | 360591E | 110.83 | 132.99 | |
Baffle | ||||
76 | 321320 | 3.30 | 3.96 | |
Vis D5*55 | ||||
77 | 953174 | 1.04 | 1.24 | |
Inducteur Dh 40mr Includ.96 | ||||
78 | 340542E | 69.99 | 83.98 | |
Rondelle | ||||
79 | 982631 | 1.04 | 1.24 | |
Roulement A Billes | ||||
80 | 608VVM | 5.70 | 6.84 | |
Aimant | ||||
81 | 318721 | 17.60 | 21.12 | |
Boulon à tête hexagonale Seal Lock M6x22 | ||||
82 | 321313 | 1.65 | 1.98 | |
Bouchon Charbon H41sa Vb13y | ||||
83 | 935829 | 1.05 | 1.26 | |
Charbons Autorupteurs (1 paire) | ||||
84 | 999073 | 14.40 | 17.28 | |
S/e Porte Balais | ||||
85 | 971001 | 6.45 | 7.74 | |
Vis de réglage hexagonale M5x8 | ||||
86 | 938477 | 1.05 | 1.26 | |
Carter Inferieur Dh 40mr | ||||
87 | 321321 | 10.20 | 12.24 | |
Vis à tête creuse avec joint d'étanchéité M5x10 | ||||
88 | 877839 | 1.05 | 1.26 | |
Raccord | ||||
89 | 930703 | 2.40 | 2.88 | |
Tube | ||||
90 | 321322 | 1.65 | 1.98 | |
Carter | ||||
91 | 321318 | 102.16 | 122.60 | |
Pas d'informations disponibles, non commandable | ||||
92 | 321317 | |||
Circuit du régulateur 220v-240v | ||||
93 | 321327 | 177.93 | 213.51 | |
Fil interne | ||||
94 | 317113 | 3.30 | 3.96 | |
Vis 5x14 | ||||
96 | 998485 | 1.05 | 1.26 | |
Commutateur | ||||
97 | 313093 | 14.30 | 17.16 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
99 | 301653 | 1.04 | 1.24 | |
Borne | ||||
101 | 980063 | 1.04 | 1.24 | |
Entree De Cable Ø 10,7 | ||||
102 | 940778 | 2.10 | 2.52 | |
Clip de cordon | ||||
103 | 981987Z | 1.05 | 1.26 | |
Serre Cable | ||||
103 | 960266 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
104 | 984750 | |||
Plus disponible, pas de remplacement | ||||
105 | 500391Z | |||
Connecteur Till 10.1999 For Aus | ||||
106 | 938307 | 2.13 | 2.55 | |
Ensemble De Poignées (ancien 321323) | ||||
107 | 335738 | 16.91 | 20.30 | |
Pas d'informations disponibles, non commandable | ||||
501 | 322152 | |||
Graisse (tube 30 Grammes) | ||||
502 | 981840 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
503 | 943277 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 944458 | |||
Pas d'informations disponibles, non commandable | ||||
505 | 944459 | |||
Couvercle anti-poussière | ||||
506 | 993245 | 6.75 | 8.10 | |
Pas d'informations disponibles, non commandable | ||||
601 | 985374 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 985375 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 985376 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 985377 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 985378 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 984029 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 985379 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 985380 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 985388 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 955159 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 955169 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 955165 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 985383 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 985381 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 985382 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 985384 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 985385 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 985386 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 320859 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 318085 | |||
Graisse pour marteau-perceuse (70g) | ||||
622 | 308471 | 12.75 | 15.30 | |
Graisse (pot de 500 grammes) | ||||
623 | 980927 | 73.01 | 87.62 |
