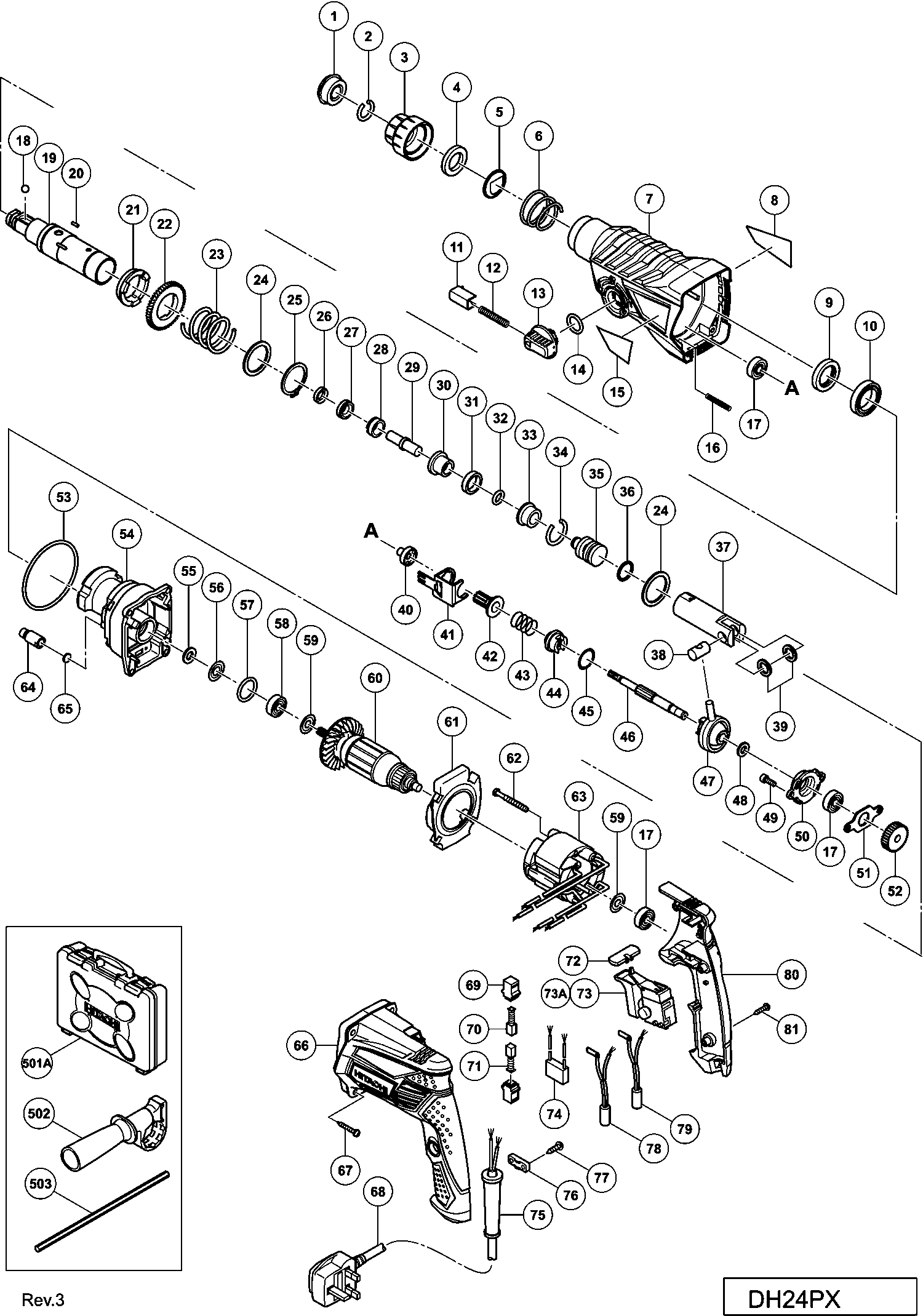

Dessins des Hikoki DH24PX
Liste de pièces de rechange des Hikoki DH24PX
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 306345 | |||
Anneau de retenue | ||||
2 | 306340 | 1.35 | 1.62 | |
Verrouillage Dh 24pc3 | ||||
3 | 324527 | 3.30 | 3.96 | |
Bague | ||||
4 | 324528 | 6.45 | 7.74 | |
Rondelle | ||||
5 | 324526 | 3.30 | 3.96 | |
Ressort | ||||
6 | 322812 | 1.65 | 1.98 | |
Couvercle d'engrenages | ||||
7A | 335274 | 19.80 | 23.76 | |
Joint d'huile | ||||
9 | 335259 | 2.85 | 3.42 | |
Roulement à billes 6805dd | ||||
10 | 335260 | 3.30 | 3.96 | |
Bouton-poussoir | ||||
11 | 322789 | 4.80 | 5.76 | |
Ressort Dh 24pc | ||||
12 | 317223 | 1.65 | 1.98 | |
Levier de changement | ||||
13 | 334011 | 2.10 | 2.52 | |
O Ring (s-18) | ||||
14 | 878885 | 1.05 | 1.26 | |
Ressort (e) | ||||
16 | 335800 | 1.04 | 1.24 | |
Roulement A Billes | ||||
17 | 608VVM | 5.70 | 6.84 | |
Balle en acier D7.0 (10 Pcs.) | ||||
18 | 335300 | 1.04 | 1.24 | |
Cylindre | ||||
19 | 335261 | 22.28 | 26.73 | |
PIN D2.5 | ||||
20 | 335264 | 1.04 | 1.24 | |
Embrayage de cylindre | ||||
21 | 335263 | 12.45 | 14.94 | |
Second Pignon Dh 22vb | ||||
22 | 335265 | 6.15 | 7.38 | |
Ressort (a) | ||||
23 | 335266 | 1.50 | 1.80 | |
Bague | ||||
24 | 301679 | 1.20 | 1.44 | |
Clips Ø 30 | ||||
25 | 948310 | 1.35 | 1.62 | |
Joint d'Huile (A) | ||||
26 | 335262 | 1.80 | 2.16 | |
Porte-marteau (c) | ||||
27 | 335268 | 9.60 | 11.52 | |
Manchon (fw) | ||||
28 | 335795 | 4.20 | 5.04 | |
Second Frappeur | ||||
29 | 335269 | 3.90 | 4.68 | |
Porte-marteau (a) | ||||
30 | 335267 | 3.00 | 3.60 | |
BAGUE D'AMORTISSEMENT (A) | ||||
31 | 322805 | 1.65 | 1.98 | |
O Ring Dh 40ma | ||||
32 | 322808 | 1.65 | 1.98 | |
Logement D Amortisseur | ||||
33 | 324524 | 6.45 | 7.74 | |
ANNEAU DE BUTÉE | ||||
34 | 322807 | 1.65 | 1.98 | |
Percuteur | ||||
35 | 335246 | 4.20 | 5.04 | |
Joint torique D17 | ||||
36 | 335247 | 2.55 | 3.06 | |
Piston | ||||
37 | 335255 | 1.04 | 1.24 | |
Goupille Dh 38ms | ||||
38 | 335793 | 3.15 | 3.78 | |
Rondelle de piston | ||||
39 | 335794 | 1.20 | 1.44 | |
Manchon de pignon | ||||
40 | 335275 | 3.00 | 3.60 | |
Chapeau D.roulement (1) | ||||
41 | 335276 | 11.10 | 13.32 | |
Second Pignon Dh 22vb | ||||
42 | 335278 | 7.20 | 8.64 | |
Ressort | ||||
43 | 323182 | 1.65 | 1.98 | |
Embrayage | ||||
44 | 335254 | 3.90 | 4.68 | |
Bague | ||||
45 | 331315 | 1.05 | 1.26 | |
Deuxième Arbre | ||||
46 | 335277 | 6.60 | 7.92 | |
Palier à Reciprocation | ||||
47 | 335249 | 13.65 | 16.38 | |
Rondelle de Roulement | ||||
48 | 335250 | 1.04 | 1.24 | |
Vis M5*16 | ||||
49 | 990079 | 1.05 | 1.26 | |
Support de palier | ||||
50 | 335270 | 11.40 | 13.68 | |
Chapeau D.roulement (1) | ||||
51 | 335271 | 1.04 | 1.24 | |
Engrenage | ||||
52 | 335253 | 6.75 | 8.10 | |
Joint torique D72.2 | ||||
53 | 335245 | 1.20 | 1.44 | |
Couvercle Interne | ||||
54 | 335272 | 9.90 | 11.88 | |
Feutre | ||||
55 | 322816 | 1.65 | 1.98 | |
Rondelle de joint | ||||
56 | 322818 | 3.30 | 3.96 | |
O-ring Dh-14v | ||||
57 | 876796 | 1.05 | 1.26 | |
Roulement | ||||
58 | 608DDM | 5.55 | 6.66 | |
Rondelle | ||||
59 | 982631 | 1.04 | 1.24 | |
Induit 230v | ||||
60 | 360962E | 24.34 | 29.20 | |
Guide de ventilateur | ||||
61 | 335244 | 1.04 | 1.24 | |
Vis Ø 4x45 | ||||
62 | 981824 | 1.05 | 1.26 | |
Stator 220v-230v H-90sa Includ.103 Pour Nzl,saf | ||||
63 | 340866E | 20.76 | 24.92 | |
Capuchon d'Air | ||||
64 | 334008 | 1.20 | 1.44 | |
Feutre | ||||
65 | 324543 | 1.65 | 1.98 | |
Carcasse | ||||
66 | 335660 | 7.50 | 9.00 | |
VIS C M4X34 | ||||
67 | 301654 | 1.05 | 1.26 | |
Cordon 230 Volt Gbr | ||||
68 | 500450Z | 31.63 | 37.95 | |
S/e Porte Balais | ||||
69 | 955203 | 2.40 | 2.88 | |
Charbons (1 paire) | ||||
70 | 999041 | 4.50 | 5.40 | |
Jeu De Charbons (auto stop) | ||||
71 | 999072 | 14.40 | 17.28 | |
Selecteur | ||||
72 | 322853 | 1.05 | 1.26 | |
Interrupteur | ||||
73 | 335796 | 17.05 | 20.46 | |
Condensateur | ||||
74 | 930039 | 1.95 | 2.34 | |
Entree De Cable Ø 8.8 | ||||
75 | 380090 | 1.04 | 1.25 | |
Serre Cable | ||||
76 | 937631 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
77 | 984750 | |||
Bobine d'Étranglement (a) Marron | ||||
78 | 335857 | 1.95 | 2.34 | |
Fil Bleu | ||||
79 | 324551 | 11.55 | 13.86 | |
Couverture de Poignée | ||||
80 | 335661 | 3.45 | 4.14 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
81 | 301653 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
501A | 337257 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 324548 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 303709 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 306885 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 986802 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 986803 | |||
Joint | ||||
604 | 986804 | 3.38 | 4.05 | |
Clips Ø 30 | ||||
605 | 948310 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
606 | 958063 | |||
Bille d'acier D6.35 (10 pièces) | ||||
607 | 959150 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
608 | 986805 | |||
Douille | ||||
609 | 986806 | 5.10 | 6.12 | |
Adaptateur de Douille (b) | ||||
610 | 306910 | 4.50 | 5.40 | |
Pas d'informations disponibles, non commandable | ||||
611 | 971787 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 931844 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 321814 | |||
Vis à tête plate (main gauche) M6x20 | ||||
614 | 331966 | 6.75 | 8.10 | |
Pas d'informations disponibles, non commandable | ||||
615 | 321813 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 971511Z | |||
Pas d'informations disponibles, non commandable | ||||
617 | 971512Z | |||
Pas d'informations disponibles, non commandable | ||||
618 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 982684 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 982685 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 982672 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 982686 | |||
Pas d'informations disponibles, non commandable | ||||
626 | 982687 | |||
Pas d'informations disponibles, non commandable | ||||
628 | 982688 | |||
Pas d'informations disponibles, non commandable | ||||
630 | 982689 | |||
Pas d'informations disponibles, non commandable | ||||
632 | 982690 | |||
Pas d'informations disponibles, non commandable | ||||
633 | 971794 | |||
Pas d'informations disponibles, non commandable | ||||
634 | 971795 | |||
Pas d'informations disponibles, non commandable | ||||
635 | 971796 | |||
Pas d'informations disponibles, non commandable | ||||
636 | 971797 | |||
Pas d'informations disponibles, non commandable | ||||
637 | 971798 | |||
Pas d'informations disponibles, non commandable | ||||
638 | 971799 | |||
Pas d'informations disponibles, non commandable | ||||
639 | 971800 | |||
Pas d'informations disponibles, non commandable | ||||
640 | 971801 | |||
Pas d'informations disponibles, non commandable | ||||
641 | 971802 | |||
Pas d'informations disponibles, non commandable | ||||
642 | 971803 | |||
Pas d'informations disponibles, non commandable | ||||
650 | 320859 | |||
Pas d'informations disponibles, non commandable | ||||
651 | 303046 | |||
Pas d'informations disponibles, non commandable | ||||
652 | 303044 | |||
Pas d'informations disponibles, non commandable | ||||
653 | 303045 | |||
Vis Dvr-13 | ||||
654 | 981122 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
655 | 930515 | |||
Pas d'informations disponibles, non commandable | ||||
656 | 302976 | |||
Pas d'informations disponibles, non commandable | ||||
657 | 302975 | |||
Pas d'informations disponibles, non commandable | ||||
658 | 303621 | |||
Pas d'informations disponibles, non commandable | ||||
659 | 302974 | |||
Pas d'informations disponibles, non commandable | ||||
660 | 302979 | |||
Pas d'informations disponibles, non commandable | ||||
661 | 302978 | |||
Pas d'informations disponibles, non commandable | ||||
662 | 303622 | |||
Pas d'informations disponibles, non commandable | ||||
663 | 302977 | |||
Pas d'informations disponibles, non commandable | ||||
664 | 303332 | |||
Pas d'informations disponibles, non commandable | ||||
665 | 303334 | |||
Pas d'informations disponibles, non commandable | ||||
666 | 303335 | |||
Pas d'informations disponibles, non commandable | ||||
667 | 303617 | |||
Pas d'informations disponibles, non commandable | ||||
668 | 303618 | |||
Pas d'informations disponibles, non commandable | ||||
669 | 303619 | |||
Pas d'informations disponibles, non commandable | ||||
670 | 303620 | |||
Pas d'informations disponibles, non commandable | ||||
671 | 303625 | |||
Pas d'informations disponibles, non commandable | ||||
672 | 303626 | |||
Pas d'informations disponibles, non commandable | ||||
673 | 303627 | |||
Pas d'informations disponibles, non commandable | ||||
674 | 303624 | |||
Pas d'informations disponibles, non commandable | ||||
675 | 321825 | |||
Pas d'informations disponibles, non commandable | ||||
676 | 303623 | |||
Graisse Pour Marteau Rotatif (500g) | ||||
678 | 335781 | 67.24 | 80.68 | |
Graisse Pour Marteau Rotatif (60g) | ||||
679 | 335782 | 13.50 | 16.20 |
