Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki DH24PM'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

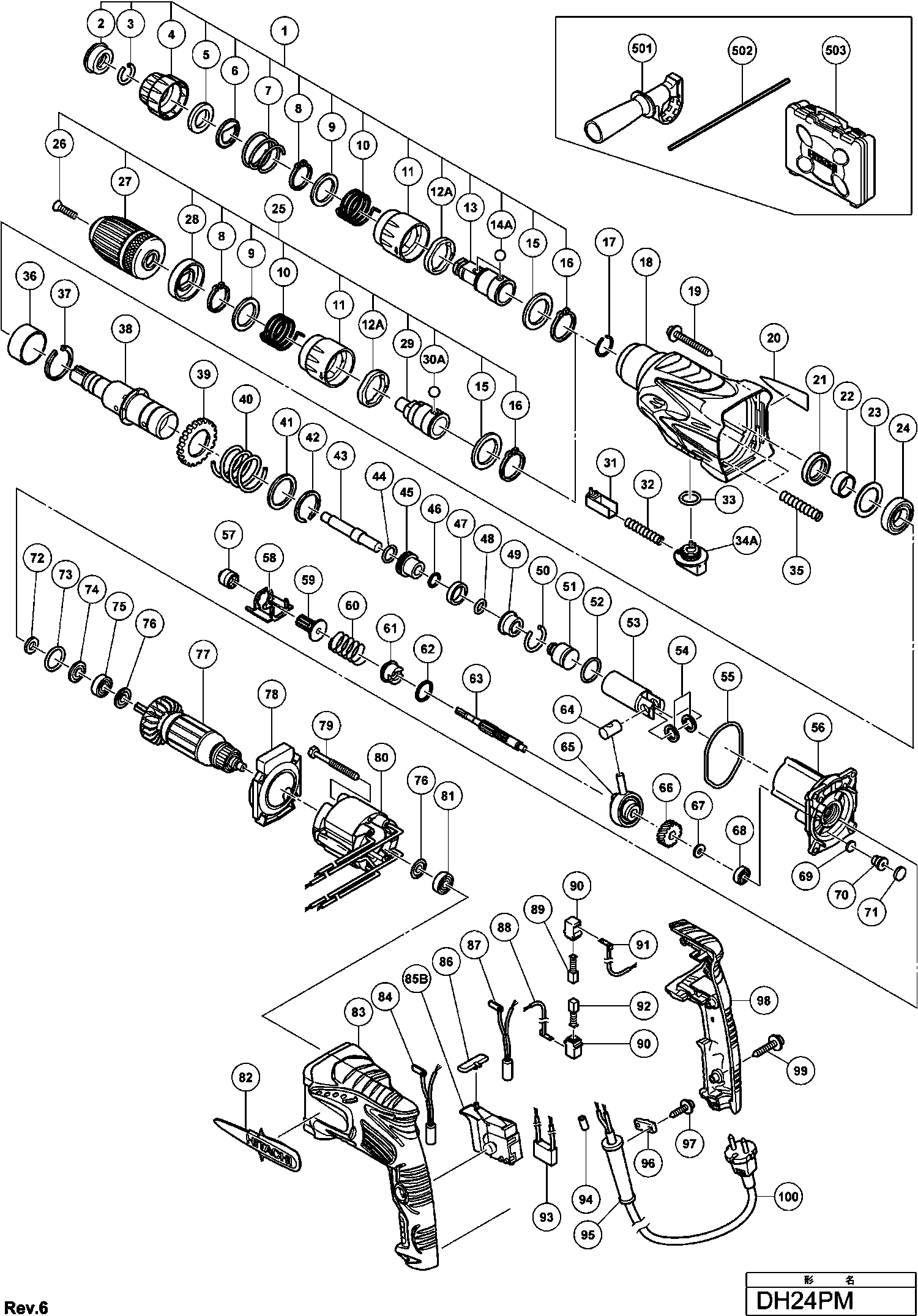

Dessins des Hikoki DH24PM
Liste de pièces de rechange des Hikoki DH24PM
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Nez Complet Sds+ (2 - 16) Includ.5-9,12,17-23 | ||||
1 | 326516 | 134.20 | 161.04 | |
Pas d'informations disponibles, non commandable | ||||
2 | 306345 | |||
Anneau de retenue | ||||
3 | 306340 | 1.35 | 1.62 | |
Verrouillage Dh 24pc3 | ||||
4 | 324527 | 3.30 | 3.96 | |
Bague | ||||
5 | 324528 | 6.45 | 7.74 | |
Rondelle | ||||
6 | 324526 | 3.30 | 3.96 | |
Ressort | ||||
7 | 322812 | 1.65 | 1.98 | |
Rondelle Elastique | ||||
8 | 965469 | 1.05 | 1.26 | |
Rondelle | ||||
9 | 326520 | 6.45 | 7.74 | |
Ressort | ||||
10 | 326519 | 7.65 | 9.18 | |
Carter | ||||
11 | 326387 | 4.80 | 5.76 | |
Entretoise | ||||
12A | 326801 | 32.18 | 38.61 | |
Porte Outil | ||||
13 | 326517 | 87.59 | 105.10 | |
Balle en acier D7.0 (10 Pcs.) | ||||
14A | 335300 | 1.04 | 1.24 | |
Rondelle | ||||
15 | 326518 | 6.45 | 7.74 | |
Clip De Retenue (1) | ||||
16 | 962553 | 1.05 | 1.26 | |
Rondelle Elastique | ||||
17 | 306993 | 1.35 | 1.62 | |
Carter | ||||
18 | 324605 | 103.68 | 124.41 | |
VIS C M4X34 | ||||
19 | 301654 | 1.05 | 1.26 | |
Joint Dh 24vb | ||||
21 | 307688 | 3.90 | 4.68 | |
DOUILLE EXCENTRIQUE | ||||
22 | 322815 | 1.65 | 1.98 | |
Feutre | ||||
23 | 323232 | 1.65 | 1.98 | |
ROULEMENT À BILLES 6904DDPS2L | ||||
24 | 6904DD | 15.81 | 18.98 | |
Nez Complet Mandrin Includ.2-10,12 | ||||
25 | 326271 | 116.74 | 140.08 | |
Pas d'informations disponibles, non commandable | ||||
26 | 995344 | |||
Pas d'informations disponibles, non commandable | ||||
27 | 322357 | |||
Entretoise | ||||
28 | 326527 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
29 | 326526 | |||
Balle en acier D7.0 (10 Pcs.) | ||||
30A | 335300 | 1.04 | 1.24 | |
Bouton-poussoir | ||||
31 | 324530 | 1.65 | 1.98 | |
Ressort Dh 24pc | ||||
32 | 317223 | 1.65 | 1.98 | |
O Ring (s-18) | ||||
33 | 878885 | 1.05 | 1.26 | |
Levier de changement | ||||
34A | 333588 | 3.15 | 3.78 | |
Ressort | ||||
35 | 317238 | 1.65 | 1.98 | |
BUS (A) | ||||
36 | 324522 | 3.30 | 3.96 | |
Rondelle de ressort 37MM | ||||
37 | 322813 | 1.65 | 1.98 | |
Cylindre | ||||
38 | 326521 | 105.05 | 126.06 | |
Second Pignon Dh 24pc3 | ||||
39 | 323185 | 20.21 | 24.26 | |
Ressort | ||||
40 | 317233 | 7.35 | 8.82 | |
Rondelle | ||||
41 | 317234 | 3.30 | 3.96 | |
Clips Ø 30 | ||||
42 | 317235 | 1.65 | 1.98 | |
Second Frappeur | ||||
43 | 326522 | 20.49 | 24.58 | |
O-ring Cm-6 | ||||
44 | 944486 | 1.05 | 1.26 | |
Logement Frappeur (dh24pb3/pc3) | ||||
45 | 324523 | 11.55 | 13.86 | |
O Ring | ||||
46 | 322802 | 3.30 | 3.96 | |
BAGUE D'AMORTISSEMENT (A) | ||||
47 | 322805 | 1.65 | 1.98 | |
O Ring Dh 40ma | ||||
48 | 322808 | 1.65 | 1.98 | |
Logement D Amortisseur | ||||
49 | 324524 | 6.45 | 7.74 | |
ANNEAU DE BUTÉE | ||||
50 | 322807 | 1.65 | 1.98 | |
Frappeur Dh 24pb3/pc3 | ||||
51 | 324535 | 10.20 | 12.24 | |
Joint Torique | ||||
52 | 322834 | 3.30 | 3.96 | |
Piston | ||||
53 | 324534 | 16.36 | 19.64 | |
Rondelle (c) | ||||
54 | 322799 | 1.65 | 1.98 | |
Anneau O | ||||
55 | 322793 | 3.30 | 3.96 | |
Flasque inclus (42 a 44) Dh24pb3 Includ.69-71 | ||||
56 | 324542 | 35.06 | 42.08 | |
Entraineur Dh 24pc2 | ||||
57 | 323249 | 46.75 | 56.10 | |
Fourchette De Verrouillage | ||||
58 | 318522 | 21.73 | 26.07 | |
Second Pignon Dh 24pc2/pc3 | ||||
59 | 323181 | 18.15 | 21.78 | |
Ressort | ||||
60 | 323182 | 1.65 | 1.98 | |
Came | ||||
61 | 324606 | 14.03 | 16.83 | |
Rondelle | ||||
62 | 326524 | 1.65 | 1.98 | |
Arbre De Transmission | ||||
63 | 323180 | 32.18 | 38.61 | |
Goupille | ||||
64 | 322798 | 1.65 | 1.98 | |
Bielle Exentrique Dh 24pc3 | ||||
65 | 324533 | 37.95 | 45.54 | |
Engrenage | ||||
66 | 322797 | 13.50 | 16.20 | |
Rondelle | ||||
67 | 322795 | 1.65 | 1.98 | |
Roulement à billes 626vvmc2erps2s | ||||
68 | 626VVM | 5.70 | 6.84 | |
Feutre | ||||
69 | 324543 | 1.65 | 1.98 | |
Soupape | ||||
70 | 324545 | 1.65 | 1.98 | |
Feutre | ||||
71 | 324544 | 1.65 | 1.98 | |
Feutre | ||||
72 | 322816 | 1.65 | 1.98 | |
O-ring Dh-14v | ||||
73 | 876796 | 1.05 | 1.26 | |
Rondelle de joint | ||||
74 | 322818 | 3.30 | 3.96 | |
Roulement | ||||
75 | 608DDM | 5.55 | 6.66 | |
Rondelle | ||||
76 | 982631 | 1.04 | 1.24 | |
Induit 230v | ||||
77 | 360720E | 49.64 | 59.56 | |
Baffle | ||||
78 | 324531 | 3.30 | 3.96 | |
Vis Ø4x50 | ||||
79 | 961672 | 1.04 | 1.24 | |
Inducteur Dh 24pb3/pc3 | ||||
80 | 340635E | 61.33 | 73.59 | |
Roulement A Billes | ||||
81 | 608VVM | 5.70 | 6.84 | |
Plaque de Marque | ||||
82 | 326523 | 7.65 | 9.18 | |
Carcasse | ||||
83 | 324553 | 26.95 | 32.34 | |
Bobine d'étouffement (a) Marron | ||||
84 | 324549 | 11.55 | 13.86 | |
Interrupteur | ||||
85B | 335796 | 17.05 | 20.46 | |
Selecteur | ||||
86 | 322853 | 1.05 | 1.26 | |
Fil Bleu | ||||
87 | 324551 | 11.55 | 13.86 | |
Fil interne (a) (bleu) | ||||
88 | 324538 | 4.35 | 5.22 | |
Charbons (1 paire) | ||||
89 | 999041 | 4.50 | 5.40 | |
S/e Porte Balais | ||||
90 | 955203 | 2.40 | 2.88 | |
Câblage (a) Brun | ||||
91 | 324537 | 4.35 | 5.22 | |
Jeu De Charbons (auto stop) | ||||
92 | 999072 | 14.40 | 17.28 | |
Condensateur | ||||
93 | 930039 | 1.95 | 2.34 | |
Manchon à cabler | ||||
94 | 981373 | 1.05 | 1.26 | |
Entree De Cable Ø 8.8 | ||||
95 | 380090 | 1.04 | 1.25 | |
Serre Cable | ||||
96 | 937631 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
97 | 984750 | |||
Couvercle Poignee Dh 24pb3/pc3 | ||||
98 | 324554 | 14.03 | 16.83 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
99 | 301653 | 1.04 | 1.24 | |
Câble 5M 2 X1.0 Ho7rn-f (sans prise) | ||||
100 | 500454Z | 15.54 | 18.64 | |
Pas d'informations disponibles, non commandable | ||||
501 | 324548 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 310331 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 326525 | |||
Graisse (tube 30 Grammes) | ||||
601 | 981840 | 8.40 | 10.08 | |
Graisse pour marteau-perceuse (70g) | ||||
602 | 308471 | 12.75 | 15.30 | |
Graisse (pot de 500 grammes) | ||||
603 | 980927 | 73.01 | 87.62 | |
Pas d'informations disponibles, non commandable | ||||
604 | 306885 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 986802 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 986803 | |||
Joint | ||||
607 | 986804 | 3.38 | 4.05 | |
Clips Ø 30 | ||||
608 | 948310 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
609 | 958063 | |||
Bille d'acier D6.35 (10 pièces) | ||||
610 | 959150 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
611 | 986805 | |||
Douille | ||||
612 | 986806 | 5.10 | 6.12 | |
Adaptateur de Douille (b) | ||||
613 | 306910 | 4.50 | 5.40 | |
Pas d'informations disponibles, non commandable | ||||
614 | 971787 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 931844 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 321814 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 995344 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 321813 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 971511Z | |||
Pas d'informations disponibles, non commandable | ||||
620 | 971512Z | |||
Pas d'informations disponibles, non commandable | ||||
621 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 982684 | |||
Pas d'informations disponibles, non commandable | ||||
623 | 982685 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 982672 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 982673 | |||
Pas d'informations disponibles, non commandable | ||||
626 | 982674 | |||
Pas d'informations disponibles, non commandable | ||||
627 | 982686 | |||
Pas d'informations disponibles, non commandable | ||||
628 | 982675 | |||
Pas d'informations disponibles, non commandable | ||||
629 | 982687 | |||
Pas d'informations disponibles, non commandable | ||||
630 | 982676 | |||
Pas d'informations disponibles, non commandable | ||||
631 | 982688 | |||
Pas d'informations disponibles, non commandable | ||||
632 | 982677 | |||
Pas d'informations disponibles, non commandable | ||||
633 | 982689 | |||
Pas d'informations disponibles, non commandable | ||||
634 | 982678 | |||
Pas d'informations disponibles, non commandable | ||||
635 | 982690 | |||
Pas d'informations disponibles, non commandable | ||||
636 | 971794 | |||
Pas d'informations disponibles, non commandable | ||||
637 | 971795 | |||
Pas d'informations disponibles, non commandable | ||||
638 | 971796 | |||
Pas d'informations disponibles, non commandable | ||||
639 | 971797 | |||
Pas d'informations disponibles, non commandable | ||||
640 | 971798 | |||
Pas d'informations disponibles, non commandable | ||||
641 | 971799 | |||
Pas d'informations disponibles, non commandable | ||||
642 | 971800 | |||
Pas d'informations disponibles, non commandable | ||||
643 | 971801 | |||
Pas d'informations disponibles, non commandable | ||||
644 | 971802 | |||
Pas d'informations disponibles, non commandable | ||||
645 | 971803 | |||
Pas d'informations disponibles, non commandable | ||||
646 | 944460 | |||
Pas d'informations disponibles, non commandable | ||||
647 | 944461 | |||
Pas d'informations disponibles, non commandable | ||||
648 | 993038 | |||
Pas d'informations disponibles, non commandable | ||||
650 | 944500 | |||
Pas d'informations disponibles, non commandable | ||||
652 | 944464 | |||
Pas d'informations disponibles, non commandable | ||||
653 | 320859 | |||
Kit de service (dh 24pb3,etc.) incl.33,44,46-48,53 | ||||
654 | 326305 | 52.53 | 63.03 | |
Pas d'informations disponibles, non commandable | ||||
655 | 303046 | |||
Pas d'informations disponibles, non commandable | ||||
656 | 303044 | |||
Pas d'informations disponibles, non commandable | ||||
657 | 303045 | |||
Pas d'informations disponibles, non commandable | ||||
658 | 930515 | |||
Pas d'informations disponibles, non commandable | ||||
659 | 302976 | |||
Pas d'informations disponibles, non commandable | ||||
660 | 302975 | |||
Pas d'informations disponibles, non commandable | ||||
661 | 303621 | |||
Pas d'informations disponibles, non commandable | ||||
662 | 302974 | |||
Pas d'informations disponibles, non commandable | ||||
663 | 302979 | |||
Pas d'informations disponibles, non commandable | ||||
664 | 302978 | |||
Pas d'informations disponibles, non commandable | ||||
665 | 303622 | |||
Pas d'informations disponibles, non commandable | ||||
666 | 302977 | |||
Pas d'informations disponibles, non commandable | ||||
667 | 303332 | |||
Pas d'informations disponibles, non commandable | ||||
668 | 303334 | |||
Pas d'informations disponibles, non commandable | ||||
669 | 303335 | |||
Pas d'informations disponibles, non commandable | ||||
670 | 303617 | |||
Pas d'informations disponibles, non commandable | ||||
671 | 303618 | |||
Pas d'informations disponibles, non commandable | ||||
672 | 303619 | |||
Pas d'informations disponibles, non commandable | ||||
673 | 303620 | |||
Vis Dvr-13 | ||||
674 | 981122 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
675 | 303625 | |||
Pas d'informations disponibles, non commandable | ||||
676 | 303626 | |||
Pas d'informations disponibles, non commandable | ||||
677 | 303627 | |||
Pas d'informations disponibles, non commandable | ||||
678 | 303624 | |||
Pas d'informations disponibles, non commandable | ||||
679 | 321825 | |||
Pas d'informations disponibles, non commandable | ||||
680 | 303623 | |||
Pas d'informations disponibles, non commandable | ||||
683 | 306370 |
