Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki DH24PG2WSZ'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

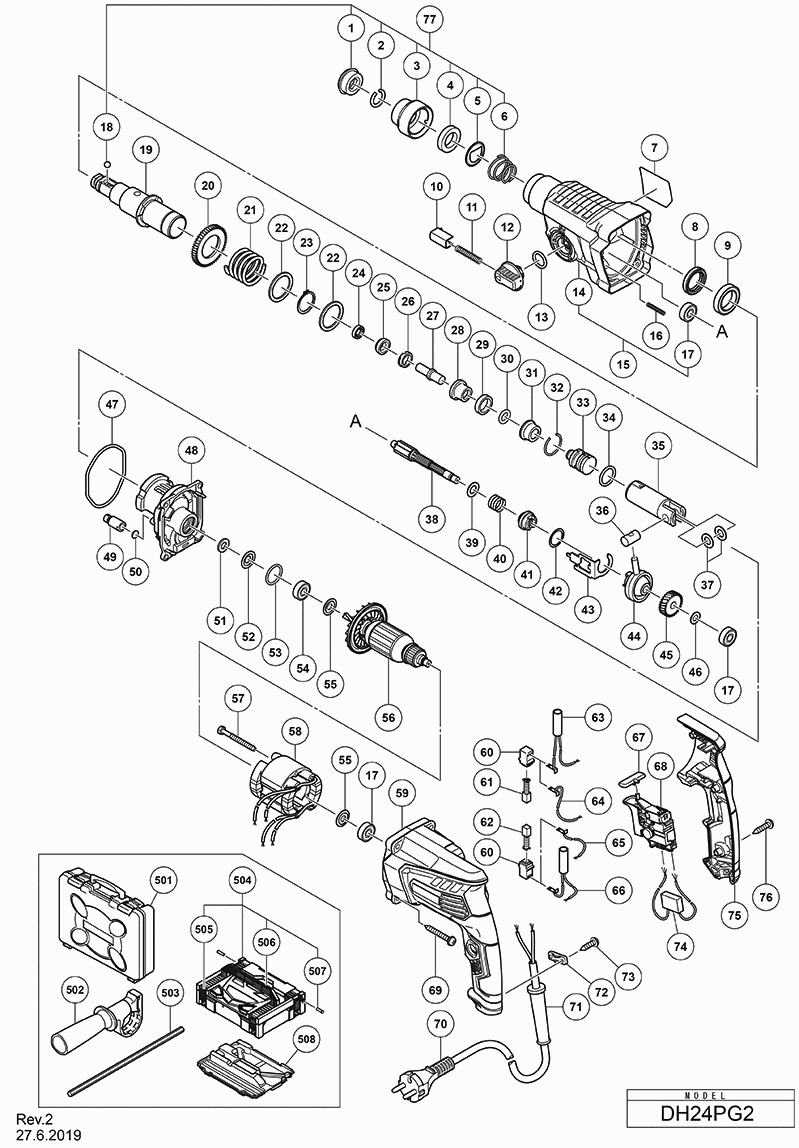

Dessins des Hikoki DH24PG2WSZ
Liste de pièces de rechange des Hikoki DH24PG2WSZ
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 306345 | |||
Anneau de retenue | ||||
2 | 306340 | 1.35 | 1.62 | |
Verrouillage H45mr | ||||
3 | 374436 | 1.04 | 1.24 | |
SUPPORT DE BALLE | ||||
4 | 374437 | 1.50 | 1.80 | |
PLAQUE DE SUPPORT | ||||
5 | 374435 | 1.04 | 1.24 | |
Ressort | ||||
6 | 322812 | 1.65 | 1.98 | |
Joint d'huile | ||||
8 | 335259 | 2.85 | 3.42 | |
Roulement à billes 6805 | ||||
9 | 6805BB | 2.40 | 2.88 | |
Bouton-poussoir | ||||
10 | 322789 | 4.80 | 5.76 | |
Ressort Dh 24pc | ||||
11 | 317223 | 1.65 | 1.98 | |
Levier de changement | ||||
12 | 334011 | 2.10 | 2.52 | |
O Ring (s-18) | ||||
13 | 878885 | 1.05 | 1.26 | |
Couvercle d'engrenage | ||||
14 | 374620 | 14.71 | 17.66 | |
Couvercle de l'engrenage comprenant 3.17 | ||||
15 | 375017 | 14.44 | 17.32 | |
Ressort (e) | ||||
16 | 335800 | 1.04 | 1.24 | |
Roulement A Billes | ||||
17 | 608VVM | 5.70 | 6.84 | |
Balle en acier D7.0 (10 Pcs.) | ||||
18 | 335300 | 1.04 | 1.24 | |
Second Pignon Dh 22vb | ||||
20 | 335265 | 6.15 | 7.38 | |
Ressort (b) | ||||
21 | 374430 | 1.20 | 1.44 | |
Bague | ||||
22 | 301679 | 1.20 | 1.44 | |
Joint d'Huile (A) | ||||
24 | 335262 | 1.80 | 2.16 | |
SUPPORT DE MARTEAU (B) | ||||
25 | 374431 | 1.20 | 1.44 | |
MANCHON DE PORTEUR | ||||
26 | 374427 | 2.55 | 3.06 | |
BAGUE D'AMORTISSEMENT (A) | ||||
29 | 322805 | 1.65 | 1.98 | |
O Ring Dh 40ma | ||||
30 | 322808 | 1.65 | 1.98 | |
Logement D Amortisseur | ||||
31 | 324524 | 6.45 | 7.74 | |
ANNEAU DE BUTÉE | ||||
32 | 322807 | 1.65 | 1.98 | |
Frappeur | ||||
33 | 374443 | 3.90 | 4.68 | |
Anneau O | ||||
34 | 372816 | 3.00 | 3.60 | |
PISTON | ||||
35 | 372817 | 9.90 | 11.88 | |
Goupille Dh 38ms | ||||
36 | 335793 | 3.15 | 3.78 | |
Rondelle de piston | ||||
37 | 335794 | 1.20 | 1.44 | |
Rondelle (c) | ||||
39 | 335251 | 1.04 | 1.24 | |
Ressort | ||||
40 | 323182 | 1.65 | 1.98 | |
Embrayage | ||||
41 | 375022 | 3.90 | 4.68 | |
Bague | ||||
42 | 331315 | 1.05 | 1.26 | |
Plaque de Changement | ||||
43 | 335252 | 1.04 | 1.24 | |
Palier à Reciprocation | ||||
44 | 335249 | 13.65 | 16.38 | |
Première vitesse | ||||
45 | 374441 | 3.75 | 4.50 | |
Joint torique D72.2 | ||||
47 | 335245 | 1.20 | 1.44 | |
Capuchon d'Air | ||||
49 | 334008 | 1.20 | 1.44 | |
Feutre | ||||
50 | 324543 | 1.65 | 1.98 | |
Feutre | ||||
51 | 322816 | 1.65 | 1.98 | |
Rondelle de joint | ||||
52 | 322818 | 3.30 | 3.96 | |
O-ring Dh-14v | ||||
53 | 876796 | 1.05 | 1.26 | |
Roulement | ||||
54 | 608DDM | 5.55 | 6.66 | |
Rondelle | ||||
55 | 982631 | 1.04 | 1.24 | |
INDUIT (C) 220-230 VOLT | ||||
56 | 361110E | 21.45 | 25.74 | |
Vis Ø 4x45 | ||||
57 | 981824 | 1.05 | 1.26 | |
FIELD (C) 220-230 VOLT | ||||
58 | 341031K | 17.33 | 20.79 | |
Boîtier (c) | ||||
59 | 374632 | 7.35 | 8.82 | |
S/e Porte Balais | ||||
60 | 955203 | 2.40 | 2.88 | |
Charbons (1 paire) | ||||
61 | 999041 | 4.50 | 5.40 | |
Jeu De Charbons (auto stop) | ||||
62 | 999072 | 14.40 | 17.28 | |
BOBINE D'ARRÊT (MARRON) | ||||
63 | 374615 | 3.45 | 4.14 | |
Pas d'informations disponibles, non commandable | ||||
64 | 374613 | |||
Pas d'informations disponibles, non commandable | ||||
65 | 374612 | |||
BOBINE D'ARRÊT (BLEUE) | ||||
66 | 374614 | 3.45 | 4.14 | |
Selecteur | ||||
67 | 322853 | 1.05 | 1.26 | |
INTERRUPTEUR 220-240 VOLT | ||||
68 | 374610 | 15.54 | 18.64 | |
INTERRUPTEUR 100-127 VOLT | ||||
68 | 374611 | 15.54 | 18.64 | |
VIS C M4X34 | ||||
69 | 301654 | 1.05 | 1.26 | |
Cord | ||||
70 | 930051 | 14.30 | 17.16 | |
Entree De Cable Ø 8.8 | ||||
71 | 380090 | 1.04 | 1.25 | |
Entree De Cable Ø 10,1 | ||||
71 | 938051 | 1.04 | 1.24 | |
Serre Cable | ||||
72 | 937631 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
73 | 984750 | |||
Condensateur | ||||
74 | 930039 | 1.95 | 2.34 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
76 | 301653 | 1.04 | 1.24 | |
ENSEMBLE DE POIGNÉE | ||||
77 | 375363 | 2.85 | 3.42 | |
Pas d'informations disponibles, non commandable | ||||
501 | 374619 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 324548 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 303709 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 337739 | |||
Pas d'informations disponibles, non commandable | ||||
505 | 336472 | |||
Pas d'informations disponibles, non commandable | ||||
506 | 336473 | |||
Pas d'informations disponibles, non commandable | ||||
507 | 336474 | |||
Pas d'informations disponibles, non commandable | ||||
508 | 337741 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 306885 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 986802 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 986803 | |||
Joint | ||||
604 | 986804 | 3.38 | 4.05 | |
Clips Ø 30 | ||||
605 | 948310 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
606 | 958063 | |||
Bille d'acier D6.35 (10 pièces) | ||||
607 | 959150 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
608 | 986805 | |||
Douille | ||||
609 | 986806 | 5.10 | 6.12 | |
Adaptateur de Douille (b) | ||||
610 | 306910 | 4.50 | 5.40 | |
Pas d'informations disponibles, non commandable | ||||
611 | 971787 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 931844 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 321814 | |||
Vis à tête plate (main gauche) M6x20 | ||||
614 | 331966 | 6.75 | 8.10 | |
Pas d'informations disponibles, non commandable | ||||
615 | 321813 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 971511Z | |||
Pas d'informations disponibles, non commandable | ||||
617 | 971512Z | |||
Pas d'informations disponibles, non commandable | ||||
618 | 971794 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 971795 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 971796 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 971797 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 971798 | |||
Pas d'informations disponibles, non commandable | ||||
623 | 971799 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 971800 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 971801 | |||
Pas d'informations disponibles, non commandable | ||||
626 | 971802 | |||
Pas d'informations disponibles, non commandable | ||||
627 | 971803 | |||
Pas d'informations disponibles, non commandable | ||||
628 | 320859 | |||
Pas d'informations disponibles, non commandable | ||||
629 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
630 | 982684 | |||
Pas d'informations disponibles, non commandable | ||||
631 | 982685 | |||
Graisse Pour Marteau Rotatif (500g) | ||||
632 | 335781 | 67.24 | 80.68 | |
Graisse Pour Marteau Rotatif (60g) | ||||
633 | 335782 | 13.50 | 16.20 |
