Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki DH24DVC'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

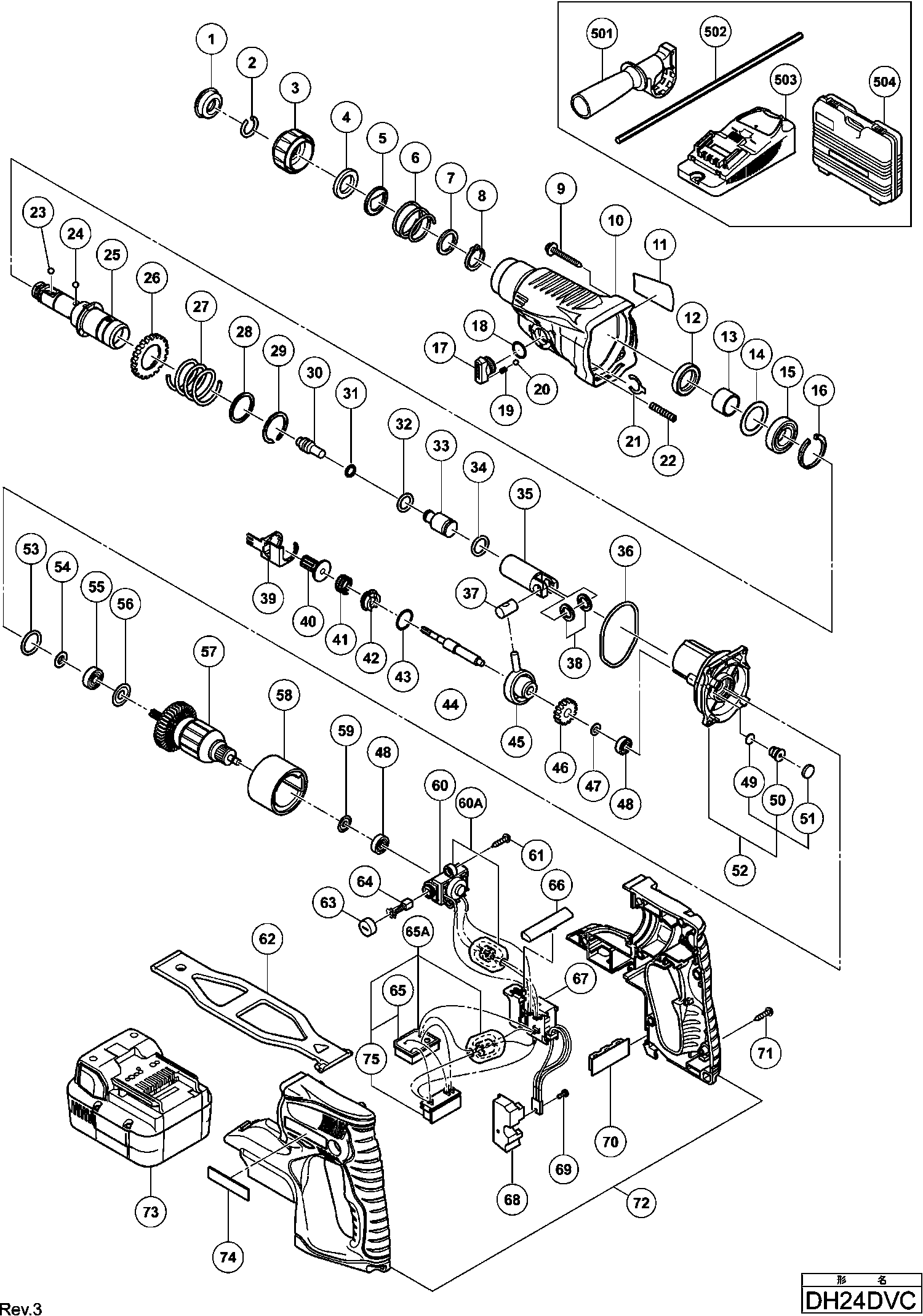

Dessins des Hikoki DH24DVC
Liste de pièces de rechange des Hikoki DH24DVC
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 306345 | |||
Anneau de retenue | ||||
2 | 306340 | 1.35 | 1.62 | |
Capuchon | ||||
3 | 325597 | 3.30 | 3.96 | |
Bague | ||||
4 | 324528 | 6.45 | 7.74 | |
Rondelle | ||||
5 | 324526 | 3.30 | 3.96 | |
Ressort | ||||
6 | 322812 | 1.65 | 1.98 | |
Rondelle | ||||
7 | 984118 | 1.05 | 1.26 | |
Bague D20 (10 pièces) | ||||
8 | 939547 | 3.90 | 4.68 | |
Vis à tôle D4x30 (noir) | ||||
9 | 305490 | 1.04 | 1.24 | |
Carter | ||||
10 | 331520 | 26.60 | 31.92 | |
Joint Dh 24vb | ||||
12 | 307688 | 3.90 | 4.68 | |
Douille | ||||
13 | 331301 | 2.10 | 2.52 | |
Feutre | ||||
14 | 323232 | 1.65 | 1.98 | |
ROULEMENT À BILLES 6904DDPS2L | ||||
15 | 6904DD | 15.81 | 18.98 | |
Rondelle de ressort 37MM | ||||
16 | 322813 | 1.65 | 1.98 | |
Bouton | ||||
17 | 331303 | 3.75 | 4.50 | |
Joints toriques (s-15) | ||||
18 | 319567 | 1.65 | 1.98 | |
Ressort (h) | ||||
19 | 331306 | 1.05 | 1.26 | |
Bille Ø3.97 (x10) paquet de 10 | ||||
20 | 959155 | 1.04 | 1.24 | |
Clips de Retenue D15 | ||||
21 | 331305 | 3.75 | 4.50 | |
Ressort | ||||
22 | 331302 | 1.05 | 1.26 | |
Bille D7.0 (x10) paquet de 10 | ||||
23 | 959156 | 1.65 | 1.98 | |
Bille Ø 5.556 (x10) paquet de 10 | ||||
24 | 959154 | 1.35 | 1.62 | |
Cylindre | ||||
25 | 331307 | 22.83 | 27.39 | |
Second Pignon Dh 24pc | ||||
26 | 331309 | 8.70 | 10.44 | |
Ressort | ||||
27 | 331310 | 1.05 | 1.26 | |
Rondelle | ||||
28 | 331311 | 1.05 | 1.26 | |
O Ring | ||||
29 | 320846 | 1.65 | 1.98 | |
Second Frappeur | ||||
30 | 331312 | 2.10 | 2.52 | |
O Ring Dh 22vb/20dv | ||||
31 | 301672 | 1.05 | 1.26 | |
Joint Torique | ||||
32 | 331308 | 1.05 | 1.26 | |
Frappeur | ||||
33 | 331296 | 4.20 | 5.04 | |
O Ring Dh 22vb/20dv | ||||
34 | 301670 | 2.55 | 3.06 | |
Piston | ||||
35 | 331300 | 29.15 | 34.98 | |
Joint Torique | ||||
36 | 327870 | 1.05 | 1.26 | |
Goupille | ||||
37 | 322798 | 1.65 | 1.98 | |
Rondelle (c) | ||||
38 | 322799 | 1.65 | 1.98 | |
Plateau De Retenue | ||||
39 | 331313 | 11.40 | 13.68 | |
Second Pignon Dh 24pc2/pc3 | ||||
40 | 323181 | 18.15 | 21.78 | |
Ressort | ||||
41 | 323182 | 1.65 | 1.98 | |
Came | ||||
42 | 331314 | 6.15 | 7.38 | |
Bague | ||||
43 | 331315 | 1.05 | 1.26 | |
Arbre De Transmission | ||||
44 | 331297 | 13.05 | 15.66 | |
Bielle | ||||
45 | 331298 | 16.09 | 19.30 | |
Engrenage | ||||
46 | 331299 | 5.70 | 6.84 | |
Rondelle | ||||
47 | 995634 | 1.05 | 1.26 | |
Roulement à billes 626vvmc2erps2s | ||||
48 | 626VVM | 5.70 | 6.84 | |
Feutre | ||||
49 | 324543 | 1.65 | 1.98 | |
Soupape | ||||
50 | 324545 | 1.65 | 1.98 | |
Feutre | ||||
51 | 324544 | 1.65 | 1.98 | |
Flasque Includ.49-51 | ||||
52 | 331521 | 14.10 | 16.92 | |
O Ring (nt45a Vb13y Cr13va) | ||||
53 | 878609 | 1.05 | 1.26 | |
Entretoise | ||||
54 | 306312 | 1.95 | 2.34 | |
Roulement | ||||
55 | 609DDC | 12.66 | 15.20 | |
Bague Pour Palier | ||||
56 | 958915 | 1.04 | 1.24 | |
Induit 24v | ||||
57 | 360895 | 45.65 | 54.78 | |
Aimant | ||||
58 | 332670 | 12.45 | 14.94 | |
Rondelle | ||||
59 | 980865 | 1.04 | 1.24 | |
Porte Charbon Except For Europe (till 2.2012 For | ||||
60 | 328486 | 12.45 | 14.94 | |
Support Porte Charbons Includ.23,24 | ||||
60A | 334891 | 14.58 | 17.49 | |
Vis Ø 4*16 Noir | ||||
61 | 305812 | 1.04 | 1.24 | |
Bande de batterie | ||||
62 | 332669 | 3.15 | 3.78 | |
Bouchon De Charbon | ||||
63 | 319847 | 1.65 | 1.98 | |
Charbons | ||||
64 | 999100 | 4.20 | 5.04 | |
Ensemble de terminaux du contrôleur | ||||
65 | 332667 | 24.75 | 29.70 | |
REGULATEUR | ||||
65A | 334879 | 24.75 | 29.70 | |
Selecteur | ||||
66 | 328064 | 1.05 | 1.26 | |
Commutateur | ||||
67 | 332666 | 17.13 | 20.55 | |
Dissipateur Thermique | ||||
68 | 319812 | 2.85 | 3.42 | |
Vis M.3*12 | ||||
69 | 993963 | 1.05 | 1.26 | |
Coussin en caoutchouc | ||||
70 | 332668 | 2.10 | 2.52 | |
Vis autotaraudeuse D4x20 avec bride (noir) | ||||
71 | 302086 | 1.05 | 1.26 | |
Boîtier (a)+(b) ensemble | ||||
72 | 332665 | 22.83 | 27.39 | |
Pas d'informations disponibles, non commandable | ||||
73 | 333309 | |||
Terminal de batterie | ||||
75 | 333991 | 4.20 | 5.04 | |
Pas d'informations disponibles, non commandable | ||||
501 | 324548 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 303709 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 332671 | |||
Graisse pour marteau-perceuse (70g) | ||||
601 | 308471 | 12.75 | 15.30 | |
Graisse (pot de 500 grammes) | ||||
602 | 980927 | 73.01 | 87.62 | |
Graisse (tube 30 Grammes) | ||||
603 | 981840 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
604 | 321814 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 995344 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 971511Z | |||
Pas d'informations disponibles, non commandable | ||||
607 | 971512Z | |||
Vis Dvr-13 | ||||
608 | 981122 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
609 | 971794 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 971795 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 971796 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 971799 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 971800 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 971801 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 302976 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 302975 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 303621 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 302974 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 302979 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 302978 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 303622 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 302977 | |||
Pas d'informations disponibles, non commandable | ||||
623 | 316657 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 316659 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 303046 | |||
Pas d'informations disponibles, non commandable | ||||
626 | 316656 | |||
Pas d'informations disponibles, non commandable | ||||
627 | 316658 | |||
Pas d'informations disponibles, non commandable | ||||
628 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
629 | 303334 | |||
Pas d'informations disponibles, non commandable | ||||
630 | 930515 | |||
Pas d'informations disponibles, non commandable | ||||
631 | 303332 | |||
Pas d'informations disponibles, non commandable | ||||
632 | 303334 | |||
Pas d'informations disponibles, non commandable | ||||
633 | 303335 | |||
Pas d'informations disponibles, non commandable | ||||
634 | 321813 | |||
Pas d'informations disponibles, non commandable | ||||
635 | 320859 | |||
Pas d'informations disponibles, non commandable | ||||
636 | 303617 | |||
Pas d'informations disponibles, non commandable | ||||
637 | 303618 | |||
Pas d'informations disponibles, non commandable | ||||
638 | 303619 | |||
Pas d'informations disponibles, non commandable | ||||
639 | 303620 | |||
Pas d'informations disponibles, non commandable | ||||
640 | 303624 | |||
Pas d'informations disponibles, non commandable | ||||
641 | 303623 | |||
Pas d'informations disponibles, non commandable | ||||
642 | 321825 | |||
Pas d'informations disponibles, non commandable | ||||
653 | 971787 | |||
Pas d'informations disponibles, non commandable | ||||
654 | 931844 | |||
Pas d'informations disponibles, non commandable | ||||
655 | 306885 | |||
Adaptateur de Douille (b) | ||||
656 | 306910 | 4.50 | 5.40 | |
Pas d'informations disponibles, non commandable | ||||
657 | 986802 | |||
Pas d'informations disponibles, non commandable | ||||
658 | 986803 | |||
Joint | ||||
659 | 986804 | 3.38 | 4.05 | |
Clips Ø 30 | ||||
660 | 948310 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
661 | 958063 | |||
Bille d'acier D6.35 (10 pièces) | ||||
662 | 959150 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
663 | 986805 | |||
Douille | ||||
664 | 986806 | 5.10 | 6.12 |
