Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki DC120'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

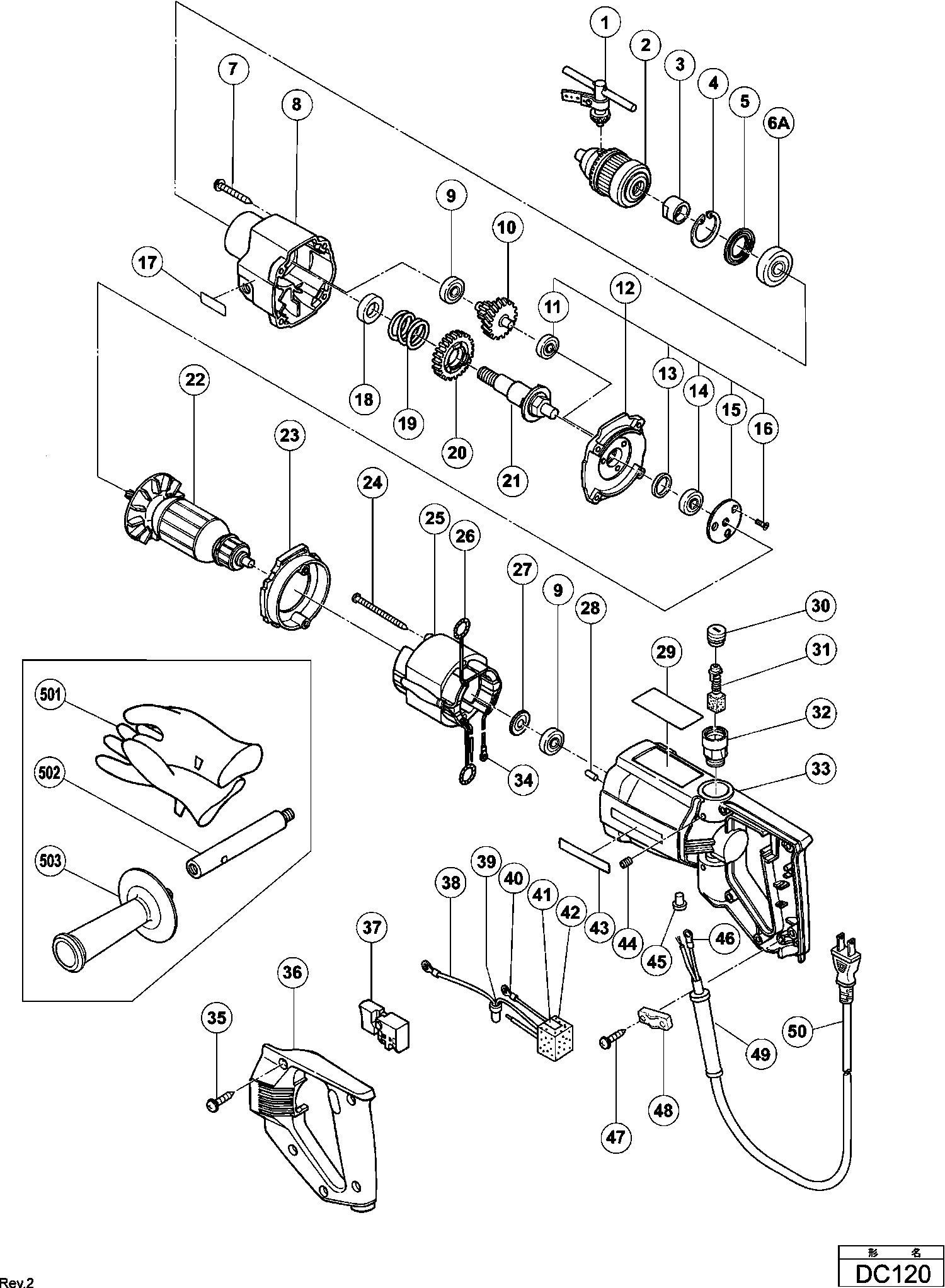

Dessins des Hikoki DC120
Liste de pièces de rechange des Hikoki DC120
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 303334 | |||
Pas d'informations disponibles, non commandable | ||||
2 | 321813 | |||
Pas d'informations disponibles, non commandable | ||||
3 | 300400 | |||
Clips D35 (x10) paquet de 10 | ||||
4 | 939556 | 10.20 | 12.24 | |
Joint | ||||
5 | 981572 | 3.30 | 3.96 | |
Roulement A Bille | ||||
6A | 6202DD | 6.75 | 8.10 | |
Vis Ø5*35 | ||||
7 | 986140 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
8 | 300395 | |||
Roulement A Billes | ||||
9 | 608VVM | 5.70 | 6.84 | |
Pas d'informations disponibles, non commandable | ||||
10 | 300401 | |||
Roulement A Billes | ||||
11 | 608VVM | 5.70 | 6.84 | |
Flasque Vtp-16a Includ.19,30-32 | ||||
12 | 981581 | 32.18 | 38.61 | |
Bague | ||||
13 | 984357 | 1.05 | 1.26 | |
Roulement A Billes | ||||
14 | 609VVM | 6.00 | 7.20 | |
Porte-Roulement | ||||
15 | 981585 | 2.70 | 3.24 | |
Boulon à six pans creux M15x16 Hd Seal Lock | ||||
16 | 981588 | 1.04 | 1.24 | |
Manchon | ||||
18 | 300399 | 7.35 | 8.82 | |
Ressort | ||||
19 | 309167 | 4.50 | 5.40 | |
Pas d'informations disponibles, non commandable | ||||
20 | 300397 | |||
Broche | ||||
21 | 300396 | 37.95 | 45.54 | |
Pas d'informations disponibles, non commandable | ||||
22 | 981583 | |||
Baffle | ||||
23 | 981562 | 2.55 | 3.06 | |
Vis Ø5*60mm | ||||
24 | 991007 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
25 | 323973 | |||
Raccord | ||||
26 | 930703 | 2.40 | 2.88 | |
Joint Till 2.1995 | ||||
27 | 956387 | 2.10 | 2.52 | |
GOUJON EN CAOUTCHOUC (ANCIEN 976441) | ||||
28 | 946362 | 1.05 | 1.26 | |
Bouchon Charbon | ||||
30 | 961781 | 2.55 | 3.06 | |
Charbons (1 Paire) | ||||
31 | 999043 | 4.50 | 5.40 | |
S/e Porte Balais | ||||
32 | 981586 | 6.45 | 7.74 | |
Carcasse | ||||
33 | 981560 | 43.86 | 52.64 | |
Terminal Vtp 18 | ||||
34 | 960356 | 3.00 | 3.60 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
35 | 301653 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
36 | 301522 | |||
Commutateur | ||||
37 | 981821 | 14.03 | 16.83 | |
Pas d'informations disponibles, non commandable | ||||
38 | 971825 | |||
Connecteur 50091 | ||||
39 | 959140 | 3.30 | 3.96 | |
Borne | ||||
40 | 980063 | 1.04 | 1.24 | |
Condensateur | ||||
41 | 994273 | 4.29 | 5.14 | |
Caoutchouc | ||||
42 | 930153 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
43 | 957561 | |||
Vis à tête hexagonale M4x6 | ||||
44 | 985114 | 1.05 | 1.26 | |
Connecteur 50092 | ||||
45 | 959141 | 3.75 | 4.50 | |
Borne | ||||
46 | 980063 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
47 | 984750 | |||
Serre Cable | ||||
48 | 960266 | 1.04 | 1.24 | |
Entree De Cable Ø 10,1 | ||||
49 | 938051 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
50 | 323974 | |||
Pas d'informations disponibles, non commandable | ||||
501 | 944164 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 930886 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 956633 |
