Dessins techniques et pièces de rechange Hikoki CS51EA
Type exact:
CS51EA
CS51EA

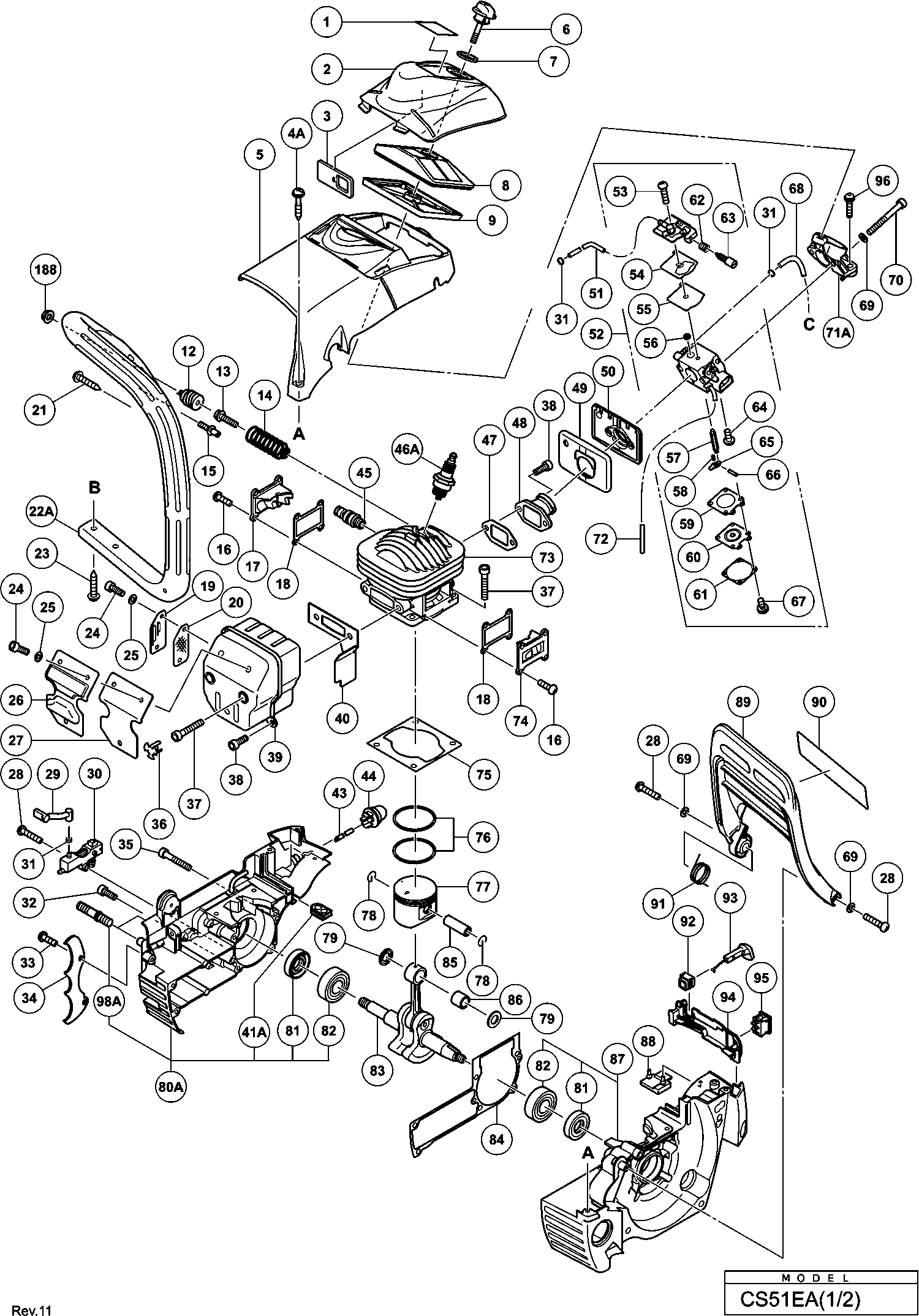

Dessins des HIKOKI CS51EA
Liste de pièces de rechange des HIKOKI CS51EA
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Start Label (c51) (ex) | ||||
| 1 | 6698919 | Start Label (c51) (ex) | € 1.15 | |
| Luchtfilterkap (c51) | ||||
| 2 | 6698568 | Luchtfilterkap (c51) | € 4.03 | |
| Shutter Plate | ||||
| 3 | 6698569 | Shutter Plate | € 1.15 | |
| Cover Set Bolt (old 6696903) | ||||
| 4A | 6699189 | Cover Set Bolt (old 6696903) | € 1.00 | |
| Cilinder Afdekkap | ||||
| 5 | 6698708 | Cilinder Afdekkap | € 13.73 | |
| Cleaner Knob (vermilion) | ||||
| 6 | 6698595 | Cleaner Knob (vermilion) | € 1.15 | |
| Knob Packing | ||||
| 7 | 6698570 | Knob Packing | € 1.15 | |
| Luchtfilter Element (b) | ||||
| 8 | 6698563 | Luchtfilter Element (b) | € 4.03 | |
| Luchtfilter Element (a) | ||||
| 9 | 6698562 | Luchtfilter Element (a) | € 4.03 | |
| NUT M6 | ||||
| 10 | 6698449 | NUT M6 | € 1.01 | |
| Bague | ||||
| 11 | 6696885 | Bague | € 1.01 | |
| Veerhouder | ||||
| 12 | 6698429 | Veerhouder | € 2.02 | |
| Inbus Bout M6x20 | ||||
| 13 | 881722 | Inbus Bout M6x20 | € 1.73 | |
| Anti-trilveer | ||||
| 14 | 6698428 | Anti-trilveer | € 2.02 | |
| Damper Set Bolt | ||||
| 15 | 6685413 | Damper Set Bolt | € 1.01 | |
| Seal Lock Screw M4x10 | ||||
| 16 | 6696835 | Seal Lock Screw M4x10 | € 1.15 | |
| Vis Ø 4*10 | ||||
| 16A | 324082 | Vis Ø 4*10 | € 1.58 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 17 | 6698539 | Uitlaatgas Ventiel Deksel (b) | € 2.02 | |
| Cover Packing (c51) | ||||
| 18 | 6698540 | Cover Packing (c51) | € 1.15 | |
| Exhaust Pipe | ||||
| 19 | 6698903 | Exhaust Pipe | € 1.15 | |
| Uitlaatgaasje | ||||
| 20 | 6698575 | Uitlaatgaasje | € 1.15 | |
| Vis Ø 5*25 Noir (2) | ||||
| 21 | 305558 | Vis Ø 5*25 Noir (2) | € 1.00 | |
| Beugelhandgreep | ||||
| 22A | 6699026 | Beugelhandgreep | € 13.46 | |
| Vis D5*20 (bm25y Vb13y) | ||||
| 23 | 302089 | Vis D5*20 (bm25y Vb13y) | € 1.01 | |
| Vis Ø4x10 (paquet de 10) Till 12.2017 | ||||
| 24 | 949812 | Vis Ø4x10 (paquet de 10) Till 12.2017 | € 2.30 | |
| Bolt Washer M4 (black) | ||||
| 25 | 323210 | Bolt Washer M4 (black) | € 1.01 | |
| Muffler Protector | ||||
| 26 | 6698904 | Muffler Protector | € 2.02 | |
| Muffler Protector Gauze | ||||
| 27 | 6698905 | Muffler Protector Gauze | € 1.15 | |
| Vis Cj 65vai (paquet de 10) | ||||
| 28 | 949219 | Vis Cj 65vai (paquet de 10) | € 1.15 | |
| Olieleiding | ||||
| 29 | 6698900 | Olieleiding | € 4.46 | |
| Oliepomp | ||||
| 30 | 6698554 | Oliepomp | € 10.66 | |
| D6 Clip | ||||
| 31 | 6685311 | D6 Clip | € 1.01 | |
| Hex. Socket Bolt M5 | ||||
| 32 | 6685412 | Hex. Socket Bolt M5 | € 1.01 | |
| Seal Lock Screw M5x12 | ||||
| 33 | 6698901 | Seal Lock Screw M5x12 | € 1.15 | |
| Épuisé | ||||
| 34 | 6685400 | Épuisé | ||
| Seal Lock Hex. Socket Hd. Bolt M5x45 | ||||
| 35 | 6698902 | Seal Lock Hex. Socket Hd. Bolt M5x45 | € 1.15 | |
| Muffler Cap | ||||
| 36 | 6698706 | Muffler Cap | € 1.15 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 37 | 6698899 | Seal Lock Hex. Socket Hd. Bolt M6x20 | € 1.15 | |
| Hex. Socket Hd. Bolt M5x12 (precote) | ||||
| 38 | 6696836 | Hex. Socket Hd. Bolt M5x12 (precote) | € 1.15 | |
| Uitlaat | ||||
| 39 | 6698574 | Uitlaat | € 15.71 | |
| Muffler Packing (c51) | ||||
| 40 | 6698576 | Muffler Packing (c51) | € 6.34 | |
| Fuel Grommet | ||||
| 41A | 6699944 | Fuel Grommet | € 1.00 | |
| Worm Set | ||||
| 42 | 6600928 | Worm Set | € 8.50 | |
| Fuel Pipe 2.5x4x90 (old 700-02504-09) | ||||
| 43 | 6685267 | Fuel Pipe 2.5x4x90 (old 700-02504-09) | € 1.10 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 44 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 5.70 | |
| Decomp. | ||||
| 45 | 6698541 | Decomp. | € 21.91 | |
| Épuisé | ||||
| 46A | 6699320 | Épuisé | ||
| Joint | ||||
| 47 | 6698549 | Joint | € 1.15 | |
| Intake (cs51) | ||||
| 48 | 6698906 | Intake (cs51) | € 12.82 | |
| Cab. Insulator Rubber | ||||
| 49 | 6698551 | Cab. Insulator Rubber | € 2.02 | |
| Carburetor Insulator (c51) | ||||
| 50 | 6698552 | Carburetor Insulator (c51) | € 2.02 | |
| Brandstofleiding (fkm) | ||||
| 51 | 6698907 | Brandstofleiding (fkm) | € 7.63 | |
| Carburator Ass'y | ||||
| 52 | 6698705 | Carburator Ass'y | € 109.56 | |
| Screw (old 514-25001-20) | ||||
| 53 | 6685210 | Screw (old 514-25001-20) | € 1.10 | |
| Pump Gasket (old 577-25007-20) | ||||
| 54 | 6685212 | Pump Gasket (old 577-25007-20) | € 2.22 | |
| Pump Diaphragm (old 576-25006-20) | ||||
| 55 | 6685213 | Pump Diaphragm (old 576-25006-20) | € 4.27 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 56 | 6684700 | Inlet Screen (oud 578-25007-20) | € 4.12 | |
| Needle Valve (old 603-25012-20) | ||||
| 57 | 6685215 | Needle Valve (old 603-25012-20) | € 5.06 | |
| Valve Spring (old 477-25088-20) | ||||
| 58 | 6690873 | Valve Spring (old 477-25088-20) | € 4.27 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 59 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.22 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 60 | 6684690 | Metering Diaphragm (old 474-25601-20) | € 17.28 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 61 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 4.27 | |
| Idle Adjust Spring (old 463-25012-20) | ||||
| 62 | 6690766 | Idle Adjust Spring (old 463-25012-20) | € 2.22 | |
| Idle Adjust Screw (old 462-25016-20) | ||||
| 63 | 6685298 | Idle Adjust Screw (old 462-25016-20) | € 2.22 | |
| Hinge Pin Set Screw (old 546-25001-20) | ||||
| 64 | 6685218 | Hinge Pin Set Screw (old 546-25001-20) | € 2.22 | |
| Control Lever (old 473-25001-20) | ||||
| 65 | 6685217 | Control Lever (old 473-25001-20) | € 3.17 | |
| Hinge Pin (old 605-25001-20) | ||||
| 66 | 6685219 | Hinge Pin (old 605-25001-20) | € 1.10 | |
| Set Screw (old 548-25012-20) | ||||
| 67 | 6685223 | Set Screw (old 548-25012-20) | € 1.10 | |
| Brandstofleiding | ||||
| 68 | 6698908 | Brandstofleiding | € 4.46 | |
| Bague | ||||
| 69 | 6685408 | Bague | € 1.01 | |
| Hex. Socket Hd. Bolt M5x45 | ||||
| 70 | 6696317 | Hex. Socket Hd. Bolt M5x45 | € 1.15 | |
| Cleaner Support (c51) | ||||
| 71A | 6698553 | Cleaner Support (c51) | € 2.02 | |
| Brandstofleiding | ||||
| 72 | 6698721 | Brandstofleiding | € 9.36 | |
| Cylindre | ||||
| 73 | 6698537 | Cylindre | € 60.19 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 74 | 6698538 | Uitlaatgas Ventiel Deksel (a) | € 2.02 | |
| Cylinder Packing | ||||
| 75 | 6698542 | Cylinder Packing | € 1.15 | |
| Zuiger Ring | ||||
| 76 | 6698534 | Zuiger Ring | € 8.78 | |
| Zuiger (44) (m) | ||||
| 77 | 6698909 | Zuiger (44) (m) | € 23.76 | |
| Cir Clip | ||||
| 78 | 6696854 | Cir Clip | € 1.01 | |
| Zuigerpinring | ||||
| 79 | 6698910 | Zuigerpinring | € 2.02 | |
| Engine Case (b) Ass'y (old 6698531) | ||||
| 80A | 6699945 | Engine Case (b) Ass'y (old 6698531) | € 73.00 | |
| Olie Keerring | ||||
| 81 | 6698914 | Olie Keerring | € 3.02 | |
| Roulement à billes | ||||
| 82 | 6202C3 | Roulement à billes | € 4.18 | |
| Krukas | ||||
| 83 | 6698532 | Krukas | € 52.93 | |
| Crank Case Packing (c51) | ||||
| 84 | 6698535 | Crank Case Packing (c51) | € 2.02 | |
| Zuiger Pin | ||||
| 85 | 6696855 | Zuiger Pin | € 2.02 | |
| Roulement A Aiguilles | ||||
| 86 | 6698911 | Roulement A Aiguilles | € 8.78 | |
| Carter De Moteur | ||||
| 87 | 6698530 | Carter De Moteur | € 63.89 | |
| Achterdemper | ||||
| 88 | 6698709 | Achterdemper | € 1.15 | |
| Brake Handle | ||||
| 89 | 6698572 | Brake Handle | € 6.34 | |
| Caution Label (d) New | ||||
| 90 | 6696335 | Caution Label (d) New | € 2.02 | |
| Caution Label (e) New | ||||
| 90 | 6696336 | Caution Label (e) New | € 2.02 | |
| Caution Label (b) (rus) | ||||
| 90 | 6698973 | Caution Label (b) (rus) | € 1.15 | |
| Brake Lever Spring | ||||
| 91 | 6698912 | Brake Lever Spring | € 1.15 | |
| Choke Rod Rubber | ||||
| 92 | 6685369 | Choke Rod Rubber | € 1.01 | |
| Choke Knop | ||||
| 93 | 6698593 | Choke Knop | € 1.15 | |
| Operation Plate | ||||
| 94 | 6698565 | Operation Plate | € 1.15 | |
| Stop Switch | ||||
| 95A | 6601275 | Stop Switch | € 1.30 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 96 | 6698988 | Hex. Socket Hd. Bolt M5x20 (w/button) | € 1.15 | |
| Chain Bar Bolt | ||||
| 98A | 6699029 | Chain Bar Bolt | € 1.00 | |
| Moer M8 | ||||
| 112 | 6698581 | Moer M8 | € 1.15 | |
| Flensmoer M8 | ||||
| 112A | 6699028 | Flensmoer M8 | € 1.00 | |
| Zijdeksel | ||||
| 113A | 6698585 | Zijdeksel | € 38.41 | |
| Chain Puller Bolt | ||||
| 114 | 6698591 | Chain Puller Bolt | € 6.62 | |
| Épuisé | ||||
| 115 | 6687270 | Épuisé | ||
| Épuisé | ||||
| 115 | 6687284 | Épuisé | ||
| Épuisé | ||||
| 115 | 6687296 | Épuisé | ||
| Épuisé | ||||
| 115 | 6687335 | Épuisé | ||
| Épuisé | ||||
| 115 | 6698710 | Épuisé | ||
| Geleidingsplaat (b) | ||||
| 116 | 6698592 | Geleidingsplaat (b) | € 3.02 | |
| ZWAARD 13" | ||||
| 117 | 6696911 | ZWAARD 13" | € 40.13 | |
| ZWAARD 15" | ||||
| 117 | 6696912 | ZWAARD 15" | € 43.82 | |
| ZWAARD 18" (45 CM) | ||||
| 117 | 6696982 | ZWAARD 18" (45 CM) | € 43.82 | |
| ZWAARD 16" | ||||
| 117 | 6696983 | ZWAARD 16" | € 43.82 | |
| ZWAARD 20" | ||||
| 117 | 6698641 | ZWAARD 20" | € 56.63 | |
| Oliedoorvoer | ||||
| 118 | 6696868 | Oliedoorvoer | € 1.01 | |
| Brandstofleiding (oud 6698453) | ||||
| 119 | 6698719 | Brandstofleiding (oud 6698453) | € 9.36 | |
| Bague | ||||
| 120 | 6685407 | Bague | € 1.01 | |
| Oliefilter | ||||
| 121 | 6698455 | Oliefilter | € 1.01 | |
| Oil Filter Body | ||||
| 122 | 6698536 | Oil Filter Body | € 2.16 | |
| Geleidingsplaat (a) | ||||
| 123 | 6698561 | Geleidingsplaat (a) | € 3.02 | |
| Damper (c51) | ||||
| 124 | 6698913 | Damper (c51) | € 1.15 | |
| Chain Catcher | ||||
| 125A | 6699027 | Chain Catcher | € 1.00 | |
| Brake Link | ||||
| 126 | 6698587 | Brake Link | € 4.46 | |
| Remveer | ||||
| 127 | 6698588 | Remveer | € 3.02 | |
| Remband | ||||
| 128 | 6698589 | Remband | € 5.90 | |
| D3 Needle Roller | ||||
| 129 | 6685391 | D3 Needle Roller | € 1.01 | |
| Brake Link Cover | ||||
| 130 | 6698590 | Brake Link Cover | € 3.02 | |
| Clutch | ||||
| 131 | 6698560 | Clutch | € 13.25 | |
| Rondelle | ||||
| 132 | 6696882 | Rondelle | € 2.02 | |
| Clutch Housing | ||||
| 133 | 6698558 | Clutch Housing | € 13.25 | |
| Roulement A Aiguilles | ||||
| 134 | 6696884 | Roulement A Aiguilles | € 4.90 | |
| Rim Sprocket | ||||
| 135 | 6698557 | Rim Sprocket | € 5.47 | |
| Bague | ||||
| 136 | 6698556 | Bague | € 1.15 | |
| Oliepomp Deksel | ||||
| 137 | 6698555 | Oliepomp Deksel | € 2.02 | |
| Worm | ||||
| 138A | 6600927 | Worm | € 4.75 | |
| Filtre | ||||
| 139 | 6685371 | Filtre | € 1.01 | |
| Valve | ||||
| 140 | 6685370 | Valve | € 2.02 | |
| Vis Ø 4*16 Noir | ||||
| 141 | 305812 | Vis Ø 4*16 Noir | € 1.00 | |
| Rear Handle Grip | ||||
| 142 | 6698805 | Rear Handle Grip | € 1.01 | |
| Schakelaar Blokkering | ||||
| 143 | 6685350 | Schakelaar Blokkering | € 1.01 | |
| Throttle Lever Spring (old 6685349) | ||||
| 144A | 6600341 | Throttle Lever Spring (old 6685349) | € 1.00 | |
| Achtergreep | ||||
| 146 | 6698579 | Achtergreep | € 23.76 | |
| Goupille | ||||
| 147 | 6685282 | Goupille | € 1.10 | |
| Trekstang | ||||
| 148 | 6698564 | Trekstang | € 1.15 | |
| Throttle Lever (vermilion) | ||||
| 149 | 6698916 | Throttle Lever (vermilion) | € 1.15 | |
| Air Valve Cap | ||||
| 150 | 6698580 | Air Valve Cap | € 4.46 | |
| Inner Cap Ass'y | ||||
| 151 | 6685351 | Inner Cap Ass'y | € 4.32 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 152 | 6696167 | Fuel Grommet (old 701-72930-20) | € 1.10 | |
| Pump Filter Body Ass'y (old 675-11657-90/6692282/6 | ||||
| 153 | 6692285 | Pump Filter Body Ass'y (old 675-11657-90/6692282/6 | € 6.97 | |
| Voordemper | ||||
| 154 | 6696873 | Voordemper | € 1.01 | |
| Veerhouder | ||||
| 155 | 6698409 | Veerhouder | € 2.02 | |
| Tapschroef D6 | ||||
| 156 | 6696872 | Tapschroef D6 | € 1.01 | |
| Anti-trilveer | ||||
| 157 | 6698408 | Anti-trilveer | € 2.02 | |
| Tank Mark Label | ||||
| 158 | 6698921 | Tank Mark Label | € 1.15 | |
| Tank Cap Packing (old 630-3252k-20/6685386) | ||||
| 159 | 6685179 | Tank Cap Packing (old 630-3252k-20/6685386) | € 1.10 | |
| Tank Dop Compleet | ||||
| 160 | 6698854 | Tank Dop Compleet | € 4.03 | |
| Snoerklem | ||||
| 161 | 988054 | Snoerklem | € 1.00 | |
| Plug Cap | ||||
| 162 | 6698548 | Plug Cap | € 2.02 | |
| Cord (a) | ||||
| 163 | 6698545 | Cord (a) | € 2.02 | |
| Cord (b) | ||||
| 164 | 6698546 | Cord (b) | € 1.15 | |
| METAL FITTING OF PLUG CAP (OLD 6698547) | ||||
| 165A | 6699180 | METAL FITTING OF PLUG CAP (OLD 6698547) | € 1.00 | |
| Bobine | ||||
| 166 | 6698544 | Bobine | € 43.82 | |
| Hex. Socket Hd. Bolt M4x18 (w/washers) | ||||
| 167 | 6696326 | Hex. Socket Hd. Bolt M4x18 (w/washers) | € 1.15 | |
| Magneto Ass'y | ||||
| 168 | 6698918 | Magneto Ass'y | € 21.91 | |
| Magneto Rotor | ||||
| 169 | 6698543 | Magneto Rotor | € 16.50 | |
| Veer (oud 6698417) | ||||
| 170A | 6699405 | Veer (oud 6698417) | € 1.01 | |
| Ring 0.8 | ||||
| 171 | 6696857 | Ring 0.8 | € 1.01 | |
| Starter Pawl | ||||
| 172 | 6696877 | Starter Pawl | € 2.02 | |
| Chim | ||||
| 173 | 6696434 | Chim | € 1.00 | |
| Boulon | ||||
| 174 | 6696878 | Boulon | € 1.01 | |
| Luchtkeerschot | ||||
| 175 | 6698571 | Luchtkeerschot | € 4.03 | |
| Recoil Starter (oud 6698583) | ||||
| 176A | 6699421 | Recoil Starter (oud 6698583) | € 17.69 | |
| Tank Dop Compleet | ||||
| 179 | 6698358 | Tank Dop Compleet | € 4.03 | |
| Set Screw | ||||
| 180 | 6699477 | Set Screw | € 1.00 | |
| Rondelle (1) | ||||
| 181 | 6699474 | Rondelle (1) | € 1.00 | |
| Reel | ||||
| 182 | 6699482 | Reel | € 3.17 | |
| SPIRAL SPRING CASE | ||||
| 183 | 6699480 | SPIRAL SPRING CASE | € 5.76 | |
| Starter Rope | ||||
| 184 | 6699470 | Starter Rope | € 1.00 | |
| Starter Knob | ||||
| 185 | 6699466 | Starter Knob | € 1.44 | |
| Starter Handle Ass'y | ||||
| 186 | 6699472 | Starter Handle Ass'y | € 2.16 | |
| Enveloppe De Ventilateur | ||||
| 187 | 6699488 | Enveloppe De Ventilateur | € 16.10 | |
| Moer M6 | ||||
| 188 | 329934 | Moer M6 | € 1.66 | |
| CHAIN COVER 15"/16" | ||||
| 501 | 6685439 | CHAIN COVER 15"/16" | € 6.62 | |
| KETTINGBESCHERMHOES | ||||
| 501 | 6696909 | KETTINGBESCHERMHOES | € 6.62 | |
| KETTINGBESCHERMHOES | ||||
| 501 | 6696910 | KETTINGBESCHERMHOES | € 6.62 | |
| KETTINGBESCHERMHOES | ||||
| 501 | 6698577 | KETTINGBESCHERMHOES | € 6.62 | |
| Combi Box Spanner 13x19 | ||||
| 502 | 6698582 | Combi Box Spanner 13x19 | € 4.46 | |
Votre panier contient 0 de produits.
