Dessins techniques et pièces de rechange Hikoki CS33ET

Recherche de pièces de rechange:
Hikoki
Type exact:
CS33ET

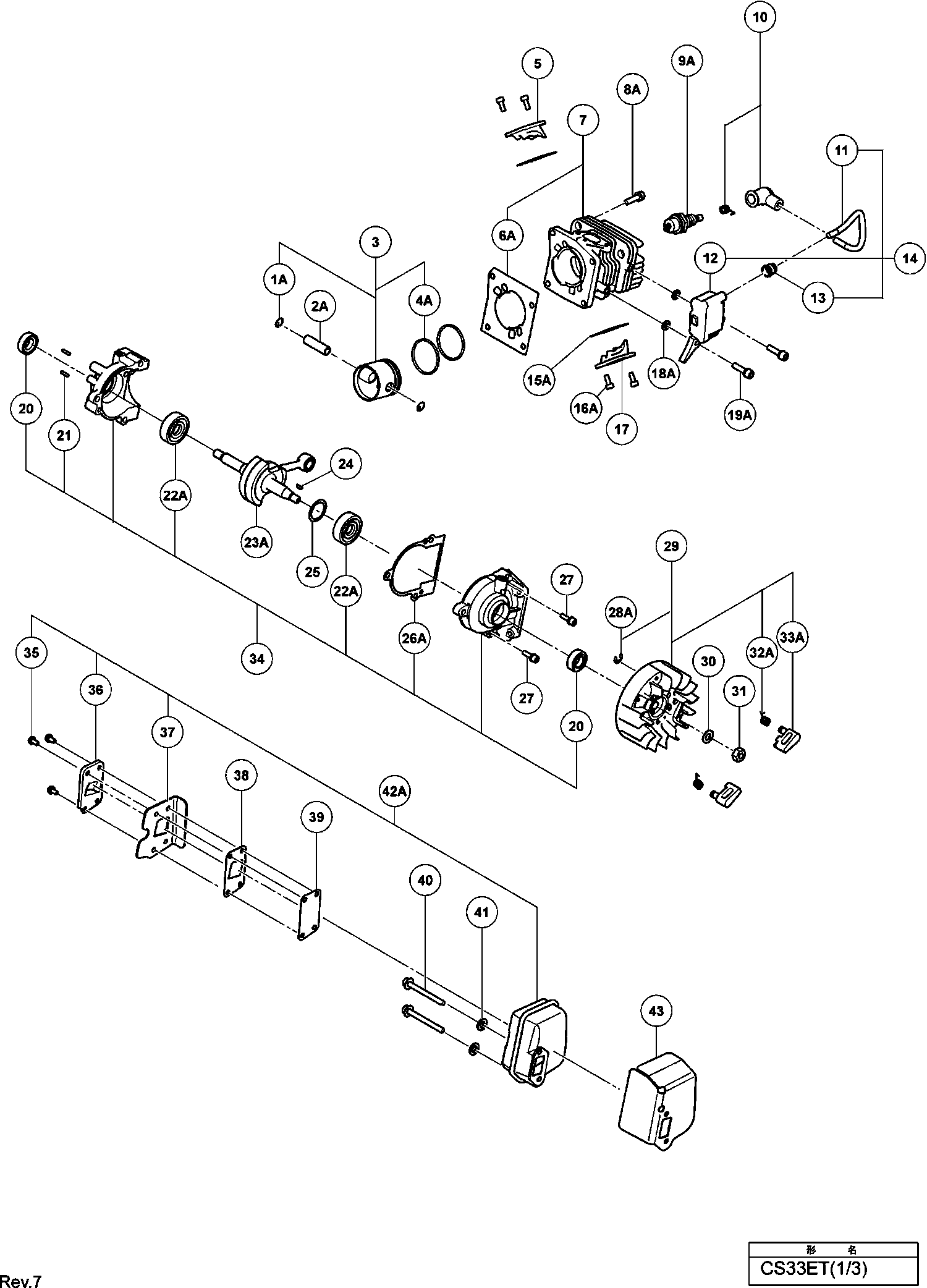

Dessins des HIKOKI CS33ET

Liste de pièces de rechange des HIKOKI CS33ET

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Cir Clip
1A6685326Cir Clip€ 1.02
Zuiger Pin (oud 6685079)
2A6696764Zuiger Pin (oud 6685079)€ 1.16
Piston Set (old 030-5631m-90)
36685080Piston Set (old 030-5631m-90)€ 21.53
Zuiger Ring (xr1-1856)
4A6685331Zuiger Ring (xr1-1856)€ 3.92
Épuisé
56685082Épuisé
Cylinder Packing
6A6698697Cylinder Packing€ 1.16
Cylinder Set (old 001-56300-90)
76685084Cylinder Set (old 001-56300-90)€ 37.04
Épuisé
8A305583Épuisé
Bougie (oud 6685085)
9A6699317Bougie (oud 6685085)€ 6.55
Bougie (oud 6685086)
9A6699319Bougie (oud 6685086)€ 8.63
Spark Plug Cap Ass'y (old 157-56300-90)
106685087Spark Plug Cap Ass'y (old 157-56300-90)€ 2.24
High Voltage Cord (old 178-20560-20)
116685088High Voltage Cord (old 178-20560-20)€ 2.24
Bobine
126685089Bobine€ 34.99
Rubber Beschermkapje
136684602Rubber Beschermkapje€ 2.08
Bobine (oud 167-20560-90)
146685091Bobine (oud 167-20560-90)€ 34.99
COVER PACKING(OLD 052-56300-21/6685092) NEW
15A6698698COVER PACKING(OLD 052-56300-21/6685092) NEW€ 1.02
Vis Ø4x10 (paquet de 10) Till 12.2017
16A949812Vis Ø4x10 (paquet de 10) Till 12.2017€ 2.32
Épuisé
176685094Épuisé
Bague
18A6698700Bague€ 1.16
Hex. Socket Hd Bolt M4x18 (w/washers)
19A6698388Hex. Socket Hd Bolt M4x18 (w/washers)€ 1.02
Olie Keerring
206684607Olie Keerring€ 4.15
Épuisé
216685095Épuisé
Roulement A Billes (1)
22A6685328Roulement A Billes (1)€ 2.90
Krukas
23A6698693Krukas€ 53.37
Woodruff Key 3x13x4.5 (oud 068-10100-20)
246684899Woodruff Key 3x13x4.5 (oud 068-10100-20)€ 2.08
Shim S T0.2 (old 071-04063-23)
256685098Shim S T0.2 (old 071-04063-23)€ 1.11
Shim S T0.3 (old 071-04063-24)
256685099Shim S T0.3 (old 071-04063-24)€ 1.11
Épuisé
26A6698694Épuisé
Épuisé
276684668Épuisé
Retaining Ring D4
28A6685336Retaining Ring D4€ 1.02
Magneto Rotor Ass'y (old 155-20544-90)
296685102Magneto Rotor Ass'y (old 155-20544-90)€ 16.84
Bague
306685103Bague€ 1.11
Flywheel Nut (old 066-00000-20)
316685104Flywheel Nut (old 066-00000-20)€ 1.11
Ressort
32A6685335Ressort€ 1.02
Starter Pawl
33A6685334Starter Pawl€ 1.02
Crank Case Ass'y (old 072-56300-90)
346685107Crank Case Ass'y (old 072-56300-90)€ 27.24
Bague
356685109Bague€ 1.11
Vis M.4*10 For Usa
35986662Vis M.4*10 For Usa€ 1.02
Exhaust Pipe (old 734-56300-20)
366685110Exhaust Pipe (old 734-56300-20)€ 2.24
Muffler Special Packing (old 751-56300-20)
376685111Muffler Special Packing (old 751-56300-20)€ 3.19
Gauze Fixing Plate (old 745-56300-20)
386685112Gauze Fixing Plate (old 745-56300-20)€ 3.19
Muffler Gauze (old 732-56300-20)
396685113Muffler Gauze (old 732-56300-20)€ 2.24
Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)
406685114Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)€ 1.11
Bague
416684661Bague€ 2.08
Muffler Comp. (old 706-56300-81)
426685115Muffler Comp. (old 706-56300-81)€ 33.09
Knaldemper (oud 705-56301-90)
42A6697102Knaldemper (oud 705-56301-90)€ 15.67
Muffler Packing (old 737-56300-20)
436685117Muffler Packing (old 737-56300-20)€ 3.19
Brake Support Plate Comp. (old 386-32901-80)
716685119Brake Support Plate Comp. (old 386-32901-80)€ 4.31
Collar (old 031-32901-20)
726685120Collar (old 031-32901-20)€ 1.11
Brake Link Ass'y
73A6685388Brake Link Ass'y€ 3.92
Brake Lever Spring
74A6696783Brake Lever Spring€ 1.16
Brake Handle (old 365-72930-80)
756685123Brake Handle (old 365-72930-80)€ 6.10
Brake Link Cover (old 375-72930-20)
776685126Brake Link Cover (old 375-72930-20)€ 1.11
Oil Adjust Grommet (old 488-72930-20)
786685127Oil Adjust Grommet (old 488-72930-20)€ 1.11
Oil Pump Adjuster (old 501-72000-20)
796685128Oil Pump Adjuster (old 501-72000-20)€ 1.11
Adjuster Spring (old 502-72000-20)
806685129Adjuster Spring (old 502-72000-20)€ 1.11
Bague
816685070Bague€ 1.11
Oil Pump Adjust Cap (old 503-72000-20)
82A6685130Oil Pump Adjust Cap (old 503-72000-20)€ 1.11
Pump Gear Spring (old 099-72000-20)
836685131Pump Gear Spring (old 099-72000-20)€ 1.11
Pump Gear Comp. (old 085-72000-80)
846685132Pump Gear Comp. (old 085-72000-80)€ 11.34
Machine Screw M3x8 (old 990-11030-081)
856685133Machine Screw M3x8 (old 990-11030-081)€ 1.11
Oil Pump Case Comp.
866685134Oil Pump Case Comp.€ 12.78
Oil Pump Case Ass'y (old 088-72000-90)
87A6685135Oil Pump Case Ass'y (old 088-72000-90)€ 18.45
Seal Lock Bolt M5x15 (old 990-54050-155)
886685136Seal Lock Bolt M5x15 (old 990-54050-155)€ 1.11
Protective Coil
89A6698699Protective Coil€ 1.16
Fuel Pipe 2.5x4x42 (old 700-02504-042 & 6698850)
906685138Fuel Pipe 2.5x4x42 (old 700-02504-042 & 6698850)€ 1.11
Priming Pump Comp. (old 442-25143-80)
916685139Priming Pump Comp. (old 442-25143-80)€ 5.75
Remband
926685140Remband€ 14.06
D3 Needle Roller
93A6685391D3 Needle Roller€ 1.02
Épuisé
94A6685362Épuisé
Roulement A Aiguilles
95A6685361Roulement A Aiguilles€ 3.92
Clutch Housing
96A6685403Clutch Housing€ 9.87
Bague
97A6685414Bague€ 1.02
Krukas Ring
98A6685360Krukas Ring€ 2.03
Oil Pump Cover (old 097-72930-20)
996685147Oil Pump Cover (old 097-72930-20)€ 1.11
Tapping Screw D4x15 (old 993-41040-151)
1006685148Tapping Screw D4x15 (old 993-41040-151)€ 1.11
Bague
1016685149Bague€ 1.11
Oil Pipe (a) (old 515-72000-20)
1026685150Oil Pipe (a) (old 515-72000-20)€ 2.24
Screw Gear (old 084-72000-20)
1036685151Screw Gear (old 084-72000-20)€ 8.94
Tapping Screw D4.5x14 (old 990-75045-144)
1046685152Tapping Screw D4.5x14 (old 990-75045-144)€ 1.11
Tapping Screw D4.5x14 (old 990-73045-144)
1056685153Tapping Screw D4.5x14 (old 990-73045-144)€ 1.11
Fuel Pipe (old 700-07105-02)
1066685154Fuel Pipe (old 700-07105-02)€ 1.11
Chain Catcher (old 125-32710-20)
1076685155Chain Catcher (old 125-32710-20)€ 1.11
Air Vent Sponge
1086685156Air Vent Sponge€ 1.11
Geleidingsplaat (b) (oud 6685157)
109A6696784Geleidingsplaat (b) (oud 6685157)€ 2.03
Vis Ø3x8
1106685158Vis Ø3x8€ 1.11
CHAIN BAR 12" x 3/8" x 1.3 MM (.050") (OLD 109-327
1116685294CHAIN BAR 12" x 3/8" x 1.3 MM (.050") (OLD 109-327€ 46.71
CHAIN BAR 14" x 3/8" x 1.3 MM (.050") (OLD 108-729
1116685295CHAIN BAR 14" x 3/8" x 1.3 MM (.050") (OLD 108-729€ 54.46
Tapping Screw D4x10 (old 993-41040-101)
1126685161Tapping Screw D4x10 (old 993-41040-101)€ 1.11
Geleidingsplaat (a)
113A6698692Geleidingsplaat (a)€ 4.07
Side Cover Comp. (old 039-72930-80)
1156685165Side Cover Comp. (old 039-72930-80)€ 10.54
Chain Bar Clamp Nut
116A6685416Chain Bar Clamp Nut€ 1.02
Brake Spring (old 6685167)
117A6685389Brake Spring (old 6685167)€ 1.02
Gear (a) (old 301-72000-20)
1186685168Gear (a) (old 301-72000-20)€ 2.24
Épuisé
1196685169Épuisé
Chain Puller
119B6698986Chain Puller€ 12.92
Épuisé
120A6697852Épuisé
Épuisé
120A6697854Épuisé
Tapping Screw D4x10 (old 993-41040-101)
1216685161Tapping Screw D4x10 (old 993-41040-101)€ 1.11
Air Vent Valve (b) (old 562-04060-20)
1236685173Air Vent Valve (b) (old 562-04060-20)€ 2.24
Engine Case Ass'y (old 560-72930-90)
1246685174Engine Case Ass'y (old 560-72930-90)€ 42.75
Inner Cap Set (old 629-01750-90)
125A6685175Inner Cap Set (old 629-01750-90)€ 6.70
Épuisé
1266685176Épuisé
Tank Cap Packing (old 630-3252k-20/6685386)
1296685179Tank Cap Packing (old 630-3252k-20/6685386)€ 1.11
Tank Dop Compleet
1306685180Tank Dop Compleet€ 3.19
SET SCREW (OLD 839-03045-20)
1316684679SET SCREW (OLD 839-03045-20)€ 2.08
CAM PLATE (OLD 759-0174M-20)
1326685182CAM PLATE (OLD 759-0174M-20)€ 3.19
Damper Spring (old 758-01761-20)
1336685183Damper Spring (old 758-01761-20)€ 4.31
STARTER PULLEY (OLD 774-01761-20)
1346685184STARTER PULLEY (OLD 774-01761-20)€ 4.79
SPRING CASE ASS'Y (OLD 778-01761-90)
1356685185SPRING CASE ASS'Y (OLD 778-01761-90)€ 8.94
Rope (old 783-01761-20)
1366685186Rope (old 783-01761-20)€ 2.24
Épuisé
1376685187Épuisé
Starthendel
1386685188Starthendel€ 2.24
Plate (old 795-04063-20)
1396685189Plate (old 795-04063-20)€ 1.11
Recoil Starter Ass'y (old 756-56300-90)
1406685190Recoil Starter Ass'y (old 756-56300-90)€ 24.76
Tapping Screw D4.5x20 (old 990-72045-204)
1416685191Tapping Screw D4.5x20 (old 990-72045-204)€ 1.11
Engine Case Cover (old 563-72930-20)
1616685194Engine Case Cover (old 563-72930-20)€ 4.31
Tapping Screw D4.5x14 (old 990-75045-144)
1626685152Tapping Screw D4.5x14 (old 990-75045-144)€ 1.11
Pipe Joint (old 497-32970-20)
1646685196Pipe Joint (old 497-32970-20)€ 1.11
Shield Tube Ass'y (old 223-72930-90)
1656685197Shield Tube Ass'y (old 223-72930-90)€ 7.03
D6 Clip
166A6685311D6 Clip€ 1.02
Pump Filter Body Ass'y (old 675-11600-90/6692275/6
1676685199Pump Filter Body Ass'y (old 675-11600-90/6692275/6€ 4.31
Fuel Pipe 2.5x4x260 (old 700-02504-260)
1686685200Fuel Pipe 2.5x4x260 (old 700-02504-260)€ 1.11
Tapping Screw D4.5x14 (old 990-73045-144)
1696685153Tapping Screw D4.5x14 (old 990-73045-144)€ 1.11
Cleaner Body Comp. (old 155-72930-80)
1706685201Cleaner Body Comp. (old 155-72930-80)€ 7.03
Inlet Manifold Spacer (old 400-32970-20)
1716685202Inlet Manifold Spacer (old 400-32970-20)€ 3.19
Hex. Hole Bolt M4
172A6698792Hex. Hole Bolt M4€ 1.16
Pulse Guide (old 431-32970-20)
1736685203Pulse Guide (old 431-32970-20)€ 1.11
Intake Comp. (old 391-56300-80)
1746685204Intake Comp. (old 391-56300-80)€ 8.94
Intake Packing (old 403-56300-20)
1756685205Intake Packing (old 403-56300-20)€ 1.11
Choke Lever (old 495-56300-20)
1766685206Choke Lever (old 495-56300-20)€ 1.11
Choke Lever (green)
1766698349Choke Lever (green)€ 1.16
Épuisé
1776685207Épuisé
Carburetor Ass'y Wt-940 (old 455-25344-90)
1786685208Carburetor Ass'y Wt-940 (old 455-25344-90)€ 99.12
Carburetor Ass'y Wt-949 For Aus & Rus (old 455-253
1786685209Carburetor Ass'y Wt-949 For Aus & Rus (old 455-253€ 99.12
Screw (old 514-25001-20)
1796685210Screw (old 514-25001-20)€ 1.11
Pump Body (old 575-25028-20/6696844)
1806685211Pump Body (old 575-25028-20/6696844)€ 8.14
Pump Gasket (old 577-25007-20)
1816685212Pump Gasket (old 577-25007-20)€ 2.24
Pump Diaphragm (old 576-25006-20)
1826685213Pump Diaphragm (old 576-25006-20)€ 4.31
Inlet Screen (oud 578-25007-20)
1836684700Inlet Screen (oud 578-25007-20)€ 4.15
Needle Valve (old 603-25012-20)
1846685215Needle Valve (old 603-25012-20)€ 5.11
Valve Spring (old 477-25343-20)
1856685216Valve Spring (old 477-25343-20)€ 2.24
Control Lever (old 473-25001-20)
1866685217Control Lever (old 473-25001-20)€ 3.19
Hinge Pin Set Screw (old 546-25001-20)
1876685218Hinge Pin Set Screw (old 546-25001-20)€ 2.24
Hinge Pin (old 605-25001-20)
1886685219Hinge Pin (old 605-25001-20)€ 1.11
Diaphragm Packing (old 475-25038-20)
1896685220Diaphragm Packing (old 475-25038-20)€ 2.24
Metering Diaphragm (old 474-25601-20)
1906684690Metering Diaphragm (old 474-25601-20)€ 17.42
Diaphragm Cover (old 476-25004-20)
1916685222Diaphragm Cover (old 476-25004-20)€ 4.31
Set Screw (old 548-25012-20)
1926685223Set Screw (old 548-25012-20)€ 1.11
Idle Sponge (old 191-32970-20)
1936685224Idle Sponge (old 191-32970-20)€ 1.11
Air Cleaner Base (old 436-56300-20)
1946685225Air Cleaner Base (old 436-56300-20)€ 1.11
Bague
1956685226Bague€ 1.11
Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)
1966685114Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)€ 1.11
Luchtfilterkap
1976685227Luchtfilterkap€ 3.92
Cleaner Knob (old 175-72000-20)
1986685228Cleaner Knob (old 175-72000-20)€ 2.24
Reinigingsspons (b) (old 470-72930-20)
1996685229Reinigingsspons (b) (old 470-72930-20)€ 1.11
Élément de filtre à air
2006685230Élément de filtre à air€ 3.19
Élément de filtre à air
2016685231Élément de filtre à air€ 3.19
Reinigingsspons
2026685232Reinigingsspons€ 2.24
Tapping Screw D5x45 (old 990-73050-454)
2036685233Tapping Screw D5x45 (old 990-73050-454)€ 1.11
Ring 1.0 (old 6685234)
204A6696799Ring 1.0 (old 6685234)€ 1.16
Collar 28.2 (old 6685235)
205A6696800Collar 28.2 (old 6685235)€ 2.03
BUMPER COMP. (OLD 244-72930-80)
2066685236BUMPER COMP. (OLD 244-72930-80)€ 4.31
Tapping Screw D4.5x14 (old 990-73045-144)
2076685153Tapping Screw D4.5x14 (old 990-73045-144)€ 1.11
Hook Holder Plate
208A6698695Hook Holder Plate€ 2.03
Crochet (1)
209A6698696Crochet (1)€ 2.03
STOP SWITCH (OLD 170-04063-80)
2106685239STOP SWITCH (OLD 170-04063-80)€ 3.19
Rear Handle (b) Comp. (old 011-72930-80)
2116685240Rear Handle (b) Comp. (old 011-72930-80)€ 10.54
Gaskabel
2126685241Gaskabel€ 7.03
Throttle Lever (old 060-72930-20)
2136685242Throttle Lever (old 060-72930-20)€ 1.11
Regulateur Groen
2136698346Regulateur Groen€ 1.16
Throttle Lever Spring
214A6698691Throttle Lever Spring€ 1.16
Schakelaar Blokkering
2156685244Schakelaar Blokkering€ 1.11
Trigger Lock Out (green)
2156698347Trigger Lock Out (green)€ 1.16
Tapping Screw D4.5x14 (old 990-75045-144)
2166685152Tapping Screw D4.5x14 (old 990-75045-144)€ 1.11
Knaldemper Afdekkap (oud 737-72933-20)
2176685245Knaldemper Afdekkap (oud 737-72933-20)€ 8.94
Épuisé
218A6696806Épuisé
Shield Tube Ass'y (old 223-06500-90)
2196685247Shield Tube Ass'y (old 223-06500-90)€ 2.24
D6 Clip
220A6685311D6 Clip€ 1.02
Bague
2216684661Bague€ 2.08
Oil Filter Body
222A6685310Oil Filter Body€ 1.02
Oil Filter Body Ass'y (old 486-32710-90)
2236685249Oil Filter Body Ass'y (old 486-32710-90)€ 2.24
Tapping Screw D4x15 (old 993-41040-152)
2246685250Tapping Screw D4x15 (old 993-41040-152)€ 1.02
Cord 325mm (old 178-56301-80)
2256685251Cord 325mm (old 178-56301-80)€ 2.24
Cord 180mm (old 274-01750-80)
2266685252Cord 180mm (old 274-01750-80)€ 2.24
Rear Handle (a) Comp. (old 010-72930-80)
2276685253Rear Handle (a) Comp. (old 010-72930-80)€ 6.23
Tapping Screw D5x16 (old 990-73050-164)
2286685074Tapping Screw D5x16 (old 990-73050-164)€ 1.11
Front Handle (old 209-72930-20)
2296685254Front Handle (old 209-72930-20)€ 8.14
Idle Adjust Spring (old 463-25006-20)
2306685297Idle Adjust Spring (old 463-25006-20)€ 2.24
Idle Adjust Screw (old 462-25016-20)
2316685298Idle Adjust Screw (old 462-25016-20)€ 2.24
CHAIN COVER 15"/16"
501A6685401CHAIN COVER 15"/16"€ 6.10
CHAIN COVER 15"/16"
501A6685439CHAIN COVER 15"/16"€ 6.68
Combi Box Spanner
502A6685402Combi Box Spanner€ 3.05
Votre panier contient 0 de produits.
