Dessins techniques et pièces de rechange Hikoki CS33EDTP
Type exact:
CS33EDTP
CS33EDTP

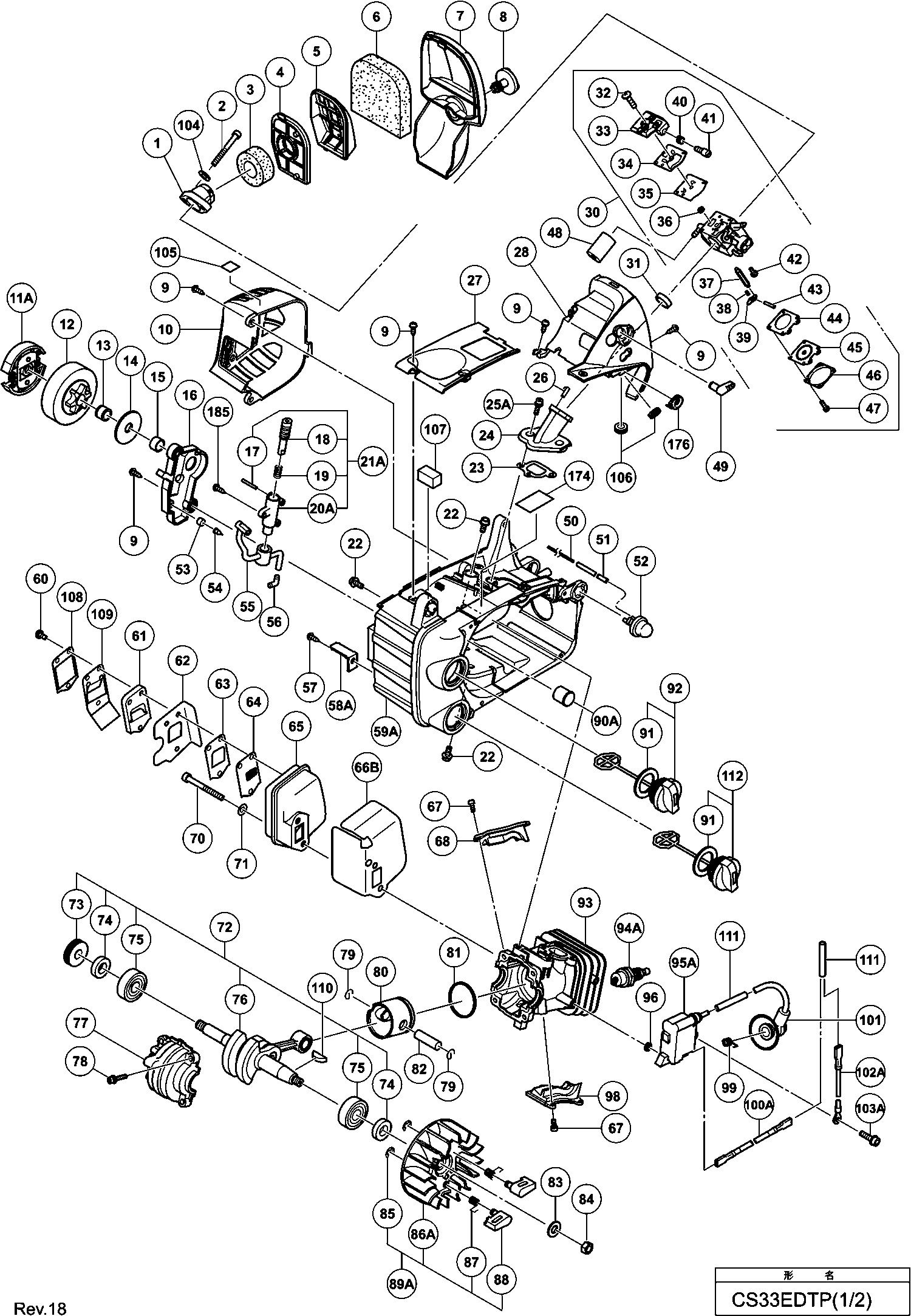

Dessins des HIKOKI CS33EDTP
Liste de pièces de rechange des HIKOKI CS33EDTP
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Air Cleaner Base (old 436-56300-20) | ||||
| 1 | 6685225 | Air Cleaner Base (old 436-56300-20) | € 1.11 | |
| Hex Socket Hd. Bolt M5x45 (10 Pcs) | ||||
| 2 | 949824 | Hex Socket Hd. Bolt M5x45 (10 Pcs) | € 3.78 | |
| Reinigingsspons (b) | ||||
| 3 | 6696826 | Reinigingsspons (b) | € 1.16 | |
| Élément de filtre à air | ||||
| 4 | 6685230 | Élément de filtre à air | € 3.19 | |
| Élément de filtre à air | ||||
| 5 | 6685231 | Élément de filtre à air | € 3.19 | |
| Reinigingsspons | ||||
| 6 | 6696825 | Reinigingsspons | € 1.16 | |
| Luchtfilterkap | ||||
| 7 | 6696785 | Luchtfilterkap | € 4.07 | |
| Cleaner Knob | ||||
| 8 | 6696786 | Cleaner Knob | € 1.16 | |
| Vis Ø 4*16 Noir | ||||
| 9 | 305812 | Vis Ø 4*16 Noir | € 1.00 | |
| Knaldemper Afdekkap | ||||
| 10 | 6696821 | Knaldemper Afdekkap | € 7.70 | |
| Clutch (old 6696809) | ||||
| 11A | 6600316 | Clutch (old 6696809) | € 10.60 | |
| Clutch Housing | ||||
| 12 | 6698856 | Clutch Housing | € 13.79 | |
| Roulement A Aiguilles | ||||
| 13 | 6685361 | Roulement A Aiguilles | € 3.92 | |
| Bague | ||||
| 14 | 6685414 | Bague | € 1.02 | |
| Krukas Ring | ||||
| 15 | 6685360 | Krukas Ring | € 2.03 | |
| Épuisé | ||||
| 16 | 6696789 | Épuisé | ||
| Oliepomp Deksel | ||||
| 16A | 6699610 | Oliepomp Deksel | € 2.71 | |
| Naaldroller | ||||
| 17 | 6685356 | Naaldroller | € 1.02 | |
| Pump Gear | ||||
| 18 | 6685354 | Pump Gear | € 2.03 | |
| Pump Gear Spring | ||||
| 19 | 6685355 | Pump Gear Spring | € 1.02 | |
| Pump Case (old 6685353) | ||||
| 20A | 6699119 | Pump Case (old 6685353) | € 7.26 | |
| Pump Ass'y (old 6696788) | ||||
| 21A | 6699120 | Pump Ass'y (old 6696788) | € 9.00 | |
| Seal Lock Bolt M5x15 (old 990-54050-155) | ||||
| 22 | 6685136 | Seal Lock Bolt M5x15 (old 990-54050-155) | € 1.11 | |
| Épuisé | ||||
| 23 | 6698849 | Épuisé | ||
| Intake | ||||
| 24 | 6696794 | Intake | € 4.07 | |
| Hex. Hole Bolt M4 | ||||
| 25A | 6698792 | Hex. Hole Bolt M4 | € 1.16 | |
| Pulse Guide (old 431-32970-20) | ||||
| 26 | 6685203 | Pulse Guide (old 431-32970-20) | € 1.11 | |
| Motorhuis Kap | ||||
| 27 | 6696812 | Motorhuis Kap | € 3.05 | |
| Cleaner Body | ||||
| 28 | 6696792 | Cleaner Body | € 4.50 | |
| Carburator Ass'y | ||||
| 30 | 6696795 | Carburator Ass'y | € 80.92 | |
| Inlet Spacer | ||||
| 31 | 6698857 | Inlet Spacer | € 1.16 | |
| Screw (old 514-25001-20) | ||||
| 32 | 6685210 | Screw (old 514-25001-20) | € 1.11 | |
| Pump Body (old 575-25028-20/6696844) | ||||
| 33 | 6685211 | Pump Body (old 575-25028-20/6696844) | € 8.14 | |
| Pump Gasket (old 577-25007-20) | ||||
| 34 | 6685212 | Pump Gasket (old 577-25007-20) | € 2.24 | |
| Pump Diaphragm (old 576-25006-20) | ||||
| 35 | 6685213 | Pump Diaphragm (old 576-25006-20) | € 4.31 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 36 | 6684700 | Inlet Screen (oud 578-25007-20) | € 4.15 | |
| Needle Valve (old 603-25012-20) | ||||
| 37 | 6685215 | Needle Valve (old 603-25012-20) | € 5.11 | |
| Valve Spring (old 477-25343-20) | ||||
| 38 | 6685216 | Valve Spring (old 477-25343-20) | € 2.24 | |
| Control Lever (old 473-25001-20) | ||||
| 39 | 6685217 | Control Lever (old 473-25001-20) | € 3.19 | |
| Idle Adjust Spring (old 463-25006-20) | ||||
| 40 | 6685297 | Idle Adjust Spring (old 463-25006-20) | € 2.24 | |
| Idle Adjust Screw (old 462-25016-20) | ||||
| 41 | 6685298 | Idle Adjust Screw (old 462-25016-20) | € 2.24 | |
| Hinge Pin Set Screw (old 546-25001-20) | ||||
| 42 | 6685218 | Hinge Pin Set Screw (old 546-25001-20) | € 2.24 | |
| Hinge Pin (old 605-25001-20) | ||||
| 43 | 6685219 | Hinge Pin (old 605-25001-20) | € 1.11 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 44 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.24 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 45 | 6684690 | Metering Diaphragm (old 474-25601-20) | € 17.42 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 46 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 4.31 | |
| Set Screw (old 548-25012-20) | ||||
| 47 | 6685223 | Set Screw (old 548-25012-20) | € 1.11 | |
| Idol Sponge | ||||
| 48 | 6696793 | Idol Sponge | € 1.16 | |
| Choke Lever (old 495-56300-20) | ||||
| 49 | 6685206 | Choke Lever (old 495-56300-20) | € 1.11 | |
| Choke Lever (green) | ||||
| 49 | 6698349 | Choke Lever (green) | € 1.16 | |
| Protective Coil | ||||
| 50 | 6698699 | Protective Coil | € 1.16 | |
| Épuisé | ||||
| 51 | 6698850 | Épuisé | ||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 52 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 5.75 | |
| Filtre | ||||
| 53 | 6685371 | Filtre | € 1.02 | |
| Valve | ||||
| 54 | 6685370 | Valve | € 2.03 | |
| Olieleiding | ||||
| 55 | 6696811 | Olieleiding | € 2.03 | |
| Pipe Joint | ||||
| 56 | 6685358 | Pipe Joint | € 1.02 | |
| Tapschroef D5x15 | ||||
| 57 | 6698456 | Tapschroef D5x15 | € 1.02 | |
| Chain Catcher | ||||
| 58 | 6685363 | Chain Catcher | € 1.02 | |
| Chain Catcher | ||||
| 58A | 6699950 | Chain Catcher | € 1.00 | |
| Carter De Moteur | ||||
| 59A | 6696807 | Carter De Moteur | € 33.14 | |
| Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | ||||
| 60 | 935196 | Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | € 1.00 | |
| Exhaust Pipe | ||||
| 61 | 6696816 | Exhaust Pipe | € 1.16 | |
| Muffler Special Packing | ||||
| 62 | 6696818 | Muffler Special Packing | € 1.16 | |
| Gauze Fixing Plate | ||||
| 63 | 6696817 | Gauze Fixing Plate | € 1.16 | |
| Uitlaatgaasje | ||||
| 64 | 6696815 | Uitlaatgaasje | € 1.16 | |
| Muffler (w/catalyzer) | ||||
| 65 | 6696813 | Muffler (w/catalyzer) | € 31.28 | |
| Épuisé | ||||
| 66A | 6600414 | Épuisé | ||
| Muffler Packing | ||||
| 66B | 6600445 | Muffler Packing | € 1.45 | |
| Vis Ø4x10 (paquet de 10) Till 12.2017 | ||||
| 67 | 949812 | Vis Ø4x10 (paquet de 10) Till 12.2017 | € 2.32 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 68 | 6696766 | Uitlaatgas Ventiel Deksel (b) | € 2.03 | |
| Épuisé | ||||
| 70 | 6696819 | Épuisé | ||
| Rondelle M.6 (x10) paquet de 10 | ||||
| 71 | 949432 | Rondelle M.6 (x10) paquet de 10 | € 1.02 | |
| Crank Worm Ass'y | ||||
| 72 | 6698853 | Crank Worm Ass'y | € 64.42 | |
| Worm | ||||
| 73 | 6685330 | Worm | € 4.36 | |
| Olie Keerring | ||||
| 74 | 6685329 | Olie Keerring | € 2.03 | |
| Roulement A Billes (1) | ||||
| 75 | 6685328 | Roulement A Billes (1) | € 2.90 | |
| Krukas | ||||
| 76 | 6696762 | Krukas | € 49.65 | |
| Crank Case | ||||
| 77 | 6696767 | Crank Case | € 5.52 | |
| Hex. Socket Hd Bolt M5x18 (w/sp.washer) | ||||
| 78 | 6698386 | Hex. Socket Hd Bolt M5x18 (w/sp.washer) | € 1.02 | |
| Cir Clip | ||||
| 79 | 6685326 | Cir Clip | € 1.02 | |
| Piston | ||||
| 80 | 6698806 | Piston | € 12.93 | |
| Zuiger Ring (xr1-1856) | ||||
| 81 | 6685331 | Zuiger Ring (xr1-1856) | € 3.92 | |
| Zuiger Pin (oud 6685079) | ||||
| 82 | 6696764 | Zuiger Pin (oud 6685079) | € 1.16 | |
| Bague | ||||
| 83 | 6685103 | Bague | € 1.11 | |
| Flywheel Nut (old 066-00000-20) | ||||
| 84 | 6685104 | Flywheel Nut (old 066-00000-20) | € 1.11 | |
| Retaining Ring D4 | ||||
| 85 | 6685336 | Retaining Ring D4 | € 1.02 | |
| Magneto Rotor Comp. | ||||
| 86A | 6600053 | Magneto Rotor Comp. | € 8.57 | |
| Ressort | ||||
| 87 | 6685335 | Ressort | € 1.02 | |
| Starter Pawl | ||||
| 88 | 6685334 | Starter Pawl | € 1.02 | |
| Magneto Sub Ass'y | ||||
| 89A | 6600090 | Magneto Sub Ass'y | € 35.54 | |
| Inner Cap Ass'y | ||||
| 90A | 6685351 | Inner Cap Ass'y | € 4.36 | |
| Tank Cap Packing (old 630-3252k-20/6685386) | ||||
| 91 | 6685179 | Tank Cap Packing (old 630-3252k-20/6685386) | € 1.11 | |
| Tank Dop Compleet | ||||
| 92 | 6698854 | Tank Dop Compleet | € 4.07 | |
| Tank Dop Compleet | ||||
| 92 | 6698855 | Tank Dop Compleet | € 4.07 | |
| Épuisé | ||||
| 93 | 6696761 | Épuisé | ||
| Cylindre | ||||
| 93A | 6601440 | Cylindre | € 43.12 | |
| Épuisé | ||||
| 94 | 6685782 | Épuisé | ||
| Épuisé | ||||
| 94A | 6699320 | Épuisé | ||
| Bobine | ||||
| 95A | 6699999 | Bobine | € 37.40 | |
| Bague | ||||
| 96 | 6698700 | Bague | € 1.16 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 98 | 6696765 | Uitlaatgas Ventiel Deksel (a) | € 2.03 | |
| Metal Fitting Of Plug Cap (a) | ||||
| 99 | 6696772 | Metal Fitting Of Plug Cap (a) | € 1.16 | |
| Cord (a) | ||||
| 100A | 6696787 | Cord (a) | € 1.16 | |
| SPARK PLUG CAP | ||||
| 101 | 6696771 | SPARK PLUG CAP | € 2.03 | |
| Cord (b) | ||||
| 102A | 6696791 | Cord (b) | € 1.16 | |
| Hex. Socket Hd. Bolt M4x18 (w/washers) | ||||
| 103A | 6696326 | Hex. Socket Hd. Bolt M4x18 (w/washers) | € 1.16 | |
| Bague | ||||
| 104 | 6685226 | Bague | € 1.11 | |
| Caution Label (hot) | ||||
| 105 | 6698864 | Caution Label (hot) | € 1.16 | |
| Grommet | ||||
| 106 | 6698787 | Grommet | € 1.74 | |
| Protection Sheet | ||||
| 107 | 6698860 | Protection Sheet | € 1.16 | |
| Packing Plate | ||||
| 108 | 6698861 | Packing Plate | € 1.16 | |
| Muffler Special Packing (s) | ||||
| 109 | 6698862 | Muffler Special Packing (s) | € 1.16 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 110 | 6684899 | Woodruff Key 3x13x4.5 (oud 068-10100-20) | € 2.08 | |
| Cord Insulation Tube | ||||
| 111 | 6698863 | Cord Insulation Tube | € 1.16 | |
| Tank Dop Compleet | ||||
| 112 | 6698358 | Tank Dop Compleet | € 4.07 | |
| Ignition Coil Ass'y | ||||
| 113 | 6601441 | Ignition Coil Ass'y | € 31.54 | |
| Épuisé | ||||
| 115 | 6601514 | Épuisé | ||
| Épuisé | ||||
| 116 | 6601520 | Épuisé | ||
| Tapping Screw (w/flange) D5x40 | ||||
| 121A | 6699403 | Tapping Screw (w/flange) D5x40 | € 1.00 | |
| Ring 1.0 | ||||
| 122 | 6698858 | Ring 1.0 | € 1.16 | |
| Collar 28.2 (old 6685235) | ||||
| 123 | 6696800 | Collar 28.2 (old 6685235) | € 2.03 | |
| Damper | ||||
| 124 | 6696775 | Damper | € 1.16 | |
| Achtergreep | ||||
| 125 | 6696774 | Achtergreep | € 4.50 | |
| Schakelaar Blokkering | ||||
| 126 | 6685244 | Schakelaar Blokkering | € 1.11 | |
| Trigger Lock Out (green) | ||||
| 126 | 6698347 | Trigger Lock Out (green) | € 1.16 | |
| Gaskabel | ||||
| 127 | 6696797 | Gaskabel | € 2.03 | |
| Épuisé | ||||
| 128 | 6696940 | Épuisé | ||
| NUT M6 | ||||
| 129 | 6698449 | NUT M6 | € 1.02 | |
| Throttle Lever Spring | ||||
| 130 | 6698691 | Throttle Lever Spring | € 1.16 | |
| Throttle Lever (old 060-72930-20) | ||||
| 131 | 6685242 | Throttle Lever (old 060-72930-20) | € 1.11 | |
| Regulateur Groen | ||||
| 131 | 6698346 | Regulateur Groen | € 1.16 | |
| Veerhouder | ||||
| 132 | 6698409 | Veerhouder | € 2.03 | |
| Damper Set Bolt | ||||
| 133 | 6698859 | Damper Set Bolt | € 1.16 | |
| Anti-trilveer | ||||
| 134 | 6698428 | Anti-trilveer | € 2.03 | |
| Moer M8 | ||||
| 136 | 6698581 | Moer M8 | € 1.16 | |
| Zijdeksel | ||||
| 137 | 6696776 | Zijdeksel | € 10.31 | |
| Side Case (green) | ||||
| 137A | 6696777 | Side Case (green) | € 10.31 | |
| Brake Support Plate | ||||
| 138 | 6696782 | Brake Support Plate | € 4.07 | |
| Brake Lever Spring | ||||
| 139 | 6696783 | Brake Lever Spring | € 1.16 | |
| Brake Link Ass'y | ||||
| 140 | 6685388 | Brake Link Ass'y | € 3.92 | |
| Remband | ||||
| 141 | 6685140 | Remband | € 14.06 | |
| D3 Needle Roller | ||||
| 142 | 6685391 | D3 Needle Roller | € 1.02 | |
| Brake Spring (old 6685167) | ||||
| 143 | 6685389 | Brake Spring (old 6685167) | € 1.02 | |
| Chain Puller | ||||
| 144A | 6698986 | Chain Puller | € 12.92 | |
| Geleidingsplaat (b) (oud 6685157) | ||||
| 145 | 6696784 | Geleidingsplaat (b) (oud 6685157) | € 2.03 | |
| Tapschroef D3 | ||||
| 146 | 696352 | Tapschroef D3 | € 1.09 | |
| Vis | ||||
| 147 | 958715 | Vis | € 1.00 | |
| Épuisé | ||||
| 148A | 6697854 | Épuisé | ||
| ZWAARD 14" HITACHI | ||||
| 149 | 6696991 | ZWAARD 14" HITACHI | € 22.09 | |
| Brandstofleiding | ||||
| 150 | 6698715 | Brandstofleiding | € 9.44 | |
| Fuel Pipe (fkm) L240 | ||||
| 151 | 6698851 | Fuel Pipe (fkm) L240 | € 11.18 | |
| Fuel Pipe (fkm) L260 | ||||
| 153 | 6698852 | Fuel Pipe (fkm) L260 | € 11.66 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 154 | 6696167 | Fuel Grommet (old 701-72930-20) | € 1.11 | |
| Achtergreep (a) | ||||
| 155 | 6696773 | Achtergreep (a) | € 4.07 | |
| Épuisé | ||||
| 156A | 6600026 | Épuisé | ||
| Beugelhandgreep | ||||
| 157A | 6696798 | Beugelhandgreep | € 3.05 | |
| Brake Handle (old 6696778) | ||||
| 158 | 6698866 | Brake Handle (old 6696778) | € 6.39 | |
| Brake Link Cover | ||||
| 160 | 6696779 | Brake Link Cover | € 1.16 | |
| Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | ||||
| 161 | 6685199 | Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | € 4.31 | |
| Pomp Filter | ||||
| 161A | 6600351 | Pomp Filter | € 2.61 | |
| D6 Clip | ||||
| 162 | 6685311 | D6 Clip | € 1.02 | |
| Oil Filter Body | ||||
| 163 | 6685310 | Oil Filter Body | € 1.02 | |
| Épuisé | ||||
| 164 | 6696804 | Épuisé | ||
| Bague | ||||
| 165 | 6685407 | Bague | € 1.02 | |
| Luchtkeerschot | ||||
| 166 | 6696790 | Luchtkeerschot | € 2.03 | |
| Épuisé | ||||
| 167 | 6699416 | Épuisé | ||
| Recoil Starter (s) | ||||
| 167A | 6699417 | Recoil Starter (s) | € 16.90 | |
| Épuisé | ||||
| 167B | 6699418 | Épuisé | ||
| Vis 4x20 Noir | ||||
| 168 | 302086 | Vis 4x20 Noir | € 1.02 | |
| Cord Insulation Tube | ||||
| 171 | 6698457 | Cord Insulation Tube | € 1.02 | |
| SPRING COVER | ||||
| 172 | 6698865 | SPRING COVER | € 1.16 | |
| Fuel Grommet | ||||
| 173 | 6685308 | Fuel Grommet | € 1.02 | |
| Épuisé | ||||
| 174 | 6698923 | Épuisé | ||
| Grommet (a) | ||||
| 176 | 6699404 | Grommet (a) | € 1.00 | |
| Set Screw | ||||
| 177 | 6699475 | Set Screw | € 1.00 | |
| Reel | ||||
| 178 | 6699483 | Reel | € 3.05 | |
| SPIRAL SPRING CASE | ||||
| 179 | 6699480 | SPIRAL SPRING CASE | € 5.81 | |
| Starter Rope | ||||
| 180 | 6699469 | Starter Rope | € 1.00 | |
| Rope Stopper | ||||
| 181 | 6699465 | Rope Stopper | € 1.00 | |
| Starter Knob | ||||
| 182 | 6699467 | Starter Knob | € 1.89 | |
| Starter Handle Ass'y | ||||
| 183 | 6699473 | Starter Handle Ass'y | € 3.05 | |
| Enveloppe De Ventilateur | ||||
| 184 | 6699490 | Enveloppe De Ventilateur | € 10.02 | |
| Fan Case | ||||
| 184 | 6699491 | Fan Case | € 10.02 | |
| Tapping Screw (w/flange) D4 | ||||
| 185 | 6699947 | Tapping Screw (w/flange) D4 | € 1.00 | |
| Set Screw | ||||
| 186 | 6699476 | Set Screw | € 1.00 | |
| Cam Plate | ||||
| 187 | 6699478 | Cam Plate | € 1.89 | |
| Tapping Screw (w/flange) D4 | ||||
| 187 | 6699947 | Tapping Screw (w/flange) D4 | € 1.00 | |
| Damper Spring | ||||
| 188 | 6699479 | Damper Spring | € 1.60 | |
| Reel | ||||
| 189 | 6699484 | Reel | € 2.32 | |
| CHAIN COVER 15"/16" | ||||
| 501 | 6685439 | CHAIN COVER 15"/16" | € 6.68 | |
| Combi Box Spanner 13x19 | ||||
| 502 | 6698582 | Combi Box Spanner 13x19 | € 4.50 | |
| Velkam | ||||
| 601 | 6696827 | Velkam | € 2.03 | |
Votre panier contient 0 de produits.
