Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CS33EDP'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

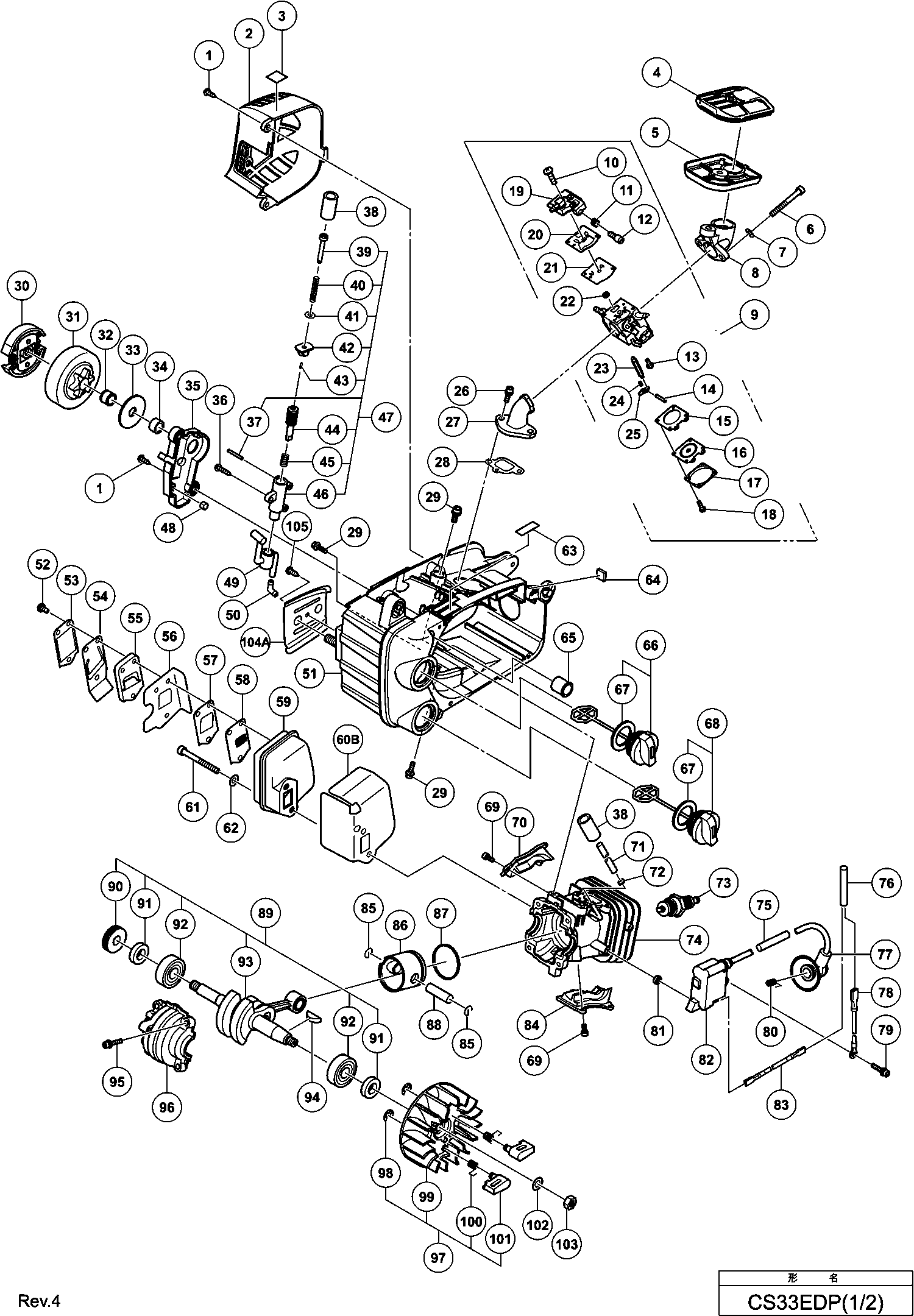

Dessins des Hikoki CS33EDP
Liste de pièces de rechange des Hikoki CS33EDP
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Pas d'informations disponibles, non commandable | ||||
| *132 | 6697889 | |||
| Pas d'informations disponibles, non commandable | ||||
| *133 | 6696992 | |||
| Pas d'informations disponibles, non commandable | ||||
| *501 | 6685440 | |||
| Vis Ø 4*16 Noir | ||||
| 1 | 305812 | 1.04 | 1.24 | |
| Couverture de silencieux | ||||
| 2 | 6696821 | 7.95 | 9.54 | |
| Étiquette d'avertissement (chaud) | ||||
| 3 | 6698864 | 1.20 | 1.44 | |
| Pas d'informations disponibles, non commandable | ||||
| 4 | 6699969 | |||
| Elément de filtre à air (a) | ||||
| 5 | 6699968 | 3.30 | 3.96 | |
| Vis à tête hexagonale M5x45 (10 pièces) | ||||
| 6 | 949824 | 3.90 | 4.68 | |
| Bague | ||||
| 7 | 6685408 | 1.05 | 1.26 | |
| Support de nettoyage | ||||
| 8 | 6699966 | 1.04 | 1.24 | |
| Carburateur Ass'y | ||||
| 9 | 6699976 | 49.23 | 59.07 | |
| Vis (ancien 514-25001-20) | ||||
| 10 | 6685210 | 1.15 | 1.38 | |
| Ressort de réglage au ralenti (ancien 463-25006-20 | ||||
| 11 | 6685297 | 2.31 | 2.78 | |
| Vis de réglage au ralenti (ancien 462-25016-20) | ||||
| 12 | 6685298 | 2.31 | 2.78 | |
| Vis de fixation de goupille de charnière (ancien 5 | ||||
| 13 | 6685218 | 2.31 | 2.78 | |
| Broche de charnière (ancien 605-25001-20) | ||||
| 14 | 6685219 | 1.15 | 1.38 | |
| Plus disponible, pas de remplacement | ||||
| 15 | 6685220 | |||
| Plus disponible, pas de remplacement | ||||
| 16 | 6684690 | |||
| Couvercle de diaphragme (ancien 476-25004-20) | ||||
| 17 | 6685222 | 4.45 | 5.34 | |
| Vis de réglage (ancien 548-25012-20) | ||||
| 18 | 6685223 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 19 | 6600091 | |||
| Joint de pompe (ancien 577-25007-20) | ||||
| 20 | 6685212 | 2.31 | 2.78 | |
| Diaphragme de pompe (ancien 576-25006-20) | ||||
| 21 | 6685213 | 4.45 | 5.34 | |
| Écran d'entrée (ancien 578-25007-20) | ||||
| 22 | 6684700 | 4.29 | 5.14 | |
| Valve à aiguille (ancien 603-25012-20) | ||||
| 23 | 6685215 | 5.28 | 6.33 | |
| Ressort de soupape (ancien 477-25343-20) | ||||
| 24 | 6685216 | 2.31 | 2.78 | |
| Levier de contrôle (ancien 473-25001-20) | ||||
| 25 | 6685217 | 3.30 | 3.96 | |
| Vis à trou hexagonal M4 | ||||
| 26 | 6698792 | 1.20 | 1.44 | |
| Admission | ||||
| 27 | 6699951 | 4.65 | 5.58 | |
| Joint | ||||
| 28 | 6699952 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 29 | 6699044 | |||
| Pas d'informations disponibles, non commandable | ||||
| 30 | 6600316 | |||
| Carter d'embrayage Comp. (ancien 310-32710-20/6695 | ||||
| 31 | 6685144 | 14.53 | 17.43 | |
| Roulement A Aiguilles | ||||
| 32 | 6685361 | 4.05 | 4.86 | |
| Bague | ||||
| 33 | 6685414 | 1.05 | 1.26 | |
| Plus disponible, pas de remplacement | ||||
| 34 | 6685360 | |||
| Couvercle de pompe à huile | ||||
| 35 | 6699610 | 2.80 | 3.36 | |
| Vis autotaraudeuse D4x20 avec bride (noir) | ||||
| 36 | 302086 | 1.05 | 1.26 | |
| Rouleau à aiguilles | ||||
| 37 | 6685356 | 1.05 | 1.26 | |
| Éponge Idol | ||||
| 38 | 6696793 | 1.20 | 1.44 | |
| Ajusteur de pompe à huile | ||||
| 39 | 6699960 | 1.65 | 1.98 | |
| Pas d'informations disponibles, non commandable | ||||
| 40 | 6699961 | |||
| Rondelle de boulon M4 (noir) Pour 220v-240v | ||||
| 41 | 323210 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 42 | 6699959 | |||
| Pas d'informations disponibles, non commandable | ||||
| 43 | 6600046 | |||
| Pignon de pompe (ed) | ||||
| 44 | 6699957 | 1.95 | 2.34 | |
| Ressort de pompe à engrenages | ||||
| 45 | 6699958 | 1.04 | 1.24 | |
| Caisse de pompe (vieux 6685353) | ||||
| 46 | 6699119 | 7.50 | 9.00 | |
| Ensemble de pompe | ||||
| 47 | 6600085 | 15.54 | 18.64 | |
| Pas d'informations disponibles, non commandable | ||||
| 48 | 6685371 | |||
| Conduite d'huile | ||||
| 49 | 6696811 | 2.10 | 2.52 | |
| Joint de Tuyau | ||||
| 50 | 6685358 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 51 | 6600084 | |||
| Pas d'informations disponibles, non commandable | ||||
| 52 | 6600048 | |||
| Plaque d'emballage | ||||
| 53 | 6698861 | 1.20 | 1.44 | |
| Emballage spécial (s) | ||||
| 54 | 6698862 | 1.20 | 1.44 | |
| Tuyau d'échappement | ||||
| 55 | 6696816 | 1.20 | 1.44 | |
| Emballage spécial de silencieux | ||||
| 56 | 6696818 | 1.20 | 1.44 | |
| Plaque de fixation de la grille | ||||
| 57 | 6696817 | 1.20 | 1.44 | |
| Grille d'échappement | ||||
| 58 | 6696815 | 1.20 | 1.44 | |
| SILENCIEUX | ||||
| 59 | 6600049 | 21.45 | 25.74 | |
| Pas d'informations disponibles, non commandable | ||||
| 60B | 6600445 | |||
| Pas d'informations disponibles, non commandable | ||||
| 61 | 6696819 | |||
| Rondelle M.6 (x10) paquet de 10 | ||||
| 62 | 949432 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 63 | 6698921 | |||
| Pas d'informations disponibles, non commandable | ||||
| 64 | 6600047 | |||
| Capuchon intérieur Ass'y | ||||
| 65 | 6685351 | 4.50 | 5.40 | |
| Pas d'informations disponibles, non commandable | ||||
| 66 | 6698854 | |||
| Emballage du bouchon de réservoir (ancien 630-3252 | ||||
| 67 | 6685179 | 1.15 | 1.38 | |
| Bouchon de réservoir complet | ||||
| 68 | 6698358 | 4.20 | 5.04 | |
| Vis Ø4x10 (paquet de 10) Till 12.2017 | ||||
| 69 | 949812 | 2.40 | 2.88 | |
| Pas d'informations disponibles, non commandable | ||||
| 70 | 6696766 | |||
| Conduit de carburant (fkm) | ||||
| 71 | 6698907 | 7.95 | 9.54 | |
| Pas d'informations disponibles, non commandable | ||||
| 72 | 6685311 | |||
| Pas d'informations disponibles, non commandable | ||||
| 73 | 6699320 | |||
| Cylindre | ||||
| 74 | 6600083 | 54.59 | 65.50 | |
| Tube d'isolation de cordon L100 | ||||
| 75 | 6600051 | 1.04 | 1.24 | |
| Tube d'isolation de cordon | ||||
| 76 | 6699175 | 1.20 | 1.44 | |
| SPARK PLUG CAP | ||||
| 77 | 6696771 | 1.98 | 2.38 | |
| Cord | ||||
| 78 | 6600052 | 1.04 | 1.24 | |
| Boulon à tête hexagonale M4x18 (avec rondelles) | ||||
| 79 | 6696326 | 1.20 | 1.44 | |
| Raccord métallique du capuchon de la prise (a) | ||||
| 80 | 6696772 | 1.20 | 1.44 | |
| Plus disponible, pas de remplacement | ||||
| 81 | 6698700 | |||
| Bobine | ||||
| 82 | 6699977 | 26.26 | 31.52 | |
| Câble (a) | ||||
| 83 | 6699948 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 84 | 6696765 | |||
| Clip de Cir | ||||
| 85 | 6685326 | 1.05 | 1.26 | |
| Piston | ||||
| 86 | 6698806 | 13.36 | 16.04 | |
| Anneau de piston (xr1-1856) | ||||
| 87 | 6685331 | 4.05 | 4.86 | |
| Broche de piston (ancien 6685079) | ||||
| 88 | 6696764 | 1.20 | 1.44 | |
| Ensemble de Ver de Manivelle | ||||
| 89 | 6698853 | 66.55 | 79.86 | |
| Vis sans fin | ||||
| 90 | 6685330 | 4.50 | 5.40 | |
| Joint d'huile | ||||
| 91 | 6685329 | 2.10 | 2.52 | |
| Roulement A Billes (1) | ||||
| 92 | 6685328 | 3.00 | 3.60 | |
| Pas d'informations disponibles, non commandable | ||||
| 93 | 6696762 | |||
| Clavette à ergot 3x13x4.5 (ancien 068-10100-20) | ||||
| 94 | 6684899 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 95 | 6698386 | |||
| Carter de vilebrequin | ||||
| 96 | 6696767 | 5.70 | 6.84 | |
| Sous-ensemble de magnéto | ||||
| 97 | 6600090 | 36.71 | 44.06 | |
| Bague de retenue D4 | ||||
| 98 | 6685336 | 1.05 | 1.26 | |
| Rotor de magnéto comp. | ||||
| 99 | 6600053 | 8.85 | 10.62 | |
| Ressort | ||||
| 100 | 6685335 | 1.05 | 1.26 | |
| Crampon de démarrage | ||||
| 101 | 6685334 | 1.05 | 1.26 | |
| Rondelle de boulon D7 | ||||
| 102 | 6696880 | 1.05 | 1.26 | |
| Ecrou | ||||
| 103 | 6696879 | 1.05 | 1.26 | |
| Plaque de guidage (c) | ||||
| 104A | 6600346 | 1.65 | 1.98 | |
| Vis | ||||
| 105 | 958715 | 1.04 | 1.24 | |
| Couvercle Latéral | ||||
| 121 | 6600088 | 13.95 | 16.74 | |
| Plaque de support de frein | ||||
| 122 | 6696782 | 4.20 | 5.04 | |
| Ressort | ||||
| 123 | 6696783 | 1.20 | 1.44 | |
| Poignée de frein | ||||
| 124 | 6699972 | 5.10 | 6.12 | |
| Couvercle de lien de frein | ||||
| 126 | 6696779 | 1.20 | 1.44 | |
| Plaque de nom (euro.a) Cs33edp | ||||
| 127 | 6600071 | 1.04 | 1.24 | |
| Écrou de serrage de barre de chaîne (eu) | ||||
| 128 | 6600057 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 129 | 6600058 | |||
| Extracteur de Chaine | ||||
| 130 | 6698986 | 13.35 | 16.02 | |
| Plaque de guidage (b) (ancien 6685157) | ||||
| 131 | 6696784 | 2.10 | 2.52 | |
| Pas d'informations disponibles, non commandable | ||||
| 132 | 6697889 | |||
| Pas d'informations disponibles, non commandable | ||||
| 133 | 6696992 | |||
| Vis | ||||
| 134 | 958715 | 1.04 | 1.24 | |
| Vis autotaraudeuse D3 | ||||
| 135 | 696352 | 1.13 | 1.35 | |
| Pas d'informations disponibles, non commandable | ||||
| 136 | 6600054 | |||
| Assemblage de lien de frein | ||||
| 137 | 6685388 | 4.05 | 4.86 | |
| Pas d'informations disponibles, non commandable | ||||
| 138 | 6685140 | |||
| Rouleau à aiguilles D3 | ||||
| 139 | 6685391 | 1.05 | 1.26 | |
| Vis Ø 4*16 Noir | ||||
| 140 | 305812 | 1.04 | 1.24 | |
| Couvercle du filtre à air | ||||
| 141 | 6699970 | 2.70 | 3.24 | |
| Bouton de nettoyeur | ||||
| 142 | 6699971 | 1.04 | 1.24 | |
| Poignée Arrière | ||||
| 143 | 6699965 | 1.65 | 1.98 | |
| Blocage de l'interrupteur | ||||
| 144 | 6685350 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 145A | 6600341 | |||
| Goupille à Ressort 5x25 (ancien 993-26005-254) | ||||
| 146 | 6685282 | 1.15 | 1.38 | |
| Plus disponible, pas de remplacement | ||||
| 147A | 6601275 | |||
| Pas d'informations disponibles, non commandable | ||||
| 148 | 6600082 | |||
| AMORTISSEUR (A) | ||||
| 150 | 6696327 | 4.20 | 5.04 | |
| Entretoise | ||||
| 151 | 696314 | 3.45 | 4.14 | |
| Boulon de Set d'Amortisseur | ||||
| 152 | 6685413 | 1.05 | 1.26 | |
| Levier de starter (ancien 495-56300-20) | ||||
| 153 | 6685206 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 154 | 6699964 | |||
| OEILLET | ||||
| 155 | 6698787 | 1.80 | 2.16 | |
| Levier d'accélérateur (vermillon) | ||||
| 156 | 6698916 | 1.20 | 1.44 | |
| Pas d'informations disponibles, non commandable | ||||
| 157 | 6699974 | |||
| OEILLET | ||||
| 158 | 6698787 | 1.80 | 2.16 | |
| Porte-ressort | ||||
| 159 | 6698409 | 2.10 | 2.52 | |
| Pas d'informations disponibles, non commandable | ||||
| 160 | 6699962 | |||
| Ressort Antivibration | ||||
| 161 | 6698428 | 2.10 | 2.52 | |
| Passthrough de carburant (ancien 701-72930-20) | ||||
| 162 | 6696167 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 163 | 6699975 | |||
| Pas d'informations disponibles, non commandable | ||||
| 164 | 6600055 | |||
| Écrou M6 | ||||
| 165 | 329934 | 1.73 | 2.07 | |
| Pas d'informations disponibles, non commandable | ||||
| 166 | 6699963 | |||
| Éponge au ralenti | ||||
| 167 | 6600056 | 1.05 | 1.26 | |
| Tuyau de carburant 2.5x4x90 (ancien 700-02504-09) | ||||
| 168 | 6685267 | 1.15 | 1.38 | |
| Pompe d'amorçage Comp. (ancien 442-25143-80) | ||||
| 169 | 6685139 | 5.94 | 7.12 | |
| Pas d'informations disponibles, non commandable | ||||
| 170 | 6600047 | |||
| Grommet de carburant | ||||
| 171 | 6685308 | 1.05 | 1.26 | |
| Valve | ||||
| 172 | 6685370 | 2.10 | 2.52 | |
| Vis à Tôle à Bride D5x15 | ||||
| 173 | 6698456 | 1.05 | 1.26 | |
| Boulon | ||||
| 174 | 6699973 | 1.80 | 2.16 | |
| Vis à Tôle à Bride D5x15 | ||||
| 175 | 6698456 | 1.05 | 1.26 | |
| Attrape-Chaîne | ||||
| 176 | 6699950 | 1.04 | 1.24 | |
| Filtre à pompe | ||||
| 177A | 6600351 | 2.70 | 3.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 178 | 6685311 | |||
| Corps de filtre à huile | ||||
| 179 | 6685310 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 180 | 6696804 | |||
| Bague | ||||
| 181 | 6685407 | 1.05 | 1.26 | |
| Tuyau de Carburant | ||||
| 182 | 6698715 | 9.75 | 11.70 | |
| Ensemble de poignée de départ | ||||
| 183 | 6600061 | 2.55 | 3.06 | |
| Arrêt de corde | ||||
| 184 | 6699465 | 1.04 | 1.24 | |
| Bouton de démarrage | ||||
| 185 | 6699467 | 1.95 | 2.34 | |
| Pas d'informations disponibles, non commandable | ||||
| 186 | 6600060 | |||
| Enveloppe De Ventilateur | ||||
| 187 | 6600066 | 17.33 | 20.79 | |
| Pas d'informations disponibles, non commandable | ||||
| 188 | 6600089 | |||
| Vis de réglage (ns) | ||||
| 189 | 6600062 | 1.04 | 1.24 | |
| Plaque de came (ns) | ||||
| 190 | 6600064 | 1.95 | 2.34 | |
| Bobine (ns) | ||||
| 191 | 6600065 | 12.15 | 14.58 | |
| Ressort en spirale (ns) | ||||
| 192 | 6600063 | 5.85 | 7.02 | |
| Vis auto-taraudeuse (avec bride) D5x25 (noir) | ||||
| 193 | 305558 | 1.04 | 1.24 | |
| Bague | ||||
| 194 | 6685408 | 1.05 | 1.26 | |
| Poignée avant | ||||
| 195 | 6699967 | 6.30 | 7.56 | |
| SPRING COVER | ||||
| 196 | 6698865 | 1.08 | 1.30 | |
| Boulon de Set d'Amortisseur | ||||
| 197 | 6698859 | 1.20 | 1.44 | |
| Assemblage du démarreur à rappel | ||||
| 198 | 6699953 | 21.45 | 25.74 | |
| Pas d'informations disponibles, non commandable | ||||
| 501 | 6685440 | |||
| Pas d'informations disponibles, non commandable | ||||
| 502 | 6685402 | |||
