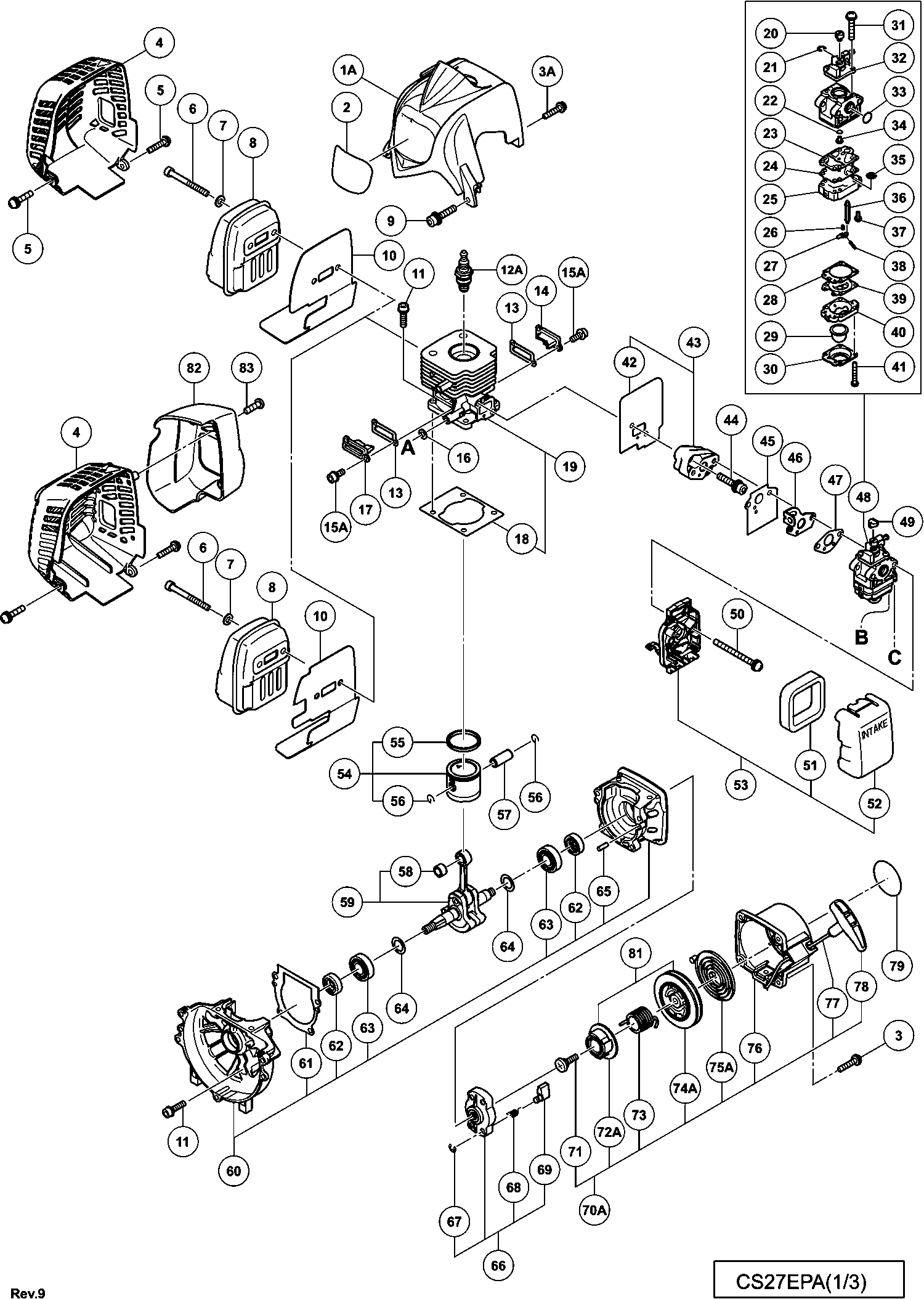

Dessins des Hikoki CS27EPA
Liste de pièces de rechange des Hikoki CS27EPA
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Couvercle de cylindre | ||||
1A | 6697921 | 6.10 | 7.32 | |
Vis M4 (noire) | ||||
3A | 6699780 | 1.04 | 1.24 | |
Couvercle de silencieux depuis 11 2013 (ancien 669 | ||||
4 | 6600336 | 6.45 | 7.74 | |
Couverture de silencieux | ||||
4 | 6698493 | 4.20 | 5.04 | |
Vis 5x16/ps (ancienne 994-15050-162) | ||||
5 | 6695386 | 1.15 | 1.38 | |
Boulon à trou hexagonal M6x55 (ancien 990-51060-55 | ||||
6 | 6684638 | 2.15 | 2.58 | |
Boulon Hex. Trou 6x65 (ancien 990-51060-653) | ||||
6 | 6695067 | 1.15 | 1.38 | |
Bague | ||||
7 | 6684639 | 2.15 | 2.58 | |
Échappement | ||||
8 | 6698477 | 11.85 | 14.22 | |
Échappement (b) | ||||
8 | 6600461 | 7.50 | 9.00 | |
Boulon à tête hexagonale M5x30 avec verrou d'étanc | ||||
9 | 6698950 | 1.20 | 1.44 | |
PROTECTEUR THERMIQUE | ||||
10 | 6600324 | 1.35 | 1.62 | |
Boulon à trou hexagonal M5x20/s (ancien 994-61050- | ||||
11 | 6695491 | 1.15 | 1.38 | |
Bougie Bmr7a | ||||
12A | 6699316 | 8.91 | 10.70 | |
Bougie (ancien 6685052) | ||||
12A | 6699322 | 2.48 | 2.97 | |
Joint du couvercle | ||||
13 | 6697684 | 1.04 | 1.24 | |
Couvercle de soupape d'échappement (a) | ||||
14 | 6698484 | 2.10 | 2.52 | |
Boulon à trou hexagonal M4x12/s (ancien 994-61040- | ||||
15A | 6684595 | 2.15 | 2.58 | |
Rondelle (ancien 182-0186a-20) | ||||
16 | 6684600 | 2.15 | 2.58 | |
Couvercle de soupape d'échappement (b) | ||||
17 | 6698485 | 2.10 | 2.52 | |
Joint de Cylindre | ||||
18 | 6697681 | 1.04 | 1.24 | |
Ensemble de cylindres Pn | ||||
19 | 6697679 | 33.58 | 40.29 | |
Pivot (ancien 539-25120-20) | ||||
20 | 6684697 | 6.44 | 7.72 | |
Bague d'arrêt (ancien 489-25100-20) | ||||
21 | 6684696 | 2.15 | 2.58 | |
O-RING (ancien 550-25100-20) | ||||
22 | 6684695 | 4.29 | 5.14 | |
Joint de pompe (ancien 577-25292-20 & 6696321) | ||||
23 | 6684692 | 29.19 | 35.02 | |
Diaphragme de pompe (ancien 576-25100-20 & 6696325 | ||||
24 | 6684693 | 8.58 | 10.29 | |
Corps de pompe | ||||
25 | 6699942 | 14.38 | 17.25 | |
Ressort de levier de mesure | ||||
26 | 6696323 | 4.63 | 5.55 | |
Levier de contrôle (ancien 473-25001-20) | ||||
27 | 6685217 | 3.30 | 3.96 | |
Joint de diaphragme (ancien 475-25153-20) | ||||
28 | 6684691 | 8.58 | 10.29 | |
Corps d'amorçage (ancien 447-25108-20) | ||||
29 | 6684689 | 6.44 | 7.72 | |
Couvercle de membrane (ancien 476-25151-20) | ||||
30 | 6684688 | 8.58 | 10.29 | |
Vis de réglage de l'accélérateur (ancien 548-25140 | ||||
31 | 6684698 | 4.29 | 5.14 | |
Soupape de commande d'acceleration comp. (ancien 4 | ||||
32 | 6684883 | 18.75 | 22.50 | |
Pas d'informations disponibles, non commandable | ||||
33 | 6695670 | |||
Gicleur principal #32 | ||||
34 | 6699943 | 5.11 | 6.14 | |
Écran d'entrée (ancien 578-25007-20) | ||||
35 | 6684700 | 4.29 | 5.14 | |
Valve à aiguille (ancien 603-25012-20) | ||||
36 | 6685215 | 5.28 | 6.33 | |
Plus disponible, pas de remplacement | ||||
37 | 6691305 | |||
Broche de charnière (ancien 605-25001-20) | ||||
38 | 6685219 | 1.15 | 1.38 | |
Diaphragme de mesure (ancien 474-25601-20) | ||||
39 | 6684690 | 18.00 | 21.60 | |
Pompe d'amorçage comp. (ancien 442-25151-80) | ||||
40 | 6684687 | 16.34 | 19.60 | |
Vis de réglage (ancien 548-25151-20 & 6696324) | ||||
41 | 6684699 | 2.15 | 2.58 | |
Emballage d'admission | ||||
42 | 6697691 | 1.04 | 1.24 | |
Isolateur de Carburateur Set Pn | ||||
43 | 6698954 | 4.45 | 5.34 | |
Boulon à tête hex. à verrouillage d'étanchéité M5x | ||||
44 | 6698844 | 1.20 | 1.44 | |
Joint de carburateur (ancien 402-0656a-20) | ||||
45 | 6684616 | 2.15 | 2.58 | |
Plaque de fixation du fil d'accélérateur (ancien 8 | ||||
46 | 6684629 | 4.29 | 5.14 | |
Joint de carburateur (ancien 402-0602K-21/6689836) | ||||
47 | 6684615 | 2.15 | 2.58 | |
Carburateur Ass'y | ||||
48 | 6698960 | 40.24 | 48.28 | |
Pas d'informations disponibles, non commandable | ||||
49 | 6684628 | |||
Vis plus 5x60ws (ancien 994-16050-601) | ||||
50 | 6695431 | 1.15 | 1.38 | |
Élément de filtre à air | ||||
51 | 6690347 | 4.45 | 5.34 | |
Capuchon du purificateur d'air (ancien 424-00025-2 | ||||
52 | 6690139 | 4.45 | 5.34 | |
Filtre à Air | ||||
53 | 6698961 | 5.45 | 6.54 | |
Ensemble de pistons Pn | ||||
54 | 6697683 | 11.05 | 13.26 | |
Bague de piston (ancien 041-01700-20) | ||||
55 | 6686121 | 4.45 | 5.34 | |
Circlip de goupille de piston (ancien 039-00601-20 | ||||
56 | 6684590 | 2.15 | 2.58 | |
Goupille de Piston (ancien 037-07045-20) | ||||
57 | 6684591 | 4.29 | 5.14 | |
Roulement à aiguilles Hk0810b (ancien 999-62081-27 | ||||
58 | 6695590 | 3.30 | 3.96 | |
Ensemble de vilebrequin | ||||
59 | 6698969 | 21.78 | 26.13 | |
Carter de Vilebrequin | ||||
60 | 6697687 | 25.11 | 30.14 | |
Emballage du carter de vilebrequin | ||||
61 | 6697688 | 1.04 | 1.24 | |
Joint d'huile | ||||
62 | 6684607 | 4.29 | 5.14 | |
Roulement à billes 6001 C3 | ||||
63 | 6684608 | 3.80 | 4.56 | |
Rondelle d'arbre à cames | ||||
64 | 6697685 | 1.04 | 1.24 | |
Goupille frappante 4x12 (ancien 999-05041-203) | ||||
65 | 6695521 | 1.15 | 1.38 | |
Poulie de démarrage Ass'y (ancien 798-0651h-90) | ||||
66 | 6684681 | 13.20 | 15.84 | |
Bague de retenue D4e (ancien 993-55040-001) | ||||
67 | 6685101 | 1.15 | 1.38 | |
Ressort de griffe de démarrage (ancien 790-06097-2 | ||||
68 | 6684684 | 4.29 | 5.14 | |
Pince d'allumage (ancien 788-0651h-20) | ||||
69 | 6684685 | 4.29 | 5.14 | |
Pas d'informations disponibles, non commandable | ||||
70A | 6699995 | |||
Vis de réglage (ancienne 839-03045-20) | ||||
71 | 6684679 | 2.15 | 2.58 | |
PLAQUE À CAMES | ||||
72A | 6699996 | 2.55 | 3.06 | |
Ressort d'amortisseur (ancien 758-0651h-20) | ||||
73 | 6684677 | 8.58 | 10.29 | |
Bobine de corde de démarrage | ||||
74A | 6699997 | 8.41 | 10.10 | |
Ressort de rappel (ancien 780-06097-20/6697591) | ||||
75A | 6684675 | 11.55 | 13.86 | |
Boîtier de Démarreur à Rappel Comp. (ancien 772-07 | ||||
76 | 6684673 | 19.06 | 22.88 | |
Poignée de démarrage | ||||
78 | 6684680 | 2.15 | 2.58 | |
Ass'y de Plaque de Came | ||||
81 | 6699691 | 6.10 | 7.32 | |
Couvercle arrière du silencieux | ||||
82 | 6600335 | 8.55 | 10.26 | |
Vis autotaraudeuse D4 depuis 11 2013 | ||||
83 | 6600332 | 1.04 | 1.24 | |
Vis à tôles D4 | ||||
101 | 6697190 | 1.04 | 1.24 | |
Poignée (b) | ||||
102 | 6696487 | 3.45 | 4.14 | |
LEVIER DE VERROUILLAGE | ||||
103 | 6696490 | 1.04 | 1.24 | |
Levier (1) | ||||
104 | 6696488 | 1.04 | 1.24 | |
Ressort (1) | ||||
105 | 6698819 | 1.04 | 1.24 | |
INTERRUPTEUR (ANCIEN 170-04063-80) | ||||
106 | 6685239 | 3.30 | 3.96 | |
Cordon d'arrêt | ||||
107 | 6698820 | 2.80 | 3.36 | |
Tube de protection | ||||
108 | 6698822 | 1.04 | 1.24 | |
FIL D'ACCELÉRATEUR | ||||
109 | 6698821 | 4.13 | 4.95 | |
Poignée (a) | ||||
110 | 6696486 | 3.45 | 4.14 | |
Vis à Tête Hexagonale M5x12 / s (ancien 994-61050- | ||||
111 | 6684667 | 2.15 | 2.58 | |
Boulon trou hexagonal M5x25/s (ancien 994-16050-25 | ||||
112 | 6684709 | 2.15 | 2.58 | |
Caoutchouc anti-vibrateur | ||||
113 | 6684666 | 4.29 | 5.14 | |
Support de tuyau (a) | ||||
114 | 6698643 | 2.10 | 2.52 | |
Support de tuyau (b) | ||||
115 | 6698644 | 2.10 | 2.52 | |
Caoutchouc anti-vibrateur | ||||
116 | 6684665 | 4.29 | 5.14 | |
Anneau d'arrêt C-12 Extérieur | ||||
117 | 6684664 | 2.15 | 2.58 | |
Boîtier de ventilateur (ancien 6698486) | ||||
118A | 6697922 | 11.71 | 14.06 | |
Tambour d'embrayage Comp. (ancien 289-52200-80) | ||||
119 | 6684663 | 19.06 | 22.88 | |
Boulon d'étape (ancien 357-00601-20) | ||||
120 | 6689627 | 1.15 | 1.38 | |
Bague | ||||
121 | 6684648 | 2.15 | 2.58 | |
Plaque d'embrayage A (ancien 348-0602r-20) | ||||
122 | 6689528 | 1.15 | 1.38 | |
Kit d'embrayage | ||||
123 | 6697655 | 6.76 | 8.12 | |
Pas d'informations disponibles, non commandable | ||||
124 | 6697619 | |||
Écrou M8 (ancien 991-01080-011/327325/332299/72660 | ||||
125 | 6684612 | 2.15 | 2.58 | |
Rondelle M8 (ancien 992-01080-011) | ||||
126 | 6684611 | 2.15 | 2.58 | |
Boulon à trou hexagonal 4x18ws (ancien 994-64040-1 | ||||
127 | 6695508 | 1.15 | 1.38 | |
Bobine | ||||
128 | 6698492 | 22.83 | 27.39 | |
Câble de Terre | ||||
130 | 6699940 | 2.15 | 2.58 | |
Clip | ||||
131 | 6699939 | 1.98 | 2.37 | |
Écrou à bride M4 | ||||
132 | 6699938 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
133 | 6696833 | |||
Cord | ||||
134 | 6698964 | 1.98 | 2.37 | |
Cord | ||||
135 | 6697690 | 1.98 | 2.37 | |
Rotor de magnéto | ||||
136 | 6698396 | 8.70 | 10.44 | |
Tuyau de carburant Ass'y (ancien 223-0097a-90) | ||||
137 | 6684618 | 4.29 | 5.14 | |
Tuyau de carburant 3x5x80 (ancien 700-03005-08) | ||||
138 | 6684880 | 2.15 | 2.58 | |
Plus disponible, pas de remplacement | ||||
139A | 6698402 | |||
Pas d'informations disponibles, non commandable | ||||
140 | 6684625 | |||
Grommet de retour (ancien 6684627) | ||||
141A | 6697846 | 1.04 | 1.24 | |
Entretoise (1) | ||||
142 | 6698496 | 1.05 | 1.26 | |
Resevoir | ||||
143A | 6600317 | 7.95 | 9.54 | |
Support (ancien 940-07350-20) | ||||
144 | 6694787 | 3.30 | 3.96 | |
Boulon à bride | ||||
145 | 6696557 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
146 | 6684620 | |||
Clip.6.3 Dia. (ancien 680-00731-20) | ||||
147 | 6684619 | 2.15 | 2.58 | |
Boulon (avec bride) L27.8 | ||||
148 | 6698991 | 1.20 | 1.44 | |
Ensemble de poignée de boucle anti-vibration. (anc | ||||
161 | 6696088 | 14.35 | 17.22 | |
Poignée (ancien 503-3738e-20) | ||||
162 | 6691098 | 6.44 | 7.72 | |
Hex.nut 6 (ancien 6684792/991-01060-041/790444) | ||||
163 | 6684835 | 2.15 | 2.58 | |
Bague | ||||
164 | 6689681 | 1.15 | 1.38 | |
Vis à tôle 5x20 (ancienne 993-11052-012) | ||||
165 | 6695255 | 1.15 | 1.38 | |
Capuchon (a) | ||||
166 | 6698515 | 2.10 | 2.52 | |
Marque de niveau (ancienne 923-33700-20) | ||||
167 | 6684851 | 2.15 | 2.58 | |
Marque de niveau (ancienne 923-3738f-20) | ||||
169 | 6684852 | 2.15 | 2.58 | |
Tuyau Principal Comp. | ||||
170A | 6699654 | 48.25 | 57.90 | |
Arbre d'entraînement 1829l (ancien 343-32346-20) | ||||
171 | 6689443 | 17.55 | 21.06 | |
Assemblage de métal de levage (ancien 335-37526-90 | ||||
172 | 6689277 | 3.30 | 3.96 | |
Support de poignée A (ancien 506-37300-20) | ||||
173 | 6691134 | 2.31 | 2.78 | |
Boulon 6x43/p (noir) (ancien 994-23060-432) | ||||
174 | 6684838 | 2.15 | 2.58 | |
Marque de réglage de l'huile (ancien 922-32345-20) | ||||
175 | 6694578 | 1.15 | 1.38 | |
Coque de réservoir d'huile | ||||
176 | 6686138 | 2.31 | 2.78 | |
Joint de réservoir d'huile depuis J093880 | ||||
177 | 6699567 | 2.15 | 2.58 | |
O-ring P-5 (ancien 999-67005-000/6698965) | ||||
178 | 6695661 | 1.15 | 1.38 | |
Ecrou à pression | ||||
179 | 6695239 | 1.15 | 1.38 | |
Boulon à échelon A (ancien 382-32304-20) | ||||
180 | 6689757 | 4.45 | 5.34 | |
Pompe à huile Comp. (ancien 071-32344-80) | ||||
181 | 6686487 | 17.09 | 20.50 | |
Pas d'informations disponibles, non commandable | ||||
182 | 6698965 | |||
Joint torique 1.4 (ancien 999-67001-413) | ||||
183 | 6695656 | 1.15 | 1.38 | |
Bague | ||||
184 | 6695187 | 1.15 | 1.38 | |
Ressort de pompe à huile (ancien 449-32304-20) | ||||
185 | 6690381 | 1.15 | 1.38 | |
Comp. piston de la pompe à huile (ancien 073-32304 | ||||
186 | 6686608 | 2.31 | 2.78 | |
Joint torique P-15 | ||||
187 | 6698966 | 1.04 | 1.24 | |
Capuchon du réservoir d'huile (ancien 624-32304-92 | ||||
188 | 6692050 | 12.05 | 14.46 | |
Pas d'informations disponibles, non commandable | ||||
189 | 6695458 | |||
Boulon à trou hexagonal 5x22/s (ancien 994-61050-2 | ||||
190 | 6695492 | 1.15 | 1.38 | |
Pignon (1) | ||||
192 | 6698967 | 14.19 | 17.02 | |
Roulement à billes | ||||
193 | 6684734 | 8.58 | 10.29 | |
Roulement à billes 609z ST | ||||
194 | 6684735 | 8.58 | 10.29 | |
Bague d'arrêt C-9, externe (ancien 993-50009-002) | ||||
195 | 6695281 | 1.15 | 1.38 | |
Arrêt Anneau C-24.inner (ancien 993-51024-002) | ||||
196 | 6684732 | 2.15 | 2.58 | |
Bague | ||||
197 | 6693248 | 1.15 | 1.38 | |
Boulon à trou hexagonal 5x10 (ancien 990-51050-103 | ||||
198 | 6695042 | 1.15 | 1.38 | |
Roulement à billes | ||||
199 | 6695568 | 5.61 | 6.74 | |
Came (ancien 452-32344-20) | ||||
200 | 6690428 | 1.15 | 1.38 | |
Roue Dentee (1) | ||||
201 | 6698968 | 18.45 | 22.14 | |
Roulement à billes | ||||
202 | 6697603 | 4.63 | 5.55 | |
Anneau d'arrêt C-28.inner (ancien 993-51028-002) | ||||
203 | 6684741 | 2.15 | 2.58 | |
Collier (ancien 031-32344-20) | ||||
204 | 6685962 | 3.30 | 3.96 | |
Couronne Comp.,3/8"(ancien 319-32304-80) | ||||
205 | 6689117 | 36.15 | 43.38 | |
Ecrou de bride | ||||
206 | 6695170 | 1.15 | 1.38 | |
Couvercle latéral comp. (ancien 039-32304-80) | ||||
207 | 6686038 | 5.11 | 6.14 | |
Symbole Marquer Hitachi (ancien 929-72302-20) | ||||
208 | 6694763 | 1.15 | 1.38 | |
Petite Vis 4x12ws (ancien 994-16040-126) | ||||
209 | 6695403 | 1.15 | 1.38 | |
Assemblée de filtre (ancien 486-32345-90) | ||||
211 | 6690913 | 2.31 | 2.78 | |
Filtre à huile (ancien 487-32345-20) | ||||
212 | 6690917 | 1.15 | 1.38 | |
Bague | ||||
213 | 6684661 | 2.15 | 2.58 | |
Tuyau de carburant 3x5x60 (ancien 700-53005-06) | ||||
214 | 6692414 | 1.15 | 1.38 | |
Tuyau de carburant 3x5x75 (ancien 700-53005-07) | ||||
215 | 6692415 | 1.15 | 1.38 | |
Banjo, Pompe à Huile (ancien 082-32304-20) | ||||
216 | 6686637 | 1.15 | 1.38 | |
Ajusteur de pompe à huile (ancien 501-32304-21) | ||||
217 | 6691066 | 4.45 | 5.34 | |
Bague d'arrêt E-6 (ancien 993-55060-001) | ||||
218 | 6695311 | 1.15 | 1.38 | |
Marque d'huile (ancien 921-32345-20) | ||||
219 | 6694576 | 1.15 | 1.38 | |
Caisse (ancien 019-32304-22) | ||||
220 | 6685793 | 14.35 | 17.22 | |
Régulateur de tension de chaîne complet (ancien 11 | ||||
221 | 6687063 | 4.45 | 5.34 | |
Boulon de serrage de la barre de chaîne (ancien 10 | ||||
222 | 6686803 | 4.45 | 5.34 | |
Plaque de guidage (ancien 6690726) | ||||
223 | 6697596 | 3.30 | 3.96 | |
Broche de frappe pour chaîne (ancien 122-32344-21) | ||||
224 | 6687130 | 4.45 | 5.34 | |
Pas d'informations disponibles, non commandable | ||||
225A | 6699679 | |||
Pas d'informations disponibles, non commandable | ||||
226 | 6686882 | |||
Ecrou de serrage pour guide de chaine (ancien 121- | ||||
227 | 6687105 | 1.15 | 1.38 | |
Clé à tuyau combinée 13x19 Minus (ancien 883-32600 | ||||
501 | 6693809 | 4.45 | 5.34 | |
Pas d'informations disponibles, non commandable | ||||
502 | 6684766 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 6684813 | |||
Couverture de chaîne 10" (ancien 941-32333-20) | ||||
504 | 6694796 | 6.28 | 7.53 | |
Pas d'informations disponibles, non commandable | ||||
505 | 6692867 |
