Dessins techniques et pièces de rechange Hikoki CS25EC

Recherche de pièces de rechange:
Hikoki
Type exact:
CS25EC

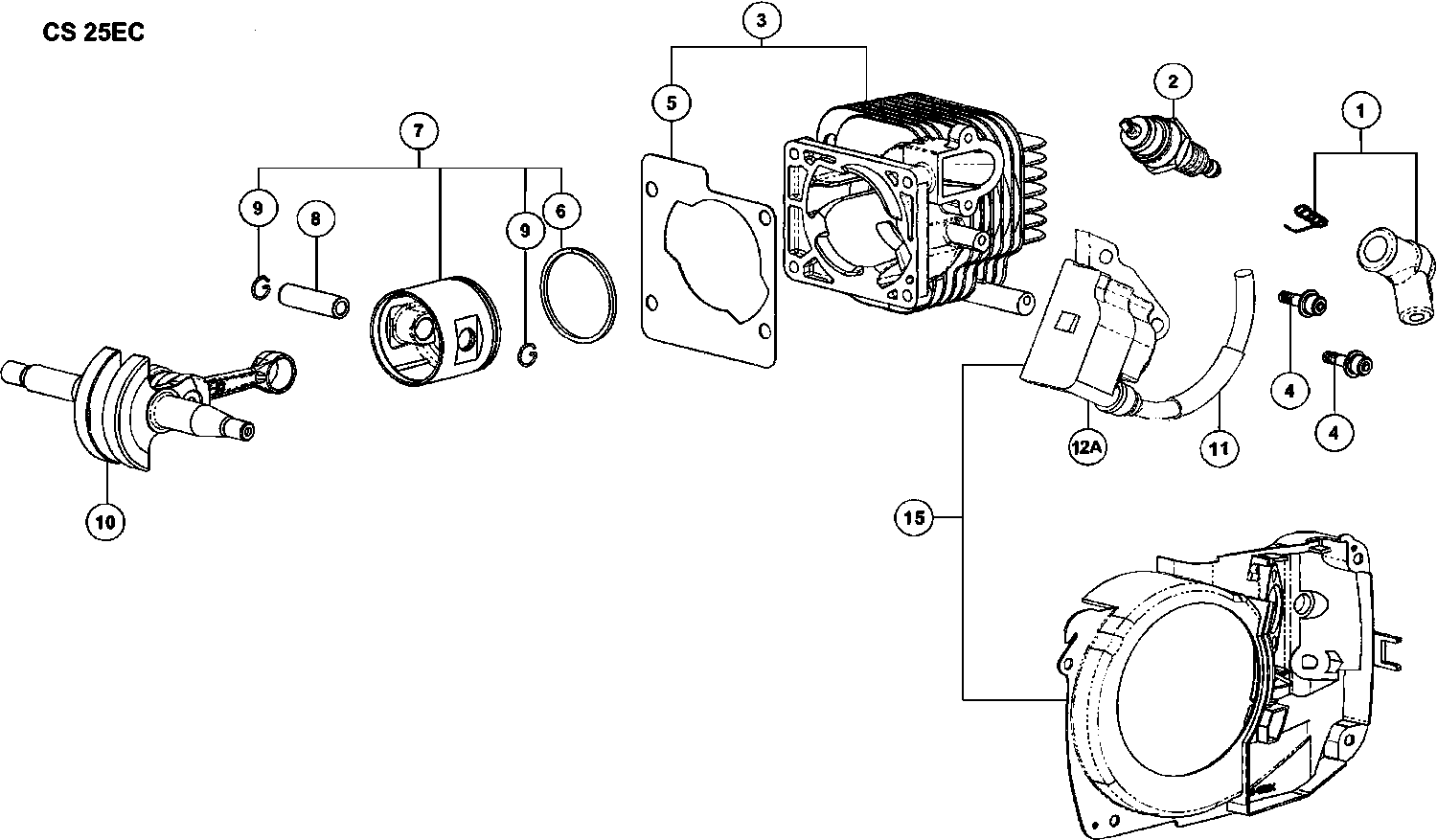

Dessins des HIKOKI CS25EC

Liste de pièces de rechange des HIKOKI CS25EC

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Spark Plug Cap Ass'y (old 157-01570-90/6687470/668
16687468Spark Plug Cap Ass'y (old 157-01570-90/6687470/668€ 2.24
Bougie (oud 6685086)
26699319Bougie (oud 6685086)€ 8.63
Cylinder Set (old 001-01762-90)
36685461Cylinder Set (old 001-01762-90)€ 48.61
Hex.hole Bolt 4x15/ps (old 994-63040-154)
46684682Hex.hole Bolt 4x15/ps (old 994-63040-154)€ 2.08
Cylinder Gasket (old 017-01761-20)
56685726Cylinder Gasket (old 017-01761-20)€ 1.11
Piston Ring (old 041-01000-20)
66686119Piston Ring (old 041-01000-20)€ 4.31
Piston Set (old 030-01760-90)
76685881Piston Set (old 030-01760-90)€ 19.47
Goupille
86684591Goupille€ 4.15
Piston Pin Circlip (old 039-00601-20)
96684590Piston Pin Circlip (old 039-00601-20)€ 2.08
Crank Shaft Comp. (old 046-01761-80)
106686173Crank Shaft Comp. (old 046-01761-80)€ 52.56
Cord Insulator Tube (old 755-32050-20)
116692900Cord Insulator Tube (old 755-32050-20)€ 1.11
Ignition Coil Ass'y (old 6687668)
12A6601174Ignition Coil Ass'y (old 6687668)€ 24.60
Ignition Coil Set Pn
156601179Ignition Coil Set Pn€ 44.81
Shim S T0.2 (old 071-04063-23)
206685098Shim S T0.2 (old 071-04063-23)€ 1.11
Shim S T0.3 (old 071-04063-24)
206685099Shim S T0.3 (old 071-04063-24)€ 1.11
Shim 0.4 (old 071-04063-25)
206686475Shim 0.4 (old 071-04063-25)€ 1.11
Flywheel Nut (old 066-00000-20)
216685104Flywheel Nut (old 066-00000-20)€ 1.11
Bague
226685103Bague€ 1.11
Magneto Rotor Set (old 155-20557-90)
236687378Magneto Rotor Set (old 155-20557-90)€ 23.43
Starter Pawl (old 788-01761-20)
246693305Starter Pawl (old 788-01761-20)€ 1.11
Starter Pawl Spring (old 790-01740-20)
256685105Starter Pawl Spring (old 790-01740-20)€ 1.11
D4e Retaining Ring (old 993-55040-001)
266685101D4e Retaining Ring (old 993-55040-001)€ 1.11
Clip 4.5 (old 680-00102-20)
276692304Clip 4.5 (old 680-00102-20)€ 1.11
Fuel Pipe 2.5x4.5x175 (old 700-52545-17)
286692412Fuel Pipe 2.5x4.5x175 (old 700-52545-17)€ 2.24
Insulator Tube 50l (old 250-06500-20)
296684597Insulator Tube 50l (old 250-06500-20)€ 2.08
Hex. Hole Bolt 5x16 (old 990-51050-163)
306695046Hex. Hole Bolt 5x16 (old 990-51050-163)€ 1.11
Hex. Hole Bolt 5x16 (old 990-51050-163)
30A6695046Hex. Hole Bolt 5x16 (old 990-51050-163)€ 1.11
Bague
316685226Bague€ 1.11
Hex. Hole Bolt 5x30 (old 990-51050-303) New Sep
326695052Hex. Hole Bolt 5x30 (old 990-51050-303) New Sep€ 1.11
Flunge Nut 5 (old 991-82050-001)
336695169Flunge Nut 5 (old 991-82050-001)€ 1.11
Crank Case Assy (old 072-01761-92)
346686526Crank Case Assy (old 072-01761-92)€ 58.42
Olie Keerring
356684607Olie Keerring€ 4.15
Crank Case Gasket (old 090-01761-20)
366686703Crank Case Gasket (old 090-01761-20)€ 1.11
Roulement à billes
376684608Roulement à billes€ 3.68
Épuisé
386685095Épuisé
Hex.hole Bolt 5x22/ws (old 994-64050-224)
396695514Hex.hole Bolt 5x22/ws (old 994-64050-224)€ 1.11
Déflecteur d'air
506687328Déflecteur d'air€ 7.03
Pipe Holding Grommet (old 581-72000-20)
516691466Pipe Holding Grommet (old 581-72000-20)€ 1.11
Inlaatpakking
526689872Inlaatpakking€ 1.11
Inlet Manifold Spacer (old 400-72000-20)
536689819Inlet Manifold Spacer (old 400-72000-20)€ 1.11
Inlet Manifold Comp. (old 391-01761-80)
546689788Inlet Manifold Comp. (old 391-01761-80)€ 5.75
Carb. Fixing Plate (old 406-01761-20)
556689997Carb. Fixing Plate (old 406-01761-20)€ 2.24
Épuisé
566690811Épuisé
Choke Rod Holding Rubber (old 707-32550-20)
576692587Choke Rod Holding Rubber (old 707-32550-20)€ 1.11
Choke Buttom Comp. (old 704-72000-80)
586692515Choke Buttom Comp. (old 704-72000-80)€ 3.19
Carub. Support Plate (old 457-72000-20)
596690679Carub. Support Plate (old 457-72000-20)€ 2.24
Adjuster Cap (old 190-72011-21)
606687960Adjuster Cap (old 190-72011-21)€ 2.24
Idle Grommet (old 191-72000-20)
616687980Idle Grommet (old 191-72000-20)€ 1.11
U-nut 5 (old 991-74050-010)
626695157U-nut 5 (old 991-74050-010)€ 1.11
Hex. Hole Bolt 4x10s (old 994-61040-104)
636695484Hex. Hole Bolt 4x10s (old 994-61040-104)€ 1.11
Ring 5 (oud 992-00050-011)
646684864Ring 5 (oud 992-00050-011)€ 2.08
Screw 5x45 (old 990-11050-451)
656694908Screw 5x45 (old 990-11050-451)€ 1.11
Shield Tube Ass'y (old 223-06500-90)
706685247Shield Tube Ass'y (old 223-06500-90)€ 2.24
Clip D6 (old 680-00070-20)
716685198Clip D6 (old 680-00070-20)€ 1.11
Bague
726684661Bague€ 2.08
Oil Filter (old 487-32712-20/6696804)
736690919Oil Filter (old 487-32712-20/6696804)€ 1.11
Oil Filter Body Ass'y (old 486-32710-90)
746685249Oil Filter Body Ass'y (old 486-32710-90)€ 2.24
Protective Coil (old 512-11600-20/6696806)
756685246Protective Coil (old 512-11600-20/6696806)€ 1.11
Pump Fixing Plate (old 638-72000-20)
766692126Pump Fixing Plate (old 638-72000-20)€ 1.11
Priming Pump Comp. (old 442-25143-80)
776685139Priming Pump Comp. (old 442-25143-80)€ 5.75
Fuel Pipe (old 700-52545-26)
786692413Fuel Pipe (old 700-52545-26)€ 2.24
Fuel Pipe 2.5x4.5x140 (old 700-02504-14)
796692350Fuel Pipe 2.5x4.5x140 (old 700-02504-14)€ 1.11
Fuel Grommet (old 701-72000-20)
806692422Fuel Grommet (old 701-72000-20)€ 1.11
Pump Filter Body Ass'y (old 675-11600-90/6692275/6
816685199Pump Filter Body Ass'y (old 675-11600-90/6692275/6€ 4.31
Épuisé
826691286Épuisé
Stop Switch Comp. (old 162-01761-80)
836687504Stop Switch Comp. (old 162-01761-80)€ 7.34
Tank Dop Compleet
846685180Tank Dop Compleet€ 3.19
Tank Cap Packing (old 630-3252k-20/6685386)
856685179Tank Cap Packing (old 630-3252k-20/6685386)€ 1.11
Seal Lock Bolt M5x15 (old 990-54050-155)
866685136Seal Lock Bolt M5x15 (old 990-54050-155)€ 1.11
Engine Case Ass'y (old 560-72010-90)
876691368Engine Case Ass'y (old 560-72010-90)€ 25.33
Air Vent Valve (b) (old 562-04060-20)
886685173Air Vent Valve (b) (old 562-04060-20)€ 2.24
Air Vent Ass'y (old 629-01761-90)
896692086Air Vent Ass'y (old 629-01761-90)€ 8.30
Engine Case Cover (old 563-72000-20) New Oct
906691380Engine Case Cover (old 563-72000-20) New Oct€ 1.11
Oil Tank Cap Ass'y (old 6685178)
916697756Oil Tank Cap Ass'y (old 6685178)€ 3.68
OIL TANK CAP PACKING (OLD 6685177)
926697888OIL TANK CAP PACKING (OLD 6685177)€ 1.00
Recoil Starter Ass'y (old 756-01761-90)
1006692912Recoil Starter Ass'y (old 756-01761-90)€ 25.33
SET SCREW (OLD 839-03045-20)
1016684679SET SCREW (OLD 839-03045-20)€ 2.08
Damper Spring (old 758-01761-20)
1026685183Damper Spring (old 758-01761-20)€ 4.31
STARTER PULLEY (OLD 774-01761-20)
1036685184STARTER PULLEY (OLD 774-01761-20)€ 4.79
Rope (old 783-01761-20)
1046685186Rope (old 783-01761-20)€ 2.24
SPRING CASE ASS'Y (OLD 778-01761-90)
1056685185SPRING CASE ASS'Y (OLD 778-01761-90)€ 8.94
Starthendel
1066685188Starthendel€ 2.24
Enveloppe De Ventilateur
1076686953Enveloppe De Ventilateur€ 21.53
Tapping Screw D4.5x20 (old 990-72045-204)
1086685191Tapping Screw D4.5x20 (old 990-72045-204)€ 1.11
Cam Plate (old 759-01761-20)
1096692936Cam Plate (old 759-01761-20)€ 3.19
Plate (old 795-04063-20)
1106685189Plate (old 795-04063-20)€ 1.11
Élément de filtre à air
1116690065Élément de filtre à air€ 2.24
Luchtfilterkap
1126686315Luchtfilterkap€ 3.19
Cleaner Knob (old 175-72000-20)
1136685228Cleaner Knob (old 175-72000-20)€ 2.24
Carburetor Ass'y Wt-797a (old 455-25329-90)
1206690651Carburetor Ass'y Wt-797a (old 455-25329-90)€ 91.36
Inlet Screen (oud 578-25007-20)
1216684700Inlet Screen (oud 578-25007-20)€ 4.15
Pump Cover (old 575-25329-80)
1226691438Pump Cover (old 575-25329-80)€ 12.78
Screw (old 514-25001-20)
1236685210Screw (old 514-25001-20)€ 1.11
Pump Gasket (old 577-25007-20)
1246685212Pump Gasket (old 577-25007-20)€ 2.24
Pump Diaphragm (old 576-25006-20)
1256685213Pump Diaphragm (old 576-25006-20)€ 4.31
Control Lever (old 473-25001-20)
1266685217Control Lever (old 473-25001-20)€ 3.19
Hinge Pin Set Screw (old 546-25001-20)
1276685218Hinge Pin Set Screw (old 546-25001-20)€ 2.24
Valve Spring (old 477-25088-20)
1286690873Valve Spring (old 477-25088-20)€ 4.31
Hinge Pin (old 605-25001-20)
1296685219Hinge Pin (old 605-25001-20)€ 1.11
Diaphragm Cover (old 476-25004-20)
1306685222Diaphragm Cover (old 476-25004-20)€ 4.31
Metering Diaphragm Comp. (old 474-25001-80/6690826
1316690827Metering Diaphragm Comp. (old 474-25001-80/6690826€ 11.34
Diaphragm Packing (old 475-25038-20)
1326685220Diaphragm Packing (old 475-25038-20)€ 2.24
Needle Valve (old 603-25012-20)
1336685215Needle Valve (old 603-25012-20)€ 5.11
Idle Adjust Spring (old 463-25012-20)
1346690766Idle Adjust Spring (old 463-25012-20)€ 2.24
Idle Adjust Screw (old 462-25006-20)
1356690736Idle Adjust Screw (old 462-25006-20)€ 3.19
Set Screw (old 548-25012-20)
1366685223Set Screw (old 548-25012-20)€ 1.11
Tapping Screw D4.5x14 (old 990-75045-144)
1506685152Tapping Screw D4.5x14 (old 990-75045-144)€ 1.11
Oil Pump Cover (old 097-72000-20)
1516686765Oil Pump Cover (old 097-72000-20)€ 2.24
Oil Pipe (a) (old 515-72000-20)
1526685150Oil Pipe (a) (old 515-72000-20)€ 2.24
Screw Gear (old 084-72000-20)
1536685151Screw Gear (old 084-72000-20)€ 8.94
Air Vent Sponge (old 567-01761-20)
1546691401Air Vent Sponge (old 567-01761-20)€ 1.11
Oil Pump Case Ass'y (old 088-72000-90)
1556685135Oil Pump Case Ass'y (old 088-72000-90)€ 18.45
Pump Gear Comp. (old 085-72000-80)
1566685132Pump Gear Comp. (old 085-72000-80)€ 11.34
Pump Gear Spring (old 099-72000-20)
1576685131Pump Gear Spring (old 099-72000-20)€ 1.11
Oil Pump Adjust Cap (old 503-72000-20)
1586685130Oil Pump Adjust Cap (old 503-72000-20)€ 1.11
Oil Pump Case Comp.
1596685134Oil Pump Case Comp.€ 12.78
Adjuster Spring (old 502-72000-20)
1606685129Adjuster Spring (old 502-72000-20)€ 1.11
Bague
1616685070Bague€ 1.11
Oil Pump Adjuster (old 501-72000-20)
1626685128Oil Pump Adjuster (old 501-72000-20)€ 1.11
Machine Screw M3x8 (old 990-11030-081)
1636685133Machine Screw M3x8 (old 990-11030-081)€ 1.11
Muffler Set (old 704-01761-90)
1646692450Muffler Set (old 704-01761-90)€ 18.00
Oil Adjust Grommet (old 488-72000-20)
1656690959Oil Adjust Grommet (old 488-72000-20)€ 1.11
Bague
1666685149Bague€ 1.11
Muffler Gasket (old 737-01700-20)
1676692734Muffler Gasket (old 737-01700-20)€ 1.11
Hex. Hole Bolt 5x40 (old 990-51050-403)
1686695054Hex. Hole Bolt 5x40 (old 990-51050-403)€ 1.11
Bague
1696684661Bague€ 2.08
Fuel Pipe (old 700-07105-02)
1706685154Fuel Pipe (old 700-07105-02)€ 1.11
Chain Catcher (old 125-32710-20)
1716685155Chain Catcher (old 125-32710-20)€ 1.11
Knaldemper Afdekkap (oud 737-72010-20)
1726692753Knaldemper Afdekkap (oud 737-72010-20)€ 4.79
Tapping Screw D4.5x14 (old 990-75045-144)
1736685152Tapping Screw D4.5x14 (old 990-75045-144)€ 1.11
Tapping Screw D5x14 (old 990-72050-144)
1746685275Tapping Screw D5x14 (old 990-72050-144)€ 1.11
Guide Plate A (old 461-72000-21/6690735)
1756696077Guide Plate A (old 461-72000-21/6690735)€ 3.19
Tapping Screw D4x10 (old 993-41040-101)
1766685161Tapping Screw D4x10 (old 993-41040-101)€ 1.11
Nut (old 121-32530-20)
2006685166Nut (old 121-32530-20)€ 2.24
Clutch Comp. (old 287-01761-90)
2016688560Clutch Comp. (old 287-01761-90)€ 13.92
Needle Bearing (old 999-62101-301)
2026685143Needle Bearing (old 999-62101-301)€ 4.31
Clutch Housing Comp. (old 310-72000-80)
2036689036Clutch Housing Comp. (old 310-72000-80)€ 15.22
Clutch Housing Comp. (old 310-72001-80)
2036689037Clutch Housing Comp. (old 310-72001-80)€ 15.37
Bague
2046689635Bague€ 3.19
Épuisé
2056689641Épuisé
Tapping Screw D4x10 (old 993-41040-101)
2076685161Tapping Screw D4x10 (old 993-41040-101)€ 1.11
Guide Plate B (old 462-72000-20)
2086690765Guide Plate B (old 462-72000-20)€ 2.24
Tention Adjust Bolt Comp. (old 116-72000-80)
2096687074Tention Adjust Bolt Comp. (old 116-72000-80)€ 6.87
Gear (a) (old 301-72000-20)
2106685168Gear (a) (old 301-72000-20)€ 2.24
Hand Guard Weight (old 808-72000-20)
2116693485Hand Guard Weight (old 808-72000-20)€ 2.24
Crank Shaft Collar 6 (old 511-72000-20)
2126691198Crank Shaft Collar 6 (old 511-72000-20)€ 2.24
Nut M4 (old 991-01040-011)
2136685069Nut M4 (old 991-01040-011)€ 1.11
Bague
2146685068Bague€ 1.11
Side Case Ass'y (old 040-72000-90)
2156686112Side Case Ass'y (old 040-72000-90)€ 54.46
Blake Handle (old 365-72000-21/6695711)
2166689677Blake Handle (old 365-72000-21/6695711)€ 5.59
Brake Link Cover (old 375-72000-20)
2176689713Brake Link Cover (old 375-72000-20)€ 2.24
Brake Spring (old 374-72000-20)
2186689707Brake Spring (old 374-72000-20)€ 2.24
Brake Support Plate Comp. (old 386-32901-80)
2196685119Brake Support Plate Comp. (old 386-32901-80)€ 4.31
Needle Roller 3x9.8 (old 999-05300-980)
2206685141Needle Roller 3x9.8 (old 999-05300-980)€ 1.11
Brake Link Ass'y
2216685388Brake Link Ass'y€ 3.92
Blake Band (old 378-72000-20)
2226689729Blake Band (old 378-72000-20)€ 6.87
Cleaner Fixing Collar (old 470-10246-20)
2236690805Cleaner Fixing Collar (old 470-10246-20)€ 1.11
Collar (old 031-32901-20)
2246685120Collar (old 031-32901-20)€ 1.11
Side Cover Comp. (old 039-72000-80)
2256686049Side Cover Comp. (old 039-72000-80)€ 11.98
Brake Lever Spring (old 388-32900-20)
2266685122Brake Lever Spring (old 388-32900-20)€ 2.24
Tapping Screw D4x15 (old 993-41040-151)
2276685148Tapping Screw D4x15 (old 993-41040-151)€ 1.11
Tapping Screw 5x35 (old 990-73050-354)
2506695107Tapping Screw 5x35 (old 990-73050-354)€ 1.11
Cleaner Fixing Collar (old 470-10246-20)
2516690805Cleaner Fixing Collar (old 470-10246-20)€ 1.11
Tapping Screw 5x40 (old 990-73050-404)
2526695108Tapping Screw 5x40 (old 990-73050-404)€ 1.11
Damper Collar A (old 275-32710-20) New
2536688480Damper Collar A (old 275-32710-20) New€ 1.11
Damper A (old 219-32750-20)
2546688117Damper A (old 219-32750-20)€ 1.11
Tapping Screw D5x14 (old 990-72050-144)
2556685275Tapping Screw D5x14 (old 990-72050-144)€ 1.11
Tapping Screw D5x16 (old 990-73050-164)
2566685074Tapping Screw D5x16 (old 990-73050-164)€ 1.11
Rear Handle B (old 011-72000-20)
2576685653Rear Handle B (old 011-72000-20)€ 4.31
Safety Lever (old 257-32910-20)
2586688363Safety Lever (old 257-32910-20)€ 1.11
Throttle Lever (old 060-32970-20)
2596686395Throttle Lever (old 060-32970-20)€ 2.24
Throttle Lever Spring (old 061-32710-20)
2606686416Throttle Lever Spring (old 061-32710-20)€ 2.24
Rear Handle A (old 010-72000-20)
2616685628Rear Handle A (old 010-72000-20)€ 4.31
Tapping Screw D4x15 (old 993-41040-151)
2626685148Tapping Screw D4x15 (old 993-41040-151)€ 1.11
Front Handle (old 209-72000-21/6695950)
2636688088Front Handle (old 209-72000-21/6695950)€ 6.39
Épuisé
2646693875Épuisé
Damper Comp. (old 244-3291d-80)
2656688262Damper Comp. (old 244-3291d-80)€ 4.31
Combi Box Spanner 10/19mm (old 013-29323-50/668566
5016685257Combi Box Spanner 10/19mm (old 013-29323-50/668566€ 3.19
Chain Cover 10" (old 941-32333-20)
5026694796Chain Cover 10" (old 941-32333-20)€ 6.07
Minus Driver
5036686632Minus Driver€ 2.96
Épuisé
5046687102Épuisé
CARVING BAR 10" (OLD 110-72005-20)
5056686880CARVING BAR 10" (OLD 110-72005-20)€ 126.35
Épuisé
5066697853Épuisé
CHAIN BAR 10" x 3/8" x 1.3 MM (.050") (OLD 110-720
5076686879CHAIN BAR 10" x 3/8" x 1.3 MM (.050") (OLD 110-720€ 23.43
Name Plate Cs25ec(sc) (old 906-72005-20)
6016694394Name Plate Cs25ec(sc) (old 906-72005-20)€ 1.11
Name Plate Cs25ec(s) (old 906-72004-20)
6026694393Name Plate Cs25ec(s) (old 906-72004-20)€ 1.11
Starter Mark (old 915-07182-21)
6036694471Starter Mark (old 915-07182-21)€ 1.11
Votre panier contient 0 de produits.
