Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CR17Y'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

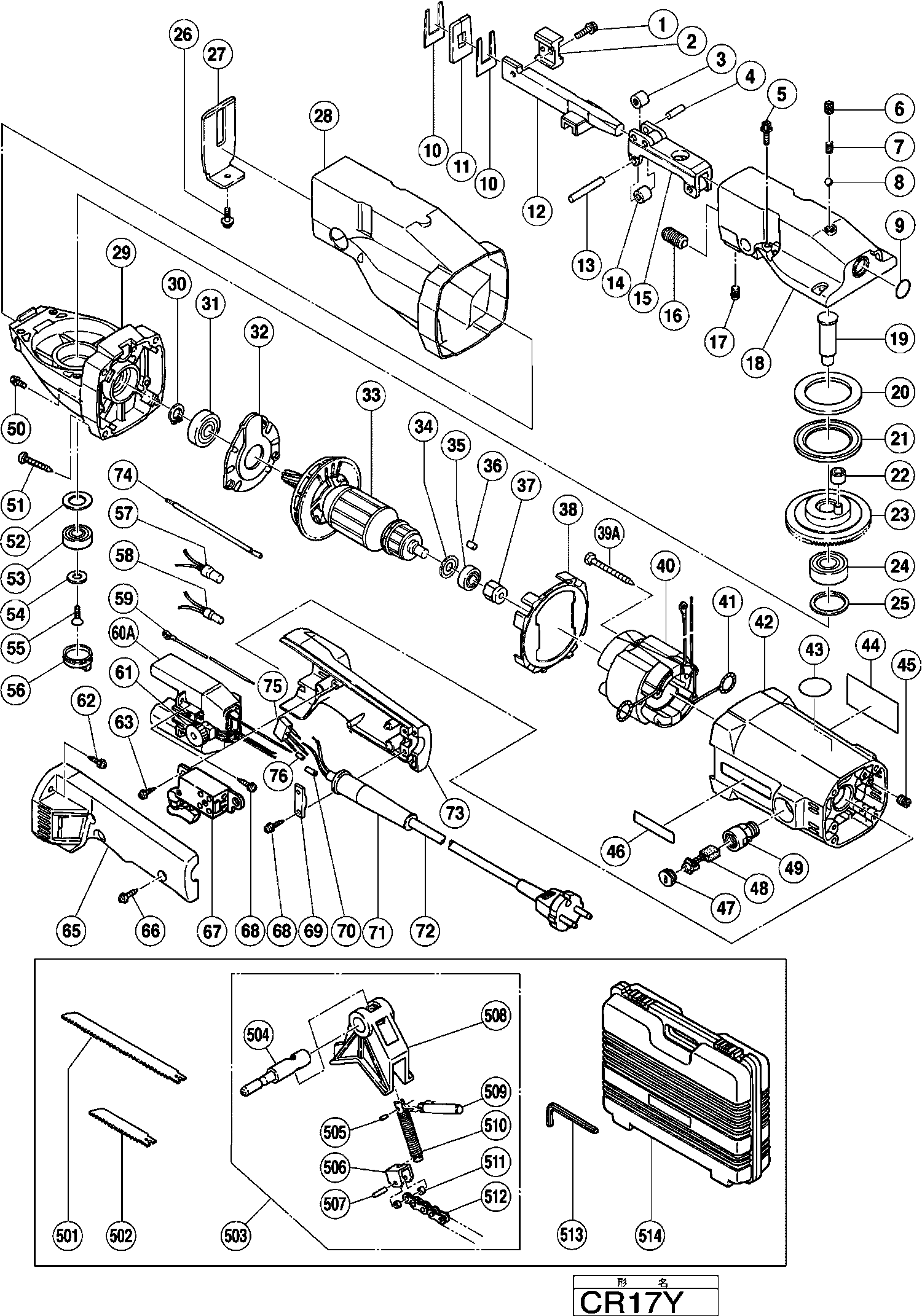

Dessins des Hikoki CR17Y
Liste de pièces de rechange des Hikoki CR17Y
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Boulon hexagonal. (avec rondelle) M5x16 | ||||
1 | 305574 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
2 | 307121 | |||
Roulement à aiguilles Nk6/10t2 | ||||
3 | 984232 | 13.65 | 16.38 | |
Broche | ||||
4 | 305581 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
5 | 305583 | |||
Pas d'informations disponibles, non commandable | ||||
6 | 305577 | |||
Pas d'informations disponibles, non commandable | ||||
7 | 305571 | |||
Bille d'acier D6.35 (10 pièces) | ||||
8 | 959150 | 1.35 | 1.62 | |
O Ring (s-18) | ||||
9 | 878885 | 1.05 | 1.26 | |
Plaque Cr 17y | ||||
10 | 305575 | 1.80 | 2.16 | |
Joint | ||||
11 | 305576 | 1.95 | 2.34 | |
Plongeur | ||||
12A | 305572 | 145.89 | 175.06 | |
Goupille Cr-10v | ||||
13 | 983564 | 3.00 | 3.60 | |
Douille | ||||
14 | 305582 | 7.65 | 9.18 | |
Porte-scie | ||||
15 | 305580 | 192.50 | 231.00 | |
Pas d'informations disponibles, non commandable | ||||
16 | 305563 | |||
Vis de réglage hexagonale M5x8 | ||||
17 | 938477 | 1.05 | 1.26 | |
Palier | ||||
18 | 305570 | 52.53 | 63.03 | |
Arbre | ||||
19 | 305565 | 19.94 | 23.92 | |
Bague | ||||
20 | 305578 | 14.70 | 17.64 | |
Roulement A Aiguilles | ||||
21 | 305579 | 9.60 | 11.52 | |
Fermeture | ||||
22 | 305567 | 9.60 | 11.52 | |
Pignon | ||||
23 | 305566 | 93.36 | 112.04 | |
Roulement | ||||
24 | 6202VV | 7.05 | 8.46 | |
Pas d'informations disponibles, non commandable | ||||
25 | 305719 | |||
Pas d'informations disponibles, non commandable | ||||
26 | 306017 | |||
Plaque de base | ||||
27 | 305585 | 3.90 | 4.68 | |
Isolant Cr 17y | ||||
28 | 305584 | 26.40 | 31.68 | |
Pas d'informations disponibles, non commandable | ||||
29 | 305562 | |||
Circlips Ø12 (x10) paquet de 10 | ||||
30 | 939542 | 1.50 | 1.80 | |
Roulement à billes 6201dducmav2s | ||||
31 | 6201DD | 6.30 | 7.56 | |
Pas d'informations disponibles, non commandable | ||||
32 | 305564 | |||
Induit | ||||
33 | 360272E | 157.44 | 188.92 | |
Rondelle | ||||
34 | 982631 | 1.04 | 1.24 | |
Roulement A Billes | ||||
35 | 608VVM | 5.70 | 6.84 | |
STYLO EN CAOUTCHOUC | ||||
36 | 931701 | 1.05 | 1.26 | |
Aimant | ||||
37 | 305559 | 12.75 | 15.30 | |
Plus disponible, pas de remplacement | ||||
38 | 305561 | |||
Vis Ø5*60 | ||||
39A | 961501 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
40 | 340246J | |||
Raccord | ||||
41 | 930703 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
42 | 996078 | |||
Pas d'informations disponibles, non commandable | ||||
43 | 986914 | |||
Vis à tête hexagonale M4x6 | ||||
45 | 985114 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
46 | 957561 | |||
Bouchon Charbon | ||||
47 | 945161 | 1.20 | 1.44 | |
Charbons (1 Paire) | ||||
48 | 999043 | 4.50 | 5.40 | |
S/e Porte Balais | ||||
49 | 958900 | 6.45 | 7.74 | |
Vis M4*12 | ||||
50 | 987203 | 1.05 | 1.26 | |
Vis G 13sb | ||||
51 | 957580 | 1.05 | 1.26 | |
Bague | ||||
52 | 944525 | 1.05 | 1.26 | |
Roulement | ||||
53 | 6000VV | 6.15 | 7.38 | |
Pas d'informations disponibles, non commandable | ||||
54 | 953338 | |||
VIS DE VERRILLAGE M5X12 | ||||
55 | 305568 | 1.05 | 1.26 | |
Bouchon Cr 17y | ||||
56 | 305569 | 2.25 | 2.70 | |
Connecteur 50092 | ||||
57 | 959141 | 3.75 | 4.50 | |
Connecteur 50091 | ||||
58 | 959140 | 3.30 | 3.96 | |
Plus disponible, pas de remplacement | ||||
59 | 985289 | |||
Pas d'informations disponibles, non commandable | ||||
60 | 307842 | |||
Contrôleur Inclus.61,75,76 pour 220-240v | ||||
60A | 319948 | 134.20 | 161.04 | |
Variateur Cr 17y | ||||
61 | 305699 | 23.93 | 28.71 | |
Vis auto-taraudeuse (avec bride) D5x25 (noir) | ||||
62 | 305558 | 1.04 | 1.24 | |
Vis Ø 4*12 For Sin,hkg,chn | ||||
63 | 305720 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
65 | 308100 | |||
Vis à tarauder D4x20 avec bride (noir) | ||||
66 | 301653 | 1.04 | 1.24 | |
Commutateur | ||||
67 | 953178 | 37.95 | 45.54 | |
Commutateur | ||||
67 | 960280Z | 21.31 | 25.58 | |
Pas d'informations disponibles, non commandable | ||||
68 | 984750 | |||
Serre Cable | ||||
69 | 960266 | 1.04 | 1.24 | |
Manchon à cabler | ||||
70 | 981373 | 1.05 | 1.26 | |
Entree De Cable Ø 10,7 | ||||
71 | 940778 | 2.10 | 2.52 | |
Protecteur de câble D8.2 (ancien 958049z) | ||||
71 | 958049 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
72 | 500234Z | |||
Pas d'informations disponibles, non commandable | ||||
73 | 305557 | |||
Pas d'informations disponibles, non commandable | ||||
74 | 307770 | |||
Condensateur | ||||
75 | 994273 | 4.29 | 5.14 | |
Manchon à cabler | ||||
76 | 981373 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
501 | 306980 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 305587 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 305587 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 305588 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 305589 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 305590 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 305591 | |||
Entretoise | ||||
606 | 990561 | 1.95 | 2.34 | |
Goupille Cj 65va2 | ||||
607 | 305592 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
608 | 305593 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 305594 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 949869 | |||
Porte-Lame (a) pour Lames Minces | ||||
611 | 305700 | 19.39 | 23.26 | |
Pas d'informations disponibles, non commandable | ||||
613 | 958182 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 958183 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 959611 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 958185 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 958186 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 958187 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 958188 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 996427 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 959799 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 959800 | |||
Pas d'informations disponibles, non commandable | ||||
623A | 318614 | |||
Pas d'informations disponibles, non commandable | ||||
624A | 318613 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 310314 |
