Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CR13VA'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

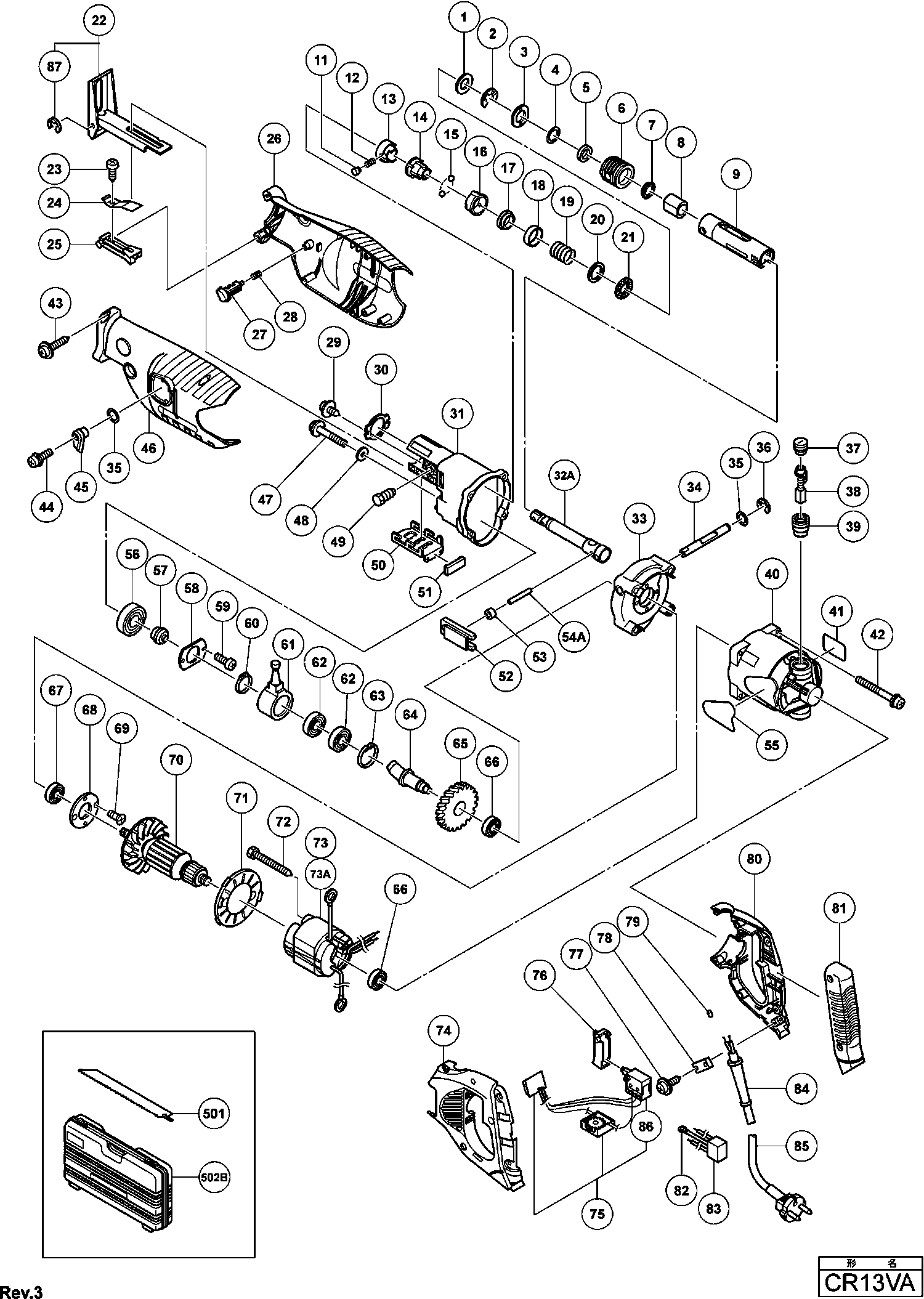

Dessins des Hikoki CR13VA
Liste de pièces de rechange des Hikoki CR13VA
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Rondelle | ||||
1 | 318486 | 1.65 | 1.98 | |
ANNEAU DE BLOCAGE D14 | ||||
2 | 318453 | 1.65 | 1.98 | |
Rondelle (f) | ||||
3 | 318457 | 1.65 | 1.98 | |
O Ring (nt45a Vb13y Cr13va) | ||||
4 | 878609 | 1.05 | 1.26 | |
Rondelle | ||||
5 | 318458 | 1.65 | 1.98 | |
Anneau, Retenue | ||||
6 | 318460 | 3.30 | 3.96 | |
Joint V Ring | ||||
7 | 318459 | 1.65 | 1.98 | |
Métal (a) | ||||
8 | 318463 | 4.80 | 5.76 | |
Bague Guide | ||||
9 | 318462 | 24.34 | 29.20 | |
Goupille de sûreté | ||||
11 | 318481 | 4.80 | 5.76 | |
Ressort | ||||
12 | 318483 | 1.20 | 1.44 | |
Support | ||||
13 | 318478 | 19.94 | 23.92 | |
Support G23se For Noise Suppressor | ||||
14 | 318479 | 11.85 | 14.22 | |
Bille d'acier D4.76 (10 pièces) | ||||
15 | 959149 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
16 | 318480 | |||
Bague De Guidage | ||||
17 | 318477 | 1.05 | 1.26 | |
Anneau de poussière | ||||
18 | 318487 | 1.05 | 1.26 | |
Ressort | ||||
19 | 318482 | 1.20 | 1.44 | |
Rondelle (e) | ||||
20 | 318484 | 1.65 | 1.98 | |
Bague Pour Palier | ||||
21 | 318485 | 6.45 | 7.74 | |
Plaque de base | ||||
22 | 318455 | 18.43 | 22.11 | |
Vis Ø4*8 | ||||
23 | 310222 | 1.05 | 1.26 | |
Ressort | ||||
24 | 318495 | 1.65 | 1.98 | |
Levier de réglage | ||||
25 | 318497 | 1.95 | 2.34 | |
Manchon d'isolation (b) | ||||
26 | 318471 | 35.06 | 42.08 | |
Bouton-poussoir | ||||
27 | 318496 | 1.05 | 1.26 | |
Ressort (c) | ||||
28 | 318494 | 1.65 | 1.98 | |
Vis à métaux Ft M4x6 | ||||
29 | 677495 | 1.05 | 1.26 | |
Joint | ||||
30 | 318456 | 1.05 | 1.26 | |
Carter | ||||
31 | 318468 | 18.29 | 21.94 | |
Arbre | ||||
32A | 319771 | 61.33 | 73.59 | |
Couvercle intermédiaire | ||||
33 | 318469 | 14.55 | 17.46 | |
Arbre d'échange | ||||
34 | 318489 | 6.45 | 7.74 | |
Plus disponible, pas de remplacement | ||||
35 | 872654 | |||
Rondelle Elastique | ||||
36 | 974577 | 1.05 | 1.26 | |
Bouchon Charbon | ||||
37 | 945161 | 1.20 | 1.44 | |
Charbons (1 Paire) | ||||
38 | 999043 | 4.50 | 5.40 | |
S/e Porte Balais | ||||
39 | 958900 | 6.45 | 7.74 | |
Boîtier (vert) | ||||
40 | 318506 | 21.31 | 25.58 | |
Vis à tête hexagonale M5x60 avec rondelles (noir) | ||||
42 | 307224 | 1.05 | 1.26 | |
Vis Ø 4*25 noir | ||||
43 | 307028 | 1.05 | 1.26 | |
Vis M.4*10 Bm25y/cr13va | ||||
44 | 303851 | 1.05 | 1.26 | |
Bouton d'ajustement | ||||
45 | 318490 | 1.05 | 1.26 | |
Plus disponible, pas de remplacement | ||||
46 | 318470 | |||
Boulon Nylock (avec bride) M6x35 | ||||
47 | 318451 | 1.65 | 1.98 | |
Rondelle | ||||
48 | 318452 | 1.20 | 1.44 | |
Boulon M10 | ||||
49 | 318493 | 6.45 | 7.74 | |
Adaptateur de plaque de base | ||||
50 | 318454 | 4.80 | 5.76 | |
Caoutchouc protecteur | ||||
51 | 318461 | 1.65 | 1.98 | |
Rail de Pendule | ||||
52 | 318488 | 22.28 | 26.73 | |
Bague Cr 13vc | ||||
53 | 321136 | 1.65 | 1.98 | |
ÉPINGLE D6 (ANCIEN 318491) | ||||
54A | 326585 | 3.15 | 3.78 | |
Roulement à billes 6003 Dd | ||||
56 | 6003DD | 7.50 | 9.00 | |
Piston | ||||
57 | 318475 | 3.30 | 3.96 | |
Couvercle de palier (b) | ||||
58 | 318476 | 4.65 | 5.58 | |
Vis machine M4x10 (10 pièces) (ANCIEN 949216Z) | ||||
59 | 949216 | 1.05 | 1.26 | |
Bague | ||||
60 | 967261 | 1.05 | 1.26 | |
Plaque De Pièce De Rechange | ||||
61 | 321121 | 27.78 | 33.33 | |
Roulement à billes 6003 Vv | ||||
62 | 6003VV | 7.65 | 9.18 | |
Clips D35 (x10) paquet de 10 | ||||
63 | 939556 | 10.20 | 12.24 | |
Deuxième axe (a) | ||||
64 | 318474 | 26.68 | 32.01 | |
Pignon | ||||
65 | 318473 | 14.03 | 16.83 | |
Roulement A Billes | ||||
66 | 608VVM | 5.70 | 6.84 | |
Roulement A Billes | ||||
67 | 6001VV | 6.60 | 7.92 | |
Flasque De Palier | ||||
68 | 302435 | 1.35 | 1.62 | |
Vis M.4*28 (paquet de 10) | ||||
69 | 949321 | 1.05 | 1.26 | |
Induit 230v | ||||
70 | 360514E | 107.94 | 129.52 | |
Baffle | ||||
71 | 318467 | 2.10 | 2.52 | |
Vis D5*55 | ||||
72 | 953174 | 1.04 | 1.24 | |
Vis Ø5*60 | ||||
72 | 961501 | 1.04 | 1.24 | |
Stator 220v-230v H-90sa Includ.103 Pour Nzl,saf | ||||
73A | 340479J | 75.90 | 91.08 | |
Poignée (b) Verte | ||||
74 | 318509 | 7.20 | 8.64 | |
Commutateur | ||||
75 | 318505 | 61.33 | 73.59 | |
LEVIER INTERRUPTEUR | ||||
76 | 318499 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
77 | 984750 | |||
Serre Cable | ||||
78 | 937631 | 1.04 | 1.24 | |
Manchon à cabler | ||||
79 | 981373 | 1.05 | 1.26 | |
Poignée (a) Verte | ||||
80 | 318508 | 7.20 | 8.64 | |
Couverture de Poignée | ||||
81 | 318472 | 16.64 | 19.96 | |
Borne For Noise Suppressor | ||||
82 | 938108 | 1.20 | 1.44 | |
Condensateur | ||||
83 | 994273 | 4.29 | 5.14 | |
Entree De Cable Ø 8.8 | ||||
84 | 380090 | 1.04 | 1.25 | |
Entree De Cable Ø 10,1 | ||||
84 | 938051 | 1.04 | 1.24 | |
Câble 3M 2 X 1,0 H05vv-f avec prise 16a CEE | ||||
85 | 500461Z | 17.88 | 21.45 | |
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
85 | 500447Z | 6.60 | 7.92 | |
Commutateur | ||||
86 | 321960 | 32.18 | 38.61 | |
Circlips Sod-110 Till 6.1998 | ||||
87 | 872971 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
501 | 318613 | |||
Pas d'informations disponibles, non commandable | ||||
502B | 327054 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 958182 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 958183 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 959611 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 958185 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 958188 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 996427 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 959799 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 959800 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 318611 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 318612 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 318614 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 324818 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 324819 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 318617 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 318618 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 318619 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 318620 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 318621 |
