Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CM6'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

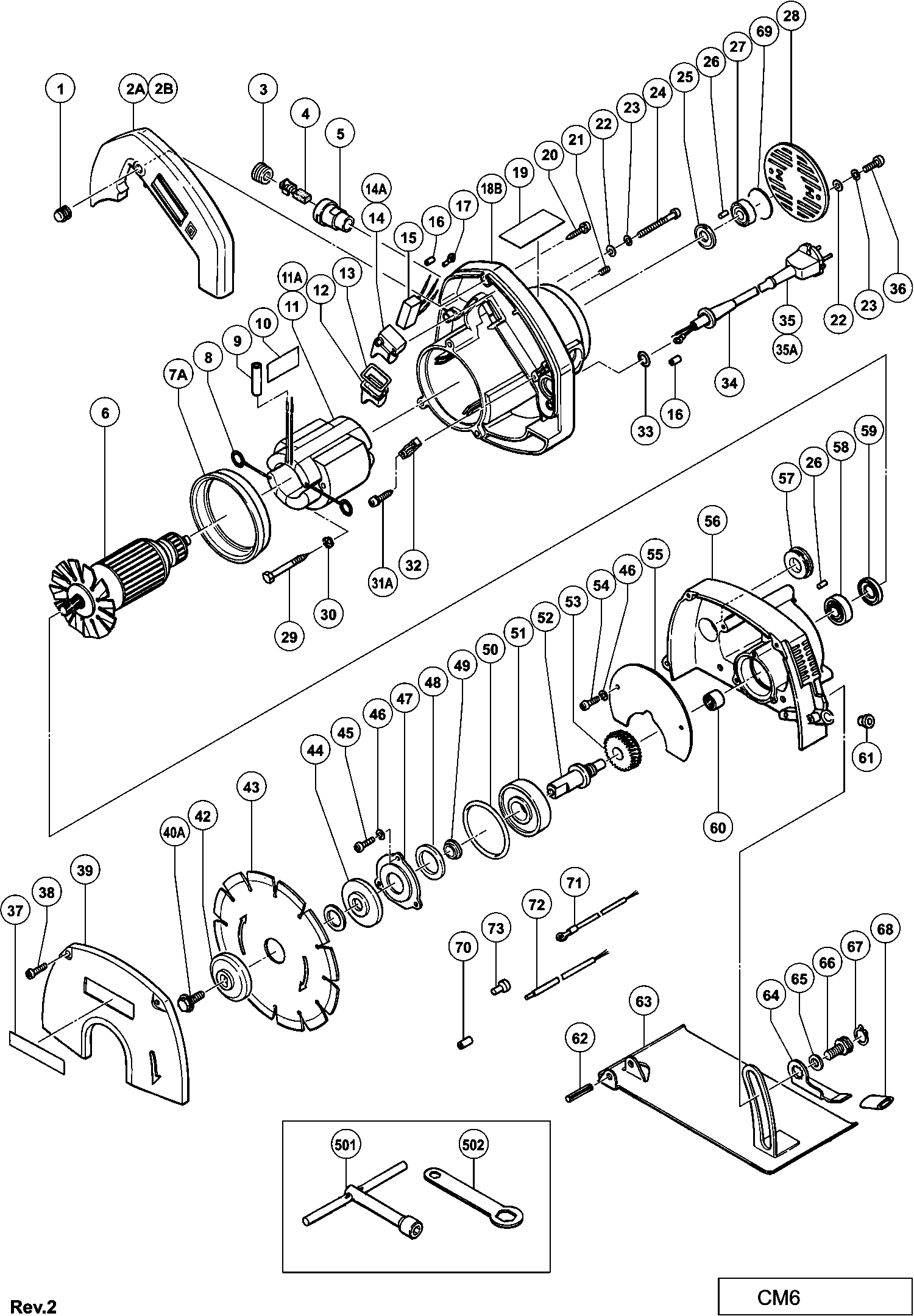

Dessins des Hikoki CM6
Liste de pièces de rechange des Hikoki CM6
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 956866 | |||
Pas d'informations disponibles, non commandable | ||||
2A | 983857 | |||
Pas d'informations disponibles, non commandable | ||||
2B | 956856Z | |||
Bouchon Charbon | ||||
3 | 961781 | 2.55 | 3.06 | |
Charbons (1 Paire) | ||||
4 | 999043 | 4.50 | 5.40 | |
S/e Porte Balais | ||||
5 | 981586 | 6.45 | 7.74 | |
Induit | ||||
6 | 983860E | 125.40 | 150.48 | |
Baffle | ||||
7A | 954584 | 1.80 | 2.16 | |
Raccord | ||||
8 | 930703 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
10 | 983858 | |||
Stator 220v-230v H-90sa Includ.103 Pour Nzl,saf | ||||
11 | 983859E | 43.86 | 52.64 | |
Housse en caoutchouc | ||||
12 | 956882 | 1.50 | 1.80 | |
O-ring Cm-6 | ||||
13 | 944486 | 1.05 | 1.26 | |
Commutateur | ||||
14 | 971667Z | 20.21 | 24.26 | |
Commutateur | ||||
14A | 958400Z | 18.98 | 22.77 | |
Commutateur | ||||
14A | 963756Z | 13.20 | 15.84 | |
Condensateur Say-150 | ||||
15 | 500262Z | 6.45 | 7.74 | |
Manchon à cabler | ||||
16 | 981373 | 1.05 | 1.26 | |
Raccord Except For Usa,can,ven,ina,syr,kuw,hkg, | ||||
17 | 961419Z | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
18B | 983840 | |||
Vis Ø4*20 | ||||
20 | 982095 | 1.04 | 1.24 | |
Vis Ø 5x6 Till 2.1986 | ||||
21 | 962782 | 1.04 | 1.24 | |
Rondelle M5 (x10) paquet de 10 | ||||
22 | 949424 | 1.05 | 1.26 | |
Rondelle de ressort M5 (10 pièces) | ||||
23 | 949454 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
24 | 949250 | |||
Joint Till 2.1995 | ||||
25 | 956387 | 2.10 | 2.52 | |
GOUJON EN CAOUTCHOUC (ANCIEN 976441) | ||||
26 | 946362 | 1.05 | 1.26 | |
Roulement A Billes | ||||
27 | 608VVM | 5.70 | 6.84 | |
COUVERCLE ARRIERE | ||||
28 | 956880 | 1.80 | 2.16 | |
Vis Ø 5*65 | ||||
29 | 960251 | 1.05 | 1.26 | |
Rondelle | ||||
30 | 956764 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
31A | 984750 | |||
Serre Cable | ||||
32 | 937631 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
33 | 876316 | |||
Entree De Cable Till 11.1982 For Aus | ||||
34 | 930026 | 3.00 | 3.60 | |
Entree De Cable | ||||
34 | 930487 | 2.25 | 2.70 | |
Pas d'informations disponibles, non commandable | ||||
35 | 500420Z | |||
Pas d'informations disponibles, non commandable | ||||
35A | 500423Z | |||
Vis à Métaux M5X14 (10 Pièces) | ||||
36 | 949238 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
37 | 983865 | |||
Vis Sb 10v (paquet de 10) | ||||
38 | 949218 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
39 | 983864 | |||
Vis 7x17,5mm pas a gauche | ||||
40A | 998335 | 1.05 | 1.26 | |
Rondelle | ||||
42 | 957064 | 4.50 | 5.40 | |
Pas d'informations disponibles, non commandable | ||||
43 | 310854 | |||
Bague | ||||
44 | 983856 | 17.33 | 20.79 | |
Vis M4*12 (paquet de 10) | ||||
45 | 949217 | 1.05 | 1.26 | |
Rondelle de ressort M4 (10 pièces) | ||||
46 | 949453 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
47 | 983846 | |||
Joint Cm-6 | ||||
48 | 971134 | 2.25 | 2.70 | |
Pas d'informations disponibles, non commandable | ||||
49 | 983853 | |||
O-ring Cm-6 | ||||
50 | 983852 | 1.95 | 2.34 | |
Roulement à billes 6302vvcmps2s | ||||
51 | 6302VV | 9.30 | 11.16 | |
Arbre | ||||
52 | 983843 | 40.84 | 49.00 | |
Pignon | ||||
53 | 983844 | 14.71 | 17.66 | |
Vis M4*8 (paquet de 10) | ||||
54 | 949215 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
55 | 983845 | |||
Pas d'informations disponibles, non commandable | ||||
56 | 983841 | |||
Pas d'informations disponibles, non commandable | ||||
57 | 940831 | |||
Roulement A Billes | ||||
58 | 6001VV | 6.60 | 7.92 | |
Joint | ||||
59 | 983847 | 2.55 | 3.06 | |
Roulement à aiguilles Hk0810 | ||||
60 | 670714 | 6.45 | 7.74 | |
Pas d'informations disponibles, non commandable | ||||
61 | 930426 | |||
Goupille Cm6 H90sc | ||||
62 | 949874 | 5.85 | 7.02 | |
Plaque de base | ||||
63 | 983861 | 11.10 | 13.32 | |
Pas d'informations disponibles, non commandable | ||||
64 | 983863 | |||
Rondelle M8 (x10) Paquet de 10 | ||||
65 | 949426 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
66 | 983862 | |||
Circlips Ø14 (x10)paquet de 10 | ||||
67 | 939543 | 2.55 | 3.06 | |
Pas d'informations disponibles, non commandable | ||||
69 | 983866 | |||
Manchon à cabler | ||||
70 | 981373 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
71 | 983869 | |||
Pas d'informations disponibles, non commandable | ||||
72 | 983880 | |||
Connecteur 50091 | ||||
73 | 959140 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
501 | 940543 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 941057 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 980804 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 310853 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 306914 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 306915 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 306916 |
