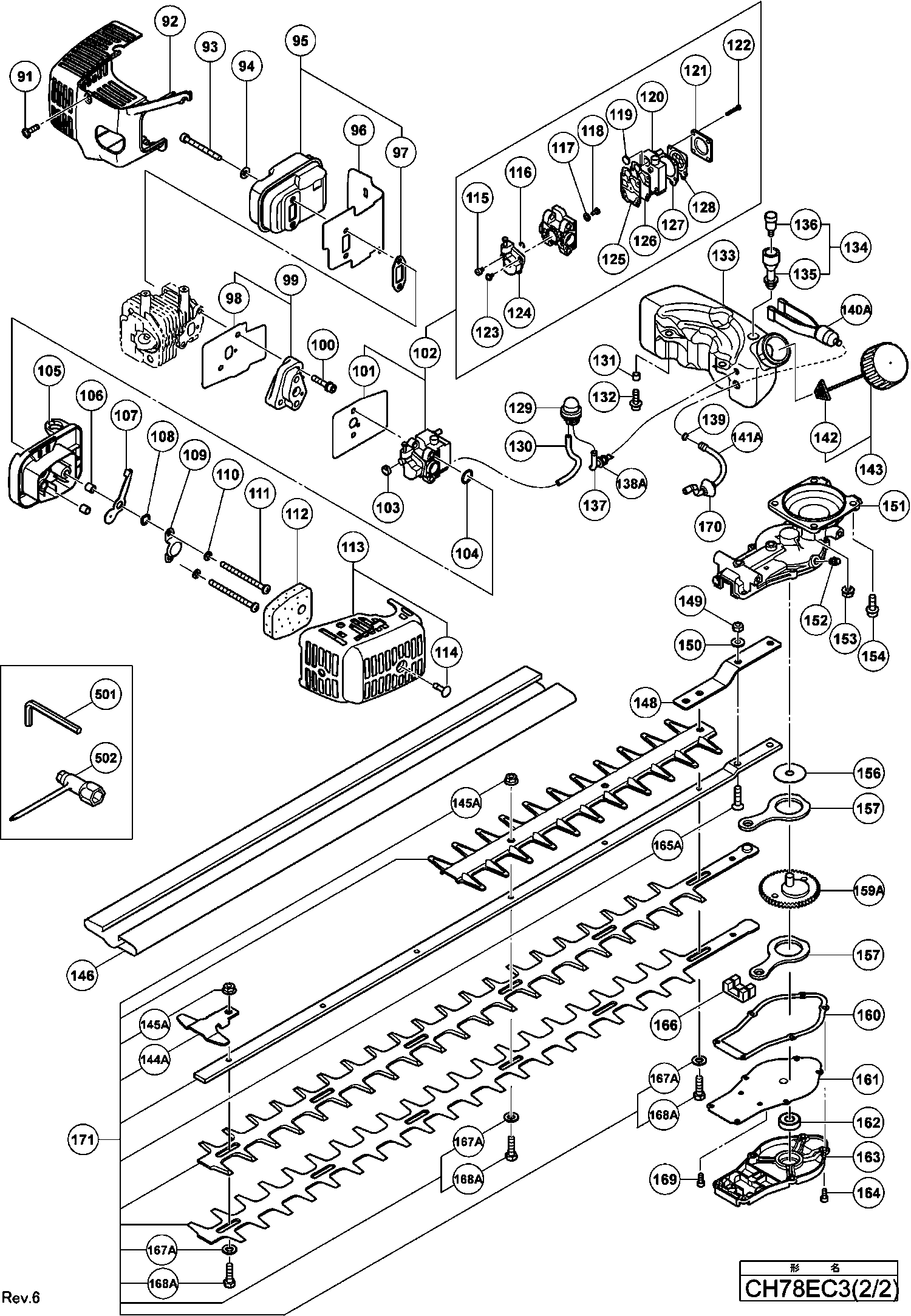

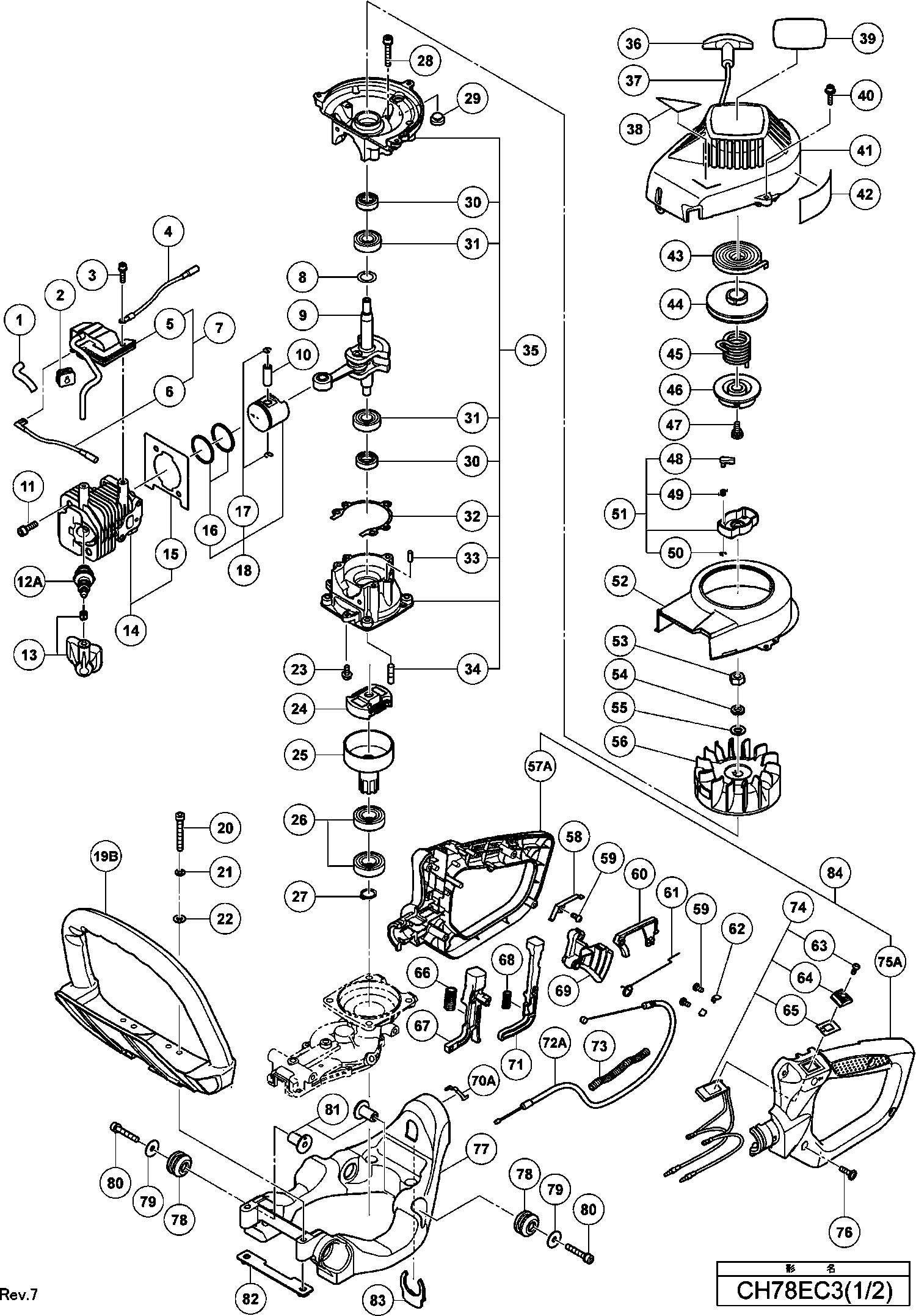

Dessins des Hikoki CH78EC3
Liste de pièces de rechange des Hikoki CH78EC3
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Tube isolant 50l (ancien 250-06500-20) | ||||
1 | 6684597 | 2.15 | 2.58 | |
Passe-câble (ancien 203-0604a-20) | ||||
2 | 6688050 | 1.15 | 1.38 | |
Vis Ø4x18 Till H124040 | ||||
3 | 6684599 | 2.15 | 2.58 | |
Câble (ancien 274-51705-80) | ||||
4 | 6688477 | 2.31 | 2.78 | |
Plus disponible, pas de remplacement | ||||
6 | 6687918 | |||
Cale d'arbre d'engrenage 0.20 (ancien 330-00200-23 | ||||
8 | 6684604 | 2.15 | 2.58 | |
Cale d'arbre d'engrenage 0.30 (ancien 330-00200-24 | ||||
8 | 6684605 | 2.15 | 2.58 | |
Vilebrequin Comp. (ancien 046-06500-80) | ||||
9 | 6686205 | 72.30 | 86.76 | |
Goupille de Piston (ancien 037-07045-20) | ||||
10 | 6684591 | 4.29 | 5.14 | |
Boulon à trou hexagonal M5x18 / s (ancien 994-6105 | ||||
11 | 6684586 | 2.15 | 2.58 | |
Bougie d'allumage Bpmr6a (ancienne 6685086) | ||||
12A | 6699319 | 8.91 | 10.70 | |
Assembly cap de bougie d'allumage (ancien 157-0650 | ||||
13 | 6687476 | 4.45 | 5.34 | |
Cylindre Set (ancien 001-06600-90) | ||||
14 | 6685481 | 44.31 | 53.18 | |
Joint de cylindre (ancien 017-06500-20) | ||||
15 | 6685744 | 1.15 | 1.38 | |
Anneau de piston (ancien 041-01601-20) | ||||
16 | 6684588 | 8.58 | 10.29 | |
Circlip de goupille du piston (vieux 039-01620-20) | ||||
17 | 6686028 | 1.15 | 1.38 | |
Ensemble de pistons de rechange (ancienne 030-0660 | ||||
18 | 6685893 | 22.24 | 26.68 | |
Poignée | ||||
19B | 6699079 | 5.25 | 6.30 | |
Boulon Hex. Trou 5x40 (ancien 990-51050-403) | ||||
20 | 6695054 | 1.15 | 1.38 | |
Rondelle D.5 | ||||
21 | 6684834 | 2.15 | 2.58 | |
Rondelle Ø 5 | ||||
22 | 6684918 | 2.15 | 2.58 | |
Boulon 4x12ps (ancien 994-25040-128) | ||||
23 | 6695441 | 1.15 | 1.38 | |
EMBRAYAGE À GLISSEMENT COMPLET | ||||
24 | 6688494 | 9.74 | 11.68 | |
Tambour d'embrayage Comp. (ancien 288-33180-80) | ||||
25 | 6688570 | 17.70 | 21.24 | |
Roulement à billes | ||||
26 | 6695538 | 6.60 | 7.92 | |
Bague d'arrêt C-15, externe (ancien 993-50015-002) | ||||
27 | 6695285 | 1.15 | 1.38 | |
Boulon à tête cylindrique hexagonale M5x30 S (anci | ||||
28 | 6684786 | 2.15 | 2.58 | |
Caoutchouc anti-vibrateur | ||||
29 | 6691822 | 1.15 | 1.38 | |
Joint d'huile | ||||
30 | 6684607 | 4.29 | 5.14 | |
Roulement à billes 6001 C3 | ||||
31 | 6684608 | 3.80 | 4.56 | |
Joint de carter (ancien 090-06500-20) | ||||
32 | 6686720 | 1.15 | 1.38 | |
Goupille frappante 4x12 (ancien 999-05041-203) | ||||
33 | 6695521 | 1.15 | 1.38 | |
Boulon d'étude 6x22 (ancien 100-02100-20) | ||||
34 | 6686771 | 1.15 | 1.38 | |
Carter de vilebrequin Assy (ancien 072-06500-90) | ||||
35 | 6686574 | 42.20 | 50.64 | |
Poignée de démarrage | ||||
36 | 6693237 | 1.15 | 1.38 | |
Corde 3x890 (ancien 783-0651h-20) | ||||
37 | 6693172 | 2.31 | 2.78 | |
Boulon Hex. Trou 4x18ps (ancien 994-63040-184) | ||||
40 | 6695502 | 1.15 | 1.38 | |
Enveloppe De Ventilateur | ||||
41 | 6687014 | 16.94 | 20.32 | |
Ressort de rappel (ancien 780-06097-20/6697591) | ||||
43 | 6684675 | 11.55 | 13.86 | |
Bobine de corde de lanceur (ancien 774-0651h-20) | ||||
44 | 6693072 | 5.11 | 6.14 | |
Ressort d'amortisseur (ancien 758-0651h-20) | ||||
45 | 6684677 | 8.58 | 10.29 | |
Plaque came (ancienne 759-0651h-20) | ||||
46 | 6684678 | 6.44 | 7.72 | |
Vis de réglage (ancienne 839-03045-20) | ||||
47 | 6684679 | 2.15 | 2.58 | |
Pince d'allumage (ancien 788-0651h-20) | ||||
48 | 6684685 | 4.29 | 5.14 | |
Ressort de griffe de démarrage (ancien 790-06097-2 | ||||
49 | 6684684 | 4.29 | 5.14 | |
Anneau d'arrêt E-5 (ancien 993-55050-000) | ||||
50 | 6684683 | 2.15 | 2.58 | |
Bague de retenue D4e (ancien 993-55040-001) | ||||
50 | 6685101 | 1.15 | 1.38 | |
Poulie de démarrage Ass'y (ancien 798-0651h-90) | ||||
51 | 6684681 | 13.20 | 15.84 | |
Déflecteur (ancien 132-06602-20) | ||||
52 | 6687209 | 6.44 | 7.72 | |
Écrou M8 (ancien 991-01080-011/327325/332299/72660 | ||||
53 | 6684612 | 2.15 | 2.58 | |
Bague | ||||
54 | 6684971 | 1.04 | 1.24 | |
Rondelle M8 (ancien 992-01080-011) | ||||
55 | 6684611 | 2.15 | 2.58 | |
Roto Magneto Comp. | ||||
56 | 6687389 | 26.16 | 31.40 | |
Pas d'informations disponibles, non commandable | ||||
57A | 6698868 | |||
Borne de terre | ||||
58 | 6696350 | 1.05 | 1.26 | |
Vis autotaraudeuse D3 | ||||
59 | 696352 | 1.13 | 1.35 | |
Blocage de l'interrupteur | ||||
60 | 6696344 | 1.05 | 1.26 | |
Ressort de manette des gaz | ||||
61 | 6696345 | 1.05 | 1.26 | |
Terminal à Onglet | ||||
62 | 6696355 | 1.05 | 1.26 | |
Vis 3x10 (ancien 994-31030-101) | ||||
63 | 6684913 | 2.15 | 2.58 | |
Bouton Stop (ancien 258-11650-20) | ||||
64 | 6688366 | 1.15 | 1.38 | |
Bouton d'arrêt Marque (ancien 925-33160-20) | ||||
65 | 6694588 | 1.15 | 1.38 | |
Ressort (a) | ||||
66 | 6696348 | 1.05 | 1.26 | |
LEVIER DE VERROUILLAGE | ||||
67 | 6696346 | 1.05 | 1.26 | |
Ressort (b) | ||||
68 | 6696349 | 1.05 | 1.26 | |
Régulateur | ||||
69 | 6696343 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
70A | 6698784 | |||
LEVIER D.DECLENCHEM | ||||
71 | 6696347 | 1.05 | 1.26 | |
Câble d'accélérateur | ||||
72A | 6698828 | 3.15 | 3.78 | |
Tube de protection 150l (ancien 164-07015-01) | ||||
73 | 6687524 | 1.15 | 1.38 | |
Interrupteur d'arrêt Complet (a) | ||||
74 | 6696354 | 14.19 | 17.02 | |
Poignée (b) | ||||
75A | 6698869 | 4.65 | 5.58 | |
Vis Ø 4*16 Noir | ||||
76 | 305812 | 1.04 | 1.24 | |
Cadre Ch66eb3/ch78ec3 | ||||
77 | 6696363 | 8.85 | 10.62 | |
Amortisseur B (vieux 266-32750-20/6688412) | ||||
78 | 6688412 | 1.15 | 1.38 | |
Bague | ||||
79 | 6689680 | 1.15 | 1.38 | |
Boulon à tête cylindrique hexagonale M5x30 S (anci | ||||
80 | 6684786 | 2.15 | 2.58 | |
Collier amortisseur B (ancien 276-32710-20) | ||||
81 | 6688485 | 1.15 | 1.38 | |
Support de poignée comp. (old 040-33160-80) | ||||
82 | 6686111 | 2.31 | 2.78 | |
Plus disponible, pas de remplacement | ||||
83 | 6696359 | |||
Plus disponible, pas de remplacement | ||||
84 | 6698870 | |||
Vis autotaraudeuse D4.5x16 (ancien 990-72045-164/7 | ||||
91 | 6684636 | 2.15 | 2.58 | |
Protecteur de silencieux (ancienne 738-06600-20) | ||||
92 | 6692799 | 5.61 | 6.74 | |
Boulon de Tête de Douille Hex. M5x50 (ancien 990-5 | ||||
93 | 6685114 | 1.15 | 1.38 | |
Bague | ||||
94 | 6684661 | 2.15 | 2.58 | |
Ensemble de silencieux (ancien 704-06504-91) | ||||
95 | 6692477 | 13.04 | 15.64 | |
Bouclier thermique | ||||
96 | 6687252 | 2.31 | 2.78 | |
Joint de silencieux (ancien 737-06500-20) | ||||
97 | 6692744 | 1.15 | 1.38 | |
Joint de tuyau d'admission (ancien 403-06500-20) | ||||
98 | 6689891 | 1.15 | 1.38 | |
Set d'isolant de carburateur, de rechange | ||||
99 | 6689966 | 6.93 | 8.31 | |
Boulon à trou hexagonal 5x25ws (ancien 994-64050-2 | ||||
100 | 6695515 | 1.15 | 1.38 | |
Joint de carburateur (ancien 402-06500-20) | ||||
101 | 6689839 | 1.15 | 1.38 | |
Set de carburateur | ||||
102 | 6690487 | 72.30 | 86.76 | |
Pas d'informations disponibles, non commandable | ||||
103 | 6684628 | |||
Pas d'informations disponibles, non commandable | ||||
104 | 6695670 | |||
Corps de nettoyeur complet (ancien 423-06500-81/66 | ||||
105 | 6690119 | 4.45 | 5.34 | |
Collier 7.5 (ancien 470-06500-20) | ||||
106 | 6690804 | 1.15 | 1.38 | |
Soupape d'étranglement (ancienne 528-0650t-20) | ||||
107 | 6691274 | 2.31 | 2.78 | |
Pas d'informations disponibles, non commandable | ||||
108 | 6684658 | |||
Boîte de contrôle du soufflage (ancien 476-01700-2 | ||||
109 | 6690843 | 1.15 | 1.38 | |
Rondelle (ancienne 992-10050-012) | ||||
110 | 6684662 | 2.15 | 2.58 | |
Vis M5x60 (ancien 990-11050-602) | ||||
111 | 6684660 | 2.15 | 2.58 | |
Éponge de nettoyage | ||||
112 | 6690364 | 1.15 | 1.38 | |
Couvercle du filtre à air | ||||
113 | 6690417 | 5.94 | 7.12 | |
Vis spéciale (ancien 380-0637c-20) | ||||
114 | 6689737 | 1.15 | 1.38 | |
Pivot (ancien 539-25120-20) | ||||
115 | 6684697 | 6.44 | 7.72 | |
Bague d'arrêt (ancien 489-25100-20) | ||||
116 | 6684696 | 2.15 | 2.58 | |
O-RING (ancien 550-25100-20) | ||||
117 | 6684695 | 4.29 | 5.14 | |
Gicleur principal #34.5 (ancien 599-200bw-34) | ||||
118 | 6691888 | 6.28 | 7.53 | |
Écran d'entrée (ancien 578-25007-20) | ||||
119 | 6684700 | 4.29 | 5.14 | |
Corps de pompe Comp. (ancien 575-25147-80/6691428) | ||||
120 | 6691430 | 36.15 | 43.38 | |
Couvercle de diaphragme (ancien 476-25004-20) | ||||
121 | 6685222 | 4.45 | 5.34 | |
Vis de réglage (ancienne 548-25101-20) | ||||
122 | 6691312 | 1.15 | 1.38 | |
Vis de réglage de l'accélérateur (ancien 548-25140 | ||||
123 | 6684698 | 4.29 | 5.14 | |
Soupape de commande d'acceleration comp. (ancien 4 | ||||
124 | 6684883 | 18.75 | 22.50 | |
Joint de pompe (ancien 577-25100-20) | ||||
125 | 6691457 | 7.10 | 8.52 | |
Diaphragme de pompe (ancien 576-25100-20 & 6696325 | ||||
126 | 6684693 | 8.58 | 10.29 | |
Plus disponible, pas de remplacement | ||||
127 | 6685220 | |||
Membrane de dosage Comp. (ancien 474-25001-80/6690 | ||||
128 | 6690827 | 11.71 | 14.06 | |
Pompe d'amorçage Comp. (ancien 442-25143-80) | ||||
129 | 6685139 | 5.94 | 7.12 | |
Tuyau de carburant 2.5x4x80 (ancien 700-02504-08) | ||||
130 | 6692347 | 1.15 | 1.38 | |
Collier 5.8 (ancien 659-00801-20) | ||||
131 | 6692244 | 1.15 | 1.38 | |
Boulon à trou hexagonal 5x18ps (ancien 994-63050-1 | ||||
132 | 6695505 | 1.15 | 1.38 | |
Resevoir | ||||
133 | 6696360 | 4.05 | 4.86 | |
Ensemble d'évent d'air (ancien 564-06611-90) | ||||
134 | 6691389 | 10.23 | 12.27 | |
Ensemble valve d'aération (ancien 646-06612-90) | ||||
136 | 6692171 | 4.95 | 5.94 | |
Tuyau de carburant 2.5x4x70 (ancien 700-02504-07) | ||||
137 | 6692346 | 1.15 | 1.38 | |
Grommet de retour (ancien 6684627) | ||||
138A | 6697846 | 1.04 | 1.24 | |
Clip.6.3 Dia. (ancien 680-00731-20) | ||||
139 | 6684619 | 2.15 | 2.58 | |
Filtre à pompe | ||||
140A | 6698874 | 12.00 | 14.40 | |
Tuyau de Carburant | ||||
141A | 6698715 | 9.75 | 11.70 | |
Pas d'informations disponibles, non commandable | ||||
142 | 6684625 | |||
Capuchon de réservoir D Ass'y, noir (ancien 595-06 | ||||
143 | 6691763 | 7.59 | 9.10 | |
Plaque de garde | ||||
144A | 6698894 | 1.20 | 1.44 | |
Écrou en U M6 | ||||
145A | 6698946 | 2.10 | 2.52 | |
Plaque d'appui (ancien 462-33290-20) | ||||
148 | 6690762 | 3.30 | 3.96 | |
Ecrou 6 Ups-p (ancien 991-87060-001 & 6698766) | ||||
149 | 6695175 | 1.15 | 1.38 | |
Bague | ||||
150 | 6684639 | 2.15 | 2.58 | |
Boîtier d'engrenage Comp. (ancien 300-33290-81 & 6 | ||||
151 | 6688684 | 15.13 | 18.15 | |
COMP. DE GRAISSEUR (VIEUX 300-32250-80) | ||||
152 | 6688643 | 1.15 | 1.38 | |
Écrou à ressort 6 (ancien 994-40060-011) | ||||
153 | 6695475 | 1.15 | 1.38 | |
Boulon à trou hexagonal 6x18/s (ancien 994-61060-1 | ||||
154 | 6695495 | 1.15 | 1.38 | |
Guide de coupe 845l M6 (ancien 122-33191-20) | ||||
155 | 6687144 | 26.16 | 31.40 | |
Plaque de guidage (ancienne 075-33160-20) | ||||
156 | 6686612 | 1.15 | 1.38 | |
Tige de came (ancienne 101-33190-20) | ||||
157 | 6686811 | 5.78 | 6.93 | |
Engrenage 2 Comp. | ||||
159A | 6698773 | 18.84 | 22.60 | |
Joint de carter d'engrenage (ancien 303-33160-20) | ||||
160 | 6688909 | 1.15 | 1.38 | |
Couvercle de boîtier d'engrenage (ancien 630-33165 | ||||
161 | 6692101 | 6.28 | 7.53 | |
Roulement à billes 608 Zz C3 | ||||
162 | 6695547 | 3.30 | 3.96 | |
Plus disponible, pas de remplacement | ||||
163 | 6688846 | |||
Boulon à trou hexagonal M4x12/s (ancien 994-61040- | ||||
164 | 6684595 | 2.15 | 2.58 | |
Pas d'informations disponibles, non commandable | ||||
165A | 6698764 | |||
Joint en Caoutchouc | ||||
166 | 6686654 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
167A | 6698886 | |||
BOULON (A) | ||||
168A | 6698887 | 3.15 | 3.78 | |
Boulon à trou hexagonal 4x10s (ancien 994-61040-10 | ||||
169 | 6695484 | 1.15 | 1.38 | |
Plus disponible, pas de remplacement | ||||
170 | 6698931 | |||
Assemblage de la lame | ||||
171 | 6698774 | 76.04 | 91.24 | |
Pas d'informations disponibles, non commandable | ||||
501 | 6684813 | |||
Clé mixte 10x19 ,plus (ancien 036-29331-50) | ||||
502 | 6685997 | 4.45 | 5.34 | |
Plaque de protection (ancien 135-33191-20) | ||||
601 | 6687275 | 2.31 | 2.78 | |
Ecrou de bride | ||||
602 | 6695170 | 1.15 | 1.38 | |
Plaque de protection (ancien 136-33190-20) | ||||
603 | 6687289 | 12.88 | 15.45 | |
Couteau supérieur (a) | ||||
604 | 6687092 | 60.35 | 72.42 | |
Boulon à tête fraisée à trou hexagonal 6x25 (ancie | ||||
605 | 6695075 | 1.15 | 1.38 | |
Plus disponible, pas de remplacement | ||||
606 | 6687187 | |||
Boulon | ||||
607 | 6687158 | 1.15 | 1.38 |
