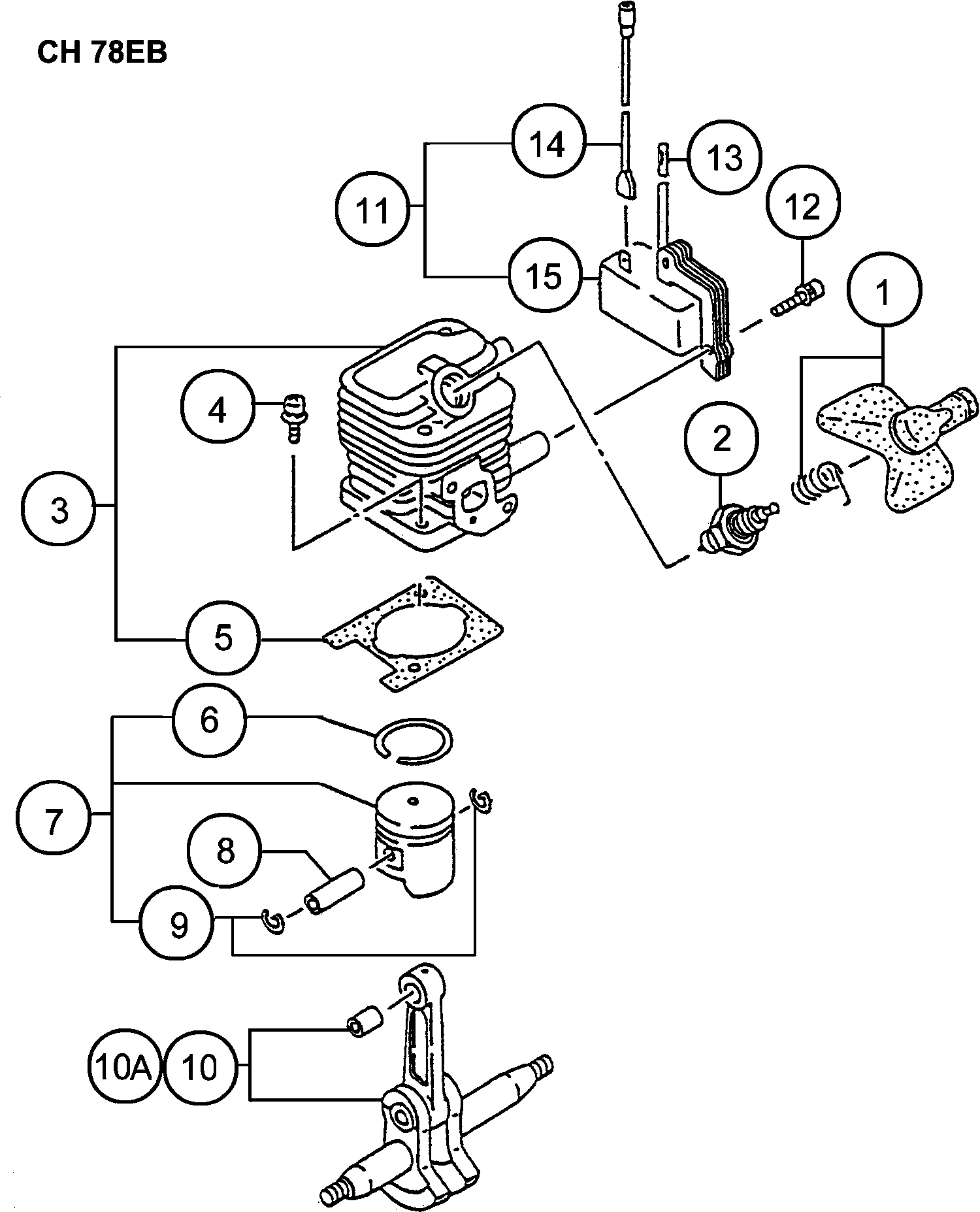

Dessins des Hikoki CH78EB
Liste de pièces de rechange des Hikoki CH78EB
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Assembly cap de bougie d'allumage (ancien 157-0650 | ||||
1 | 6687476 | 4.45 | 5.34 | |
Bougie d'allumage Rcj8y | ||||
2 | 6699328 | 3.30 | 3.96 | |
Cylindre Set (ancien 001-0650a-90) | ||||
3 | 6685480 | 40.24 | 48.28 | |
Pas d'informations disponibles, non commandable | ||||
4 | 6684668 | |||
Joint de cylindre (ancien 017-06500-20) | ||||
5 | 6685744 | 1.15 | 1.38 | |
Bague de piston (ancien 041-00601-21/ 6686117) | ||||
6 | 6686118 | 4.45 | 5.34 | |
Ensemble piston (ancien 030-00070-90) | ||||
7 | 6685869 | 15.58 | 18.69 | |
Axe de piston | ||||
8 | 6696944 | 3.33 | 3.99 | |
Circlip de goupille de piston (ancien 039-00601-20 | ||||
9 | 6684590 | 2.15 | 2.58 | |
Vilebrequin Comp. (ancien 046-06500-80) | ||||
10 | 6686205 | 72.30 | 86.76 | |
Arbre à manivelle comp. (ancien 046-06621-80) | ||||
10A | 6686208 | 40.24 | 48.28 | |
Bobine d'allumage Ass'y (ancien 153-21550-91 & 668 | ||||
11 | 6697150 | 26.78 | 32.13 | |
Vis Ø4x18 Till H124040 | ||||
12 | 6684599 | 2.15 | 2.58 | |
Tube isolant 50l (ancien 250-06500-20) | ||||
13 | 6684597 | 2.15 | 2.58 | |
Plus disponible, pas de remplacement | ||||
14 | 6687918 | |||
Bobine | ||||
15 | 6695939 | 38.26 | 45.92 | |
Carter de vilebrequin Assy (ancien 072-06500-90) | ||||
21 | 6686574 | 42.20 | 50.64 | |
Joint de carter (ancien 090-06500-20) | ||||
22 | 6686720 | 1.15 | 1.38 | |
Joint d'huile | ||||
23 | 6684607 | 4.29 | 5.14 | |
Roulement à billes 6001 C3 | ||||
24 | 6684608 | 3.80 | 4.56 | |
Cale d'arbre d'engrenage 0.20 (ancien 330-00200-23 | ||||
25 | 6684604 | 2.15 | 2.58 | |
Cale d'arbre d'engrenage 0.30 (ancien 330-00200-24 | ||||
25 | 6684605 | 2.15 | 2.58 | |
Caoutchouc anti-vibrateur | ||||
26 | 6691822 | 1.15 | 1.38 | |
Boulon à tête cylindrique hexagonale M5x30 S (anci | ||||
27 | 6684786 | 2.15 | 2.58 | |
Roto Magneto Comp. | ||||
28 | 6687389 | 26.16 | 31.40 | |
Pas d'informations disponibles, non commandable | ||||
28A | 6687396 | |||
Rondelle M8 (ancien 992-01080-011) | ||||
29 | 6684611 | 2.15 | 2.58 | |
Bague | ||||
30 | 6684971 | 1.04 | 1.24 | |
Écrou M8 (ancien 991-01080-011/327325/332299/72660 | ||||
31 | 6684612 | 2.15 | 2.58 | |
Boulon d'étude 6x22 (ancien 100-02100-20) | ||||
32 | 6686771 | 1.15 | 1.38 | |
Joint de tuyau d'admission (ancien 403-06500-20) | ||||
41 | 6689891 | 1.15 | 1.38 | |
Set d'isolant de carburateur, de rechange | ||||
42 | 6689966 | 6.93 | 8.31 | |
Boulon à trou hexagonal 5x25ws (ancien 994-64050-2 | ||||
43 | 6695515 | 1.15 | 1.38 | |
Joint de carburateur (ancien 402-06500-20) | ||||
44 | 6689839 | 1.15 | 1.38 | |
Joint torique P-15 | ||||
45 | 6698966 | 1.04 | 1.24 | |
Corps de nettoyeur complet (ancien 423-06500-81/66 | ||||
46 | 6690119 | 4.45 | 5.34 | |
Collier 7.5 (ancien 470-06500-20) | ||||
47 | 6690804 | 1.15 | 1.38 | |
Soupape d'étranglement (ancienne 528-0650t-20) | ||||
48 | 6691274 | 2.31 | 2.78 | |
Pas d'informations disponibles, non commandable | ||||
49 | 6684658 | |||
Boîte de contrôle du soufflage (ancien 476-01700-2 | ||||
50 | 6690843 | 1.15 | 1.38 | |
Rondelle (ancienne 992-10050-012) | ||||
51 | 6684662 | 2.15 | 2.58 | |
Vis M5x60 (ancien 990-11050-602) | ||||
52 | 6684660 | 2.15 | 2.58 | |
Éponge de nettoyage | ||||
53 | 6690364 | 1.15 | 1.38 | |
Couvercle du filtre à air | ||||
54 | 6690415 | 5.28 | 6.33 | |
Vis spéciale (ancien 380-0637c-20) | ||||
55 | 6689737 | 1.15 | 1.38 | |
Set de carburateur | ||||
56 | 6690487 | 72.30 | 86.76 | |
Tuyau de protection (ancien 223-06500-90) | ||||
57 | 6685247 | 2.31 | 2.78 | |
Clip D6 (ancien 680-00070-20) | ||||
58 | 6685198 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
59 | 6684620 | |||
Réservoir blanc (ancien 591-0664a-20) | ||||
60 | 6691582 | 9.74 | 11.68 | |
Collier 5.8 (ancien 659-00801-20) | ||||
61 | 6692244 | 1.15 | 1.38 | |
Boulon à trou hexagonal 5x18ps (ancien 994-63050-1 | ||||
62 | 6695505 | 1.15 | 1.38 | |
Capuchon pivotant (ancien 560-07120-21/6684628) | ||||
63 | 6691337 | 1.15 | 1.38 | |
Capuchon de réservoir D Ass'y, noir (ancien 595-06 | ||||
64 | 6691763 | 7.59 | 9.10 | |
Pompe d'amorçage Comp. (ancien 442-25143-80) | ||||
65 | 6685139 | 5.94 | 7.12 | |
Tuyau de carburant 2.5x4x80 (ancien 700-02504-08) | ||||
66 | 6692347 | 1.15 | 1.38 | |
Tuyau de carburant 2.5x4x70 (ancien 700-02504-07) | ||||
67 | 6692346 | 1.15 | 1.38 | |
Grommet de retour (ancien 6684627) | ||||
68 | 6697846 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
69 | 6684625 | |||
Protecteur de silencieux (ancien 738-06500-20) | ||||
81 | 6692795 | 6.93 | 8.31 | |
Joint de silencieux (ancien 737-06500-20) | ||||
82 | 6692744 | 1.15 | 1.38 | |
Bouclier thermique | ||||
83 | 6687252 | 2.31 | 2.78 | |
Ensemble de silencieux (ancien 704-06504-91) | ||||
84 | 6692477 | 13.04 | 15.64 | |
Bague | ||||
85 | 6684661 | 2.15 | 2.58 | |
Boulon de Tête de Douille Hex. M5x50 (ancien 990-5 | ||||
86 | 6685114 | 1.15 | 1.38 | |
Enveloppe De Ventilateur | ||||
87 | 6687010 | 16.79 | 20.14 | |
Ressort de rappel (ancien 780-06097-20/6697591) | ||||
88 | 6684675 | 11.55 | 13.86 | |
Bobine de corde de démarrage (ancienne 774-06097-2 | ||||
89 | 6693066 | 3.30 | 3.96 | |
Vis de réglage (ancienne 839-02010-20/6693638) | ||||
90 | 6693633 | 1.15 | 1.38 | |
Assemblage de poulie de démarrage (ancien 798-0650 | ||||
91 | 6693405 | 4.45 | 5.34 | |
Passe-câble (ancien 203-0604a-20) | ||||
92 | 6688050 | 1.15 | 1.38 | |
Corde de démarrage (ancien 783-06097-20/6693174) | ||||
93 | 6693168 | 2.31 | 2.78 | |
Poignée de démarrage | ||||
94 | 6693237 | 1.15 | 1.38 | |
Boulon à trou hexagonal 4x15/ps (ancien 994-63040- | ||||
95 | 6684682 | 2.15 | 2.58 | |
EMBRAYAGE À GLISSEMENT COMPLET | ||||
96 | 6688494 | 9.74 | 11.68 | |
Vis autotaraudeuse D4.5x16 (ancien 990-72045-164/7 | ||||
97 | 6684636 | 2.15 | 2.58 | |
Boulon 4x12ps (ancien 994-25040-128) | ||||
98 | 6695441 | 1.15 | 1.38 | |
Ressort de griffe de démarrage (ancien 790-06097-2 | ||||
99 | 6684684 | 4.29 | 5.14 | |
Cliquet de démarrage (ancien 788-06500-20) | ||||
100 | 6693319 | 2.31 | 2.78 | |
Vis de réglage de l'accélérateur (ancien 548-25140 | ||||
111 | 6684698 | 4.29 | 5.14 | |
Pivot (ancien 539-25120-20) | ||||
112 | 6684697 | 6.44 | 7.72 | |
Bague d'arrêt (ancien 489-25100-20) | ||||
113 | 6684696 | 2.15 | 2.58 | |
O-RING (ancien 550-25100-20) | ||||
114 | 6684695 | 4.29 | 5.14 | |
Gicleur principal #34.5 (ancien 599-200bw-34) | ||||
115 | 6691888 | 6.28 | 7.53 | |
Joint de pompe (ancien 577-25100-20) | ||||
116 | 6691457 | 7.10 | 8.52 | |
Diaphragme de pompe (ancien 576-25100-20 & 6696325 | ||||
117 | 6684693 | 8.58 | 10.29 | |
Écran d'entrée (ancien 578-25007-20) | ||||
118 | 6684700 | 4.29 | 5.14 | |
Corps de pompe Comp. (ancien 575-25147-80/6691428) | ||||
119 | 6691430 | 36.15 | 43.38 | |
Plus disponible, pas de remplacement | ||||
120 | 6685220 | |||
Membrane de dosage Comp. (ancien 474-25001-80/6690 | ||||
121 | 6690827 | 11.71 | 14.06 | |
Couvercle de diaphragme (ancien 476-25004-20) | ||||
122 | 6685222 | 4.45 | 5.34 | |
Vis de réglage (ancienne 548-25101-20) | ||||
123 | 6691312 | 1.15 | 1.38 | |
Bague d'arrêt C-15, externe (ancien 993-50015-002) | ||||
132 | 6695285 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
133 | 6697745 | |||
Pas d'informations disponibles, non commandable | ||||
134 | 6697745 | |||
Tambour d'embrayage Comp. (ancien 288-33180-80) | ||||
135 | 6688570 | 17.70 | 21.24 | |
Plaque de guidage (ancienne 075-33160-20) | ||||
136 | 6686612 | 1.15 | 1.38 | |
Tige de came (ancienne 101-33190-20) | ||||
137 | 6686811 | 5.78 | 6.93 | |
Engrenage 2 Comp. (ancien 292-33194-80) | ||||
138 | 6688625 | 30.25 | 36.30 | |
Joint de carter d'engrenage (ancien 303-33160-20) | ||||
139 | 6688909 | 1.15 | 1.38 | |
Couvercle de boîtier d'engrenage (ancien 630-33165 | ||||
140 | 6692101 | 6.28 | 7.53 | |
Guide de coupe 858l M6 (ancien 122-33158-20) | ||||
141 | 6687133 | 28.14 | 33.76 | |
Boulon à tête fraisée à trou hexagonal 6x25 (ancie | ||||
143 | 6695075 | 1.15 | 1.38 | |
Joint en Caoutchouc | ||||
144 | 6686654 | 1.15 | 1.38 | |
Cutter B (820l) (ancien 121-3315a-20/ 6687109) | ||||
145 | 6687108 | 50.21 | 60.26 | |
Couteau supérieur (a) | ||||
146 | 6687082 | 48.25 | 57.90 | |
Boulon à trou hexagonal 4x15/s (ancien 994-61040-1 | ||||
147 | 6695487 | 2.31 | 2.78 | |
COMP. DE GRAISSEUR (VIEUX 300-32250-80) | ||||
148 | 6688643 | 1.15 | 1.38 | |
Boulon à trou hexagonal 6x18/s (ancien 994-61060-1 | ||||
149 | 6695495 | 1.15 | 1.38 | |
Plus disponible, pas de remplacement | ||||
150 | 6687187 | |||
Boulon | ||||
151 | 6687158 | 1.15 | 1.38 | |
Porte-lame (ancien 128-33202-20) | ||||
152 | 6687180 | 2.31 | 2.78 | |
Plaque d'appui depuis C192401 | ||||
153 | 6690764 | 4.45 | 5.34 | |
Ecrou 6 Ups-p (ancien 991-87060-001 & 6698766) | ||||
154 | 6695175 | 1.15 | 1.38 | |
Bague | ||||
155 | 6684639 | 2.15 | 2.58 | |
Bague | ||||
156 | 6684822 | 2.15 | 2.58 | |
Boulon | ||||
157 | 6687168 | 1.15 | 1.38 | |
Poignée B Comp. (ancien 051-33185-81 et 6686310) | ||||
158 | 6686311 | 14.21 | 17.06 | |
Poignée de prise (ancien 165-37590-20) | ||||
159 | 6684708 | 6.44 | 7.72 | |
Ecrou de bride | ||||
160 | 6695170 | 1.15 | 1.38 | |
Bague | ||||
161 | 6684639 | 2.15 | 2.58 | |
Bague | ||||
162 | 6695219 | 1.15 | 1.38 | |
Couverture de cutter, L-773 (ancien 138-33215-20) | ||||
163 | 6687308 | 5.11 | 6.14 | |
Pas d'informations disponibles, non commandable | ||||
164 | 6688847 | |||
Écrou à ressort 6 (ancien 994-40060-011) | ||||
165 | 6695475 | 1.15 | 1.38 | |
Plus disponible, pas de remplacement | ||||
167 | 6695485 | |||
Boulon à trou hexagonal 4x15/s (ancien 994-61040-1 | ||||
171 | 6695487 | 2.31 | 2.78 | |
Boulon à trou hexagonal M5x35 (ancien 990-51050-35 | ||||
172 | 6684934 | 2.15 | 2.58 | |
Porte-poignée (ancien 057-33234-20) | ||||
173 | 6686362 | 5.11 | 6.14 | |
Amortisseur en caoutchouc (ancien 060-33250-20) | ||||
174 | 6686398 | 2.31 | 2.78 | |
Support de Poignée Comp. (ancien 058-33181-80) | ||||
175 | 6686369 | 5.11 | 6.14 | |
Terminal Terre (ancien 176-33410-20) Nouveau | ||||
176 | 6687800 | 2.10 | 2.52 | |
Boulon à trou hexagonal 5x12/s (ancien 994-61050-1 | ||||
177 | 6695489 | 2.10 | 2.52 | |
Poignée A (ancienne 053-33231-22) Nouveau | ||||
181 | 6686338 | 4.95 | 5.94 | |
Poignée de prise B (ancienne 054-33231-23) Nouveau | ||||
182 | 6686349 | 4.95 | 5.94 | |
Levier d'accélérateur (ancien 230-33210-20) | ||||
183 | 6688229 | 2.31 | 2.78 | |
Levier de sécurité (ancien 231-33210-20) | ||||
184 | 6688238 | 2.31 | 2.78 | |
Ressort du levier d'accélérateur (ancien 061-32600 | ||||
185 | 6686414 | 2.31 | 2.78 | |
Bouton d'arrêt comp. (ancien 170-33180-80) | ||||
186 | 6687765 | 8.41 | 10.10 | |
Bouton d'arrêt Mark (ancien 925-32530-20) | ||||
187 | 6694585 | 1.15 | 1.38 | |
Terminal de terre (ancien 319-37900-20) | ||||
188 | 6689128 | 2.31 | 2.78 | |
Capuchon (ancien 765-32120-20) | ||||
189 | 6693002 | 1.15 | 1.38 | |
Vis 4x30/ws (ancienne 994-16040-301) | ||||
190 | 6695412 | 1.15 | 1.38 | |
Vis 4x25/ws (ancienne 994-16040-251) | ||||
191 | 6695411 | 1.15 | 1.38 | |
Poignée Assy (ancien 055-3318b-91) | ||||
192 | 6686357 | 28.14 | 33.76 | |
Poignée A Comp. (ancien 050-33180-80) | ||||
193 | 6686274 | 26.16 | 31.40 | |
Câble d'accélérateur 270+49 (ancien 885-03014-80 & | ||||
194 | 6693877 | 4.45 | 5.34 | |
Tube de protection 7x165l (ancien 164-07016-50) | ||||
195 | 6687525 | 1.05 | 1.26 | |
Vis 4x16ws (ancien 994-16040-161) | ||||
196 | 6695404 | 1.15 | 1.38 | |
Écrou de blocage en nylon 4 (ancien 991-78040-010) | ||||
197 | 6695163 | 1.15 | 1.38 | |
Vis 3x10 (ancien 994-31030-101) | ||||
198 | 6684913 | 2.15 | 2.58 | |
Bouton Stop (ancien 258-11650-20) | ||||
199 | 6688366 | 1.15 | 1.38 | |
Bride de cordon (ancien 198-33130-20) | ||||
200 | 6688015 | 1.15 | 1.38 | |
Clé Mixte 10/19mm (ancienne 013-29323-50/668566) | ||||
501 | 6685257 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
502 | 6684813 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 6694369 |
