Dessins techniques et pièces de rechange Hikoki CH66EB3

Recherche de pièces de rechange:
Hikoki
Type exact:
CH66EB3

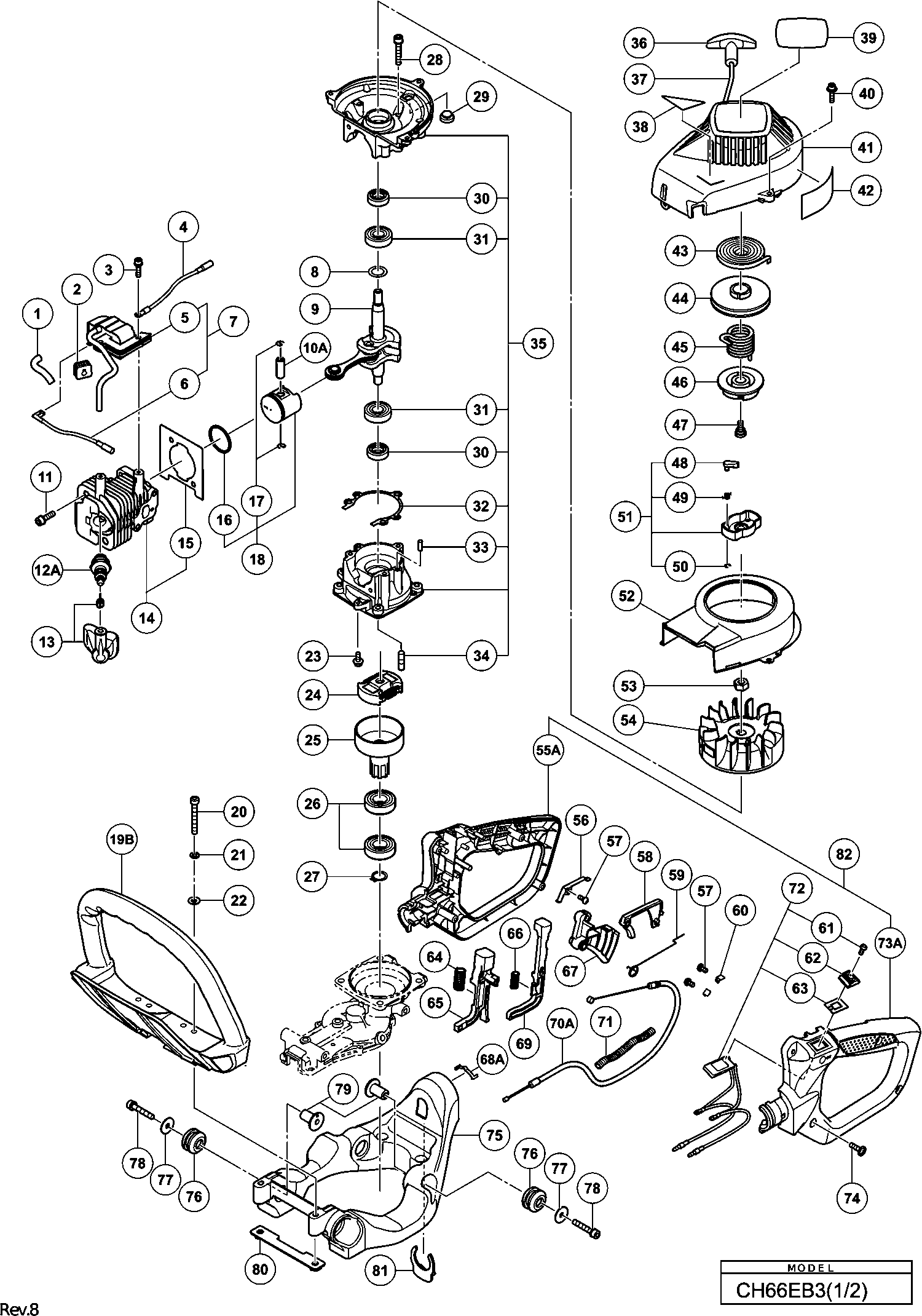

Dessins des HIKOKI CH66EB3

Liste de pièces de rechange des HIKOKI CH66EB3

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Insulator Tube 50l (old 250-06500-20)
16684597Insulator Tube 50l (old 250-06500-20)€ 2.08
Grommet (old 203-0604a-20)
26688050Grommet (old 203-0604a-20)€ 1.11
Vis Ø4x18 Till H124040
36684599Vis Ø4x18 Till H124040€ 2.08
Cord (old 274-51705-80)
46688477Cord (old 274-51705-80)€ 2.24
Cord 200m (old 178-51705-80)
66687918Cord 200m (old 178-51705-80)€ 3.19
Gear Shaft Shim 0.20 (oud 330-00200-23)
86684604Gear Shaft Shim 0.20 (oud 330-00200-23)€ 2.08
Gear Shaft Shim 0.30 (oud 330-00200-24)
86684605Gear Shaft Shim 0.30 (oud 330-00200-24)€ 2.08
Crank Shaft Comp (old 046-06621-80)
96686208Crank Shaft Comp (old 046-06621-80)€ 38.95
Zuiger Pin
10A6696944Zuiger Pin€ 3.22
Vis Ø5x18
116684586Vis Ø5x18€ 2.08
Bougie (oud 6685086)
12A6699319Bougie (oud 6685086)€ 8.63
Spark Plug Cap Ass'y (old 157-06500-91)
136687476Spark Plug Cap Ass'y (old 157-06500-91)€ 4.31
Cylinder Set (old 001-0650a-90)
146685480Cylinder Set (old 001-0650a-90)€ 38.95
Cylinder Gasket (old 017-06500-20)
156685744Cylinder Gasket (old 017-06500-20)€ 1.11
Piston Ring (old 041-00601-21/ 6686117)
166686118Piston Ring (old 041-00601-21/ 6686117)€ 4.31
Piston Pin Circlip (old 039-00601-20)
176684590Piston Pin Circlip (old 039-00601-20)€ 2.08
Piston Set (old 030-0650a-90)
186685892Piston Set (old 030-0650a-90)€ 19.47
Handle (old 6698748)
19B6699079Handle (old 6698748)€ 5.08
Hex. Hole Bolt 5x40 (old 990-51050-403)
206695054Hex. Hole Bolt 5x40 (old 990-51050-403)€ 1.11
Rondelle D.5
216684834Rondelle D.5€ 2.08
Rondelle Ø 5
226684918Rondelle Ø 5€ 2.08
Bolt 4x12ps (old 994-25040-128)
236695441Bolt 4x12ps (old 994-25040-128)€ 1.11
Slipkoppeling Kompleet
246688494Slipkoppeling Kompleet€ 9.43
Clutch Drum Comp. (old 288-33180-80)
256688570Clutch Drum Comp. (old 288-33180-80)€ 17.13
Roulement à billes
266695538Roulement à billes€ 6.39
Stop Ring C-15, Outer (old 993-50015-002)
276695285Stop Ring C-15, Outer (old 993-50015-002)€ 1.11
Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
286684786Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)€ 2.08
Caoutchouc anti-vibrateur
296691822Caoutchouc anti-vibrateur€ 1.11
Olie Keerring
306684607Olie Keerring€ 4.15
Roulement à billes
316684608Roulement à billes€ 3.68
Crank Case Gasket (old 090-06500-20)
326686720Crank Case Gasket (old 090-06500-20)€ 1.11
Knock Pin 4x12 (old 999-05041-203)
336695521Knock Pin 4x12 (old 999-05041-203)€ 1.11
Stud Bolt 6x22 (old 100-02100-20)
346686771Stud Bolt 6x22 (old 100-02100-20)€ 1.11
Crank Case Ass'y (old 072-06500-90)
356686574Crank Case Ass'y (old 072-06500-90)€ 40.85
Starthendel
366693237Starthendel€ 1.11
Rope 3x890 (old 783-0651h-20)
376693172Rope 3x890 (old 783-0651h-20)€ 2.24
Hex.hole Bolt 4x18ps (old 994-63040-184)
406695502Hex.hole Bolt 4x18ps (old 994-63040-184)€ 1.11
Enveloppe De Ventilateur
416687014Enveloppe De Ventilateur€ 16.40
Recoil Spring (old 780-06097-20/6697591)
436684675Recoil Spring (old 780-06097-20/6697591)€ 11.18
Starter Rope Reel (old 774-0651h-20)
446693072Starter Rope Reel (old 774-0651h-20)€ 4.95
Dumper Spring (old 758-0651h-20)
456684677Dumper Spring (old 758-0651h-20)€ 8.30
Cam Plate (old 759-0651h-20)
466684678Cam Plate (old 759-0651h-20)€ 6.23
SET SCREW (OLD 839-03045-20)
476684679SET SCREW (OLD 839-03045-20)€ 2.08
Starter Pawl (old 788-0651h-20)
486684685Starter Pawl (old 788-0651h-20)€ 4.15
Starter Pawl Spring (old 790-06097-20)
496684684Starter Pawl Spring (old 790-06097-20)€ 4.15
Stop Ring E-5 (old 993-55050-000)
506684683Stop Ring E-5 (old 993-55050-000)€ 2.08
D4e Retaining Ring (old 993-55040-001)
506685101D4e Retaining Ring (old 993-55040-001)€ 1.11
Starter Pulley Ass'y (old 798-0651h-90)
516684681Starter Pulley Ass'y (old 798-0651h-90)€ 12.78
Deflector (old 132-06602-20)
526687209Deflector (old 132-06602-20)€ 6.23
Nut M8 (old 991-01080-011/327325/332299/726603)
536684612Nut M8 (old 991-01080-011/327325/332299/726603)€ 2.08
Épuisé
546687396Épuisé
Épuisé
55A6698868Épuisé
Earth Terminal
566696350Earth Terminal€ 1.02
Tapschroef D3
57696352Tapschroef D3€ 1.09
Schakelaar Blokkering
586696344Schakelaar Blokkering€ 1.02
Throttle Lever Spring
596696345Throttle Lever Spring€ 1.02
Tab Terminal
606696355Tab Terminal€ 1.02
Screw 3x10 (old 994-31030-101)
616684913Screw 3x10 (old 994-31030-101)€ 2.08
Button Stop (old 258-11650-20)
626688366Button Stop (old 258-11650-20)€ 1.11
Stop Button Mark (old 925-33160-20)
636694588Stop Button Mark (old 925-33160-20)€ 1.11
Spring (a)
646696348Spring (a)€ 1.02
Lock Lever
656696346Lock Lever€ 1.02
Spring (b)
666696349Spring (b)€ 1.02
Regulateur
676696343Regulateur€ 1.02
Épuisé
68A6698784Épuisé
Release Lever
696696347Release Lever€ 1.02
Gaskabel
70A6698828Gaskabel€ 3.05
Protection Tube 150l (old 164-07015-01)
716687524Protection Tube 150l (old 164-07015-01)€ 1.11
Stop Switch Ass'y (a)
726696354Stop Switch Ass'y (a)€ 13.73
Handle (b)
73A6698869Handle (b)€ 4.50
Vis Ø 4*16 Noir
74305812Vis Ø 4*16 Noir€ 1.00
Frame Ch66eb3/ch78ec3
756696363Frame Ch66eb3/ch78ec3€ 8.57
Damper B (old 266-32750-20/6688412)
766688412Damper B (old 266-32750-20/6688412)€ 1.11
Bague
776689680Bague€ 1.11
Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
786684786Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)€ 2.08
Damper Collar B (old 276-32710-20)
796688485Damper Collar B (old 276-32710-20)€ 1.11
Handle Support Comp. (old 040-33160-80)
806686111Handle Support Comp. (old 040-33160-80)€ 2.24
Clip
816696359Clip€ 1.02
Épuisé
826698870Épuisé
Tapping Screw D4.5x16 (old 990-72045-164/790451)
916684636Tapping Screw D4.5x16 (old 990-72045-164/790451)€ 2.08
Muffler Protector (old 738-06500-20)
926692795Muffler Protector (old 738-06500-20)€ 6.70
Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)
936685114Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)€ 1.11
Bague
946684661Bague€ 2.08
Muffler Set (old 704-06504-91)
956692477Muffler Set (old 704-06504-91)€ 12.62
Warmteschild
966687252Warmteschild€ 2.24
Muffler Gasket (old 737-06500-20)
976692744Muffler Gasket (old 737-06500-20)€ 1.11
Intake Pipe Gasket (old 403-06500-20)
986689891Intake Pipe Gasket (old 403-06500-20)€ 1.11
Carb. Insulator Set,spare (old 404-06500-90)
996689966Carb. Insulator Set,spare (old 404-06500-90)€ 6.70
Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
1006695515Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)€ 1.11
Carburetor Gasket (old 402-06500-20)
1016689839Carburetor Gasket (old 402-06500-20)€ 1.11
Carburateurset
1026690487Carburateurset€ 69.99
Épuisé
1036684628Épuisé
Épuisé
1046695670Épuisé
Cleaner Body Comp. (old 423-06500-81/6690118) For
1056690119Cleaner Body Comp. (old 423-06500-81/6690118) For€ 4.31
Collar 7.5 (old 470-06500-20)
1066690804Collar 7.5 (old 470-06500-20)€ 1.11
Choke Valve (old 528-06500-20)
1076691272Choke Valve (old 528-06500-20)€ 2.24
Choke Valve (old 528-0650t-20)
1076691274Choke Valve (old 528-0650t-20)€ 2.24
Épuisé
1086684658Épuisé
Blow Over Check Board (old 476-01700-20/790189)
1096690843Blow Over Check Board (old 476-01700-20/790189)€ 1.11
Ring (oud 992-10050-012)
1106684662Ring (oud 992-10050-012)€ 2.08
Screw M5x60 (oud 990-11050-602)
1116684660Screw M5x60 (oud 990-11050-602)€ 2.08
Reinigingsspons
1126690364Reinigingsspons€ 1.11
Luchtfilterkap
1136690415Luchtfilterkap€ 5.11
Special Screw (old 380-0637c-20)
1146689737Special Screw (old 380-0637c-20)€ 1.11
Swivel (oud 539-25120-20)
1156684697Swivel (oud 539-25120-20)€ 6.23
Stop Ring (oud 489-25100-20)
1166684696Stop Ring (oud 489-25100-20)€ 2.08
O-RING (OUD 550-25100-20)
1176684695O-RING (OUD 550-25100-20)€ 4.15
Main Jet #40 (old 599-2000w-40)
1186691845Main Jet #40 (old 599-2000w-40)€ 4.31
Main Jet #34.5 (old 599-200bw-34)
1186691888Main Jet #34.5 (old 599-200bw-34)€ 6.07
Inlet Screen (oud 578-25007-20)
1196684700Inlet Screen (oud 578-25007-20)€ 4.15
Pump Body Comp. (old 575-25147-80/6691428)
1206691430Pump Body Comp. (old 575-25147-80/6691428)€ 34.99
Diaphragm Cover (old 476-25004-20)
1216685222Diaphragm Cover (old 476-25004-20)€ 4.31
Set Screw (old 548-25101-20)
1226691312Set Screw (old 548-25101-20)€ 1.11
Throttle Set Screw (old 548-25140-20)
1236684698Throttle Set Screw (old 548-25140-20)€ 4.15
Throttle Valve Comp. (old 488-25145-80)
1246684883Throttle Valve Comp. (old 488-25145-80)€ 18.15
Pump Gasket (old 577-25100-20)
1256691457Pump Gasket (old 577-25100-20)€ 6.87
Pump Diaphragm (old 576-25100-20 & 6696325)
1266684693Pump Diaphragm (old 576-25100-20 & 6696325)€ 8.30
Diaphragm Packing (old 475-25038-20)
1276685220Diaphragm Packing (old 475-25038-20)€ 2.24
Metering Diaphragm Comp. (old 474-25001-80/6690826
1286690827Metering Diaphragm Comp. (old 474-25001-80/6690826€ 11.34
Priming Pump Comp. (old 442-25143-80)
1296685139Priming Pump Comp. (old 442-25143-80)€ 5.75
Fuel Pipe 2.5x4x80 (old 700-02504-08)
1306692347Fuel Pipe 2.5x4x80 (old 700-02504-08)€ 1.11
Collar 5.8 (old 659-00801-20)
1316692244Collar 5.8 (old 659-00801-20)€ 1.11
Hex. Hole Bolt 5x18ps (old 994-63050-185)
1326695505Hex. Hole Bolt 5x18ps (old 994-63050-185)€ 1.11
Resevoir
1336696360Resevoir€ 3.92
Air Vent Ass'y (old 564-06611-90)
1346691389Air Vent Ass'y (old 564-06611-90)€ 9.90
Air Vent Valve Ass'y (old 646-06612-90)
1366692171Air Vent Valve Ass'y (old 646-06612-90)€ 4.79
Épuisé
1376684625Épuisé
Tank Dop Compleet
1386691714Tank Dop Compleet€ 4.31
Tank Cap D Ass'y, Black (old 595-06516-90 & 669171
1386691763Tank Cap D Ass'y, Black (old 595-06516-90 & 669171€ 7.34
Fuel Pipe 2.5x4x70 (old 700-02504-07)
1396692346Fuel Pipe 2.5x4x70 (old 700-02504-07)€ 1.11
Return Grommet (old 6684627)
140A6697846Return Grommet (old 6684627)€ 1.00
Clip.6.3 Dia. (old 680-00731-20)
1416684619Clip.6.3 Dia. (old 680-00731-20)€ 2.08
Pomp Filter
142A6698874Pomp Filter€ 11.62
Brandstofleiding
143A6698715Brandstofleiding€ 9.44
CUTTER COVER (OLD 138-33171-20/6687300)
1446687302CUTTER COVER (OLD 138-33171-20/6687300)€ 8.30
Guard Plate (old 135-33191-20)
1456687275Guard Plate (old 135-33191-20)€ 2.24
Ecrou de bride
1466695170Ecrou de bride€ 1.11
Protection Plate (old 136-33160-20)
1476687285Protection Plate (old 136-33160-20)€ 11.66
Protection Plate
147A6601209Protection Plate€ 13.42
Support Plate (old 462-33290-20)
1486690762Support Plate (old 462-33290-20)€ 3.19
Nut 6 Ups-p (old 991-87060-001 & 6698766)
1496695175Nut 6 Ups-p (old 991-87060-001 & 6698766)€ 1.11
Bague
1506684639Bague€ 2.08
Gear Case Comp. (old 300-33290-81 & 6695770)
1516688684Gear Case Comp. (old 300-33290-81 & 6695770)€ 14.64
GREASE NIPPLE COMP. (OLD 300-32250-80)
1526688643GREASE NIPPLE COMP. (OLD 300-32250-80)€ 1.11
Spring Nut 6 (old 994-40060-011)
1536695475Spring Nut 6 (old 994-40060-011)€ 1.11
Hex. Hole Bolt 6x18/s (old 994-61060-184)
1546695495Hex. Hole Bolt 6x18/s (old 994-61060-184)€ 1.11
Cutter Guide 734l M6 (old 122-33248-20)
1556687147Cutter Guide 734l M6 (old 122-33248-20)€ 25.33
Guide Plate (old 075-33160-20)
1566686612Guide Plate (old 075-33160-20)€ 1.11
Cam Rod (old 101-33190-20)
1576686811Cam Rod (old 101-33190-20)€ 5.59
Bovenmes (a)
1586687086Bovenmes (a)€ 46.71
Gear 2 Comp.
159A6698773Gear 2 Comp.€ 18.23
Gear Case Gasket (old 303-33160-20)
1606688909Gear Case Gasket (old 303-33160-20)€ 1.11
Gear Case Cover (old 630-33165-20)
1616692101Gear Case Cover (old 630-33165-20)€ 6.07
Roulement à billes
1626695547Roulement à billes€ 3.19
Gear Case B (old 301-33183-21)
1636688846Gear Case B (old 301-33183-21)€ 7.34
Hex. Hole Bolt M4x12/s (old 994-61040-124)
1646684595Hex. Hole Bolt M4x12/s (old 994-61040-124)€ 2.08
Hex. Hole Flush Bolt 6x25 (old 990-52060-255)
1656695075Hex. Hole Flush Bolt 6x25 (old 990-52060-255)€ 1.11
AFDICHT RUBBER
1666686654AFDICHT RUBBER€ 1.11
Bague
1676687187Bague€ 1.11
Boulon
1686687158Boulon€ 1.11
Hex. Hole Bolt 4x10s (old 994-61040-104)
1696695484Hex. Hole Bolt 4x10s (old 994-61040-104)€ 1.11
Fuel Grommet
1706698931Fuel Grommet€ 3.34
Épuisé
5016684813Épuisé
Combi Box Spanner 10x19 ,plus (old 036-29331-50)
5026685997Combi Box Spanner 10x19 ,plus (old 036-29331-50)€ 4.31
Votre panier contient 0 de produits.
