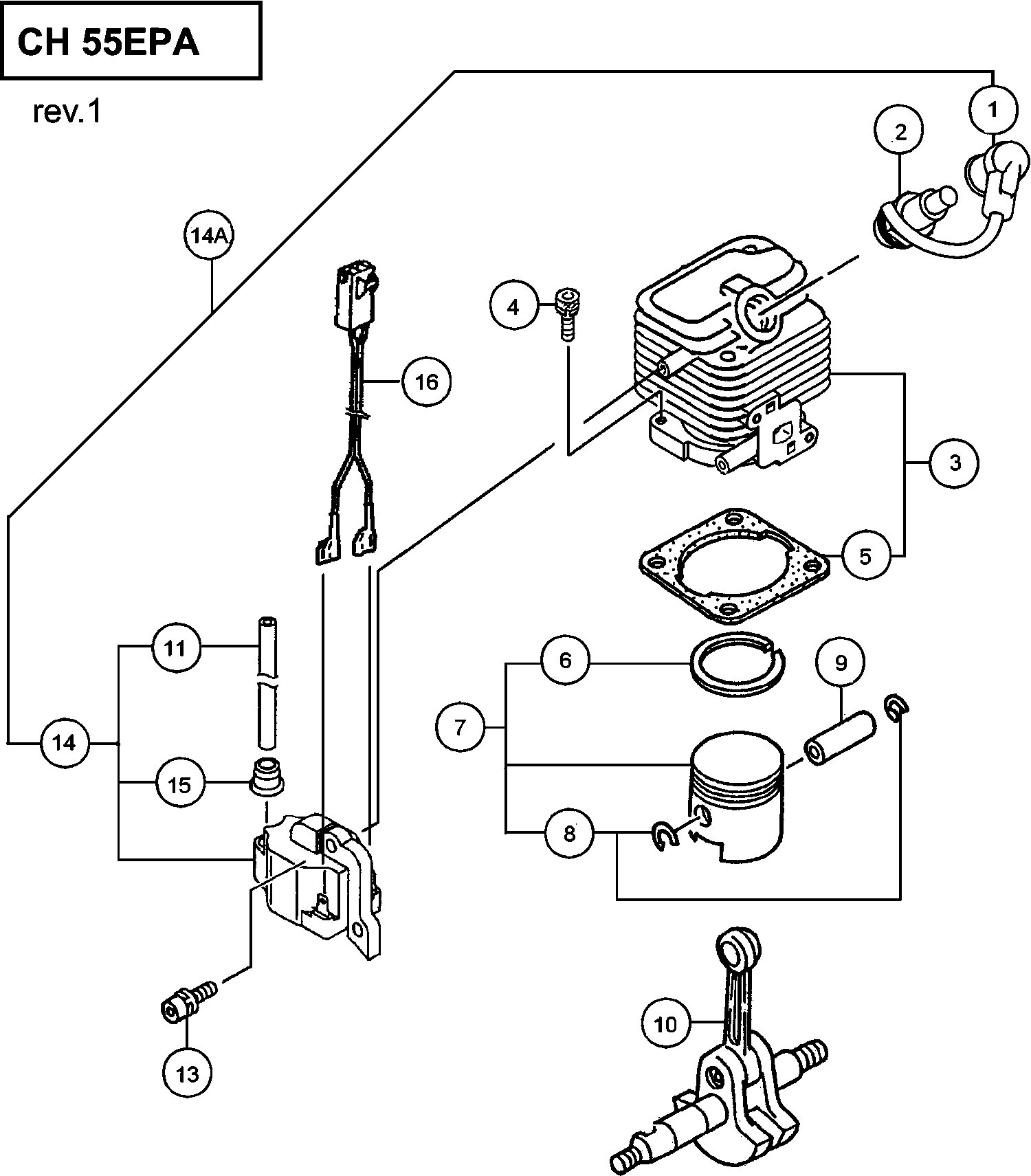

Dessins des Hikoki CH55EPA


Dessins techniques 1

Liste de pièces de rechange des Hikoki CH55EPA

Pos. Description Prix hors TVA Prix ​​TTC
Les prix affichés incluent la TVA

Spark Plug Cap Ass'y (old 157-01570-90/6687470/668
1 6687468 2.31 2.78

Bougie Rcj8y
2 6699328 3.30 3.96

Cylinder Set (old 001-07130-91)
3 6685489 34.19 41.02

Vis Ø5x18
4 6684586 2.15 2.58

Cylinder Gasket (old 017-00980-20 & 6685743)
5 6685709 1.15 1.38

Piston Ring (old 041-00601-21/ 6686117)
6 6686118 4.45 5.34

Piston Set (old 030-00070-90)
7 6685869 15.58 18.69

Piston Pin Circlip (old 039-00601-20)
8 6684590 2.15 2.58

Zuiger Pin
9 6696944 3.33 3.99

Crank Shaft Comp. (old 046-07135-80)
10 6686217 42.20 50.64

High Tension Cord 140l (old 178-20549-20/6687887)
11 6687888 2.31 2.78

Hex.hole Bolt 4x15/ps (old 994-63040-154)
13 6684682 2.15 2.58

Épuisé
14A 6697638

Ignition Coil Ass'y (old 6687665/6699774)
14 6699772 17.85 21.42

Rubber Beschermkapje
15 6684602 2.15 2.58

Lead Wire Ass'y
16 6697836 5.45 6.54

Gear Shaft Shim 0.20 (oud 330-00200-23)
31 6684604 2.15 2.58

Gear Shaft Shim 0.30 (oud 330-00200-24)
31 6684605 2.15 2.58

Crank Case Ass'y (old 072-07120-92)
32 6686585 36.15 43.38

Olie Keerring
33 6684607 4.29 5.14

Roulement à billes
34 6684608 3.80 4.56

Crank Case Gasket (old 090-06410-20)
35 6686719 1.15 1.38

Vis Ø5x18
36 6684586 2.15 2.58

Vliegwiel
37 6601171 22.99 27.58

Épuisé
37A 6696928

Ring M8 (old 992-01080-011)
38 6684611 2.15 2.58

Nut M8 (old 991-01080-011/327325/332299/726603)
39 6684612 2.15 2.58

Inlaatpakking
51 6689890 1.15 1.38

Carb Insulator Set (old 404-0099f-90)
52 6689914 5.94 7.12

CARBURETOR GASKET (OLD 402-0602K-21/6689836)
53 6684615 2.15 2.58

Hex.hole Bolt 5x22/ws (old 994-64050-224)
54 6695514 1.15 1.38

Screw 5x60/s (old 994-14050-601)
55 6695354 1.15 1.38

Bague
56 6684661 2.15 2.58

Shield Tube (old 223-07000-90)
57 6688174 2.31 2.78

Clip D6 (old 680-00070-20)
58 6685198 1.15 1.38

Épuisé
59 6684620

Tank, White (old 591-07120-21/6691593/6691594)
60 6691592 9.58 11.49

Épuisé
61 6685049

Collar 5.8 (old 659-00801-20)
62 6692244 1.15 1.38

Carburateurset
63 6690512 66.40 79.68

Swivel Cap (old 560-07120-21/6684628)
64 6691337 1.15 1.38

Hex.hole Bolt 5x16/ps (old 994-63050-164)
65 6695504 1.15 1.38

Bolt (w/flange)
65A 6696574 1.05 1.26

Screw 5x20ws (old 994-65050-205)
66 6695516 1.15 1.38

Épuisé
67 6684625

Fuel Pipe 3x5x80 (oud 700-03005-08)
68 6684880 2.15 2.58

Return Grommet (old 6684627)
69 6697846 1.04 1.24

Muffler Protector Black (old 738-07162-20)
91 6692809 5.11 6.14

Screw 4x15ps (old 994-15040-151)
92 6695373 1.15 1.38

Tapping Screw D4.5x12 (old 990-73045-124)
94 6684637 2.15 2.58

Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)
95 6685114 1.15 1.38

Rondelle Ø 5
96 6684918 2.15 2.58

Muffler Set (old 704-07001-90)
98 6692487 11.88 14.25

Muffler Gasket (old 737-07000-20 & 6692743)
100 6692745 1.15 1.38

Warmteschild
101 6687253 2.31 2.78

Épuisé
103 6697619

Koppeling Schoen
104 6688616 7.59 9.10

CLUTCH ARM COMP 54 NEW
104A 6697161 6.90 8.28

Clutch Spring (old 342-06410-20)
105 6689430 2.31 2.78

Épuisé
105A 6697618

Clutch Plate A (old 348-0602r-20)
106 6689528 1.15 1.38

Step Bolt (old 357-0075t-20)
107A 6684646 2.15 2.58

Step Bolt (old 357-00601-20)
107 6689627 1.15 1.38

Bague
108 6684648 2.15 2.58

Clutch Set Assy (old 276-06410-91) New
109 6688484 14.53 17.43

Épuisé
109A 6696932

Hex. Hole Bolt M5x18/ws (old 994-64050-184)
110 6684647 2.15 2.58

Hex. Hole Bolt M5x30/ws (old 994-64050-304)
112 6684973 2.15 2.58

Cord Clamp Comp. (old 198-11600-80/6691462/6691463
113 6688011 1.15 1.38

Recoil Starter Body Ass'y (old 762-07130-91)
151 6692988 42.20 50.64

Starthendel
152 6693240 14.35 17.22

Recoil Starter Body Comp. (old 772-07130-81)
153 6693039 24.20 29.04

Rope 2.6x830 (old 783-07130-20)
154 6693175 6.44 7.72

Recoil Spring (old 780-07130-20)
155 6693139 9.74 11.68

Spring Case Ass'y (old 778-07130-90)
156 6693102 30.25 36.30

Starter Rope Reel (old 774-07130-20)
157 6693080 6.44 7.72

Bague
158 6687947 2.31 2.78

Tapping Screw D5x14 (old 990-72050-144)
159 6685275 1.15 1.38

Hex. Hole Bolt 4x18ws (old 994-64040-185)
160 6695508 1.15 1.38

Flunge Nut 5 (old 991-82050-001)
161 6695169 1.15 1.38

Starter Pulley Ass'y (old 798-07085-90)
162 6693408 32.21 38.66

Épuisé
171A 6699995

Recoil Starter Body Comp. (old 772-07350-80)
172 6684673 19.06 22.88

Starter Rope 3.5x860 (old 783-0720f-20/6697590)
173 6684674 4.29 5.14

Recoil Spring (old 780-06097-20/6697591)
174 6684675 11.55 13.86

Starter Rope Reel
175A 6699997 8.41 10.10

Dumper Spring (old 758-0651h-20)
176 6684677 8.58 10.29

Cam Plate
177A 6699996 2.55 3.06

SET SCREW (OLD 839-03045-20)
178 6684679 2.15 2.58

Starthendel
179 6684680 2.15 2.58

Starter Pulley Ass'y (old 798-0651h-90)
180 6684681 13.20 15.84

Hex. Hole Bolt 4x18ws (old 994-64040-185)
181 6695508 1.15 1.38

D4e Retaining Ring (old 993-55040-001)
182 6685101 1.15 1.38

Starter Pawl Spring (old 790-06097-20)
183 6684684 4.29 5.14

Starter Pawl (old 788-0651h-20)
184 6684685 4.29 5.14

Cam Plate Ass'y
185 6699691 6.10 7.32

Cleaner Assy (old 410-07142-91 & 6690047)
201 6690048 9.58 11.49

Luchtfilterkap
202 6690391 4.45 5.34

Élément de filtre à air
203 6684654 2.15 2.58

Special Screw (old 380-0637c-20)
204 6689737 1.15 1.38

Cleaner Body Comp. (old 423-00070-81)
205 6684656 8.58 10.29

Choke Valve (old 528-07143-81)
206 6684657 4.29 5.14

Épuisé
207 6684658

Collar 8 (old 657-3252a-20)
208 6684659 2.15 2.58

Pump Body Comp. (old 575-25153-80)
221 6684879 62.16 74.60

Priming Pump Comp. (oud 442-25151-80)
222 6684687 16.34 19.60

Diaphragm Cover (oud 476-25151-20)
223 6684688 8.58 10.29

Priming Body (oud 447-25108-20)
224 6684689 6.44 7.72

Metering Diaphragm Comp. (old 474-25241-80)
225 6690830 11.88 14.25

Diaphragm Gasket (oud 475-25153-20)
226 6684691 8.58 10.29

Pump Diaphragm (old 576-25100-20 & 6696325)
227 6684693 8.58 10.29

Pump Gasket (old 577-25100-20)
228 6691457 7.10 8.52

Main Jet #38 (old 599-2000w-38)
229 6691844 4.45 5.34

O-RING (OUD 550-25100-20)
230 6684695 4.29 5.14

Stop Ring (oud 489-25100-20)
231 6684696 2.15 2.58

Swivel (oud 539-25120-20)
232 6684697 6.44 7.72

Throttle Set Screw (old 548-25140-20)
233 6684698 4.29 5.14

Set Screw (old 548-25151-20 & 6696324)
234 6684699 2.15 2.58

Inlet Screen (oud 578-25007-20)
235 6684700 4.29 5.14

Crutch Shaft Comp. (old 289-07061-80/6688599)
251 6695969 15.73 18.87

Stop Ring C-12 Outer
252 6684664 2.15 2.58

Caoutchouc anti-vibrateur
253 6691839 3.30 3.96

Hex. Hole Bolt 5x16 (old 990-51050-163)
254 6695046 1.15 1.38

Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
255 6684709 2.15 2.58

Enveloppe De Ventilateur
256 6687029 15.13 18.15

Pipe Holder, Tpe (old 360-00996-20/6689650)
257 6689651 5.94 7.12

Rondelle Ø 5
258 6684918 2.15 2.58

Bague
259 6689159 1.15 1.38

Metal Fitting (old 361-00990-20)
260 6689664 3.30 3.96

Drive Shaft 633l (old 343-32243-20)
281 6689439 12.88 15.45

Stuurbuis
282 6689303 20.11 24.14

Épuisé
283 6684831

Lifting Metal Ass'y (old 335-37526-90)
284 6689277 3.30 3.96

Bracket A (old 215-32243-20)
285 6688103 2.31 2.78

Bracket B (old 216-32243-20/6686103)
286 6688104 3.30 3.96

HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
287 6684714 2.15 2.58

Épuisé
289 6685075

Hex.nut 6 (old 6684792/991-01060-041/790444)
290 6684835 2.15 2.58

Bague
291 6695194 1.15 1.38

Front Handle (old 210-33160-22/6688095/6688094)
292 6688096 7.75 9.30

Hex. Hole Bolt 5x55 (old 990-51050-553)
293 6695056 1.15 1.38

Rondelle Ø 5
294 6684918 2.15 2.58

Rondelle D.5
295 6684834 2.15 2.58

Throttle Lever Ass'y (old 870-38449-90)
296 6693769 36.15 43.38

Gaskabel
297 6693982 19.96 23.96

Throttle Wire 4t (old 887-38449-80)
298 6694025 8.41 10.10

Stop Button Comp. (old 156-37821-80)
299 6687452 13.91 16.70

Protection Tube 7x145l (old 164-07014-50) New
300 6687523 1.05 1.26

Safety Lever (old 253-38400-20)
301 6684721 6.44 7.72

Return Spring (old 832-38400-20)
302 6684722 2.15 2.58

Blind Plug (old 322-38400-20)
303 6684724 2.15 2.58

Screw M5x20 (old 994-31050-203)
304 6684803 2.15 2.58

Épuisé
305 6684727

Screw M4x20 (black) (old 993-46040-202)
306 6684725 2.15 2.58

Throttle Lever (old 880-38400-20)
307 6684804 8.58 10.29

Drive Shaft, 978l (old 343-32292-20)
308 6689440 14.68 17.61

Drive Shaft 945 (old 341-32273-81)
309 6689304 22.24 26.68

Bush Ass'y (old 6684831)
310 6697839 4.29 5.14

Loop Handle, 24 Dia.,black (old 500-37286-20)
311 6691046 5.78 6.93

Handle Bracket A (old 506-37300-20)
312 6691134 2.31 2.78

Handle Grip (old 503-3738e-20)
313 6691098 6.44 7.72

Bolt 6x43/p (black) (old 994-23060-432)
314 6684838 2.15 2.58

Tapping Screw 5x20 (old 993-11052-012)
315 6695255 1.15 1.38

Bague
316 6689681 1.15 1.38

Gear Case A,24 Dia (old 300-32287-21)
321 6688653 30.25 36.30

BALL BEARING 6901ZZ/OD (OLD 999-61690-101/6695581)
322 6695582 9.74 11.68

STOP RING S-12, OUTER (OLD 993-52012-002)
323 6695302 1.15 1.38

Stop Ring C-24.inner (old 993-51024-002)
324 6684732 2.15 2.58

Épuisé
325 6698772

STOP RING C-22, INNER (OLD 993-51022-002)
326 6695293 1.15 1.38

GREASE NIPPLE COMP. (OLD 300-32250-80)
327 6688643 1.15 1.38

Hex. Hole Bolt 5x10 (old 990-51050-103)
328 6695042 1.15 1.38

Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
329 6684709 2.15 2.58

Hex. Hole Bolt 6x12 (old 990-53060-125)
330 6695078 1.15 1.38

Bague
331 6684822 2.15 2.58

Gear Case B (old 301-32286-21) (old 6688834)
332 6695981 40.24 48.28

Épuisé
333 6695528

STOP RING C-26, INNER (OLD 993-51026-002)
334 6695294 1.15 1.38

Bague
335 6684822 2.15 2.58

Stop Ring E-6 (old 993-55060-000)
336 6695310 1.15 1.38

Gear Case Cover A (old 327-32280-20)
337 6689167 1.15 1.38

Hex. Hole Bolt 4x8 (old 990-51040-085)
338 6695035 1.15 1.38

Épuisé
339 6698772

STOP RING C-22, INNER (OLD 993-51022-002)
340 6695293 1.15 1.38

Handle (old 210-32286-20)
341 6688089 4.45 5.34

Hex Hole Button Screw 6x15 (old 990-53060-153)
342 6695079 1.15 1.38

Afdicht Rubber
343 6686669 1.15 1.38

Gear Set Pn (old 302-32286-03/6688894)
344 6696411 92.81 111.38

Handle Knob A Comp. (old 512-32286-80)
345 6691200 3.30 3.96

Plus Bolt 6x14 (old 990-23060-141)
346 6695016 1.15 1.38

Nut 6 Ups-p (old 991-87060-001 & 6698766)
347 6695175 1.15 1.38

Support Plate (old 462-32286-20)
348 6690744 11.23 13.47

Afdicht Rubber
349 6686659 1.15 1.38

ANGLE LIMITTER (OLD 222-32286-20)
350 6688159 2.31 2.78

Bague
351 6684639 2.15 2.58

Cam Shaft Comp. (old 100-32282-81 & 6686789)
361 6686790 36.15 43.38

CAM ROD (OLD 101-33160-22/6686808)
362 6686809 5.94 7.12

Cam-rod Guide Plate (old 075-32280-20)
363 6686611 1.15 1.38

Cutter Guide 625.5mm (old 122-32286-21)
364 6687125 24.20 29.04

Cutter (old 120-32287-21/6696516)
365 6687079 46.29 55.54

Boulon
366 6687158 1.15 1.38

Bague
367 6687187 1.15 1.38

Ecrou de bride
368 6695170 1.15 1.38

Hex Hole Flush Screw 6x16 (old 990-52060-165)
369 6695073 1.15 1.38

Afdicht Rubber
370 6686647 1.15 1.38

Cam-rod Holding Plate (old 105-32280-20)
371 6686826 1.15 1.38

GEAR CASE COVER B (OLD 328-32286-21)
372 6689173 24.20 29.04

Roulement à billes
373 6695547 3.30 3.96

Hex. Hole Bolt 4x10s (old 994-61040-104)
374 6695484 1.15 1.38

Hex. Hole Bolt M4x12/s (old 994-61040-124)
375 6684595 2.15 2.58

Cutter Cover (old 138-33168-20)
376 6687301 8.41 10.10

Boulon
377 6687162 1.15 1.38

Hex. Hole Flush Bolt 6x25 (old 990-52060-255)
378 6695075 1.15 1.38

Afdicht Rubber
379 6686666 1.15 1.38

Spacer (old 296-32286-20)
380 6688633 1.15 1.38

Protection Plate
381A 6601208 13.86 16.64

Nut 6 Ups-p (old 991-87060-001 & 6698766)
382 6695175 1.15 1.38

Bague
383 6684639 2.15 2.58

Combi Box Spanner 10x19 ,plus (old 036-29331-50)
501 6685997 4.45 5.34

Épuisé
502 6684813

Épuisé
503 6692867

Symbol Mark Ch55epa(s) (old 929-51301-20) New
601 6694746 1.15 1.38

Name Plate Ch55epa(sm) (old 929-51300-20) New
602 6694745 1.05 1.26

Votre panier contient 0 de produits.
