Dessins des Hikoki CH105EC

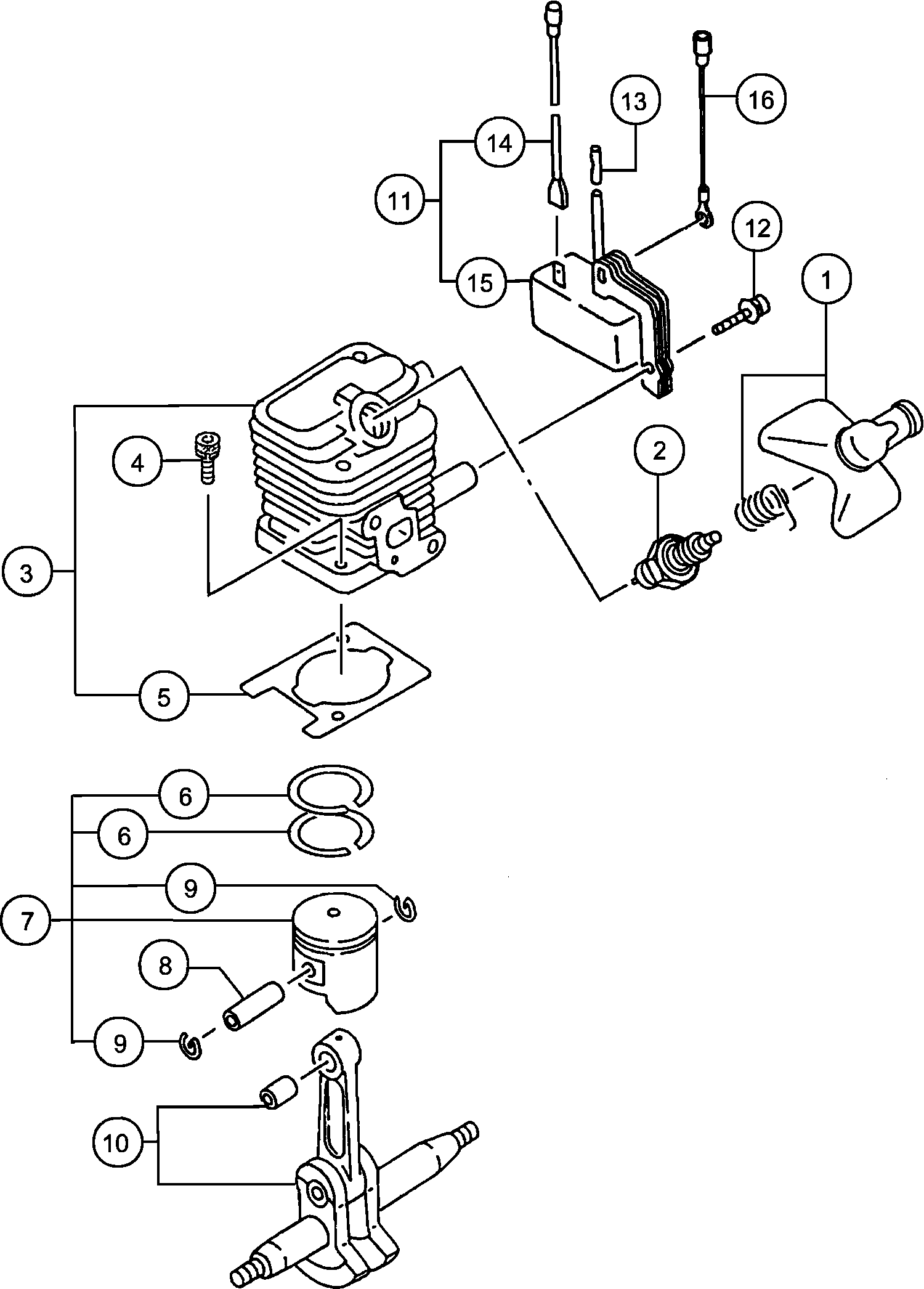

Dessins techniques 1

Liste de pièces de rechange des Hikoki CH105EC

Pos. Description Prix hors TVA Prix ​​TTC
Les prix affichés incluent la TVA

Spark Plug Cap Ass'y (old 157-06500-91)
1 6687476 4.45 5.34

Bougie Rcj8y
2 6699328 3.30 3.96

Cylinder Set (old 001-06600-90)
3 6685481 44.31 53.18

Épuisé
4 6684668

Cylinder Gasket (old 017-06500-20)
5 6685744 1.15 1.38

Piston Ring (oud 041-01601-20)
6 6684588 8.58 10.29

Piston Set, Spare (old 030-06600-90)
7 6685893 22.24 26.68

Goupille
8 6684591 4.29 5.14

Piston Pin Circlip (old 039-01620-20)
9 6686028 1.15 1.38

Crank Shaft Comp. (old 046-06500-80)
10 6686205 72.30 86.76

Ignition Coil Ass'y (old 153-21532-92 & 6687694)
11 6695927 34.19 41.02

Vis Ø4x18 Till H124040
12 6684599 2.15 2.58

Insulator Tube 50l (old 250-06500-20)
13 6684597 2.15 2.58

Cord (old 178-06500-80)
14 6687866 3.30 3.96

Bobine
15 6695939 38.26 45.92

Cord (old 274-51705-80)
16 6688477 2.31 2.78

Crank Case Ass'y
21 6601159 44.46 53.36

Crank Case Gasket (old 090-06500-20)
22 6686720 1.15 1.38

Olie Keerring
23 6684607 4.29 5.14

Roulement à billes
24 6684608 3.80 4.56

Gear Shaft Shim 0.20 (oud 330-00200-23)
25 6684604 2.15 2.58

Gear Shaft Shim 0.30 (oud 330-00200-24)
25 6684605 2.15 2.58

Caoutchouc anti-vibrateur
26 6691822 1.15 1.38

Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
27 6684786 2.15 2.58

Vliegwiel
28 6687389 26.16 31.40

Ring M8 (old 992-01080-011)
29 6684611 2.15 2.58

Bague
30 6684971 1.04 1.24

Nut M8 (old 991-01080-011/327325/332299/726603)
31 6684612 2.15 2.58

Stud Bolt 6x22 (old 100-02100-20)
32 6686771 1.15 1.38

Intake Pipe Gasket (old 403-06500-20)
41 6689891 1.15 1.38

Carb. Insulator Set,spare (old 404-06500-90)
42 6689966 6.93 8.31

Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
43 6695515 1.15 1.38

Carburetor Gasket (old 402-06500-20)
44 6689839 1.15 1.38

O-ring P-15
45 6698966 1.04 1.24

Cleaner Body Comp. (old 423-06500-81/6690118) For
46 6690119 4.45 5.34

Collar 7.5 (old 470-06500-20)
47 6690804 1.15 1.38

Choke Valve (old 528-0650t-20)
48 6691274 2.31 2.78

Épuisé
49 6684658

Blow Over Check Board (old 476-01700-20/790189)
50 6690843 1.15 1.38

Ring (oud 992-10050-012)
51 6684662 2.15 2.58

Screw M5x60 (oud 990-11050-602)
52 6684660 2.15 2.58

Reinigingsspons
53 6690364 1.15 1.38

Luchtfilterkap
54 6690417 5.94 7.12

Special Screw (old 380-0637c-20)
55 6689737 1.15 1.38

Carburateurset
56 6690487 72.30 86.76

Shield Tube Ass'y (old 223-06500-90)
57 6685247 2.31 2.78

Clip D6 (old 680-00070-20)
58 6685198 1.15 1.38

Épuisé
59 6684620

Tank White (old 591-0664a-20)
60 6691582 9.74 11.68

Collar 5.8 (old 659-00801-20)
61 6692244 1.15 1.38

Hex. Hole Bolt 5x18ps (old 994-63050-185)
62 6695505 1.15 1.38

Swivel Cap (old 560-07120-21/6684628)
63 6691337 1.15 1.38

Tank Cap D Ass'y, Black (old 595-06516-90 & 669171
64 6691763 7.59 9.10

Priming Pump Comp. (old 442-25143-80)
65 6685139 5.94 7.12

Fuel Pipe 2.5x4x80 (old 700-02504-08)
66 6692347 1.15 1.38

Fuel Pipe 2.5x4x70 (old 700-02504-07)
67 6692346 1.15 1.38

Return Grommet (old 6684627)
68 6697846 1.04 1.24

Épuisé
69 6684625

Muffler Protector (old 738-06600-20)
81 6692799 5.61 6.74

Muffler Gasket (old 737-06500-20)
82 6692744 1.15 1.38

Warmteschild
83 6687252 2.31 2.78

Muffler Set (old 704-06504-91)
84 6692477 13.04 15.64

Bague
85 6684661 2.15 2.58

Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)
86 6685114 1.15 1.38

Enveloppe De Ventilateur
87 6687010 16.79 20.14

Recoil Spring (old 780-06097-20/6697591)
88 6684675 11.55 13.86

Starter Rope Reel (old 774-06097-20)
89 6693066 3.30 3.96

Set Screw (old 839-02010-20/6693638)
90 6693633 1.15 1.38

Starter Pulley Ass'y (old 798-06500-90 & 6693401)
91 6693405 4.45 5.34

Grommet (old 203-0604a-20)
92 6688050 1.15 1.38

Starter Rope (old 783-06097-20/6693174)
93 6693168 2.31 2.78

Starthendel
94 6693237 1.15 1.38

Hex.hole Bolt 4x15/ps (old 994-63040-154)
95 6684682 2.15 2.58

Slipkoppeling Kompleet
96 6688494 9.74 11.68

Tapping Screw D4.5x16 (old 990-72045-164/790451)
97 6684636 2.15 2.58

Bolt 4x12ps (old 994-25040-128)
98 6695441 1.15 1.38

Starter Pawl Spring (old 790-06097-20)
99 6684684 4.29 5.14

Starter Pawl (old 788-06500-20)
100 6693319 2.31 2.78

Throttle Set Screw (old 548-25140-20)
111 6684698 4.29 5.14

Swivel (oud 539-25120-20)
112 6684697 6.44 7.72

Stop Ring (oud 489-25100-20)
113 6684696 2.15 2.58

O-RING (OUD 550-25100-20)
115 6684695 4.29 5.14

Main Jet #34.5 (old 599-200bw-34)
116 6691888 6.28 7.53

Pump Gasket (old 577-25100-20)
117 6691457 7.10 8.52

Pump Diaphragm (old 576-25100-20 & 6696325)
118 6684693 8.58 10.29

Inlet Screen (oud 578-25007-20)
119 6684700 4.29 5.14

Pump Body Comp. (old 575-25147-80/6691428)
120 6691430 36.15 43.38

Diaphragm Packing (old 475-25038-20)
121 6685220 2.31 2.78

Metering Diaphragm Comp. (old 474-25001-80/6690826
122 6690827 11.71 14.06

Diaphragm Cover (old 476-25004-20)
123 6685222 4.45 5.34

Set Screw (old 548-25101-20)
124 6691312 1.15 1.38

Épuisé
131 6688672

STOP RING C-26, INNER (OLD 993-51026-002)
132 6695294 1.15 1.38

Épuisé
133 6695524

Épuisé
134 6695526

Clutch Housing Comp. (old 288-33185-80)
135 6688571 17.40 20.88

Gear 1 (old 306-33280-20)
136 6688968 19.36 23.24

Gear 2 (old 307-33280-20) New
137 6688978 14.38 17.25

Cam-rod Comp. (old 101-33185-80)
138 6686810 34.19 41.02

Cam Shaft (old 100-33185-20)
139 6686791 50.21 60.26

Gear Case Gasket (old 303-33185-20)
140 6688910 1.15 1.38

Roulement à billes
141 6684738 8.58 10.29

Afdicht Rubber
142 6686655 1.15 1.38

Collar (old 247-33185-20)
143 6688293 3.30 3.96

Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
144 6684709 2.15 2.58

GREASE NIPPLE COMP. (OLD 300-32250-80)
145 6688643 1.15 1.38

Hex. Hole Bolt 6x18/s (old 994-61060-184)
146 6695495 1.15 1.38

Hex Hole Button Screw 6x15 (old 990-53060-153)
147 6695079 1.15 1.38

Bague
148 6695183 1.15 1.38

Fixing Plate (old 070-33185-21/6686466)
149 6686467 2.31 2.78

Support Plate (old 462-33185-20) New Jun
150 6690758 2.31 2.78

Hex. Socket Hd. Bolt M4x10 (old 990-51040-103)
151 6685093 1.15 1.38

Spring Nut 6 (old 994-40060-011)
152 6695475 1.15 1.38

Spring Nut 6 (old 994-40060-011)
155 6695475 1.15 1.38

Cuter Guide 1105l M6 (old 122-33186-20)
171 6687141 50.21 60.26

Hex. Hole Screw 6x25 (old 990-52060-253)
173 6695074 1.15 1.38

Bague
174 6684822 2.15 2.58

Cutter B 1132l (old 121-33185-21/6687110)
175 6687111 78.35 94.02

Bovenmes (a)
176 6687089 78.35 94.02

Bague
177 6687187 1.15 1.38

Boulon
178 6687158 1.15 1.38

Blade Holder (old 128-33202-20)
179 6687180 2.31 2.78

Boulon
180 6687168 1.15 1.38

Handle B Comp. (old 051-33185-81 & 6686310)
181 6686311 14.21 17.06

Handle Grip (old 165-37590-20)
182 6684708 6.44 7.72

Ecrou de bride
183 6695170 1.15 1.38

Bague
184 6684639 2.15 2.58

Bague
185 6695219 1.15 1.38

Blade Cover (old 138-33186-20)
187 6687304 7.59 9.10

Gathering Plate, Oblong (old 350-33210-20)
188 6689539 17.55 21.06

Handle Grip A (old 053-33231-22) New
201 6686338 4.95 5.94

Handle Grip B (old 054-33231-23) New
202 6686349 4.95 5.94

Throttle Lever (old 230-33210-20)
203 6688229 2.31 2.78

Safety Lever (old 231-33210-20)
204 6688238 2.31 2.78

Throttle Lever Spring (old 061-32600-20)
205 6686414 2.31 2.78

Stop Switch Comp. (old 170-32465-80)
206 6687758 8.91 10.70

Stop Button Mark (old 925-32530-20)
207 6694585 1.15 1.38

Cap (old 765-32120-20)
208 6693002 1.15 1.38

Screw 4x30/ws (old 994-16040-301)
209 6695412 1.15 1.38

Screw 4x25/ws (old 994-16040-251)
210 6695411 1.15 1.38

Handle Grip Ass'y (old 055-33185-90)
211 6686354 28.14 33.76

Handle A Comp. (old 050-33185-80)
212 6686275 22.24 26.68

Throttle Wire 270+49 (old 885-03014-80 & 6693877)
213 6693877 4.45 5.34

Protection Tube 10x150l (old 164-10015-00/6687556/
214 6687558 1.15 1.38

Screw 4x16ws (old 994-16040-161)
215 6695404 1.15 1.38

Nylon Lock Nut 4 (old 991-78040-010)
216 6695163 1.15 1.38

Screw 3x10 (old 994-31030-101)
217 6684913 2.15 2.58

Button Stop (old 258-11650-20)
218 6688366 1.15 1.38

Cord Clamp (old 198-33130-20)
219 6688015 1.15 1.38

Hex. Hole Bolt M5x12/s (old 994-61050-124)
220 6684667 2.15 2.58

Handle Bracket (old 058-33185-20)
221 6686370 6.28 7.53

Handle Dumper Rubber (old 060-33185-20)
222 6686396 2.31 2.78

Combi Box Spanner 10/19mm (old 013-29323-50/668566
501 6685257 3.30 3.96

Épuisé
502 6684813

Name Plate Tbc240sfs (old 906-52003-20) New
601 6694374 1.05 1.26
