Dessins techniques et pièces de rechange Hikoki CG47EJ

Type exact:
CG47EJ

Dessins techniques

Liste de pièces de rechange

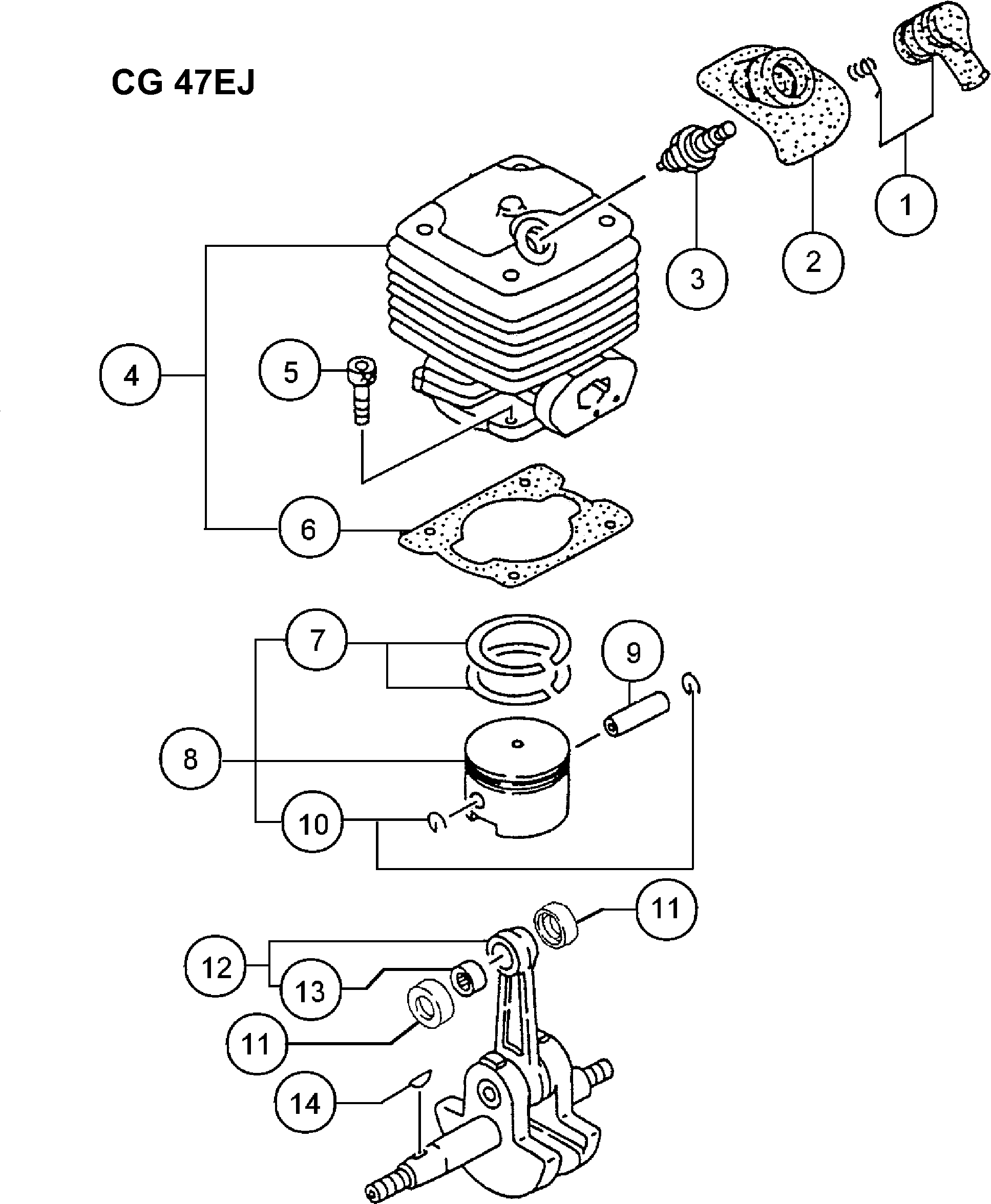

Dessins des HIKOKI CG47EJ

Dessins techniques 1

Cliquez pour agrandir
Agrandissement dans une nouvelle fenêtre

Liste de pièces de rechange des HIKOKI CG47EJ

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.

Spark Plug Cap Ass'y (old 157-01570-90/6687470/668
1	6687468	Spark Plug Cap Ass'y (old 157-01570-90/6687470/668	€ 2.24
Spark Plug Rubber Cover (old 255-04200-20)
2	6688336	Spark Plug Rubber Cover (old 255-04200-20)	€ 3.19
Bougie (oud 6685086)
3	6699319	Bougie (oud 6685086)	€ 8.63
Cylinder Set (old 001-0422u-90)
4	6685470	Cylinder Set (old 001-0422u-90)	€ 69.99
Vis Ø5x18
5	6684586	Vis Ø5x18	€ 2.08
Cylinder Gasket (old 017-04220-21)
6	6685738	Cylinder Gasket (old 017-04220-21)	€ 1.11
Piston Ring (old 041-04090-21)
7	6686126	Piston Ring (old 041-04090-21)	€ 7.50
Piston Set (old 030-0422u-90)
8	6685887	Piston Set (old 030-0422u-90)	€ 18.60
Piston Pin 10x35 (old 037-10100-20 & 6686012)
9	6686019	Piston Pin 10x35 (old 037-10100-20 & 6686012)	€ 2.24
Piston Pin Circlip (old 039-01000-20)
10	6686026	Piston Pin Circlip (old 039-01000-20)	€ 1.11
Piston Pin Collar (old 036-04090-20)
11	6685993	Piston Pin Collar (old 036-04090-20)	€ 5.11
Crank Shaft Comp. (old 046-04220-80)
12	6686190	Crank Shaft Comp. (old 046-04220-80)	€ 85.50
Needle Bearing, 2x8.8 (old 999-62101-480)
13	6695602	Needle Bearing, 2x8.8 (old 999-62101-480)	€ 5.11
Wood-ruff Key 3x13x5 (old 068-02000-20/790118)
14	6686457	Wood-ruff Key 3x13x5 (old 068-02000-20/790118)	€ 1.11
Small Nut 10 (old 991-11100-013/6695138/790215/669
21	6695139	Small Nut 10 (old 991-11100-013/6695138/790215/669	€ 1.00
Crank Case Ass'y (old 072-04220-91)
22	6686553	Crank Case Ass'y (old 072-04220-91)	€ 58.42
Crank Case Gasket (old 090-04200-21/6686712)
23	6686713	Crank Case Gasket (old 090-04200-21/6686712)	€ 1.11
Olie Keerring
24	6695637	Olie Keerring	€ 3.19
Épuisé
25	6695557	Épuisé
Bague
26	6686463	Bague	€ 1.11
Crank Shaft Shim 0.20 (old 071-02007-23)
27	6686472	Crank Shaft Shim 0.20 (old 071-02007-23)	€ 1.11
Crank Shaft Shim 0.30 (old 071-02007-24)
27	6686473	Crank Shaft Shim 0.30 (old 071-02007-24)	€ 1.11
Hex Hole Button Screw 6x45 (old 990-53060-453)
28	6695084	Hex Hole Button Screw 6x45 (old 990-53060-453)	€ 1.11
Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3
29	6684825	Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3	€ 2.08
Lead Wire Ass'y (old 191-04276-90)
30	6687966	Lead Wire Ass'y (old 191-04276-90)	€ 6.70
Bague
31	6684826	Bague	€ 2.08
Lock Nut M6 (oud 991-01060-013)
32	6684872	Lock Nut M6 (oud 991-01060-013)	€ 2.08
Outer Receiver (old 894-01401-20)
33	6694043	Outer Receiver (old 894-01401-20)	€ 3.19
Magnet Rotor Comp. (old 155-20537-80)
34	6687371	Magnet Rotor Comp. (old 155-20537-80)	€ 21.53
Bague
35	6695185	Bague	€ 1.11
Épuisé
36	6695138	Épuisé
Bobine
37	6687649	Bobine	€ 40.85
Screw 5x18/s (old 994-14050-181)
38	6695339	Screw 5x18/s (old 994-14050-181)	€ 1.11
Ring 5 (oud 992-00050-011)
39	6684864	Ring 5 (oud 992-00050-011)	€ 2.08
Cord Clamp Comp. (old 198-05015-80/6687996/6688012
40	6688004	Cord Clamp Comp. (old 198-05015-80/6687996/6688012	€ 1.11
Enveloppe De Ventilateur
41	6686974	Enveloppe De Ventilateur	€ 25.33
Screw 6x20/s (old 994-14060-202)
42	6695361	Screw 6x20/s (old 994-14060-202)	€ 1.11
Primary Cord Grommet (old 203-10000-20)
43	6688055	Primary Cord Grommet (old 203-10000-20)	€ 1.11
Primary Cord Grommet (old 203-06000-20)
44	6688049	Primary Cord Grommet (old 203-06000-20)	€ 1.11
Fuel Tank Cushion Rubber (old 655-04200-20)
51	6692225	Fuel Tank Cushion Rubber (old 655-04200-20)	€ 1.11
Inlaatpakking
52	6689883	Inlaatpakking	€ 1.11
Carb. Insulator Set (old 404-0422u-90)
53	6689950	Carb. Insulator Set (old 404-0422u-90)	€ 8.30
Carburetor Gasket (old 402-01740-20/6689844)
54	6689826	Carburetor Gasket (old 402-01740-20/6689844)	€ 1.11
Carburateurset
55	6690467	Carburateurset	€ 87.56
Carburateurset
55A	6697732	Carburateurset	€ 80.96
Carburetor Ass'y Hda306 Walbro (old 455-0422w-90)
56	6690468	Carburetor Ass'y Hda306 Walbro (old 455-0422w-90)	€ 87.56
Carburateurset
56A	6697706	Carburateurset	€ 89.02
Screw 5x24ws (old 994-16050-241)
57	6695423	Screw 5x24ws (old 994-16050-241)	€ 1.11
Choke Lever (old 495-04200-20)
58	6691004	Choke Lever (old 495-04200-20)	€ 1.11
Fuel Pipe 2.5x4x90 (old 700-02504-09)
59	6685267	Fuel Pipe 2.5x4x90 (old 700-02504-09)	€ 1.11
Fuel Pipe 2.5x4x80 (old 700-02504-08)
59A	6692347	Fuel Pipe 2.5x4x80 (old 700-02504-08)	€ 1.11
Small Nut 10 (old 991-11100-013/6695138/790215/669
60	6695139	Small Nut 10 (old 991-11100-013/6695138/790215/669	€ 1.00
Bague
61	6695235	Bague	€ 1.11
Priming Pump Comp. (old 422-25030-80)
62	6690080	Priming Pump Comp. (old 422-25030-80)	€ 6.70
Priming Pump Comp. (old 442-25143-80)
62A	6685139	Priming Pump Comp. (old 442-25143-80)	€ 5.75
Fuel Pipe Ass'y 3x5x230 (old 223-01251-90)
63	6688166	Fuel Pipe Ass'y 3x5x230 (old 223-01251-90)	€ 4.15
Clip.6.3 Dia. (old 680-00731-20)
64	6684619	Clip.6.3 Dia. (old 680-00731-20)	€ 2.08
Pump Filter Body Ass'y (old 675-01630-90/6692277)
65	6692273	Pump Filter Body Ass'y (old 675-01630-90/6692277)	€ 6.87
Fuel Tank, White (old 591-0422p-21/6691525)
66	6691526	Fuel Tank, White (old 591-0422p-21/6691525)	€ 11.50
Return Grommet (old 6684627)
67	6697846	Return Grommet (old 6684627)	€ 1.00
Tank Cap D Ass'y, Black (old 595-06516-90 & 669171
68	6691763	Tank Cap D Ass'y, Black (old 595-06516-90 & 669171	€ 7.34
Tank Holding Band (old 603-04201-20)
69	6691927	Tank Holding Band (old 603-04201-20)	€ 6.23
Cushion Rubber (old 652-04201-20)
70	6692193	Cushion Rubber (old 652-04201-20)	€ 6.23
Screw 5x16/ps (old 994-15050-162)
71	6695386	Screw 5x16/ps (old 994-15050-162)	€ 1.11
Swivel Cap (old 560-07120-21/6684628)
72	6691337	Swivel Cap (old 560-07120-21/6684628)	€ 1.11
Épuisé
73	6684625	Épuisé
Muffler Protector (old 738-04220-20)
81	6692777	Muffler Protector (old 738-04220-20)	€ 11.34
Screw 5x12/ps (old 994-15050-122)
82	6695383	Screw 5x12/ps (old 994-15050-122)	€ 1.11
Hex. Hole Bolt M5x12/s (old 994-61050-124)
83	6684667	Hex. Hole Bolt M5x12/s (old 994-61050-124)	€ 2.08
Rondelle Ø 5
84	6684918	Rondelle Ø 5	€ 2.08
Hex. Hole Button Screw 6x65 (old 990-53060-653)
85	6695088	Hex. Hole Button Screw 6x65 (old 990-53060-653)	€ 2.24
Bague
86	6684639	Bague	€ 2.08
Muffler Set, Spare (old 704-0423z-90)
87	6692465	Muffler Set, Spare (old 704-0423z-90)	€ 21.53
Muffler Special Gasket (old 751-04200-20)
88	6692883	Muffler Special Gasket (old 751-04200-20)	€ 1.11
Tail Pipe Set, Spare (old 721-0423z-90)
89	6692648	Tail Pipe Set, Spare (old 721-0423z-90)	€ 3.19
Tail Pipe Set, Spare (old 721-04300-90)
89	6692651	Tail Pipe Set, Spare (old 721-04300-90)	€ 4.31
Bague
90	6685109	Bague	€ 1.11
Screw 4x8/s (old 994-14040-081)
91	6695325	Screw 4x8/s (old 994-14040-081)	€ 1.11
Muffler Gasket (old 737-04230-20)
92	6692741	Muffler Gasket (old 737-04230-20)	€ 1.11
Warmteschild
93	6687242	Warmteschild	€ 2.24
Screw 5x18/ps (old 994-15050-182)
94	6695389	Screw 5x18/ps (old 994-15050-182)	€ 1.11
Tank Bracket (old 653-04200-20)
95	6692205	Tank Bracket (old 653-04200-20)	€ 4.63
Fuel Tank Cushion Rubber (old 655-06100-20)
96	6692227	Fuel Tank Cushion Rubber (old 655-06100-20)	€ 1.11
Clutch Shaft Comp.
97	6699561	Clutch Shaft Comp.	€ 18.74
Bague
98	6689645	Bague	€ 1.11
Koppelingsvoering
99	6688615	Koppelingsvoering	€ 13.26
Clutch Spring (old 342-04270-20)
100	6689429	Clutch Spring (old 342-04270-20)	€ 3.19
RING
101	6695203	RING	€ 1.11
Clutch Step Bolt (old 357-0136u-20)
102	6689628	Clutch Step Bolt (old 357-0136u-20)	€ 2.24
Recoil Starter Body Ass'y
121A	6697645	Recoil Starter Body Ass'y	€ 21.08
Recoil Starter Body Comp. (old 772-04220-80)
122	6693025	Recoil Starter Body Comp. (old 772-04220-80)	€ 13.73
Recoil Starter Body Comp.
122A	6697646	Recoil Starter Body Comp.	€ 11.34
Starter Rope Reel (old 769-04220-20)
123	6693007	Starter Rope Reel (old 769-04220-20)	€ 4.79
Starter Rope Reel
123A	6697647	Starter Rope Reel	€ 3.99
Recoil Spring (old 779-04220-20)
124	6693114	Recoil Spring (old 779-04220-20)	€ 8.78
STARTER SPRING
124A	6697648	STARTER SPRING	€ 7.34
Starter Rope (old 783-04270-20/6693164)
125	6693165	Starter Rope (old 783-04270-20/6693164)	€ 3.19
STARTER ROPE
125A	6697649	STARTER ROPE	€ 2.71
Starthendel
126	6693607	Starthendel	€ 2.24
Starthendel
127	6693232	Starthendel	€ 3.19
Starthendel
127A	6697650	Starthendel	€ 2.71
Set Screw (old 839-04220-20)
128	6693634	Set Screw (old 839-04220-20)	€ 1.11
Starter Pawl (old 788-0162v-20)
129	6693302	Starter Pawl (old 788-0162v-20)	€ 2.24
Épuisé
129A	6697643	Épuisé
D4e Retaining Ring (old 993-55040-001)
130	6685101	D4e Retaining Ring (old 993-55040-001)	€ 1.11
Screw 5x25ps (old 994-15050-252)
131	6695395	Screw 5x25ps (old 994-15050-252)	€ 1.11
Starter Pawl Spring (old 790-0162v-20)
132	6693345	Starter Pawl Spring (old 790-0162v-20)	€ 2.24
Épuisé
132A	6697642	Épuisé
Starter Pulley (old 798-04220-90)
133	6693395	Starter Pulley (old 798-04220-90)	€ 10.70
Starter Pulley
133A	6697644	Starter Pulley	€ 10.70
Cleaner Body Set (old 6690106)
151	6699506	Cleaner Body Set (old 6690106)	€ 13.76
Cleaner Body (old 423-04270-21)
151A	6697705	Cleaner Body (old 423-04270-21)	€ 5.28
Collar 5.8 (old 659-00801-20)
152	6692244	Collar 5.8 (old 659-00801-20)	€ 1.11
Blow Over Check Board Comp. (old 476-0422u-80/6690
153	6690848	Blow Over Check Board Comp. (old 476-0422u-80/6690	€ 2.24
Élément de filtre à air
154	6690357	Élément de filtre à air	€ 2.24
Luchtfilterkap
155	6690149	Luchtfilterkap	€ 8.30
Boulon
156	6690383	Boulon	€ 1.11
Screw 5x60/s (old 994-14050-601)
157	6695354	Screw 5x60/s (old 994-14050-601)	€ 1.11
Screw (old 514-25001-20)
171	6685210	Screw (old 514-25001-20)	€ 1.11
Pump Body (old 575-25012-20)
172	6691420	Pump Body (old 575-25012-20)	€ 7.99
Pump Gasket (old 577-25012-20)
173	6691455	Pump Gasket (old 577-25012-20)	€ 2.24
Pump Diaphragm (old 576-25012-20)
174	6691446	Pump Diaphragm (old 576-25012-20)	€ 5.11
Inlet Screen (oud 578-25007-20)
175	6684700	Inlet Screen (oud 578-25007-20)	€ 4.15
Idle Adjust Spring (old 463-25012-20)
176	6690766	Idle Adjust Spring (old 463-25012-20)	€ 2.24
Idle Adjust Screw (old 462-25006-20)
177	6690736	Idle Adjust Screw (old 462-25006-20)	€ 3.19
Needle Valve (old 603-25012-20)
178	6685215	Needle Valve (old 603-25012-20)	€ 5.11
Valve Spring (old 477-25051-20)
179	6690871	Valve Spring (old 477-25051-20)	€ 2.24
Valve Spring (old 477-25307-20)
179	6690874	Valve Spring (old 477-25307-20)	€ 4.31
Control Lever (old 473-25012-20)
180	6690819	Control Lever (old 473-25012-20)	€ 4.31
Hinge Pin (old 605-25001-20)
181	6685219	Hinge Pin (old 605-25001-20)	€ 1.11
Hinge Pin Set Screw (old 546-25001-20)
182	6685218	Hinge Pin Set Screw (old 546-25001-20)	€ 2.24
Diaphragm Gasket (old 475-25032-20)
183	6690840	Diaphragm Gasket (old 475-25032-20)	€ 3.19
Diaphragm Gasket (old 475-25012-20)
183A	6690838	Diaphragm Gasket (old 475-25012-20)	€ 2.24
Metering Diaphragm Comp. (old 474-25032-80)
184	6690829	Metering Diaphragm Comp. (old 474-25032-80)	€ 11.50
Meterring Diaphragm Comp. (old 474-25012-80)
184A	6690828	Meterring Diaphragm Comp. (old 474-25012-80)	€ 11.50
Air Purge Comp. (old 454-25032-80)
185	6690434	Air Purge Comp. (old 454-25032-80)	€ 17.42
Diaphragm Cover (old 476-25032-20)
186	6690860	Diaphragm Cover (old 476-25032-20)	€ 6.23
Diaphragm Cover (old 476-25012-20)
186A	6690858	Diaphragm Cover (old 476-25012-20)	€ 6.70
Set Screw (old 548-25016-20) New Jul
187	6691310	Set Screw (old 548-25016-20) New Jul	€ 1.11
Set Screw (old 548-25012-20)
187A	6685223	Set Screw (old 548-25012-20)	€ 1.11
Clutch Shaft Comp. (old 289-37491-80)
201	6688607	Clutch Shaft Comp. (old 289-37491-80)	€ 14.79
Stop Ring C-32, Inner (old 993-51032-002/791058)
202	6695295	Stop Ring C-32, Inner (old 993-51032-002/791058)	€ 1.11
Roulement à billes
203	6695537	Roulement à billes	€ 6.87
Bague
204	6689185	Bague	€ 1.11
Stop Ring C-15, Outer (old 993-50015-002)
205	6695285	Stop Ring C-15, Outer (old 993-50015-002)	€ 1.11
Stop Ring C-45,outer (old 993-53045-002)
206	6695305	Stop Ring C-45,outer (old 993-53045-002)	€ 3.19
Cluch Case (old 331-37867-20)
207	6689229	Cluch Case (old 331-37867-20)	€ 19.47
Cushion Rubber (old 599-37491-20)
208	6691905	Cushion Rubber (old 599-37491-20)	€ 5.11
Pipe Holder (old 360-37857-20)
209	6689663	Pipe Holder (old 360-37857-20)	€ 8.78
Hex. Hole Bolt 5x10 (old 990-51050-103)
210	6695042	Hex. Hole Bolt 5x10 (old 990-51050-103)	€ 1.11
Hex Hole Screw 6x30 (old 990-53060-303)
211	6695082	Hex Hole Screw 6x30 (old 990-53060-303)	€ 1.11
Épuisé
212	6695499	Épuisé
Bague
213	6684826	Bague	€ 2.08
Clutch Shaft Comp. (old 289-04205-80/6688583)
221	6688582	Clutch Shaft Comp. (old 289-04205-80/6688583)	€ 21.53
Roulement à billes
222	6695559	Roulement à billes	€ 6.23
Stop Ring C-15, Outer (old 993-50015-002)
223	6695285	Stop Ring C-15, Outer (old 993-50015-002)	€ 1.11
Épuisé
224	6689506	Épuisé
Épuisé
225	6695337	Épuisé
Cushion Rubber Comp. (old 599-04201-81/6691827)
226	6691828	Cushion Rubber Comp. (old 599-04201-81/6691827)	€ 11.66
Clutch Case (old 331-04201-20)
227	6689193	Clutch Case (old 331-04201-20)	€ 19.47
Hex. Hole Bolt M5x12/s (old 994-61050-124)
228	6684667	Hex. Hole Bolt M5x12/s (old 994-61050-124)	€ 2.08
Hex. Hole Bolt 5x10 (old 990-51050-103)
229	6695042	Hex. Hole Bolt 5x10 (old 990-51050-103)	€ 1.11
Pipe Holder (old 282-04201-20) New
230	6688541	Pipe Holder (old 282-04201-20) New	€ 3.19
Hex Hole Button Screw 6x45 (old 990-53060-453)
231	6695084	Hex Hole Button Screw 6x45 (old 990-53060-453)	€ 1.11
Bague
232	6684826	Bague	€ 2.08
Bague
233	6695194	Bague	€ 1.11
Square Nut 6 (old 991-91060-061)
234	6696512	Square Nut 6 (old 991-91060-061)	€ 1.00
Clutch Shaft Comp. (old 289-04329-80)
241	6688586	Clutch Shaft Comp. (old 289-04329-80)	€ 16.84
Roulement à billes
242	6695559	Roulement à billes	€ 6.23
Stop Ring C-15, Outer (old 993-50015-002)
243	6695285	Stop Ring C-15, Outer (old 993-50015-002)	€ 1.11
Clutch Case (old 331-04300-20)
244	6689194	Clutch Case (old 331-04300-20)	€ 14.06
Cushion Rubber (old 599-04300-20)
245	6691829	Cushion Rubber (old 599-04300-20)	€ 4.31
Hex. Hole Bolt 5x16 (old 990-51050-163)
246	6695046	Hex. Hole Bolt 5x16 (old 990-51050-163)	€ 1.11
Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530
247	6685064	Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530	€ 1.11
Hex Hole Bolt 5 X 25 (old 990-54050-253)
248	6695091	Hex Hole Bolt 5 X 25 (old 990-54050-253)	€ 1.11
Pipe Holder (old 360-04300-21)
249	6689655	Pipe Holder (old 360-04300-21)	€ 3.19
Rondelle Ø 5
250	6684918	Rondelle Ø 5	€ 2.08
Metal Fitting (old 361-00990-20)
251	6689664	Metal Fitting (old 361-00990-20)	€ 3.19
Drive Shaft 1542l (old 343-37867-20/6697048)
271	6689474	Drive Shaft 1542l (old 343-37867-20/6697048)	€ 21.53
Stuurbuis
272	6689404	Stuurbuis	€ 38.95
Bush Ass'y (old 347-37867-90/790248/790249)
273	6689524	Bush Ass'y (old 347-37867-90/790248/790249)	€ 2.24
Bevestigingsoog Voor Harnas
274	6689278	Bevestigingsoog Voor Harnas	€ 12.46
Lifting Metal Ass'y (old 335-37857-90 & 6689276)
275	6689279	Lifting Metal Ass'y (old 335-37857-90 & 6689276)	€ 4.95
Hanger Fixing Bracket (old 337-37857-80)
276	6689293	Hanger Fixing Bracket (old 337-37857-80)	€ 2.24
Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
277	6695515	Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)	€ 1.11
Handle Grip (old 165-37590-20)
278	6684708	Handle Grip (old 165-37590-20)	€ 6.23
Handle Knob Comp. (old 512-37867-80)
279	6691208	Handle Knob Comp. (old 512-37867-80)	€ 2.24
Bague
280	6692955	Bague	€ 1.11
Handle Bracket A (old 506-37867-20)
281	6691144	Handle Bracket A (old 506-37867-20)	€ 11.18
Handle Bracket B (old 507-37175-20)
282	6691150	Handle Bracket B (old 507-37175-20)	€ 4.79
Cushion Rubber (old 510-37867-20)
283	6691190	Cushion Rubber (old 510-37867-20)	€ 2.24
Handle Bracket C (old 508-37867-20)
284	6691175	Handle Bracket C (old 508-37867-20)	€ 3.19
Handle Bracket B (old 507-37867-20)
285	6691160	Handle Bracket B (old 507-37867-20)	€ 4.31
Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
286	6695515	Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)	€ 1.11
Épuisé
287	6689291	Épuisé
Épuisé
288	6688024	Épuisé
Épuisé
289	6691089	Épuisé
Épuisé
290	6689464	Épuisé
Épuisé
291	6689356	Épuisé
Bushing Ass'y (old 347-37100-90)
292	6689515	Bushing Ass'y (old 347-37100-90)	€ 3.19
Lifting Metal (old 335-37121-20)
293	6689271	Lifting Metal (old 335-37121-20)	€ 2.24
Lifting Metal Collar (old 334-37121-20)
294	6689252	Lifting Metal Collar (old 334-37121-20)	€ 2.24
Hex. Hole Bolt 5x30.p (old 994-62050-304)
295	6695501	Hex. Hole Bolt 5x30.p (old 994-62050-304)	€ 1.11
Special Nut (old 315-37304-20)
296	6689100	Special Nut (old 315-37304-20)	€ 1.11
Hex. Hole Bolt 5x22/s (old 994-61050-224)
297	6695492	Hex. Hole Bolt 5x22/s (old 994-61050-224)	€ 1.11
Handle Bracket A, Silver (old 506-37121-20)
298	6691132	Handle Bracket A, Silver (old 506-37121-20)	€ 5.75
Handle Bracket B,silver (old 507-37121-20)
299	6691148	Handle Bracket B,silver (old 507-37121-20)	€ 4.79
Handle Bracket C, Silver (old 508-33411-20)
300	6691167	Handle Bracket C, Silver (old 508-33411-20)	€ 3.19
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
301	6684714	HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)	€ 2.08
Clamp B. (old 460-33111-20)
302	6684715	Clamp B. (old 460-33111-20)	€ 2.08
Protection Tube 7x790l (old 164-07079-00)
303	6687542	Protection Tube 7x790l (old 164-07079-00)	€ 2.24
Right Handle (old 501-37867-20)
304	6691080	Right Handle (old 501-37867-20)	€ 13.09
Throttle Lever Ass'y 19 (old 870-37168-91)
305	6693728	Throttle Lever Ass'y 19 (old 870-37168-91)	€ 40.85
Safety Lever (old 253-38400-20)
306	6684721	Safety Lever (old 253-38400-20)	€ 6.23
Return Spring (old 832-38400-20)
307	6684722	Return Spring (old 832-38400-20)	€ 2.08
Throttle Lever (old 880-38401-20)
308	6684723	Throttle Lever (old 880-38401-20)	€ 9.90
Screw M4x20 (black) (old 993-46040-202)
309	6684725	Screw M4x20 (black) (old 993-46040-202)	€ 2.08
Screw 5x30 (black) (old 994-31050-303)
310	6684726	Screw 5x30 (black) (old 994-31050-303)	€ 2.08
Contal Nut 5 (old 991-01050-043)
311	6684727	Contal Nut 5 (old 991-01050-043)	€ 2.08
Stop Switch Comp. (old 156-37168-81)
312	6687439	Stop Switch Comp. (old 156-37168-81)	€ 13.92
Throttle Wire (old 887-37168-80)
313	6694008	Throttle Wire (old 887-37168-80)	€ 11.98
Gaskabel
314	6693954	Gaskabel	€ 27.24
Drive Shaft (old 343-37875-20)
321	6689475	Drive Shaft (old 343-37875-20)	€ 21.53
Épuisé
322	6699277	Épuisé
Épuisé
323	6699278	Épuisé
Tapping Screw 5x20 (old 993-11052-012)
324	6695255	Tapping Screw 5x20 (old 993-11052-012)	€ 1.11
Bague
325	6689681	Bague	€ 1.11
Handle Grip (old 503-3738e-20)
326	6691098	Handle Grip (old 503-3738e-20)	€ 6.23
Bolt 6x43/p (black) (old 994-23060-432)
327	6684838	Bolt 6x43/p (black) (old 994-23060-432)	€ 2.08
Épuisé
328	6691049	Épuisé
Barrier, 26 Dia, Black (old 520-33398-20)
329	6691231	Barrier, 26 Dia, Black (old 520-33398-20)	€ 5.43
Hex.nut 6 (old 6684792/991-01060-041/790444)
330	6684835	Hex.nut 6 (old 6684792/991-01060-041/790444)	€ 2.08
Throttle Lever Ass'y (old 870-37187-90)
331	6693731	Throttle Lever Ass'y (old 870-37187-90)	€ 42.89
Connector Case (old 888-04298-20)
332	6694029	Connector Case (old 888-04298-20)	€ 2.24
Throttle Wire 155+57.5 (old 885-04298-80)
333	6693886	Throttle Wire 155+57.5 (old 885-04298-80)	€ 6.70
Split Protection Tube,7x70l (old 164-07007-01)
334	6687520	Split Protection Tube,7x70l (old 164-07007-01)	€ 1.11
Épuisé
336A	6689275	Épuisé
Gaskabel
338	6693957	Gaskabel	€ 21.53
Throttle Wire (old 887-37187-80)
339	6694010	Throttle Wire (old 887-37187-80)	€ 7.67
Stop Switch Comp. (old 156-37187-80)
340	6687442	Stop Switch Comp. (old 156-37187-80)	€ 12.78
Split Protection Tube,7x70l (old 164-07007-00) New
341	6687519	Split Protection Tube,7x70l (old 164-07007-00) New	€ 1.11
Safety Lever (old 253-38400-20)
342	6684721	Safety Lever (old 253-38400-20)	€ 6.23
Return Spring (old 832-38400-20)
343	6684722	Return Spring (old 832-38400-20)	€ 2.08
Screw M5x20 (old 994-31050-203)
344	6684803	Screw M5x20 (old 994-31050-203)	€ 2.08
Contal Nut 5 (old 991-01050-043)
345	6684727	Contal Nut 5 (old 991-01050-043)	€ 2.08
Screw M4x20 (black) (old 993-46040-202)
346	6684725	Screw M4x20 (black) (old 993-46040-202)	€ 2.08
Throttle Lever (old 880-38400-20)
347	6684804	Throttle Lever (old 880-38400-20)	€ 8.30
Carter
361A	6601268	Carter	€ 192.83
Hex.hole Bolt 6x25s (old 994-61060-254) New Jul
362	6695497	Hex.hole Bolt 6x25s (old 994-61060-254) New Jul	€ 1.11
Stop Ring C-28.inner (old 993-51028-002)
363	6684741	Stop Ring C-28.inner (old 993-51028-002)	€ 2.08
Stop Ring C-12 Outer
364	6684664	Stop Ring C-12 Outer	€ 2.08
Roulement à billes
365	6695532	Roulement à billes	€ 6.39
Roulement à billes
366	6684608	Roulement à billes	€ 3.68
Gear Case (old 300-37857-20)
367	6688798	Gear Case (old 300-37857-20)	€ 25.33
Hex Hole Bolt 5x12 (old 994-64050-124)
368	6695510	Hex Hole Bolt 5x12 (old 994-64050-124)	€ 1.11
Bolt 6x8 (old 990-21060-080)
369	6694979	Bolt 6x8 (old 990-21060-080)	€ 1.11
Roulement à billes
370	6684608	Roulement à billes	€ 3.68
Gear Shaft L-m10x1.25 (old 304-37857-20)
371	6688943	Gear Shaft L-m10x1.25 (old 304-37857-20)	€ 11.98
Gear Shaft L-m12x1.75
371A	6601269	Gear Shaft L-m12x1.75	€ 157.09
Roulement à billes
372	6696297	Roulement à billes	€ 6.07
Stop Ring C-35, Inner (old 993-51035-002/791059)
373	6695296	Stop Ring C-35, Inner (old 993-51035-002/791059)	€ 1.11
Cutter Holder (old 310-37857-20)
374	6689029	Cutter Holder (old 310-37857-20)	€ 10.22
Cutter Holder Cap (old 311-37857-20)
375	6689051	Cutter Holder Cap (old 311-37857-20)	€ 3.19
Protection Cover B (old 308-38150-20 & 6688993)
376	6688995	Protection Cover B (old 308-38150-20 & 6688993)	€ 3.19
Nut Cover
376A	6601271	Nut Cover	€ 16.11
Screw 5x16/ws (old 994-16050-162)
377	6695418	Screw 5x16/ws (old 994-16050-162)	€ 1.11
Fixing Nut L M10x1.25 (oud 313-38150-20)
378	6689073	Fixing Nut L M10x1.25 (oud 313-38150-20)	€ 4.48
U-nut L-m12x1.75
378A	6601270	U-nut L-m12x1.75	€ 14.79
Hex Hole Screw 6x30 (old 990-53060-303)
379	6695082	Hex Hole Screw 6x30 (old 990-53060-303)	€ 1.11
Safety Guard Bracket (old 442-37867-20)
380	6690313	Safety Guard Bracket (old 442-37867-20)	€ 2.24
Safety Cover (old 441-37867-20)
381	6690265	Safety Cover (old 441-37867-20)	€ 13.42
Safty Cover Holder (old 445-37867-20)
382	6690342	Safty Cover Holder (old 445-37867-20)	€ 2.24
Cover Guard (old 447-37867-20)
383	6690374	Cover Guard (old 447-37867-20)	€ 6.23
Mesje (oud 797-37380-21/6693385)
384	6693386	Mesje (oud 797-37380-21/6693385)	€ 4.31
Tapping Screw 5x20 (old 993-17052-002)
385	6684753	Tapping Screw 5x20 (old 993-17052-002)	€ 2.08
Gear Pinion Set,spare (old 301-37857-00)
386	6688879	Gear Pinion Set,spare (old 301-37857-00)	€ 16.40
Gear Case Cover (old 303-37857-20) (old 6688915)
387	6697604	Gear Case Cover (old 303-37857-20) (old 6688915)	€ 6.23
Hex. Hole Bolt 5x10 (old 990-51050-103)
388	6695042	Hex. Hole Bolt 5x10 (old 990-51050-103)	€ 1.11
Carter
401	6688801	Carter	€ 104.98
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
402	6684709	Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)	€ 2.08
Stop Ring C-28.inner (old 993-51028-002)
403	6684741	Stop Ring C-28.inner (old 993-51028-002)	€ 2.08
Stop Ring C-12 Outer
404	6684664	Stop Ring C-12 Outer	€ 2.08
Roulement à billes
405	6695532	Roulement à billes	€ 6.39
Roulement à billes
406	6684608	Roulement à billes	€ 3.68
Gearcase, Silver (old 300-33392-21/6688733)
407	6688703	Gearcase, Silver (old 300-33392-21/6688733)	€ 27.24
Rondelle D.5
408	6684834	Rondelle D.5	€ 2.08
Hex. Socket Hd. Bolt M5x12 (old 990-51050-123)
409	6684829	Hex. Socket Hd. Bolt M5x12 (old 990-51050-123)	€ 2.08
Plus Head Bolt 8x10 (old 994-23080-100/6694968)
410	6695437	Plus Head Bolt 8x10 (old 994-23080-100/6694968)	€ 1.11
Épuisé
411	6695524	Épuisé
Gear Shaft 6x11x14 M10x1.25 Lh (old 304-37850-21)
412	6688942	Gear Shaft 6x11x14 M10x1.25 Lh (old 304-37850-21)	€ 21.53
Roulement à billes
413A	6695564	Roulement à billes	€ 9.27
Stop Ring C-40, Inner (old 993-51040-002)
414	6695298	Stop Ring C-40, Inner (old 993-51040-002)	€ 1.11
Cutter Holder (old 310-37100-22/6689020)
415	6689022	Cutter Holder (old 310-37100-22/6689020)	€ 14.79
Cutter Holder Cap,6x11x14 (old 311-37861-20)
416	6689052	Cutter Holder Cap,6x11x14 (old 311-37861-20)	€ 4.31
Protection Cover A Comp. (old 307-37100-81)
417	6688982	Protection Cover A Comp. (old 307-37100-81)	€ 4.31
Screw 5x16/ws (old 994-16050-162)
418	6695418	Screw 5x16/ws (old 994-16050-162)	€ 1.11
Cutter Fixing Nut L/h (old 313-38100-20/790241)
419	6689072	Cutter Fixing Nut L/h (old 313-38100-20/790241)	€ 2.24
Bague
420	6689157	Bague	€ 1.11
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
421	6684714	HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)	€ 2.08
Cover Bracket D30 (old 442-37862-20)
422	6690312	Cover Bracket D30 (old 442-37862-20)	€ 4.95
Blade Guard 30 Ce (old 441-37130-21/6690229)
423	6690230	Blade Guard 30 Ce (old 441-37130-21/6690229)	€ 15.37
Blade Guard 31 Ce (old 441-37862-20)
423A	6690264	Blade Guard 31 Ce (old 441-37862-20)	€ 17.57
Safety Cover Holder (old 445-37380-20)
424	6684748	Safety Cover Holder (old 445-37380-20)	€ 4.15
Cover Guard (old 447-37380-20)
425	6690372	Cover Guard (old 447-37380-20)	€ 9.27
Blade Guard (old 447-38331-20)
425A	6690376	Blade Guard (old 447-38331-20)	€ 9.10
Mesje (oud 797-37380-21/6693385)
426	6693386	Mesje (oud 797-37380-21/6693385)	€ 4.31
Mesje (oud 797-37714-20)
426A	6684750	Mesje (oud 797-37714-20)	€ 4.15
Screw 5x12/s (old 994-14050-121)
427	6695334	Screw 5x12/s (old 994-14050-121)	€ 1.11
Tapping Screw 4x14 (old 993-48040-142)
427A	6684751	Tapping Screw 4x14 (old 993-48040-142)	€ 2.08
Gear-pinion Set, Spare (old 301-37100-00)
428	6688866	Gear-pinion Set, Spare (old 301-37100-00)	€ 25.33
Hex. Nut 5 (old 991-01050-011)
429	6684965	Hex. Nut 5 (old 991-01050-011)	€ 1.00
Tapping Screw 5x20 (old 993-17052-002)
430	6684753	Tapping Screw 5x20 (old 993-17052-002)	€ 2.08
Mesje (oud 797-38331-20)
431	6684754	Mesje (oud 797-38331-20)	€ 8.30
Gear Case Set Pn (old 300-3338r-00/6688696)
441	6696497	Gear Case Set Pn (old 300-3338r-00/6688696)	€ 58.42
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
442	6684709	Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)	€ 2.08
STOP RING C-26, INNER (OLD 993-51026-002)
443	6695294	STOP RING C-26, INNER (OLD 993-51026-002)	€ 1.11
Stop Ring Outer 10 (old 993-57010-002)
444	6695315	Stop Ring Outer 10 (old 993-57010-002)	€ 1.11
Épuisé
445	6695526	Épuisé
Épuisé
446	6695524	Épuisé
Gear Case 26 Dia (old 300-37480-20)
447	6688770	Gear Case 26 Dia (old 300-37480-20)	€ 15.37
Hex. Hole Bolt M5x12/s (old 994-61050-124)
448	6684667	Hex. Hole Bolt M5x12/s (old 994-61050-124)	€ 2.08
Oiling Bolt (old 316-38150-20)
449	6689109	Oiling Bolt (old 316-38150-20)	€ 1.11
Roulement à billes
450	6684734	Roulement à billes	€ 8.30
Gear Shaft (old 304-3338r-20)
451	6688924	Gear Shaft (old 304-3338r-20)	€ 17.57
Roulement à billes
452	6695554	Roulement à billes	€ 5.75
Stop Ring C-32, Inner (old 993-51032-002/791058)
453	6695295	Stop Ring C-32, Inner (old 993-51032-002/791058)	€ 1.11
Cutter Holder (old 310-38150-20)
454	6689032	Cutter Holder (old 310-38150-20)	€ 11.34
Cutter Holder Cap (old 311-38150-20)
455	6689055	Cutter Holder Cap (old 311-38150-20)	€ 4.95
Fixing Nut L M10x1.25 (oud 313-38150-20)
456	6689073	Fixing Nut L M10x1.25 (oud 313-38150-20)	€ 4.48
Bague
457	6689159	Bague	€ 1.11
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
458	6684714	HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)	€ 2.08
Cover Bracket D26 (old 442-38331-20)
459	6690315	Cover Bracket D26 (old 442-38331-20)	€ 4.31
Blade Guard 26ce (old 441-38331-20)
460	6690276	Blade Guard 26ce (old 441-38331-20)	€ 16.99
Safety Cover Holder (old 445-37380-20)
461	6684748	Safety Cover Holder (old 445-37380-20)	€ 4.15
Blade Guard (old 447-38331-20)
462	6690376	Blade Guard (old 447-38331-20)	€ 9.10
Mesje (oud 797-37714-20)
463	6684750	Mesje (oud 797-37714-20)	€ 4.15
Tapping Screw 4x14 (old 993-48040-142)
464	6684751	Tapping Screw 4x14 (old 993-48040-142)	€ 2.08
Gear/pinion Set, Spare (old 301-37480-00)
465	6688875	Gear/pinion Set, Spare (old 301-37480-00)	€ 21.53
Tapping Screw 5x20 (old 993-17052-002)
466	6684753	Tapping Screw 5x20 (old 993-17052-002)	€ 2.08
Mesje (oud 797-38331-20)
467	6684754	Mesje (oud 797-38331-20)	€ 8.30
Épuisé
501	6684813	Épuisé
WRENCH 8X10 (OLD 801-20000-20/6696596/790382)
502	6684766	WRENCH 8X10 (OLD 801-20000-20/6696596/790382)	€ 2.40
Épuisé
503	6693575	Épuisé
BLADE B3/12/3.0 (OLD 000-79648-00 & 6693503)
504	6695792	BLADE B3/12/3.0 (OLD 000-79648-00 & 6693503)	€ 23.43
Épuisé
505A	875769	Épuisé
Cutter Cover (old 615-37181-20)
506	6692016	Cutter Cover (old 615-37181-20)	€ 8.14
ZESKANTSLEUTEL 17/19MM
507	6684764	ZESKANTSLEUTEL 17/19MM	€ 3.84
SHOULDER HARNESS D3X
508	6695796	SHOULDER HARNESS D3X	€ 20.50
SHOULDER BELT ASS'Y
509	6692874	SHOULDER BELT ASS'Y	€ 16.99
Winding Protector Cover (old 307-38100-20)
510	6688986	Winding Protector Cover (old 307-38100-20)	€ 3.19
NYLON HEAD TH-97LM
511	6695781	NYLON HEAD TH-97LM	€ 70.74
Cutting Body Ass'y (old 786-33840-90)
512	6693271	Cutting Body Ass'y (old 786-33840-90)	€ 15.81
Eyelet (old 788-33670-21)
513	6693328	Eyelet (old 788-33670-21)	€ 5.59
Adjustment Base (old 785-33840-20)
514	6693247	Adjustment Base (old 785-33840-20)	€ 1.11
Spring (silver) (old 793-33910-20/6693376)
515	6693377	Spring (silver) (old 793-33910-20/6693376)	€ 1.11
Bague
516	6693362	Bague	€ 1.11
Cord Reel Bk (old 787-33840-21/6693291)
517	6693292	Cord Reel Bk (old 787-33840-21/6693291)	€ 13.42
Steel Ball (old 673-35600-20)
518	6692271	Steel Ball (old 673-35600-20)	€ 1.11
Opnamespoel (old 790-33810-20)
519	6693358	Opnamespoel (old 790-33810-20)	€ 1.11
Cutting Body Cap (old 789-33840-20)
520	6693338	Cutting Body Cap (old 789-33840-20)	€ 10.70
Mounting Nut, L-m10x1.25 (old 315-33970-20)
521	6689098	Mounting Nut, L-m10x1.25 (old 315-33970-20)	€ 6.23
Protection Cover B (old 308-37861-20)
522	6688994	Protection Cover B (old 308-37861-20)	€ 2.24
Nameplate Cg47ej(t) (old 906-04292-20) New
601	6694143	Nameplate Cg47ej(t) (old 906-04292-20) New	€ 1.11
Symbol Mark Cg47ej(t) (old 929-04292-20) New
602	6694613	Symbol Mark Cg47ej(t) (old 929-04292-20) New	€ 1.02
Symbol Cg47ej (old 929-04293-20) New
603	6694614	Symbol Cg47ej (old 929-04293-20) New	€ 1.02
Épuisé
604	6694144	Épuisé
Name Plate (cg47ej(l)) (old 906-04298-20) New
605	6694147	Name Plate (cg47ej(l)) (old 906-04298-20) New	€ 1.02
Symbol Mark(cg47ej(l)) (old 929-04298-20) New
606	6694617	Symbol Mark(cg47ej(l)) (old 929-04298-20) New	€ 1.02

Votre panier contient 0 de produits.
