Dessins techniques et pièces de rechange Hikoki CG40EK

Recherche de pièces de rechange:
Hikoki
Type exact:
CG40EK

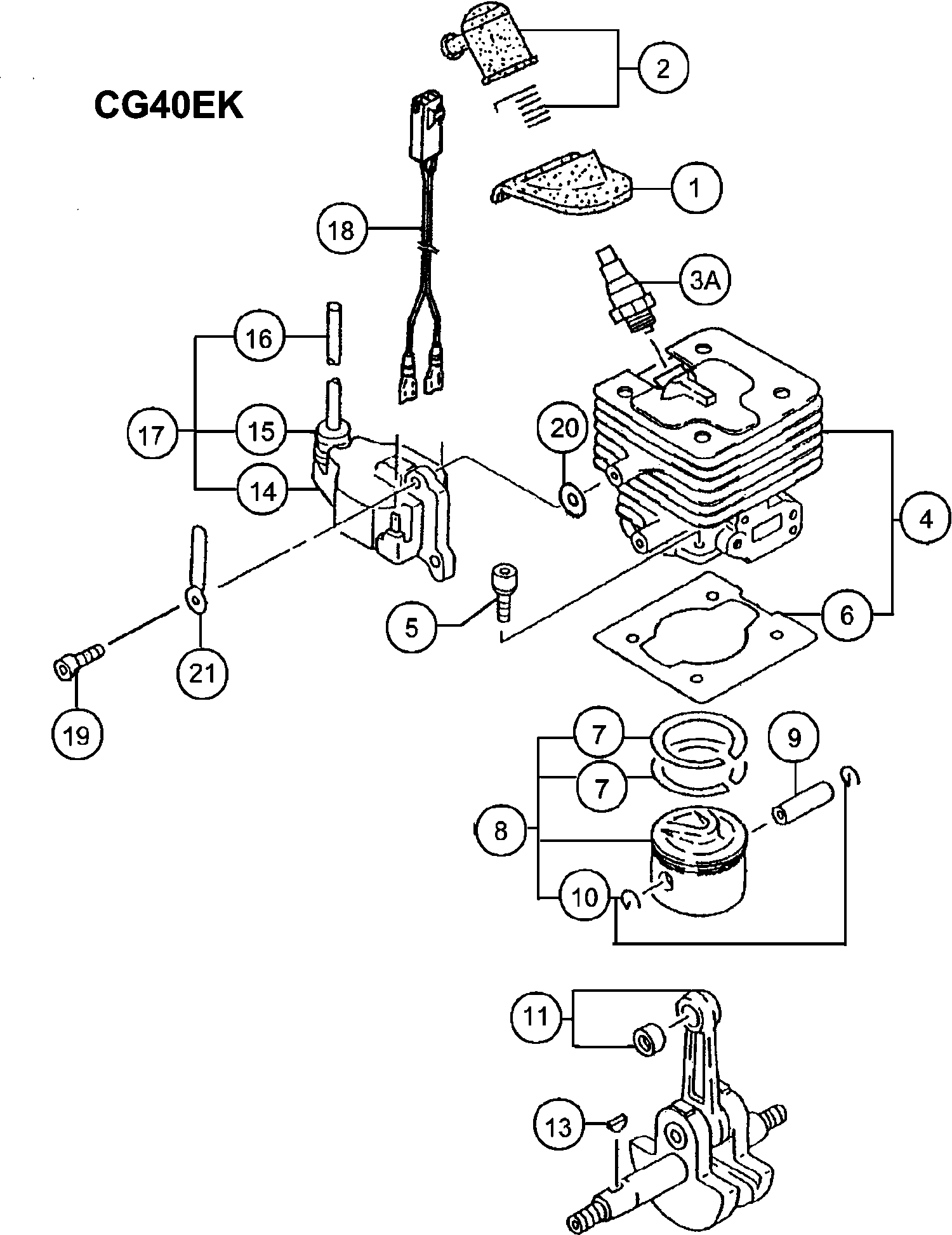

Dessins des HIKOKI CG40EK

Liste de pièces de rechange des HIKOKI CG40EK

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Spark Plug Rubber Cover (old 255-04200-20)
16688336Spark Plug Rubber Cover (old 255-04200-20)€ 3.17
Spark Plug Cap Ass'y (old 157-11666-90/6687472)
26687479Spark Plug Cap Ass'y (old 157-11666-90/6687472)€ 2.22
Bougie Rcj8y
3A6699328Bougie Rcj8y€ 3.17
Épuisé
46685476Épuisé
Épuisé
56684668Épuisé
Cylinder Gasket (old 017-04400-20)
66685741Cylinder Gasket (old 017-04400-20)€ 2.22
Piston Ring (old 041-04050-20)
76686123Piston Ring (old 041-04050-20)€ 4.27
Épuisé
86685889Épuisé
Piston Pin 10x30 (old 037-01000-20)
96686007Piston Pin 10x30 (old 037-01000-20)€ 2.22
Piston Pin Circlip (old 039-05004-20/790112)
106686032Piston Pin Circlip (old 039-05004-20/790112)€ 1.10
Crank Shaft Comp. (old 046-04400-80)
116686192Crank Shaft Comp. (old 046-04400-80)€ 81.02
Wood-ruff Key 3x13x5 (old 068-02000-20/790118)
136686457Wood-ruff Key 3x13x5 (old 068-02000-20/790118)€ 1.10
Bobine
146687655Bobine€ 34.70
Rubber Beschermkapje
156684602Rubber Beschermkapje€ 2.06
Hight Tension Cord (old 178-20543-22/6687884)
166687885Hight Tension Cord (old 178-20543-22/6687884)€ 1.10
Bobine (oud 167-20543-91 & 6687656)
176687657Bobine (oud 167-20543-91 & 6687656)€ 29.04
Lead Wire Ass'y (old 191-04405-90)
186687970Lead Wire Ass'y (old 191-04405-90)€ 4.27
Screw 4x18/ws (old 994-16040-183)
196695406Screw 4x18/ws (old 994-16040-183)€ 1.10
Ring (old 182-0186a-20)
206684600Ring (old 182-0186a-20)€ 2.06
Cord Clamp Comp. (old 198-11600-80/6691462/6691463
216688011Cord Clamp Comp. (old 198-11600-80/6691462/6691463€ 1.10
Protector (old 257-04400-20)
416688348Protector (old 257-04400-20)€ 4.27
Hex. Hole Bolt 5x20/ps (old 994-63050-204)
426684634Hex. Hole Bolt 5x20/ps (old 994-63050-204)€ 2.06
Small Nut 10 (old 991-11100-013/6695138/790215/669
456695139Small Nut 10 (old 991-11100-013/6695138/790215/669€ 1.00
Crank Case Ass'y (old 072-04400-91)
486686559Crank Case Ass'y (old 072-04400-91)€ 48.20
Crank Case Gasket (old 090-04400-20)
496686715Crank Case Gasket (old 090-04400-20)€ 1.10
Olie Keerring
506695637Olie Keerring€ 3.17
Épuisé
516695557Épuisé
Crank Shaft Shim 0.20 (old 071-02007-23)
526686472Crank Shaft Shim 0.20 (old 071-02007-23)€ 1.10
Crank Shaft Shim 0.30 (old 071-02007-24)
526686473Crank Shaft Shim 0.30 (old 071-02007-24)€ 1.10
Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
536684786Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)€ 2.06
Vliegwiel
546687372Vliegwiel€ 19.16
Bague
556695198Bague€ 1.10
Épuisé
566695138Épuisé
Enveloppe De Ventilateur
596686982Enveloppe De Ventilateur€ 21.35
Épuisé
606684668Épuisé
Primary Cord Grommet (old 203-11660-20)
616688057Primary Cord Grommet (old 203-11660-20)€ 1.10
Bague
626685226Bague€ 1.10
Inlaatpakking (old 403-04300-20/790156)
816689885Inlaatpakking (old 403-04300-20/790156)€ 2.22
CARB.INSULATOR SET, SPARE (OLD 404-04300-90)
826689955CARB.INSULATOR SET, SPARE (OLD 404-04300-90)€ 8.56
Carburetor Gasket (old 402-04300-20/790158)
836689833Carburetor Gasket (old 402-04300-20/790158)€ 1.10
Collar (old 470-01380-20)
856690802Collar (old 470-01380-20)€ 2.22
Cleaner Body Comp. (old 423-01380-82/6690097/66900
866690099Cleaner Body Comp. (old 423-01380-82/6690097/66900€ 5.06
Choke Valve (old 528-01380-21)
876691258Choke Valve (old 528-01380-21)€ 1.10
Blow Over Check Board (old 476-01700-20/790189)
886690843Blow Over Check Board (old 476-01700-20/790189)€ 1.10
Élément de filtre à air
896690352Élément de filtre à air€ 1.10
Épuisé
906684658Épuisé
Luchtfilterkap
916690397Luchtfilterkap€ 3.17
Special Screw (old 380-0637c-20)
926689737Special Screw (old 380-0637c-20)€ 1.10
Screw M5x60 (oud 990-11050-602)
936684660Screw M5x60 (oud 990-11050-602)€ 2.06
Ring (oud 992-10050-012)
946684662Ring (oud 992-10050-012)€ 2.06
Carburateurset
956690476Carburateurset€ 82.91
Bague
966693248Bague€ 1.10
Épuisé
976695425Épuisé
Tank Fixing Collar (old 649-01680-20)
986692182Tank Fixing Collar (old 649-01680-20)€ 2.22
Fuel Pipe Ass'y 3x5x230 (old 223-01251-90)
996688166Fuel Pipe Ass'y 3x5x230 (old 223-01251-90)€ 4.12
Clip D6 (old 680-00070-20)
100A6685198Clip D6 (old 680-00070-20)€ 1.10
Épuisé
101A6684620Épuisé
Tank White (old 591-04413-22/6691536)
1026691539Tank White (old 591-04413-22/6691536)€ 11.40
Collar C (old 659-04300-20)
1036684623Collar C (old 659-04300-20)€ 2.06
Tank Dop Compleet
1046691714Tank Dop Compleet€ 4.27
Rubber Beschermkapje
1056691369Rubber Beschermkapje€ 2.22
Air Vent Valve Ass'y (old 646-3252l-90)
1066692172Air Vent Valve Ass'y (old 646-3252l-90)€ 4.75
Air Vent Pipe (old 565-04400-21)
1076691394Air Vent Pipe (old 565-04400-21)€ 3.17
Épuisé
1086691385Épuisé
Hex. Hole Bolt 5x20/ps (old 994-63050-204)
1096684634Hex. Hole Bolt 5x20/ps (old 994-63050-204)€ 2.06
Engine Bed (old 940-04300-20)
1106694785Engine Bed (old 940-04300-20)€ 4.75
Fuel Pipe 3x5x80 (oud 700-03005-08)
1116684880Fuel Pipe 3x5x80 (oud 700-03005-08)€ 2.06
Clip 5.5 (old 680-00206-20)
1126692305Clip 5.5 (old 680-00206-20)€ 1.10
Fuel Pipe Grommet (old 222-06300-20)
1136688156Fuel Pipe Grommet (old 222-06300-20)€ 1.10
Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
1146684786Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)€ 2.06
Rondelle Ø 5
1156684918Rondelle Ø 5€ 2.06
Épuisé
1176684625Épuisé
Pump Filter Ass'y
1186601175Pump Filter Ass'y€ 3.01
Muffler Protector (old 738-0440a-21)
1316692783Muffler Protector (old 738-0440a-21)€ 12.36
Hex. Hole Bolt M5x12/s (old 994-61050-124)
1326684667Hex. Hole Bolt M5x12/s (old 994-61050-124)€ 2.06
Hex.hole Bolt 6x65 (old 990-51060-653)
1346695067Hex.hole Bolt 6x65 (old 990-51060-653)€ 1.10
Bague
1356684639Bague€ 2.06
Muffler Set,pn (old 704-04401-90)
1366692473Muffler Set,pn (old 704-04401-90)€ 27.01
Rondelle Ø 5
1376684918Rondelle Ø 5€ 2.06
Tail Pipe (old 721-04400-20)
1386692652Tail Pipe (old 721-04400-20)€ 3.17
Bague
1396685109Bague€ 1.10
Muffler Arrestor (old 732-04400-20)
1406692696Muffler Arrestor (old 732-04400-20)€ 2.22
Muffler Gasket (old 737-04230-20)
1416692741Muffler Gasket (old 737-04230-20)€ 1.10
Warmteschild
1426687246Warmteschild€ 9.19
Grommet (old 203-0604a-20)
144A6688050Grommet (old 203-0604a-20)€ 1.10
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
1456684709Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)€ 2.06
Rondelle Ø 5
1466684918Rondelle Ø 5€ 2.06
Bague
1476689645Bague€ 1.10
Koppelingsvoering Compleet
1486688614Koppelingsvoering Compleet€ 7.61
Clutch Spring (old 342-04200-20)
1496689428Clutch Spring (old 342-04200-20)€ 1.10
RING
1506695203RING€ 1.10
Clutch Step Bolt (old 357-04201-20)
1516689632Clutch Step Bolt (old 357-04201-20)€ 3.17
Épuisé
1526699556Épuisé
Recoil Starter Body Ass'y
171A6697645Recoil Starter Body Ass'y€ 20.90
Recoil Starter Body Comp. (old 772-04220-80)
1726693025Recoil Starter Body Comp. (old 772-04220-80)€ 13.62
Recoil Starter Body Comp.
172A6697646Recoil Starter Body Comp.€ 11.24
Starter Rope Reel (old 769-04220-20)
1736693007Starter Rope Reel (old 769-04220-20)€ 4.75
Starter Rope Reel
173A6697647Starter Rope Reel€ 3.96
Recoil Spring (old 779-04220-20)
1746693114Recoil Spring (old 779-04220-20)€ 8.71
STARTER SPRING
174A6697648STARTER SPRING€ 7.28
Starter Rope (old 783-04270-20/6693164)
1756693165Starter Rope (old 783-04270-20/6693164)€ 3.17
STARTER ROPE
175A6697649STARTER ROPE€ 2.69
Starthendel
1766693607Starthendel€ 2.22
Starthendel
1776693232Starthendel€ 3.17
Starthendel
177A6697650Starthendel€ 2.69
Set Screw (old 839-04220-20)
1786693634Set Screw (old 839-04220-20)€ 1.10
Starter Pawl (old 788-0162v-20)
1796693302Starter Pawl (old 788-0162v-20)€ 2.22
Épuisé
179A6697643Épuisé
D4e Retaining Ring (old 993-55040-001)
1806685101D4e Retaining Ring (old 993-55040-001)€ 1.10
Hex. Hole Bolt 5x20/ps (old 994-63050-204)
1816684634Hex. Hole Bolt 5x20/ps (old 994-63050-204)€ 2.06
Starter Pawl Spring (old 790-0162v-20)
1826693345Starter Pawl Spring (old 790-0162v-20)€ 2.22
Épuisé
182A6697642Épuisé
Starter Pulley (old 798-04220-90)
1836693395Starter Pulley (old 798-04220-90)€ 10.61
Starter Pulley
183A6697644Starter Pulley€ 10.61
Throttle Set Screw (oud 514-25100-20)
1916684870Throttle Set Screw (oud 514-25100-20)€ 2.06
Cable Adjuster Stay (oud 544-25164-20)
1926684873Cable Adjuster Stay (oud 544-25164-20)€ 6.18
Swivel (oud 539-25120-20)
1936684697Swivel (oud 539-25120-20)€ 6.18
Ring (oud 549-25165-20)
1946684874Ring (oud 549-25165-20)€ 2.06
Stop Ring (oud 489-25100-20)
1956684696Stop Ring (oud 489-25100-20)€ 2.06
Cable Adjuster (oud 614-25137-20)
1966684871Cable Adjuster (oud 614-25137-20)€ 4.12
O-RING (OUD 550-25100-20)
1976684695O-RING (OUD 550-25100-20)€ 4.12
Main Jet, #44.5 (old 599-200bw-44/6691876)
1986696131Main Jet, #44.5 (old 599-200bw-44/6691876)€ 6.18
Lock Nut M6 (oud 991-01060-013)
1996684872Lock Nut M6 (oud 991-01060-013)€ 2.06
Pump Gasket (old 577-25100-20)
2006691457Pump Gasket (old 577-25100-20)€ 6.82
Pump Diaphragm (old 576-25100-20 & 6696325)
2016684693Pump Diaphragm (old 576-25100-20 & 6696325)€ 8.23
Inlet Screen (oud 578-25007-20)
2026684700Inlet Screen (oud 578-25007-20)€ 4.12
Pump Body Comp. (old 575-25153-80)
2036684879Pump Body Comp. (old 575-25153-80)€ 59.68
Diaphragm Gasket (oud 475-25153-20)
2046684691Diaphragm Gasket (oud 475-25153-20)€ 8.23
Metering Diaphragm Comp. (old 474-25001-80/6690826
2056690827Metering Diaphragm Comp. (old 474-25001-80/6690826€ 11.24
Diaphragm Cover (oud 476-25151-20)
2066684688Diaphragm Cover (oud 476-25151-20)€ 8.23
Set Screw (old 548-25151-20 & 6696324)
2076684699Set Screw (old 548-25151-20 & 6696324)€ 2.06
Cleaner Packing (oud 431-0634c-20)
2086684875Cleaner Packing (oud 431-0634c-20)€ 4.12
Priming Pump Comp. (oud 442-25151-80)
2096684687Priming Pump Comp. (oud 442-25151-80)€ 15.68
Priming Body (oud 447-25108-20)
2106684689Priming Body (oud 447-25108-20)€ 6.18
Clutch Shaft Comp. (old 289-04300-80)
2316688584Clutch Shaft Comp. (old 289-04300-80)€ 13.94
Roulement à billes
2326695559Roulement à billes€ 6.18
Stop Ring C-15, Outer (old 993-50015-002)
2336695285Stop Ring C-15, Outer (old 993-50015-002)€ 1.10
Clutch Case (old 331-04300-20)
2346689194Clutch Case (old 331-04300-20)€ 13.94
Cushion Rubber (old 599-04300-20)
2366691829Cushion Rubber (old 599-04300-20)€ 4.27
Hex. Hole Bolt 5x16 (old 990-51050-163)
238A6695046Hex. Hole Bolt 5x16 (old 990-51050-163)€ 1.10
Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530
2396685064Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530€ 1.10
Hex Hole Bolt 5 X 25 (old 990-54050-253)
2406695091Hex Hole Bolt 5 X 25 (old 990-54050-253)€ 1.10
Pipe Holder (old 360-04300-21)
242A6689655Pipe Holder (old 360-04300-21)€ 3.17
Rondelle Ø 5
2446684918Rondelle Ø 5€ 2.06
Metal Fitting (old 361-00990-20)
2456689664Metal Fitting (old 361-00990-20)€ 3.17
Drive Shaft (old 343-37850-20)
2616689471Drive Shaft (old 343-37850-20)€ 15.97
Épuisé
2626699277Épuisé
Épuisé
2636699278Épuisé
Tapping Screw 5x20 (old 993-11052-012)
2656695255Tapping Screw 5x20 (old 993-11052-012)€ 1.10
Bague
2666689681Bague€ 1.10
Handle Grip (old 503-3738e-20)
2676691098Handle Grip (old 503-3738e-20)€ 6.18
Bolt 6x43/p (black) (old 994-23060-432)
2686684838Bolt 6x43/p (black) (old 994-23060-432)€ 2.06
Épuisé
2696691049Épuisé
Barrier, 26 Dia, Black (old 520-33398-20)
2706691231Barrier, 26 Dia, Black (old 520-33398-20)€ 5.39
Hex.nut 6 (old 6684792/991-01060-041/790444)
2716684835Hex.nut 6 (old 6684792/991-01060-041/790444)€ 2.06
Throttle Lever Ass'y (old 870-38103-90)
2726693760Throttle Lever Ass'y (old 870-38103-90)€ 36.73
Gaskabel
2736693973Gaskabel€ 19.02
Throttle Wire (old 887-38103-80)
2746694020Throttle Wire (old 887-38103-80)€ 7.92
Stop Switch Comp. (old 156-38103-80)
2756687456Stop Switch Comp. (old 156-38103-80)€ 14.26
Protection Tube 200l (old 164-07020-00) New
2766687529Protection Tube 200l (old 164-07020-00) New€ 1.01
Safety Lever (old 253-38400-20)
2776684721Safety Lever (old 253-38400-20)€ 6.18
Return Spring (old 832-38400-20)
2786684722Return Spring (old 832-38400-20)€ 2.06
Blind Plug (old 322-38400-20)
2796684724Blind Plug (old 322-38400-20)€ 2.06
Screw M5x20 (old 994-31050-203)
2806684803Screw M5x20 (old 994-31050-203)€ 2.06
Contal Nut 5 (old 991-01050-043)
2816684727Contal Nut 5 (old 991-01050-043)€ 2.06
Screw M4x20 (black) (old 993-46040-202)
2826684725Screw M4x20 (black) (old 993-46040-202)€ 2.06
Throttle Lever (old 880-38400-20)
2836684804Throttle Lever (old 880-38400-20)€ 8.23
Hex. Nut 5 (old 991-01050-011)
2916684965Hex. Nut 5 (old 991-01050-011)€ 1.00
Lifting Metal (old 335-33410-20)
2926689264Lifting Metal (old 335-33410-20)€ 2.22
Hex.hole Bolt M5x16/s (old 994-61050-164)
2936684903Hex.hole Bolt M5x16/s (old 994-61050-164)€ 2.06
Carter
3316688813Carter€ 77.10
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
3326684709Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)€ 2.06
Stop Ring C-24.inner (old 993-51024-002)
3336684732Stop Ring C-24.inner (old 993-51024-002)€ 2.06
Stop Ring C-9, Outer (old 993-50009-002)
3346695281Stop Ring C-9, Outer (old 993-50009-002)€ 1.10
Roulement à billes
3356684735Roulement à billes€ 8.23
Roulement à billes
3366684734Roulement à billes€ 8.23
Gear Case, Silver (old 300-3330b-20)
3376688685Gear Case, Silver (old 300-3330b-20)€ 13.31
Hex. Hole Bolt 5x10 (old 990-51050-103)
3386695042Hex. Hole Bolt 5x10 (old 990-51050-103)€ 1.10
Plus Head Bolt 8x10 (old 994-23080-100/6694968)
3396695437Plus Head Bolt 8x10 (old 994-23080-100/6694968)€ 1.10
Roulement à billes
3406695569Roulement à billes€ 4.27
Gear Shaft (old 304-38331-20)
3416688947Gear Shaft (old 304-38331-20)€ 13.97
Roulement à billes
3426695554Roulement à billes€ 5.70
Stop Ring C-32, Inner (old 993-51032-002/791058)
3436695295Stop Ring C-32, Inner (old 993-51032-002/791058)€ 1.10
Cutter Holder, 12x10x1 (old 310-38100-20 & 6689017
3446689031Cutter Holder, 12x10x1 (old 310-38100-20 & 6689017€ 11.09
Cutter Holder Cap, 12x10x1 (old 311-37850-20)
3456689050Cutter Holder Cap, 12x10x1 (old 311-37850-20)€ 4.27
Protection Cover B (old 308-37861-20)
3466688994Protection Cover B (old 308-37861-20)€ 2.22
Cutter Fixing Nut L/h (old 313-38100-20/790241)
3476689072Cutter Fixing Nut L/h (old 313-38100-20/790241)€ 2.22
Bague
3486689159Bague€ 1.10
Bague
3496686453Bague€ 2.22
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
3506684714HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)€ 2.06
Cover Bracket D26 (old 442-38331-20)
3516690315Cover Bracket D26 (old 442-38331-20)€ 4.27
Blade Guard 26 Ce (old 441-37380-21/6690241)
3526690242Blade Guard 26 Ce (old 441-37380-21/6690241)€ 15.97
Blade Guard 26ce (old 441-38331-20)
352A6690276Blade Guard 26ce (old 441-38331-20)€ 16.85
Safety Cover Holder (old 445-37380-20)
3536684748Safety Cover Holder (old 445-37380-20)€ 4.12
Cover Guard (old 447-37380-20)
3546690372Cover Guard (old 447-37380-20)€ 9.19
Blade Guard (old 447-38331-20)
354A6690376Blade Guard (old 447-38331-20)€ 9.02
Mesje (oud 797-37380-21/6693385)
3556693386Mesje (oud 797-37380-21/6693385)€ 4.27
Mesje (oud 797-37714-20)
355A6684750Mesje (oud 797-37714-20)€ 4.12
Screw 5x12/s (old 994-14050-121)
3566695334Screw 5x12/s (old 994-14050-121)€ 1.10
Tapping Screw 4x14 (old 993-48040-142)
356A6684751Tapping Screw 4x14 (old 993-48040-142)€ 2.06
Gear-pinion Set, Spare (old 301-37134-00)
3576688868Gear-pinion Set, Spare (old 301-37134-00)€ 23.23
Hex. Nut 5 (old 991-01050-011)
3586684965Hex. Nut 5 (old 991-01050-011)€ 1.00
Tapping Screw 5x20 (old 993-17052-002)
3596684753Tapping Screw 5x20 (old 993-17052-002)€ 2.06
Mesje (oud 797-38331-20)
3606684754Mesje (oud 797-38331-20)€ 8.23
ZESKANTSLEUTEL 17/19MM
5016684764ZESKANTSLEUTEL 17/19MM€ 3.80
Épuisé
5026684813Épuisé
Épuisé
5036699555Épuisé
Cutter Cover (old 615-37224-20/790290)
503B6684768Cutter Cover (old 615-37224-20/790290)€ 2.06
Épuisé
504A875769Épuisé
SHOULDER BELT ASS'Y
5056692874SHOULDER BELT ASS'Y€ 16.85
SNIJBLAD B3/10/2.0 (OLD 000-79647-00 & 6693502)
5066695791SNIJBLAD B3/10/2.0 (OLD 000-79647-00 & 6693502)€ 15.10
Nylon Cord Cutter
5216601148Nylon Cord Cutter€ 18.44
Case
5226601149Case€ 10.30
Ecrou (1)
5236601150Ecrou (1)€ 6.65
Reel Spring (old 793-38454-20)
5246693380Reel Spring (old 793-38454-20)€ 3.17
Line Holder
5256601151Line Holder€ 7.28
Couvercle (1)
5266601152Couvercle (1)€ 7.44
Eyelet (old 788-37770-20)
5276684810Eyelet (old 788-37770-20)€ 2.06
Name Plate Cg40ek(p) (old 906-04416-20) New
6016694160Name Plate Cg40ek(p) (old 906-04416-20) New€ 1.01
Symbol Mark Hitachi (old 929-04416-21)
6026694626Symbol Mark Hitachi (old 929-04416-21)€ 2.02
Symbol Mark (old 929-38100-20) New
6036694741Symbol Mark (old 929-38100-20) New€ 3.17
Votre panier contient 0 de produits.
