Dessins techniques et pièces de rechange Hikoki CG27EAP2

Recherche de pièces de rechange:
Hikoki
Type exact:
CG27EAP2

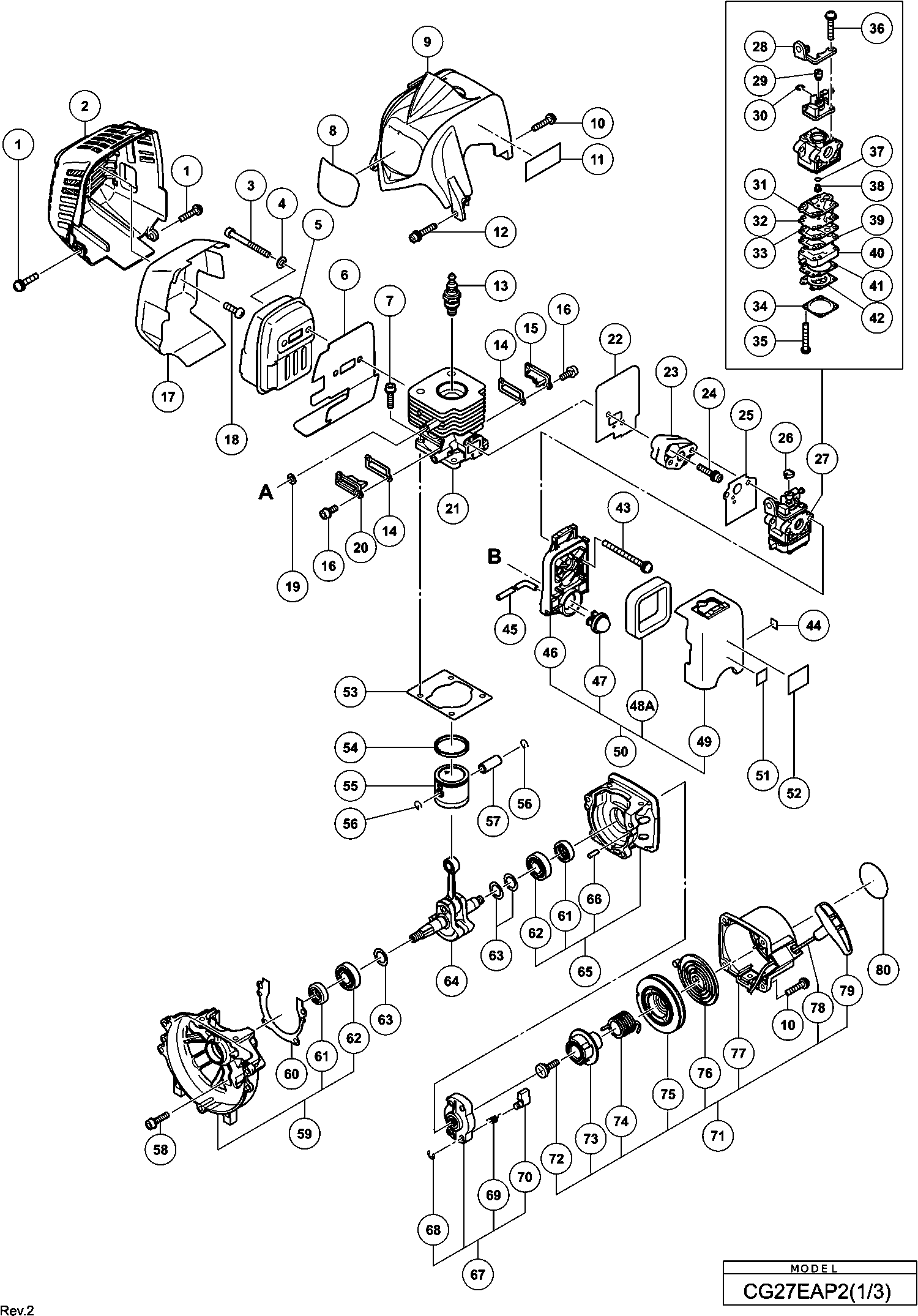

Dessins des HIKOKI CG27EAP2

Liste de pièces de rechange des HIKOKI CG27EAP2

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Épuisé
1887021Épuisé
Knaldemper Afdekkap
26600322Knaldemper Afdekkap€ 6.68
Hex. Socket Hd Bolt M6x65
36698384Hex. Socket Hd Bolt M6x65€ 1.02
Rondelle M.6 (x10) paquet de 10
4949432Rondelle M.6 (x10) paquet de 10€ 1.02
Muffler (b)
56600004Muffler (b)€ 25.02
Hitteschild
66600324Hitteschild€ 1.31
Hex. Socket Bolt M5
76696958Hex. Socket Bolt M5€ 2.03
Cilinder Afdekkap
96697921Cilinder Afdekkap€ 5.90
Vis Ø 4*20
10307606Vis Ø 4*20€ 1.02
Seal Lock Hex. Socket Hd. Bolt M5x30
126698950Seal Lock Hex. Socket Hd. Bolt M5x30€ 1.16
Bougie Bmr7a
136699316Bougie Bmr7a€ 8.63
Cover Packing
146698365Cover Packing€ 1.02
Uitlaatgas Ventiel Deksel (a)
156698484Uitlaatgas Ventiel Deksel (a)€ 2.03
Hex. Socket Hd Bolt M4x12
166698385Hex. Socket Hd Bolt M4x12€ 1.02
Muffler Heat Cover
176600422Muffler Heat Cover€ 5.52
Tapping Screw D4x10
186600325Tapping Screw D4x10€ 1.00
Bague
196698700Bague€ 1.16
Uitlaatgas Ventiel Deksel (b)
206698485Uitlaatgas Ventiel Deksel (b)€ 2.03
Cylindre
216698480Cylindre€ 44.19
Joint
226698473Joint€ 1.02
Carburetor Insulator
236698387Carburetor Insulator€ 3.05
Seal Lock Hex. Socket Bolt M5x25 (w/washers)
246698844Seal Lock Hex. Socket Bolt M5x25 (w/washers)€ 1.16
Carbureteur Pakking
256698405Carbureteur Pakking€ 2.03
Swivel Cap (old 560-07120-21/6684628)
266691337Swivel Cap (old 560-07120-21/6684628)€ 1.11
Carburator
276698489Carburator€ 57.04
Cable Adjust Stay
286699287Cable Adjust Stay€ 3.99
Swivel
296696830Swivel€ 4.31
Stop Ring (oud 489-25100-20)
306684696Stop Ring (oud 489-25100-20)€ 2.08
Pump Gasket (old 577-25292-20 & 6696321)
316684692Pump Gasket (old 577-25292-20 & 6696321)€ 28.25
Pump Diaphragm (old 576-25100-20 & 6696325)
326684693Pump Diaphragm (old 576-25100-20 & 6696325)€ 8.30
Pump Plate (old 523-25100-20)
336691242Pump Plate (old 523-25100-20)€ 2.24
Diaphragm Cover (old 476-25004-20)
346685222Diaphragm Cover (old 476-25004-20)€ 4.31
Set Screw (old 548-25101-20)
356691312Set Screw (old 548-25101-20)€ 1.11
Set Screw M3x12
366696829Set Screw M3x12€ 1.00
O-RING (OUD 550-25100-20)
376684695O-RING (OUD 550-25100-20)€ 4.15
Circuit Plate (old 522-25100-20)
396691234Circuit Plate (old 522-25100-20)€ 3.19
Pump Body
406696828Pump Body€ 12.93
Diaphragm Packing (old 475-25038-20)
416685220Diaphragm Packing (old 475-25038-20)€ 2.24
Metering Diaphragm (old 474-25601-20)
426684690Metering Diaphragm (old 474-25601-20)€ 17.42
Vis M.5*60
43307224Vis M.5*60€ 1.02
Mark Plate (t)
446600327Mark Plate (t)€ 1.00
Fuel Pipe
45B6601444Fuel Pipe€ 1.00
Épuisé
466696832Épuisé
Priming Pump Comp. (old 442-25143-80)
476685139Priming Pump Comp. (old 442-25143-80)€ 5.75
Cleaner Sponge
48A6600704Cleaner Sponge€ 3.68
Épuisé
496696831Épuisé
Air Cleaner Ass'y
506696549Air Cleaner Ass'y€ 8.83
Primer Label
516699000Primer Label€ 1.00
Cylinder Packing
536698366Cylinder Packing€ 1.02
Piston Ring (old 041-01700-20)
546686121Piston Ring (old 041-01700-20)€ 4.31
Piston
556698483Piston€ 8.42
Piston Pin Circlip (old 039-00601-20)
566684590Piston Pin Circlip (old 039-00601-20)€ 2.08
Goupille
576684591Goupille€ 4.15
Hex. Socket Hd Bolt M5x18 (w/sp.washer)
586698386Hex. Socket Hd Bolt M5x18 (w/sp.washer)€ 1.02
Crank Case Ass'y (b)
596698370Crank Case Ass'y (b)€ 15.17
Crank Case Packing
606698371Crank Case Packing€ 1.02
Olie Keerring
616684607Olie Keerring€ 4.15
Roulement à billes
626684608Roulement à billes€ 3.68
Épuisé
636698490Épuisé
Krukas
646698488Krukas€ 53.37
Crank Case Ass'y (a)
656698369Crank Case Ass'y (a)€ 12.92
Knock Pin 4x12
666696947Knock Pin 4x12€ 1.02
Starter Pulley Ass'y (old 798-0651h-90)
676684681Starter Pulley Ass'y (old 798-0651h-90)€ 12.78
Stop Ring E-5 (old 993-55050-000)
686684683Stop Ring E-5 (old 993-55050-000)€ 2.08
Starter Pawl Spring (old 790-06097-20)
696684684Starter Pawl Spring (old 790-06097-20)€ 4.15
Starter Pawl (old 788-0651h-20)
706684685Starter Pawl (old 788-0651h-20)€ 4.15
Épuisé
716699995Épuisé
SET SCREW (OLD 839-03045-20)
726684679SET SCREW (OLD 839-03045-20)€ 2.08
Cam Plate
736699996Cam Plate€ 2.47
Dumper Spring (old 758-0651h-20)
746684677Dumper Spring (old 758-0651h-20)€ 8.30
Starter Rope Reel
756699997Starter Rope Reel€ 8.14
Recoil Spring (old 780-06097-20/6697591)
766684675Recoil Spring (old 780-06097-20/6697591)€ 11.18
Recoil Starter Body Comp. (old 772-07350-80)
776684673Recoil Starter Body Comp. (old 772-07350-80)€ 18.45
Starter Rope 3.5x860 (old 783-0720f-20/6697590)
786684674Starter Rope 3.5x860 (old 783-0720f-20/6697590)€ 4.15
Starthendel
796684680Starthendel€ 2.08
Vis 4x20 Noir
91302086Vis 4x20 Noir€ 1.02
Vis Ø 4*16 Noir
91305812Vis Ø 4*16 Noir€ 1.00
Handle (b)
926696487Handle (b)€ 3.34
Lock Lever
936696490Lock Lever€ 1.00
Levier (1)
946696488Levier (1)€ 1.00
Spring (a)
956696489Spring (a)€ 1.00
Stop Switch
96A6601275Stop Switch€ 1.31
Stop Switch Cord
976696491Stop Switch Cord€ 1.74
Stop Switch Cord
976696592Stop Switch Cord€ 2.03
Protection Tube
986696594Protection Tube€ 2.03
Protection Tube
986696967Protection Tube€ 1.02
Gaskabel
996696560Gaskabel€ 4.04
Gaskabel
996696593Gaskabel€ 4.94
Handle (a)
1006696486Handle (a)€ 3.34
Hex. Socket Hd. Bolt M5x12 (w/sp.washer)
1016699176Hex. Socket Hd. Bolt M5x12 (w/sp.washer)€ 1.00
Hex. Hole Bolt 5x22/s (old 994-61050-224)
1026695492Hex. Hole Bolt 5x22/s (old 994-61050-224)€ 1.11
Anti Vibe Rubber (a)
1036696963Anti Vibe Rubber (a)€ 3.22
Pipe Holder (a)
1046698643Pipe Holder (a)€ 2.03
Pipe Holder (b)
1056698644Pipe Holder (b)€ 2.03
Anti Vibe Rubber (b)
1066696964Anti Vibe Rubber (b)€ 3.22
Circlips Ø12 (x10) paquet de 10
107939542Circlips Ø12 (x10) paquet de 10€ 1.45
Ventilatorhuis (oud 6698486)
1086697922Ventilatorhuis (oud 6698486)€ 11.34
Clutch Shaft
1096699400Clutch Shaft€ 8.57
Step Bolt
1106696469Step Bolt€ 1.00
Bague
1116684648Bague€ 2.08
Clutch Plate (a)
1126696546Clutch Plate (a)€ 1.02
Clutch
1136696948Clutch€ 11.27
Rondelle
1146696547Rondelle€ 1.02
Ecrou
1156685337Ecrou€ 1.02
Rondelle Diam 8 Noir H65sd2
116323212Rondelle Diam 8 Noir H65sd2€ 1.02
Hex. Socket Hd Bolt M4x18 (w/washers)
1176698388Hex. Socket Hd Bolt M4x18 (w/washers)€ 1.02
Bobine
1186698492Bobine€ 22.09
Cord
1196698495Cord€ 2.03
Plug Cap (old 6699932)
120A6601421Plug Cap (old 6699932)€ 1.00
Plug Cap Metal
1216699186Plug Cap Metal€ 1.00
Earth Cord
1226696545Earth Cord€ 1.02
Magneto Rotor
1236698396Magneto Rotor€ 8.42
Entretoise (1)
1246699558Entretoise (1)€ 1.00
Brandstofleiding
1266698716Brandstofleiding€ 3.34
Brandstofleiding L70
127A6699014Brandstofleiding L70€ 1.60
Tank Dop Compleet
1296698402Tank Dop Compleet€ 4.07
Tank Cap Chain
1306698732Tank Cap Chain€ 1.16
Resevoir
1316600317Resevoir€ 7.70
Tank (c)
131A6600354Tank (c)€ 3.34
Pomp Filter
1326600351Pomp Filter€ 2.61
Clip
1336696949Clip€ 1.62
Stand (old 940-07350-20)
1346694787Stand (old 940-07350-20)€ 3.19
Flange Bolt
1356696557Flange Bolt€ 1.02
Bout L27.8
1366698991Bout L27.8€ 1.16
Tapping Screw (w/flange) D4x30
151323837Tapping Screw (w/flange) D4x30€ 1.62
Machine Screw M5x30 (black)
152323041Machine Screw M5x30 (black)€ 1.02
Handle Right
1536698637Handle Right€ 18.50
Handle (b)
1546696590Handle (b)€ 3.02
Loop Handle
1606696975Loop Handle€ 8.69
Handle (a)
1616696588Handle (a)€ 2.03
Ecrou M.5
162302012Ecrou M.5€ 1.02
Bolt (black) M6
1656696974Bolt (black) M6€ 1.62
Barrier
1666696973Barrier€ 3.22
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
1676684709Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)€ 2.08
Handle Holder (a) (old 6696576)
168A6600500Handle Holder (a) (old 6696576)€ 4.07
Handle Left
1696698638Handle Left€ 22.09
Handle Holder (b) (old 6696577)
170A6600501Handle Holder (b) (old 6696577)€ 6.97
Handle Holder (c)
1716696578Handle Holder (c)€ 2.03
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
1726684714HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)€ 2.08
Carter
1736699402Carter€ 48.71
Bolt (w/plus) M6x8 (old 990-23060-080)
1746684737Bolt (w/plus) M6x8 (old 990-23060-080)€ 2.08
Cutter Holder (a)
1756696977Cutter Holder (a)€ 12.90
Cutter Holder (b)
1766698659Cutter Holder (b)€ 12.62
NUT COVER
1776699188NUT COVER€ 6.82
Linksmoer M10 (oud 6698658)
178335759Linksmoer M10 (oud 6698658)€ 1.00
Screw 5x12/w.s (old 994-16050-121)
1796695414Screw 5x12/w.s (old 994-16050-121)€ 1.11
Hex.socket Hd.bolt M5x30 (10 Pcs)
180949664Hex.socket Hd.bolt M5x30 (10 Pcs)€ 3.63
Cover Blacket
1816696494Cover Blacket€ 1.74
Caution Label (hedge)
1826600328Caution Label (hedge)€ 1.00
Caution Mark Hitachi
1836600450Caution Mark Hitachi€ 1.74
Level Mark (old 923-33700-20)
1886684851Level Mark (old 923-33700-20)€ 2.08
Main Pipe Comp (old 6696483)
1896696558Main Pipe Comp (old 6696483)€ 17.12
Drive Shaft (old 6696484)
1906698514Drive Shaft (old 6696484)€ 15.10
Hanger
191A6600504Hanger€ 1.16
Cap (a)
1926698515Cap (a)€ 2.03
Cover Comp. W/ Shaft M10x.125 Left
1936698794Cover Comp. W/ Shaft M10x.125 Left€ 9.00
Set Screw
1956698795Set Screw€ 1.31
Reel
1966698796Reel€ 2.32
Return Spring
1976698797Return Spring€ 1.02
Bouton (1)
1986698798Bouton (1)€ 1.16
Cord Guide
1996698799Cord Guide€ 1.16
Case
2006698800Case€ 6.39
Épuisé
2016696454Épuisé
COVER
2026696980COVER€ 16.82
Safety Cover Holder
2036696951Safety Cover Holder€ 3.22
Cover Guard
2046696950Cover Guard€ 10.62
Tapping Screw 4x14 (old 993-48040-142)
2056684751Tapping Screw 4x14 (old 993-48040-142)€ 2.08
Mesje (oud 797-37714-20)
2066684750Mesje (oud 797-37714-20)€ 4.15
Handle Holder Set (a+b) (old 6696576+6696577)
2126600499Handle Holder Set (a+b) (old 6696576+6696577)€ 10.31
Vis M.5*10 (paquet de 10) For Irl
213949236Vis M.5*10 (paquet de 10) For Irl€ 1.02
ZESKANTSLEUTEL 17/19MM
5016684764ZESKANTSLEUTEL 17/19MM€ 3.84
Épuisé
5026696596Épuisé
INBUSSLEUTEL 4MM
503944458INBUSSLEUTEL 4MM€ 1.31
Cutter Cover (old 615-37224-20/790290)
504A6684768Cutter Cover (old 615-37224-20/790290)€ 2.08
Épuisé
5056698711Épuisé
Épuisé
506875769Épuisé
SHOULDER BELT SINGLE
507A6601420SHOULDER BELT SINGLE€ 6.10
Épuisé
5086696184Épuisé
