Dessins techniques et pièces de rechange Hikoki CF18DSL
Type exact:
CF18DSL
CF18DSL

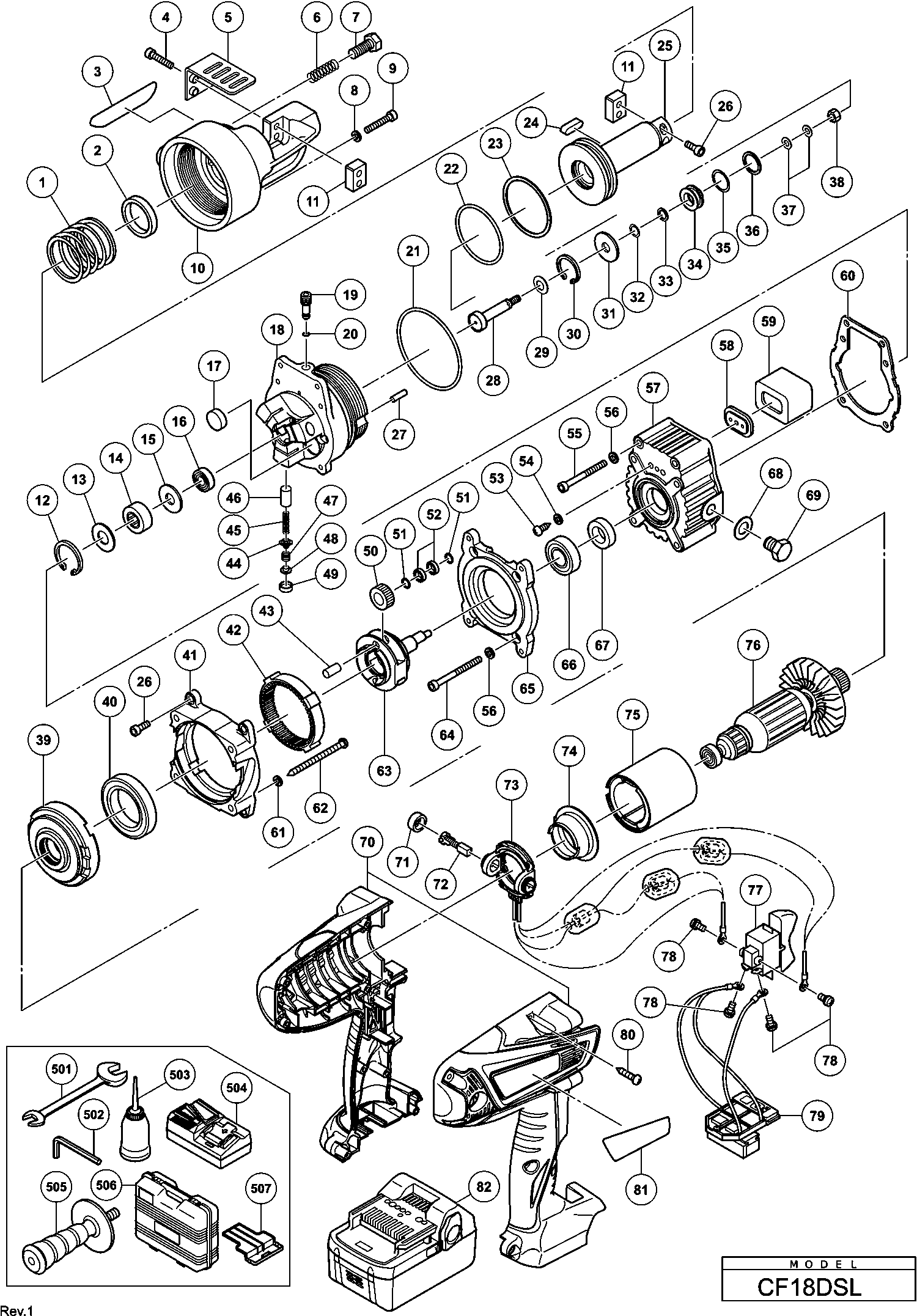

Dessins des HIKOKI CF18DSL
Liste de pièces de rechange des HIKOKI CF18DSL
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Return Spring | ||||
| 1 | 339395 | Return Spring | € 42.77 | |
| Packing | ||||
| 2 | 339394 | Packing | € 11.81 | |
| Hex.socket Hd.bolt M5x22 | ||||
| 4 | 339393 | Hex.socket Hd.bolt M5x22 | € 2.45 | |
| Scatter Prevent Guard | ||||
| 5 | 339392 | Scatter Prevent Guard | € 7.06 | |
| Lock Spring | ||||
| 6 | 339391 | Lock Spring | € 10.94 | |
| Hex.bolt M10x25 | ||||
| 7 | 339389 | Hex.bolt M10x25 | € 1.15 | |
| Seal Washer | ||||
| 8 | 339388 | Seal Washer | € 4.75 | |
| Hex.socket Hd.bolt M5x35 | ||||
| 9 | 339387 | Hex.socket Hd.bolt M5x35 | € 2.45 | |
| Carter (1) | ||||
| 10 | 339386 | Carter (1) | € 967.96 | |
| Cutter Block (2 Pcs) | ||||
| 11 | 339390 | Cutter Block (2 Pcs) | € 146.92 | |
| Clip De Retenue (1) | ||||
| 12 | 339425 | Clip De Retenue (1) | € 2.30 | |
| Bearing Guide | ||||
| 13 | 339422 | Bearing Guide | € 2.30 | |
| Roul. A Aiguilles (1) | ||||
| 14 | 339423 | Roul. A Aiguilles (1) | € 30.62 | |
| Bearing Guide | ||||
| 15 | 339424 | Bearing Guide | € 2.30 | |
| Kogellager 635 7635 | ||||
| 16 | 339421 | Kogellager 635 7635 | € 30.62 | |
| Magnet Filter 18x8 | ||||
| 17 | 339417 | Magnet Filter 18x8 | € 5.62 | |
| Cylindre | ||||
| 18 | 339412 | Cylindre | € 976.27 | |
| Release Valve | ||||
| 19 | 339415 | Release Valve | € 20.46 | |
| Joint Torique | ||||
| 20 | 339416 | Joint Torique | € 4.46 | |
| Joint Torique | ||||
| 21 | 339414 | Joint Torique | € 8.93 | |
| Joint Torique | ||||
| 22 | 339399 | Joint Torique | € 9.50 | |
| Back-up Ring | ||||
| 23 | 339400 | Back-up Ring | € 11.81 | |
| Key 6x6x23 | ||||
| 24 | 339397 | Key 6x6x23 | € 7.06 | |
| Piston (1) | ||||
| 25 | 339396 | Piston (1) | € 534.34 | |
| Hex.socket Hd.bolt M5x15 | ||||
| 26 | 339398 | Hex.socket Hd.bolt M5x15 | € 1.87 | |
| Spring Pin D3x10 | ||||
| 27 | 339413 | Spring Pin D3x10 | € 2.30 | |
| Return Valve | ||||
| 28 | 339401 | Return Valve | € 64.15 | |
| Belleville Spring Washer 8 | ||||
| 29 | 339402 | Belleville Spring Washer 8 | € 1.00 | |
| Clip De Retenue (1) | ||||
| 30 | 339403 | Clip De Retenue (1) | € 2.45 | |
| Guide Clamp | ||||
| 31 | 339404 | Guide Clamp | € 19.27 | |
| Packing | ||||
| 32 | 339405 | Packing | € 14.11 | |
| Back-up Ring | ||||
| 33 | 339406 | Back-up Ring | € 11.09 | |
| Return Valve Guide | ||||
| 34 | 339407 | Return Valve Guide | € 50.95 | |
| Joint Torique | ||||
| 35 | 339408 | Joint Torique | € 4.46 | |
| Back-up Ring | ||||
| 36 | 339409 | Back-up Ring | € 11.23 | |
| Plain Washer D5 | ||||
| 37 | 339410 | Plain Washer D5 | € 1.00 | |
| U-nut M5 | ||||
| 38 | 339411 | U-nut M5 | € 2.30 | |
| Inner Cover | ||||
| 39 | 339448 | Inner Cover | € 65.08 | |
| Kogellager 61907 (gb) | ||||
| 40 | 334310 | Kogellager 61907 (gb) | € 13.68 | |
| Distance Piece M | ||||
| 41 | 339444 | Distance Piece M | € 366.17 | |
| Ringtandwiel | ||||
| 42 | 333807 | Ringtandwiel | € 4.46 | |
| Naaldroller | ||||
| 43 | 333806 | Naaldroller | € 1.01 | |
| Delivery Valve | ||||
| 44 | 339420 | Delivery Valve | € 64.15 | |
| Ram Return Spring | ||||
| 45 | 339419 | Ram Return Spring | € 3.46 | |
| Ram Set | ||||
| 46 | 339418 | Ram Set | € 79.46 | |
| Delivery Valve Spring | ||||
| 47 | 306215 | Delivery Valve Spring | € 2.59 | |
| Guide De Ressort | ||||
| 48 | 334023 | Guide De Ressort | € 13.86 | |
| Pump Head Seal | ||||
| 49 | 334022 | Pump Head Seal | € 13.82 | |
| Idle Gear | ||||
| 50 | 339441 | Idle Gear | € 61.12 | |
| Idle Gear Coller | ||||
| 51 | 339443 | Idle Gear Coller | € 20.46 | |
| Miniature Bearing | ||||
| 52 | 339442 | Miniature Bearing | € 6.77 | |
| Tapping Srew D4x12 | ||||
| 53 | 339432 | Tapping Srew D4x12 | € 1.15 | |
| Spring Washer D4 | ||||
| 54 | 339433 | Spring Washer D4 | € 1.00 | |
| Hex.socket Hd.bolt M5x45 | ||||
| 55 | 339434 | Hex.socket Hd.bolt M5x45 | € 2.30 | |
| Notch Washer D5 | ||||
| 56 | 339435 | Notch Washer D5 | € 1.00 | |
| Pump Case | ||||
| 57 | 339426 | Pump Case | € 366.17 | |
| Air Back Nut | ||||
| 58 | 339431 | Air Back Nut | € 4.46 | |
| Air Back | ||||
| 59 | 339430 | Air Back | € 14.26 | |
| Pump Case Packing | ||||
| 60 | 339427 | Pump Case Packing | € 11.23 | |
| Spring Washer 57sw005 D5 | ||||
| 61 | 339446 | Spring Washer 57sw005 D5 | € 1.00 | |
| Tapping Srew D5x30 | ||||
| 62 | 339445 | Tapping Srew D5x30 | € 2.30 | |
| Cam Shaft | ||||
| 63 | 339440 | Cam Shaft | € 305.18 | |
| Hex.socket Hd.bolt M5x50 | ||||
| 64 | 339439 | Hex.socket Hd.bolt M5x50 | € 2.30 | |
| Distance Piece P | ||||
| 65 | 339438 | Distance Piece P | € 183.08 | |
| Kogellager 6901zz | ||||
| 66 | 339437 | Kogellager 6901zz | € 18.35 | |
| Oil Seal | ||||
| 67 | 339436 | Oil Seal | € 11.23 | |
| Seal Washer | ||||
| 68 | 339429 | Seal Washer | € 4.46 | |
| Hex. Bolt M10x10 | ||||
| 69 | 339428 | Hex. Bolt M10x10 | € 1.00 | |
| Motor Housing Set | ||||
| 70 | 339447 | Motor Housing Set | € 264.40 | |
| Bouchon De Charbon | ||||
| 71 | 319847 | Bouchon De Charbon | € 1.58 | |
| Charbons | ||||
| 72 | 999100 | Charbons | € 9.86 | |
| Koolborstelblok | ||||
| 73 | 334311 | Koolborstelblok | € 4.46 | |
| Stofring | ||||
| 74 | 333797 | Stofring | € 2.02 | |
| Aimant | ||||
| 75 | 333796 | Aimant | € 13.73 | |
| Armature Set | ||||
| 76 | 361025 | Armature Set | € 569.58 | |
| Commutateur | ||||
| 77 | 333795 | Commutateur | € 21.91 | |
| Vis Ø3,5x6 | ||||
| 78 | 307887 | Vis Ø3,5x6 | € 1.00 | |
| Controller Terminal Set | ||||
| 79 | 334313 | Controller Terminal Set | € 38.41 | |
| Vis Ø4x20 | ||||
| 80 | 301653 | Vis Ø4x20 | € 1.00 | |
| Épuisé | ||||
| 82 | 336385 | Épuisé | ||
| STEEKSLEUTEL 17/19 MM | ||||
| 501 | 931161 | STEEKSLEUTEL 17/19 MM | € 9.36 | |
| INBUSSLEUTEL 4MM | ||||
| 502 | 944458 | INBUSSLEUTEL 4MM | € 1.30 | |
| Smeerolie (70cc) | ||||
| 503 | 306295 | Smeerolie (70cc) | € 9.65 | |
| ZIJHANDGREEP | ||||
| 505 | 306254 | ZIJHANDGREEP | € 34.32 | |
| KUNSTSTOF KOFFER (OUD 314175) | ||||
| 506 | 312831 | KUNSTSTOF KOFFER (OUD 314175) | € 88.31 | |
| Beschermkapje Voor Batterij | ||||
| 507 | 329897 | Beschermkapje Voor Batterij | € 1.73 | |
