Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CC16SA'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

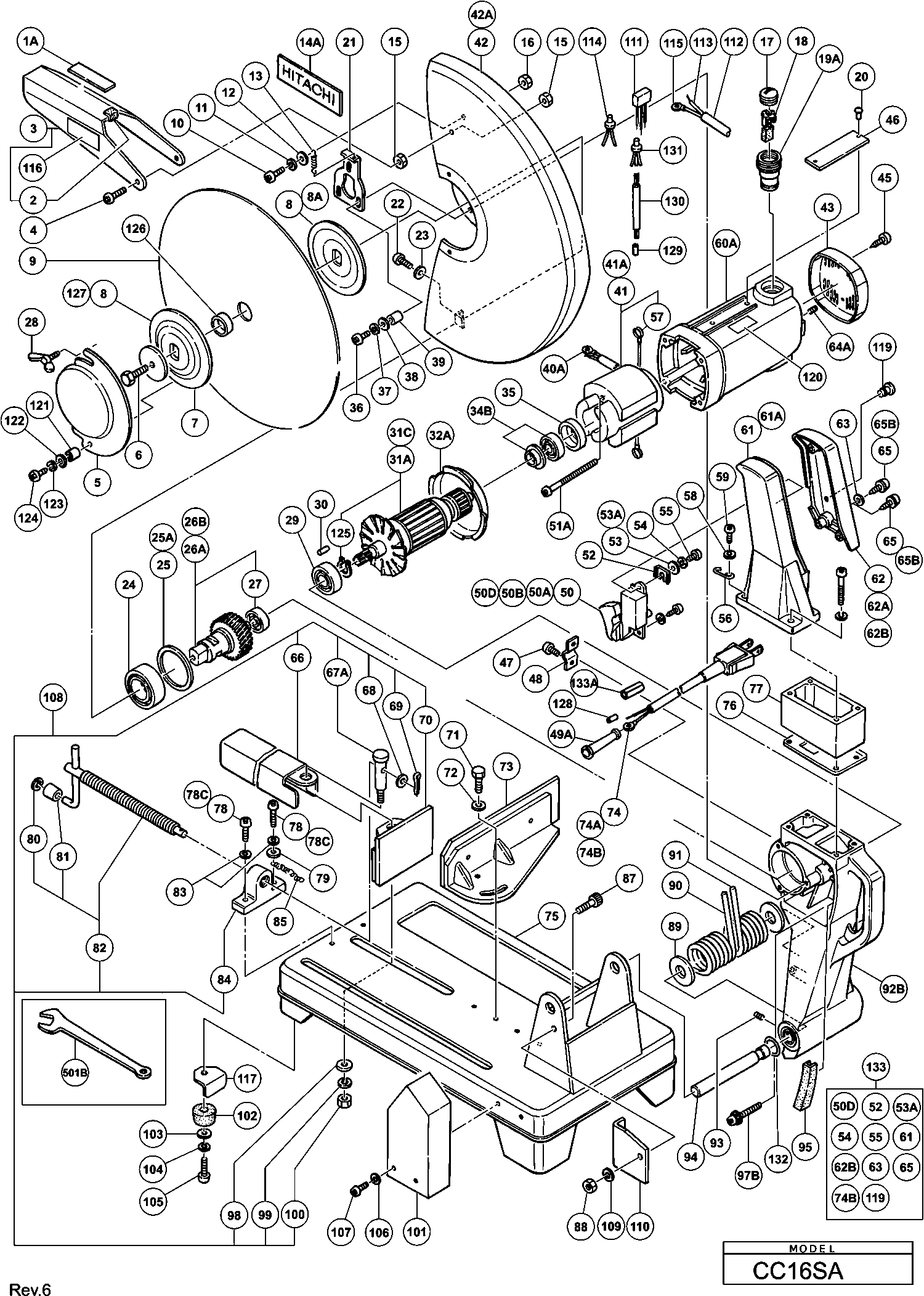

Dessins des Hikoki CC16SA
Liste de pièces de rechange des Hikoki CC16SA
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Plaque de marque | ||||
1A | 975642 | 3.60 | 4.32 | |
Pas d'informations disponibles, non commandable | ||||
2 | 951880Z | |||
Pas d'informations disponibles, non commandable | ||||
3 | 951915 | |||
Vis M6x10 (paquet de 10) | ||||
4 | 949256 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
5 | 951912Z | |||
Vis (g) M10x20 | ||||
6 | 951480 | 1.05 | 1.26 | |
Rondelle | ||||
7 | 965724 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
8 | 951918 | |||
Pas d'informations disponibles, non commandable | ||||
8A | 951918 | |||
Pas d'informations disponibles, non commandable | ||||
9 | 951911Z | |||
Vis M4*8 (paquet de 10) | ||||
10 | 949215 | 1.05 | 1.26 | |
Rondelle de ressort M4 (10 pièces) | ||||
11 | 949453 | 1.05 | 1.26 | |
Rondelle M4 (x10) Paquet de 10 | ||||
12 | 949429 | 1.05 | 1.26 | |
Ressort Cc-14 | ||||
13 | 951876 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
14A | 951653 | |||
Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
15 | 949556 | 1.05 | 1.26 | |
Écrou M4 (10 Pièces) | ||||
16 | 949554 | 1.05 | 1.26 | |
Bouchon De Charbon Cd 12f | ||||
17 | 978445 | 1.05 | 1.26 | |
Brosses de charbon auto-stop (2 pièces) 110-120 | ||||
18 | 999081Z | 9.30 | 11.16 | |
Brosses de charbon haute tension (2 pièces) | ||||
18 | 999082Z | 8.40 | 10.08 | |
Jeu De Charbons (1 paire) | ||||
18 | 999044 | 4.50 | 5.40 | |
Porte Charbon | ||||
19A | 980487 | 5.68 | 6.81 | |
Rivet D2,5x4,8 (10 pièces) | ||||
20 | 949510 | 1.04 | 1.24 | |
Butee Cc14 | ||||
21 | 951853 | 9.60 | 11.52 | |
Vis Ø 5x12(paquet de 10) | ||||
22 | 949237 | 1.05 | 1.26 | |
Rondelle Ø5 (x10) paquet de 10 | ||||
23 | 949431 | 1.04 | 1.24 | |
Roulement 6206 | ||||
24 | 6206VV | 14.40 | 17.28 | |
Plus disponible, pas de remplacement | ||||
25 | 951516 | |||
Pas d'informations disponibles, non commandable | ||||
25A | 978965 | |||
Pas d'informations disponibles, non commandable | ||||
26A | 951523 | |||
Pas d'informations disponibles, non commandable | ||||
26B | 314967 | |||
Roulement Cr12v H90sc | ||||
27 | 6201VV | 6.45 | 7.74 | |
Vis M6x10 (paquet de 10) | ||||
28 | 949394 | 7.05 | 8.46 | |
Roulement | ||||
29 | 6202VV | 7.05 | 8.46 | |
GOUJON EN CAOUTCHOUC (ANCIEN 976441) | ||||
30 | 946362 | 1.05 | 1.26 | |
Induit 230v | ||||
31A | 951875E | 218.76 | 262.52 | |
Induit 240v | ||||
31A | 951875F | 218.76 | 262.52 | |
Pas d'informations disponibles, non commandable | ||||
31C | 951908U | |||
Pas d'informations disponibles, non commandable | ||||
32A | 336529 | |||
Pas d'informations disponibles, non commandable | ||||
34B | 317830 | |||
Coussinet | ||||
35 | 951878 | 14.70 | 17.64 | |
Vis Ø 6*25 (x10) | ||||
36 | 949260 | 1.35 | 1.62 | |
Rondelle de ressort M6 (ancien 949455z, 10 pieces) | ||||
37 | 949455 | 1.05 | 1.26 | |
Bague | ||||
38 | 967329 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
39 | 951910Z | |||
Pas d'informations disponibles, non commandable | ||||
40A | 951916 | |||
Stator 220v-230v H-90sa Includ.103 Pour Nzl,saf | ||||
41 | 951909E | 95.70 | 114.84 | |
Pas d'informations disponibles, non commandable | ||||
42 | 951919 | |||
Pas d'informations disponibles, non commandable | ||||
42A | 952830 | |||
Couvercle | ||||
43 | 974571 | 5.25 | 6.30 | |
Vis Cc-14 | ||||
45 | 974572 | 1.05 | 1.26 | |
Vis machine M4x10 (10 pièces) (ANCIEN 949216Z) | ||||
47 | 949216 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
48 | 934028 | |||
Entree De Cable Ø 10,1 | ||||
49A | 938051 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
50 | 951864 | |||
Interrupteur Cc-14 | ||||
50A | 976825 | 22.00 | 26.40 | |
Commutateur | ||||
50B | 951894 | 25.99 | 31.18 | |
Commutateur | ||||
50D | 951894 | 25.99 | 31.18 | |
Pas d'informations disponibles, non commandable | ||||
51A | 320201 | |||
Pas d'informations disponibles, non commandable | ||||
52 | 955835 | |||
Rondelle M4 (x10) Paquet de 10 | ||||
53 | 949429 | 1.05 | 1.26 | |
Rondelle M4 (x10) Paquet de 10 | ||||
53A | 949429 | 1.05 | 1.26 | |
Rondelle de ressort M4 (10 pièces) | ||||
54 | 949453 | 1.05 | 1.26 | |
Vis Cc-14 | ||||
55 | 974572 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
56 | 968523 | |||
Raccord | ||||
57 | 998744 | 1.20 | 1.44 | |
Rondelle de ressort M6 (ancien 949455z, 10 pieces) | ||||
58 | 949455 | 1.05 | 1.26 | |
Carcasse Cc-14 Includ.3a,4a,10 | ||||
60A | 951867 | 64.21 | 77.06 | |
Pas d'informations disponibles, non commandable | ||||
61 | 951862Z | |||
Pas d'informations disponibles, non commandable | ||||
61A | 951882Z | |||
Pas d'informations disponibles, non commandable | ||||
62 | 951863 | |||
Pas d'informations disponibles, non commandable | ||||
62A | 951897 | |||
Couvercle de la poignée (ancien 951898) | ||||
62B | 320266 | 6.75 | 8.10 | |
Rondelle M4 (x10) Paquet de 10 | ||||
63 | 949429 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
64A | 977089 | |||
Vis F 30a/p 20v | ||||
65B | 306999 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
65S | 977126 | |||
Pas d'informations disponibles, non commandable | ||||
66 | 951859Z | |||
Plus disponible, pas de remplacement | ||||
67A | 951850 | |||
Rondelle M.8 (x10) Paquet de 10 | ||||
68 | 949433 | 1.05 | 1.26 | |
Goupille fendue D3x15 (10 pièces) | ||||
69 | 949537 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
70 | 951845 | |||
Pas d'informations disponibles, non commandable | ||||
71 | 949638 | |||
Rondelle M10 (x10) paquet de 10 | ||||
72 | 949434 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
73 | 951914 | |||
Pas d'informations disponibles, non commandable | ||||
74 | 952806Z | |||
Pas d'informations disponibles, non commandable | ||||
74A | 500455Z | |||
Pas d'informations disponibles, non commandable | ||||
74B | 500453Z | |||
Pas d'informations disponibles, non commandable | ||||
75 | 951913 | |||
Pas d'informations disponibles, non commandable | ||||
76 | 951877Z | |||
Pas d'informations disponibles, non commandable | ||||
77 | 951900Z | |||
Pas d'informations disponibles, non commandable | ||||
78C | 978930 | |||
Pas d'informations disponibles, non commandable | ||||
78S | 949789 | |||
Rondelle M8 (x10) Paquet de 10 | ||||
79 | 949426 | 1.05 | 1.26 | |
Circlips en "e" pour Ø6 | ||||
80 | 955479 | 1.05 | 1.26 | |
Douille | ||||
81 | 971563 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
82 | 951472 | |||
Rondelle M8 (x10) Paquet de 10 | ||||
83 | 949457 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
84 | 951846 | |||
Chaine | ||||
85 | 968520 | 2.10 | 2.52 | |
Vis M8x25 (paquet de 10) | ||||
87 | 949760 | 5.55 | 6.66 | |
Ecrou M8(x10) (paquet de 10) | ||||
88 | 949558 | 1.05 | 1.26 | |
Rondelle Cc-14 | ||||
89 | 955818 | 1.05 | 1.26 | |
Ressort (b) | ||||
90 | 951476 | 7.35 | 8.82 | |
Ressort | ||||
91 | 951475 | 7.35 | 8.82 | |
Carter | ||||
92B | 951847 | 87.59 | 105.10 | |
Vis Cc-14 | ||||
93 | 971884 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
94 | 951474 | |||
Coussin en caoutchouc (b) | ||||
95 | 955868 | 3.60 | 4.32 | |
Vis Ø5*50 | ||||
97B | 317449 | 1.65 | 1.98 | |
Bague | ||||
98 | 965077 | 1.05 | 1.26 | |
Rondelle M10 (x10) paquet de 10 | ||||
99 | 949458 | 1.05 | 1.26 | |
Ecrou | ||||
100 | 949560 | 2.40 | 2.88 | |
Pare-étincelles | ||||
101 | 951477 | 6.60 | 7.92 | |
Silent Bloc Cc-14 | ||||
102 | 964851 | 1.05 | 1.26 | |
Silent Bloc Cc-14 | ||||
102S | 964851 | 1.05 | 1.26 | |
Rondelle M.6 (x10) paquet de 10 | ||||
103 | 949432 | 1.05 | 1.26 | |
Rondelle M.6 (x10) paquet de 10 | ||||
103S | 949432 | 1.05 | 1.26 | |
Rondelle de ressort M6 (ancien 949455z, 10 pieces) | ||||
104 | 949455 | 1.05 | 1.26 | |
Rondelle de ressort M6 (ancien 949455z, 10 pieces) | ||||
104S | 949455 | 1.05 | 1.26 | |
Vis M6x10 (paquet de 10) | ||||
105 | 949256 | 1.35 | 1.62 | |
Vis M6x10 (paquet de 10) | ||||
105S | 949256 | 1.35 | 1.62 | |
Rondelle de ressort M5 (10 pièces) | ||||
106 | 949454 | 1.04 | 1.24 | |
Vis M.5*10 (paquet de 10) For Irl | ||||
107 | 949236 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
108 | 951906Z | |||
Rondelle M8 (x10) Paquet de 10 | ||||
109 | 949457 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
110 | 951917 | |||
Condensateur | ||||
111 | 965141 | 11.85 | 14.22 | |
Connecteur 50091 | ||||
114 | 959140 | 3.30 | 3.96 | |
Borne For Noise Suppressor | ||||
115 | 938108 | 1.20 | 1.44 | |
Base Plaque de caoutchouc (ancienne 964943z) | ||||
117 | 951888 | 4.50 | 5.40 | |
Bouton d'arrêt | ||||
119 | 951895 | 3.30 | 3.96 | |
Bague | ||||
121 | 974484 | 1.05 | 1.26 | |
Bague | ||||
122 | 967329 | 1.05 | 1.26 | |
Rondelle de ressort M6 (ancien 949455z, 10 pieces) | ||||
123 | 949455 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
124 | 949254 | |||
Clips Pour Ø 15 (x10) paquet 10 | ||||
125 | 939544 | 2.13 | 2.55 | |
Douille | ||||
126 | 971937 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
127 | 314968 | |||
Manchon à cabler | ||||
128 | 981373 | 1.05 | 1.26 | |
Manchon à cabler | ||||
129 | 981373 | 1.05 | 1.26 | |
Fil interne | ||||
130 | 317429 | 1.65 | 1.98 | |
Connecteur 50092 | ||||
131 | 959141 | 3.75 | 4.50 | |
Joint torique (ap-24) | ||||
132 | 997392 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
133 | 323246 | |||
Pas d'informations disponibles, non commandable | ||||
501B | 318311 | |||
Pas d'informations disponibles, non commandable | ||||
901 | 306859 | |||
Plus disponible, pas de remplacement | ||||
902 | 978959 |
