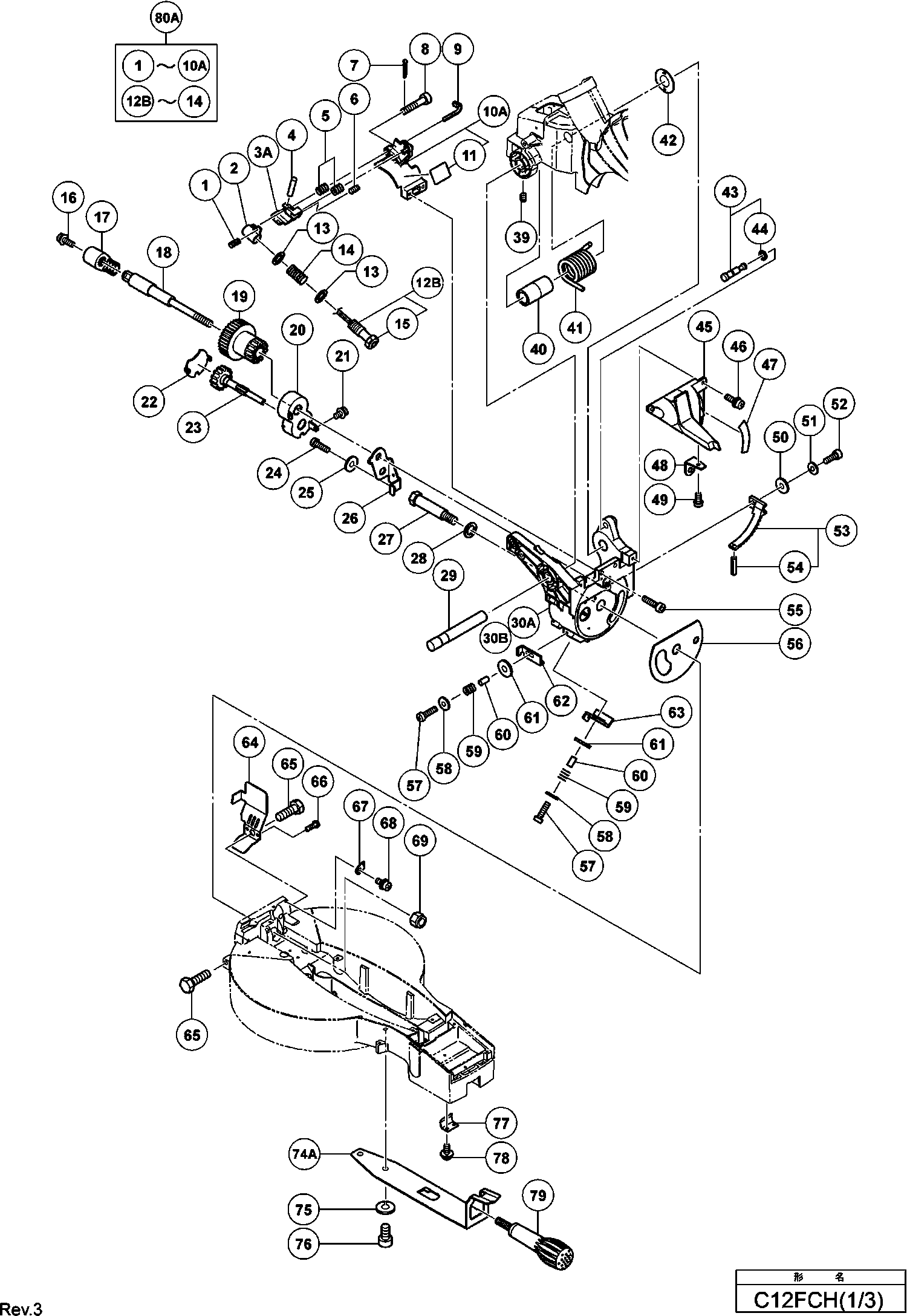

Dessins des Hikoki C12FCH
Liste de pièces de rechange des Hikoki C12FCH
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Ressort | ||||
1 | 323141 | 1.05 | 1.26 | |
Support de laser (a) C 12lch | ||||
2 | 323137 | 1.05 | 1.26 | |
Porte-laser (b) | ||||
3A | 328943 | 2.10 | 2.52 | |
Goupille Ø 3x14 | ||||
4 | 949900 | 2.40 | 2.88 | |
Ressort | ||||
5 | 323142 | 1.05 | 1.26 | |
Vis Ø 5x6 Till 2.1986 | ||||
6 | 962782 | 1.04 | 1.24 | |
Goupille fendue D2x12 (10 pièces) | ||||
7 | 949531 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
8 | 323144 | |||
Pince pour cordon | ||||
9 | 975144 | 1.04 | 1.24 | |
Base Laser Assemblée Incl.11 | ||||
10A | 331876 | 4.65 | 5.58 | |
Module Laser (a) Ass'y | ||||
12B | 331879 | 82.36 | 98.84 | |
Bague | ||||
13 | 323143 | 1.05 | 1.26 | |
Ressort | ||||
14 | 323140 | 1.05 | 1.26 | |
Couvercle laser | ||||
15 | 323136 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
16 | 323208 | |||
POIGNÉE DE SERRAGE (ANCIEN 322935) | ||||
17A | 371742 | 1.20 | 1.44 | |
Vis Ø10 (pas A Gauche) | ||||
18 | 323665 | 5.10 | 6.12 | |
Engrenage | ||||
19 | 323666 | 2.10 | 2.52 | |
Boîte de vitesses (c) C12fch | ||||
20 | 323597 | 1.05 | 1.26 | |
Vis machine (avec rondelles) M4x10 (noir) | ||||
21 | 304043 | 1.05 | 1.26 | |
Couvercle De Boite | ||||
22 | 323598 | 1.05 | 1.26 | |
Pignon | ||||
23 | 323599 | 8.70 | 10.44 | |
Vis M5x16 (paquet de 10) | ||||
24 | 949821 | 2.55 | 3.06 | |
Rondelle de ressort M5 (10 pièces) | ||||
25 | 949454 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
26 | 323596 | |||
Arbre (d) | ||||
27A | 371740 | 2.10 | 2.52 | |
Rondelle | ||||
28 | 322934 | 1.05 | 1.26 | |
Arbre (c) C12fch | ||||
29 | 323593 | 3.15 | 3.78 | |
Support Except For Europe(till 9.2012 For Europe | ||||
30A | 323663 | 26.68 | 32.01 | |
Charnière depuis 10.2012 pour l'Europe | ||||
30B | 336361 | 22.41 | 26.90 | |
Vis à six pans creux M6x10 | ||||
39 | 307956 | 1.05 | 1.26 | |
Douille | ||||
40 | 323594 | 1.05 | 1.26 | |
Ressort | ||||
41 | 323595 | 5.10 | 6.12 | |
Glissiere | ||||
42 | 323684 | 1.05 | 1.26 | |
Goupille (avec o ring) Includ.94 | ||||
43 | 302518 | 4.50 | 5.40 | |
O Ring (p-6) | ||||
44 | 984528 | 1.05 | 1.26 | |
Guide Complet C 12fch Includ.47-49 | ||||
45 | 323719 | 4.50 | 5.40 | |
Vis M.5*16 | ||||
46 | 990541 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
47 | 323697 | |||
Support de guide de poussière C10fch | ||||
48 | 322963 | 1.05 | 1.26 | |
Vis machine M4x6 (10 pièces) | ||||
49 | 949214 | 1.05 | 1.26 | |
Rondelle Ø5 (x10) paquet de 10 | ||||
50 | 949431 | 1.04 | 1.24 | |
Rondelle de ressort M5 (10 pièces) | ||||
51 | 949454 | 1.04 | 1.24 | |
Vis M5x16 (paquet de 10) | ||||
52 | 949821 | 2.55 | 3.06 | |
Engrenage Complet (inclus 54) Includ.54 | ||||
53 | 323664 | 17.33 | 20.79 | |
Goupille Ø 3x14 | ||||
54 | 949900 | 2.40 | 2.88 | |
Vis M6*20 (paquet de 10) | ||||
55 | 949660 | 3.30 | 3.96 | |
Glissiere | ||||
56 | 323683 | 1.05 | 1.26 | |
Vis à Machine M4x20 (10 Pièces) | ||||
57 | 949221 | 1.05 | 1.26 | |
Rondelle M4 (x10) paquet de 10 | ||||
58 | 949423 | 1.05 | 1.26 | |
Ressort | ||||
59 | 323142 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
60 | 303006 | |||
Rondelle M.6 (x10) paquet de 10 | ||||
61 | 949432 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
62 | 323662 | |||
Patte (a) | ||||
63 | 323661 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
64 | 323659 | |||
Pas d'informations disponibles, non commandable | ||||
65 | 303409 | |||
Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | ||||
66 | 935196 | 1.04 | 1.24 | |
Indicateur (b) | ||||
67 | 322893 | 1.05 | 1.26 | |
Vis machine (avec rondelles) M4x10 (noir) | ||||
68 | 304043 | 1.05 | 1.26 | |
Ecrou Diam 12 | ||||
69 | 680418 | 3.30 | 3.96 | |
Tôle à ressort | ||||
74A | 323627 | 6.30 | 7.56 | |
Rondelle M8 (x10) Paquet de 10 | ||||
75 | 949457 | 1.05 | 1.26 | |
Vis M8*16 (paquet de 10) | ||||
76 | 949655 | 3.90 | 4.68 | |
Pas d'informations disponibles, non commandable | ||||
77 | 323609 | |||
Vis de machine (avec rondelle spéciale) M4x10 | ||||
78 | 307635 | 1.05 | 1.26 | |
Poignee | ||||
79 | 323680 | 3.15 | 3.78 | |
Ensemble Laser Include.1-10a,12-14a | ||||
80A | 329314 | 36.10 | 43.32 | |
Vis machine M4x10 (10 pièces) (ANCIEN 949216Z) | ||||
104 | 949216 | 1.05 | 1.26 | |
Vis à machine M4x16 | ||||
105 | 954878 | 1.05 | 1.26 | |
Cache | ||||
106 | 323650 | 1.05 | 1.26 | |
Table Tournante | ||||
107 | 323624 | 83.60 | 100.32 | |
Pas d'informations disponibles, non commandable | ||||
118 | 975348 | |||
Rondelle | ||||
119 | 318929 | 1.50 | 1.80 | |
Vis machine (avec rondelles) M4x10 (noir) | ||||
120 | 304043 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
121 | 318927 | |||
Guide Gauche | ||||
122 | 323648 | 2.10 | 2.52 | |
Guide Droit | ||||
123 | 323649 | 2.10 | 2.52 | |
Vis M.5*16 | ||||
124 | 990541 | 1.05 | 1.26 | |
Vis Ø 4x16 | ||||
126 | 993539 | 1.04 | 1.24 | |
Cache Moniteur | ||||
132 | 323693 | 5.85 | 7.02 | |
Pas d'informations disponibles, non commandable | ||||
135 | 323677 | |||
Vis | ||||
136 | 323678 | 2.10 | 2.52 | |
Ecrou Papillon M.6*15 | ||||
137 | 301806 | 1.05 | 1.26 | |
Rondelle M.6 (x10) paquet de 10 | ||||
139 | 949432 | 1.05 | 1.26 | |
Plaque de serrage | ||||
140 | 302532 | 2.40 | 2.88 | |
Vis machine M4x10 (10 pièces) (ANCIEN 949216Z) | ||||
141 | 949216 | 1.05 | 1.26 | |
Axe | ||||
142 | 322954 | 2.10 | 2.52 | |
Ecrou Plastique Nr 83aa | ||||
143 | 963837 | 1.05 | 1.26 | |
Vis machine (avec rondelles) M4x10 (noir) | ||||
144 | 304043 | 1.05 | 1.26 | |
Patte | ||||
145 | 323631 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
146 | 323630 | |||
Ecrou Papillon M.6*15 | ||||
148 | 301806 | 1.05 | 1.26 | |
Vis 8x35 (paquet de 10) | ||||
149 | 949678 | 2.55 | 3.06 | |
Rondelle M8 (x10) Paquet de 10 | ||||
150 | 949457 | 1.05 | 1.26 | |
Rondelle M.8 (x10) Paquet de 10 | ||||
151 | 949433 | 1.05 | 1.26 | |
Guide C 12lch | ||||
152 | 323629 | 15.68 | 18.81 | |
Vis Ø6x30 | ||||
153 | 323685 | 1.65 | 1.98 | |
Glissiere C 12lch | ||||
154 | 323625 | 3.15 | 3.78 | |
Pas d'informations disponibles, non commandable | ||||
159A | 322910 | |||
Vis M6x10 (paquet de 10) | ||||
160 | 949610 | 1.20 | 1.44 | |
Vis M5 X 16 | ||||
161 | 987512 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
162 | 323605 | |||
Guide C 12lch | ||||
165 | 323628 | 15.26 | 18.32 | |
Pied caoutchou (cc 14se) | ||||
168 | 323606 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
169 | 324651 | |||
Pas d'informations disponibles, non commandable | ||||
170 | 323626 | |||
Pas d'informations disponibles, non commandable | ||||
172 | 323692 | |||
Boulon (a) M10 | ||||
191 | 988101 | 1.95 | 2.34 | |
Rondelle | ||||
192 | 323652 | 4.20 | 5.04 | |
Pas d'informations disponibles, non commandable | ||||
193 | 324269 | |||
Pas d'informations disponibles, non commandable | ||||
194 | 323651 | |||
Pas d'informations disponibles, non commandable | ||||
195 | 323208 | |||
Engrenage Complet | ||||
196A | 323639 | 20.90 | 25.08 | |
Logement C 12lch | ||||
197 | 323641 | 4.65 | 5.58 | |
Roulement à billes 6203vvcmps2s | ||||
198 | 6203VV | 7.80 | 9.36 | |
Vis machine (avec rondelles) M4x10 (noir) | ||||
200 | 304043 | 1.05 | 1.26 | |
Engrenage | ||||
201 | 323640 | 10.80 | 12.96 | |
Roulement A Billes | ||||
202 | 608VVM | 5.70 | 6.84 | |
Pas d'informations disponibles, non commandable | ||||
203 | 323208 | |||
Poignee | ||||
204 | 322924 | 5.55 | 6.66 | |
Clip | ||||
205 | 980523 | 1.05 | 1.26 | |
Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | ||||
206 | 935196 | 1.04 | 1.24 | |
Vis M6x16 (paquet de 10) | ||||
207 | 949755 | 3.00 | 3.60 | |
Carter | ||||
208 | 323638 | 64.63 | 77.55 | |
Carter | ||||
208A | 336362 | 31.35 | 37.62 | |
Vis Ø 4x16 | ||||
209 | 993539 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
210 | 323653 | |||
Pas d'informations disponibles, non commandable | ||||
211 | 323654 | |||
Rondelle diam 7 | ||||
213 | 322948 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
214 | 323674 | |||
Vis Speciale Ø 6 For Europe,aus,model (s) | ||||
216 | 322950 | 1.05 | 1.26 | |
Vis Ø4x10 Noir | ||||
217 | 318363 | 1.50 | 1.80 | |
Protecteur | ||||
218 | 323698 | 14.25 | 17.10 | |
Rondelle de ressort M5 (10 pièces) | ||||
219 | 949454 | 1.04 | 1.24 | |
Cache Complet Includ.296 | ||||
220 | 323672 | 6.75 | 8.10 | |
Patte | ||||
221 | 323673 | 1.05 | 1.26 | |
Protecteur | ||||
222 | 323667 | 31.49 | 37.78 | |
Ressort De Retour | ||||
223 | 323671 | 1.05 | 1.26 | |
Support | ||||
224 | 323669 | 3.15 | 3.78 | |
Plaque indicatrice | ||||
225 | 323670 | 1.05 | 1.26 | |
Rondelle de ressort M5 (10 pièces) | ||||
226 | 949454 | 1.04 | 1.24 | |
Vis M.5*10 (paquet de 10) For Irl | ||||
227 | 949236 | 1.05 | 1.26 | |
Vis Speciale Ø 5 | ||||
230 | 322947 | 1.05 | 1.26 | |
Rondelle | ||||
231 | 322938 | 1.05 | 1.26 | |
Vis M4*8 (paquet de 10) | ||||
232 | 949215 | 1.05 | 1.26 | |
Vis machine M5x10 (noir) | ||||
233 | 323040 | 1.05 | 1.26 | |
Vis Ø 4*25 noir | ||||
237 | 307028 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
239 | 984750 | |||
Serre Cable | ||||
240 | 937631 | 1.04 | 1.24 | |
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
241 | 500447Z | 6.60 | 7.92 | |
Entree De Cable Ø 10,7 | ||||
242 | 940778 | 2.10 | 2.52 | |
Douille de Cordon | ||||
244 | 319349 | 1.50 | 1.80 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
246 | 301653 | 1.04 | 1.24 | |
Poignée Complète (c).(d) Ensemble Incl.254 | ||||
247A | 324954 | 20.90 | 25.08 | |
Pas d'informations disponibles, non commandable | ||||
248 | 984750 | |||
Assemblage d'alimentation à commutation | ||||
249B | 371121 | 18.98 | 22.77 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
250 | 301653 | 1.04 | 1.24 | |
Bouton De Commande | ||||
251 | 323645 | 1.05 | 1.26 | |
Commutateur | ||||
252 | 323634 | 5.70 | 6.84 | |
Pas d'informations disponibles, non commandable | ||||
254 | 323695 | |||
Pas d'informations disponibles, non commandable | ||||
256 | 984750 | |||
Commutateur | ||||
257 | 320950 | 32.18 | 38.61 | |
Câble de connexion interne (d) | ||||
258 | 323983 | 3.15 | 3.78 | |
Carcasse | ||||
259 | 322914 | 22.83 | 27.39 | |
Vis de réglage hexagonale M5x8 | ||||
260 | 938477 | 1.05 | 1.26 | |
Pte Charbon Pde | ||||
261 | 938241 | 6.45 | 7.74 | |
Charbons | ||||
262 | 999065 | 7.95 | 9.54 | |
Bouchon Charbon | ||||
263 | 945161 | 1.20 | 1.44 | |
Plaq.en Caoutchouc (1) | ||||
264 | 303792 | 1.05 | 1.26 | |
Induit 230v | ||||
265 | 360710E | 71.70 | 86.04 | |
Roulement | ||||
266 | 6202VV | 7.05 | 8.46 | |
Rondelle | ||||
267 | 980700 | 1.04 | 1.24 | |
Blocage | ||||
268 | 323637 | 1.05 | 1.26 | |
Bague | ||||
269 | 302428 | 1.04 | 1.24 | |
Roulement | ||||
270 | 6000VV | 6.15 | 7.38 | |
Baffle | ||||
271 | 322915 | 2.25 | 2.70 | |
Vis D5*55 | ||||
272 | 953174 | 1.04 | 1.24 | |
Stator 230V | ||||
273 | 340625E | 47.58 | 57.09 | |
Inducteur Includ.274 | ||||
273 | 340603E | 37.95 | 45.54 | |
Raccord | ||||
274 | 937623 | 1.04 | 1.24 | |
Vis de machine (avec rondelles) M5x40 (noir) | ||||
275 | 322123 | 1.65 | 1.98 | |
Ressort | ||||
276 | 324625 | 1.05 | 1.26 | |
Axe For Europe,aus,nzl | ||||
277 | 323990 | 2.10 | 2.52 | |
Support For Europe,aus,nzl | ||||
278 | 324626 | 3.15 | 3.78 | |
Ecrou Plastique M5 | ||||
279 | 877371 | 1.05 | 1.26 | |
Vis M.5*10 (paquet de 10) For Irl | ||||
280 | 949236 | 1.05 | 1.26 | |
Support For Europe,aus,nzl | ||||
281 | 324627 | 2.10 | 2.52 | |
Condensateur | ||||
282 | 930039 | 1.95 | 2.34 | |
Levier Complet C 12lch Includ.213,216,285-292 For | ||||
284 | 324630 | 12.45 | 14.94 | |
Levier For Aus,nzl (till 9.2012 For Europe) | ||||
285 | 324631 | 5.10 | 6.12 | |
Lien (d) depuis 10.2012 pour l'Europe | ||||
285A | 336363 | 5.10 | 6.12 | |
Support For Aus,nzl (till 9.2012 For Europe) | ||||
286 | 324632 | 3.15 | 3.78 | |
Lien (c) depuis 10.2012 pour l'Europe | ||||
286A | 336364 | 1.50 | 1.80 | |
Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | ||||
287 | 935196 | 1.04 | 1.24 | |
Plaque d'arrêt Pour l'Europe, AUS, NZL | ||||
288 | 323985 | 2.10 | 2.52 | |
Axe For Europe,aus,nzl | ||||
289 | 323988 | 2.10 | 2.52 | |
Plaque indicatrice | ||||
290 | 323989 | 3.15 | 3.78 | |
Ressort For Europe,aus,nzl | ||||
291 | 323984 | 1.05 | 1.26 | |
Ecrou Papillon M6*17 | ||||
293 | 302459 | 1.05 | 1.26 | |
Rondelle For Europe,gbr,rus,bra | ||||
294 | 324633 | 5.85 | 7.02 | |
Rondelle For Europe | ||||
295 | 324634 | 5.10 | 6.12 | |
Flasque De Palier | ||||
297 | 326825 | 1.65 | 1.98 | |
Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | ||||
298 | 935196 | 1.04 | 1.24 | |
Garde (a) depuis 10.2012 pour l'Europe | ||||
299 | 336365 | 1.04 | 1.24 | |
Porte-Guide Pour Europe, modèle (s) | ||||
300 | 336366 | 1.04 | 1.24 | |
Vis M5*16 (paquet de 10) | ||||
301 | 949334 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
501 | 944458 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 985051 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 322955 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 323546 | |||
Ecrou Papillon M.6*15 | ||||
602 | 301806 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
604 | 321390 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 323682 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 323547 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 323682 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 321390 | |||
Ecrou Papillon M.6*15 | ||||
610 | 301806 | 1.05 | 1.26 | |
Ensemble Support Incluant 620-625 | ||||
611 | 323657 | 43.86 | 52.64 | |
Pas d'informations disponibles, non commandable | ||||
612 | 321549 | |||
Papillon M6 (paquet de 10) | ||||
613 | 949313 | 4.65 | 5.58 | |
Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
614 | 949556 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
615 | 322047 | |||
Rondelle M.6 (x10) paquet de 10 | ||||
616 | 949425 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
617 | 323681 | |||
Arrêt | ||||
618 | 974561 | 7.05 | 8.46 | |
Vis à papillon M6x20 | ||||
619 | 949404 | 7.65 | 9.18 | |
Pas d'informations disponibles, non commandable | ||||
620 | 323545 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 322957 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 321551 | |||
Bouton C 8fs | ||||
623 | 998836 | 1.65 | 1.98 | |
Rondelle Cc 14 New | ||||
625 | 306985 | 1.05 | 1.26 | |
Silent Bloc Cc-14 | ||||
626 | 964851 | 1.05 | 1.26 | |
Vis machine (avec rondelles) M4x10 (noir) | ||||
627 | 304043 | 1.05 | 1.26 | |
Axe | ||||
628 | 318967 | 3.00 | 3.60 | |
Pas d'informations disponibles, non commandable | ||||
629 | 323523 | |||
Pas d'informations disponibles, non commandable | ||||
630 | 305546 |
