Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki B13R'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

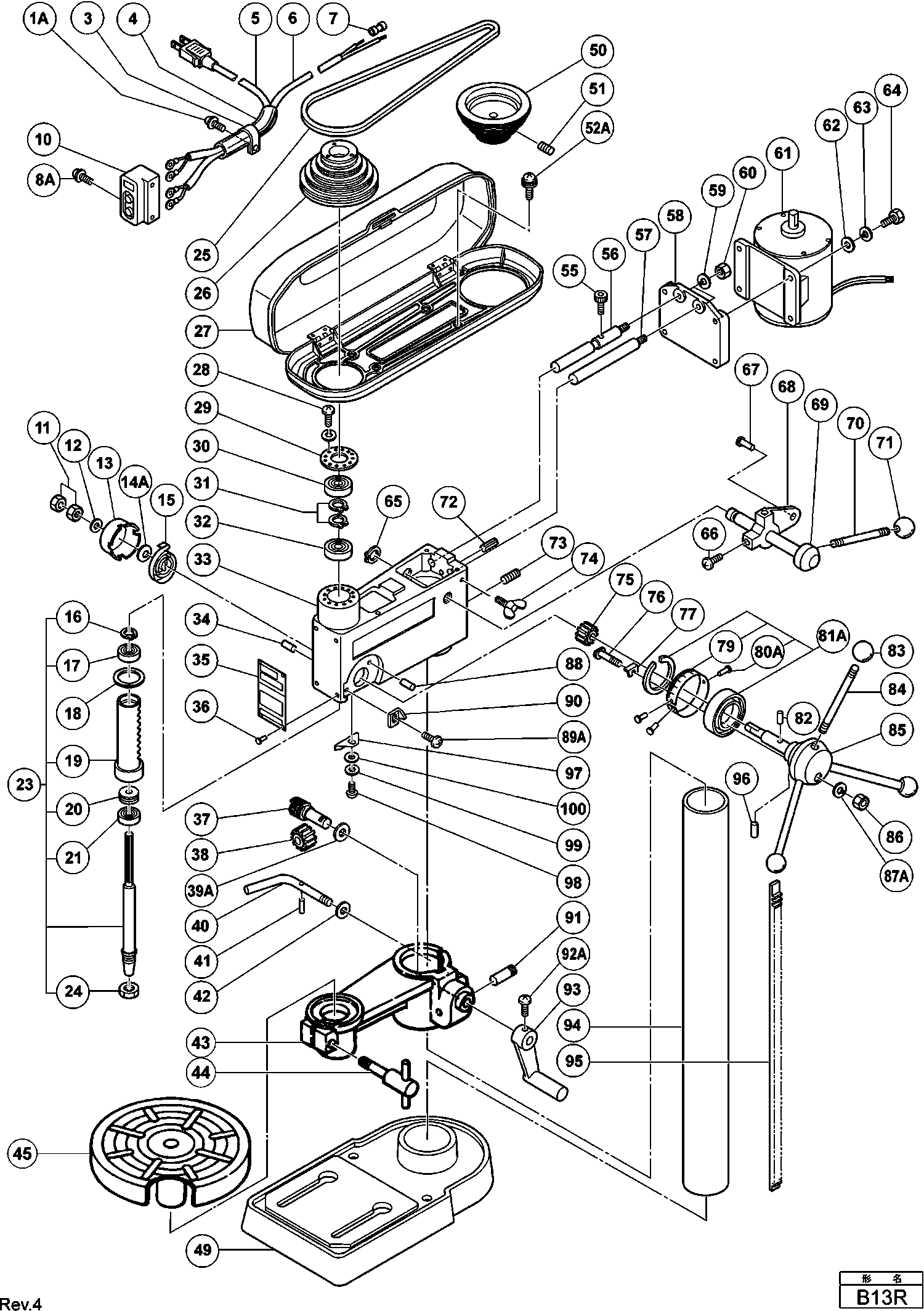

Dessins des Hikoki B13R
Liste de pièces de rechange des Hikoki B13R
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis machine (avec rondelles) M4x10 (noir) | ||||
1A | 304043 | 1.05 | 1.26 | |
Serre Cable C 8fs | ||||
3 | 968300 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
5 | 951164 | |||
Pas d'informations disponibles, non commandable | ||||
6 | 951117 | |||
Connecteur 50091 | ||||
7 | 959140 | 3.30 | 3.96 | |
Vis de Machine (avec rondelles) M6x12 (noir) | ||||
8A | 307232 | 1.05 | 1.26 | |
Commutateur | ||||
10 | 951111 | 29.29 | 35.14 | |
Ecrou M12 (x10) (paquet de 10) | ||||
11 | 949574 | 3.00 | 3.60 | |
Rondelle M12 (x10) Paquet de 10 | ||||
12 | 949437 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
13 | 932350 | |||
Pas d'informations disponibles, non commandable | ||||
14A | 932364 | |||
Ressort | ||||
15 | 932351 | 7.05 | 8.46 | |
Clips Pour Ø 15 (x10) paquet 10 | ||||
16 | 939544 | 2.13 | 2.55 | |
Roulement A Billes | ||||
17 | 6002VV | 7.35 | 8.82 | |
Pas d'informations disponibles, non commandable | ||||
18 | 951102 | |||
Pas d'informations disponibles, non commandable | ||||
20 | 939286 | |||
Roulement à billes 6203vvcmps2s | ||||
21 | 6203VV | 7.80 | 9.36 | |
Pas d'informations disponibles, non commandable | ||||
23 | 951121 | |||
Pas d'informations disponibles, non commandable | ||||
24 | 950067 | |||
Pas d'informations disponibles, non commandable | ||||
25 | 973230 | |||
Poulie (b) | ||||
26 | 951104 | 69.99 | 83.98 | |
Pas d'informations disponibles, non commandable | ||||
27 | 950138 | |||
Vis P-20sa | ||||
28 | 951122 | 1.05 | 1.26 | |
Flasque De Palier | ||||
29 | 951103 | 1.95 | 2.34 | |
Roulement à billes 6005VV | ||||
30 | 6005VV | 9.75 | 11.70 | |
Rondelle Elastique | ||||
31 | 965469 | 1.05 | 1.26 | |
Roulement à billes 6005VV | ||||
32 | 6005VV | 9.75 | 11.70 | |
Tête (ancien 951114) | ||||
33 | 951160 | 260.29 | 312.34 | |
Pas d'informations disponibles, non commandable | ||||
34 | 975984 | |||
Rivet D2,5x4,8 (10 pièces) | ||||
36 | 949510 | 1.04 | 1.24 | |
Pignon | ||||
37 | 932313 | 7.05 | 8.46 | |
Pas d'informations disponibles, non commandable | ||||
38 | 932112 | |||
Pas d'informations disponibles, non commandable | ||||
39A | 975081 | |||
Pas d'informations disponibles, non commandable | ||||
40 | 950124 | |||
Goupille Cc 14 | ||||
41 | 949681 | 3.60 | 4.32 | |
Rondelle M12 (x10) Paquet de 10 | ||||
42 | 949437 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
43 | 305662 | |||
Pas d'informations disponibles, non commandable | ||||
44 | 932382 | |||
Pas d'informations disponibles, non commandable | ||||
45 | 932301 | |||
Plaque de base | ||||
49 | 951120 | 179.44 | 215.32 | |
Poulie (a) | ||||
50 | 951530 | 38.36 | 46.04 | |
Vis hexagonale creuse M6x10 | ||||
51 | 968247 | 1.04 | 1.24 | |
Vis de machine (avec rondelles) M6x16 | ||||
52A | 300197 | 1.05 | 1.26 | |
Vis M6x12 (paquet de 10) | ||||
55 | 949657 | 3.00 | 3.60 | |
Pas d'informations disponibles, non commandable | ||||
56 | 951161 | |||
Pas d'informations disponibles, non commandable | ||||
57 | 951107 | |||
Pas d'informations disponibles, non commandable | ||||
58 | 951106 | |||
Rondelle M 12(x10) Paquet de 10 | ||||
59 | 949463 | 1.65 | 1.98 | |
Ecrou M12 (x10) (paquet de 10) | ||||
60 | 949574 | 3.00 | 3.60 | |
Rondelle M.6 (x10) paquet de 10 | ||||
62 | 949425 | 1.05 | 1.26 | |
Boulon M6*12 (x10) Paquet de 10 (till 12.1999 For | ||||
64 | 949611 | 1.05 | 1.26 | |
Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
65 | 939540 | 1.95 | 2.34 | |
Vis M.6*20 (paquet de 10) | ||||
66 | 949258 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
67 | 932147 | |||
Pas d'informations disponibles, non commandable | ||||
68 | 932158 | |||
Pas d'informations disponibles, non commandable | ||||
69 | 951162 | |||
Pas d'informations disponibles, non commandable | ||||
70 | 932461 | |||
Pas d'informations disponibles, non commandable | ||||
71 | 932462 | |||
Pas d'informations disponibles, non commandable | ||||
72 | 949879 | |||
Pas d'informations disponibles, non commandable | ||||
73 | 950141 | |||
Pas d'informations disponibles, non commandable | ||||
74 | 949413 | |||
Pas d'informations disponibles, non commandable | ||||
75 | 932112 | |||
Pas d'informations disponibles, non commandable | ||||
76 | 932348 | |||
Pas d'informations disponibles, non commandable | ||||
77 | 950087 | |||
Pas d'informations disponibles, non commandable | ||||
79 | 950086 | |||
Rivet D2,5x4,8 (10 pièces) | ||||
80A | 949510 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
81A | 333924 | |||
Pin D4x8 (10 pièces) | ||||
82 | 949483 | 2.40 | 2.88 | |
Levier | ||||
83 | 932344 | 1.35 | 1.62 | |
Levier | ||||
84 | 950135 | 5.85 | 7.02 | |
Pas d'informations disponibles, non commandable | ||||
85 | 951105 | |||
Écrou Spécial M8 | ||||
86 | 932593 | 1.35 | 1.62 | |
Rondelle M.8 (x10) Paquet de 10 | ||||
87A | 949433 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
88 | 951534 | |||
Vis à Métaux M5X16 (10 Pièces) | ||||
89A | 949239 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
90 | 950088 | |||
Pas d'informations disponibles, non commandable | ||||
91 | 950125 | |||
Vis M6x10 (paquet de 10) | ||||
92A | 949256 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
93 | 305661 | |||
Pas d'informations disponibles, non commandable | ||||
95 | 950121 | |||
Goupille Ø6*40 (10 pces) | ||||
96 | 949686 | 6.75 | 8.10 | |
Plaque | ||||
97 | 323094 | 3.30 | 3.96 | |
Vis Ø 5x12(paquet de 10) | ||||
98 | 949237 | 1.05 | 1.26 | |
Rondelle de ressort M5 (10 pièces) | ||||
99 | 949454 | 1.04 | 1.24 | |
Rondelle M5 (x10) paquet de 10 | ||||
100 | 949424 | 1.05 | 1.26 |
