Vous trouverez ici toutes les pièces et dessins disponibles du 'Fein 72709100230 ( KBE30 )'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

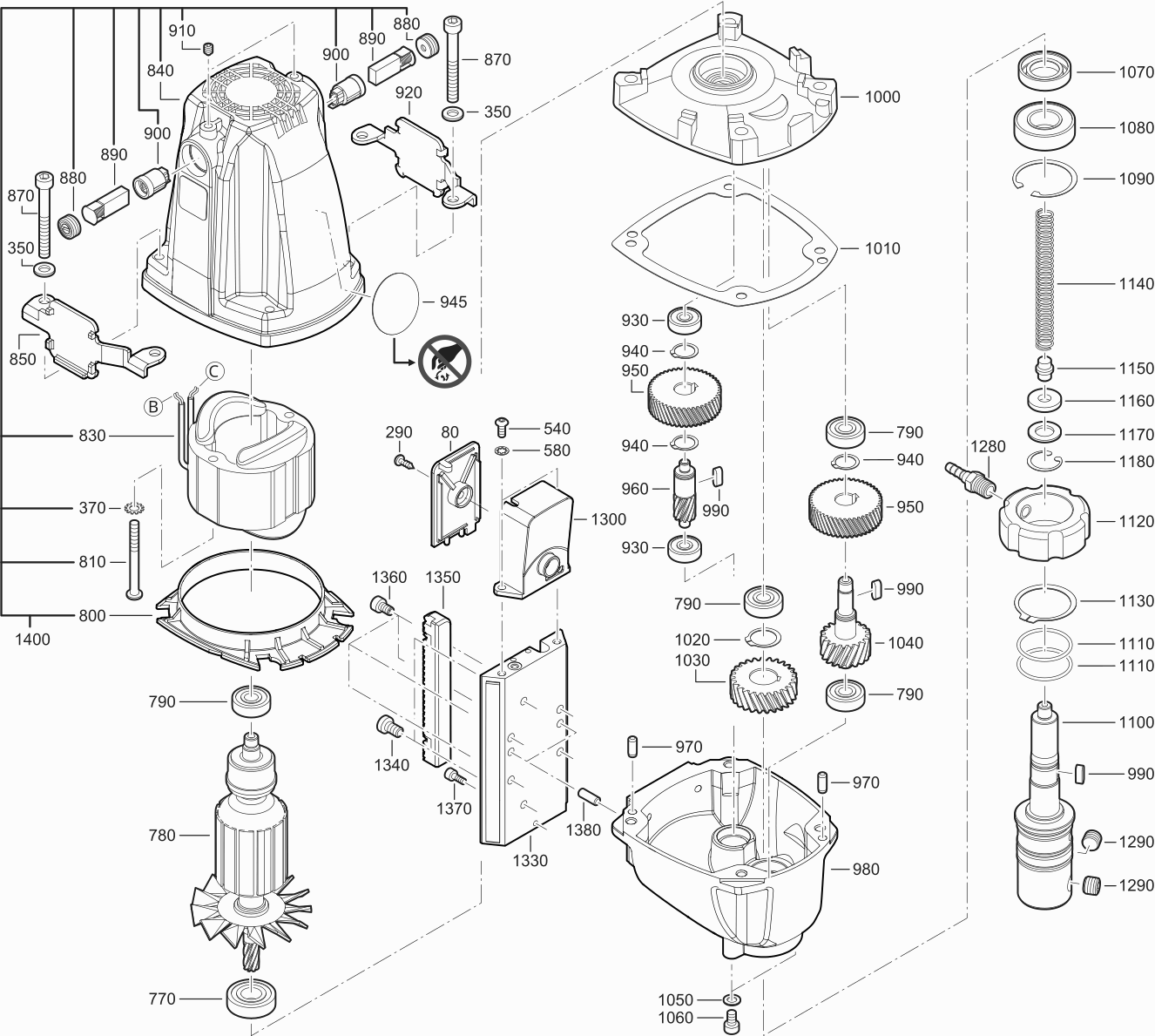

Dessins des Fein 72709100230 ( KBE30 )
Liste de pièces de rechange des Fein 72709100230 ( KBE30 )
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Bornier | ||||
| 20 | 31412064000 | 2.71 | 3.25 | |
| Cordon | ||||
| 70 | 30798591130 | 47.85 | 57.42 | |
| Couvercle | ||||
| 80 | 31998630020 | 1.67 | 2.00 | |
| Serre-câbles | ||||
| 85 | 30798757100 | 1.04 | 1.25 | |
| Vis | ||||
| 110 | 43098705585 | 1.46 | 1.75 | |
| Vis | ||||
| 120 | 43098703230 | 1.04 | 1.25 | |
| Cordon | ||||
| 130 | 30707592010 | 130.15 | 156.18 | |
| Sangle | ||||
| 140 | 32174008007 | 24.20 | 29.04 | |
| Pied magnétique | ||||
| 150 | 32172043010 | 487.43 | 584.92 | |
| Autocollant | ||||
| 160 | 32217407000 | 3.13 | 3.76 | |
| Grille à copeaux | ||||
| 230 | 31810313000 | 30.30 | 36.36 | |
| Vis | ||||
| 240 | 43098706020 | 1.04 | 1.25 | |
| Vis | ||||
| 290 | 43098710070 | 1.88 | 2.26 | |
| Câble de connexion | ||||
| 300 | 30798591095 | 11.28 | 13.54 | |
| Vis | ||||
| 310 | 43098706480 | 1.04 | 1.25 | |
| Guide | ||||
| 320 | 31298332820 | 11.74 | 14.09 | |
| Bouton d'arrêt | ||||
| 325 | 31298331050 | 2.71 | 3.25 | |
| Disque | ||||
| 340 | 42498720630 | 1.67 | 2.00 | |
| Disque | ||||
| 350 | 42498720600 | 1.04 | 1.25 | |
| Rondelle dentelée | ||||
| 360 | 42498720500 | 1.04 | 1.25 | |
| Disque | ||||
| 370 | 42498720540 | 1.04 | 1.25 | |
| Vis | ||||
| 380 | 43098705060 | 1.04 | 1.25 | |
| Vis | ||||
| 390 | 43098705370 | 1.04 | 1.25 | |
| Carter | ||||
| 400 | 31298392600 | 82.94 | 99.53 | |
| Couvercle | ||||
| 410 | 30798510130 | 9.89 | 11.87 | |
| Vis | ||||
| 420 | 43098708100 | 1.25 | 1.50 | |
| Poignée | ||||
| 430 | 31298330020 | 17.54 | 21.05 | |
| Circlips | ||||
| 440 | 42616023000 | 1.04 | 1.25 | |
| Disque | ||||
| 450 | 31698320055 | 4.10 | 4.92 | |
| Douille | ||||
| 460 | 31698320040 | 3.48 | 4.18 | |
| Arbre | ||||
| 480 | 33298320040 | 33.81 | 40.57 | |
| Clavette | ||||
| 490 | 40298745000 | 2.09 | 2.51 | |
| Roue dentée | ||||
| 500 | 33698682000 | 34.45 | 41.34 | |
| Vis | ||||
| 510 | 43098705055 | 1.04 | 1.25 | |
| Guide | ||||
| 520 | 31298332540 | 2.93 | 3.52 | |
| Carter | ||||
| 530 | 31298330140 | 209.26 | 251.11 | |
| Vis | ||||
| 540 | 43098704060 | 1.04 | 1.25 | |
| Faisceau électrique | ||||
| 550 | 30719977010 | 7.10 | 8.52 | |
| Platine électronique | ||||
| 560 | 30798550090 | 148.02 | 177.62 | |
| Écrou hexagonal | ||||
| 570 | 42001027045 | 1.04 | 1.25 | |
| Disque | ||||
| 580 | 42498720440 | 1.04 | 1.25 | |
| Plaque | ||||
| 590 | 32424050040 | 22.01 | 26.41 | |
| Couvercle | ||||
| 600 | 31201150000 | 3.68 | 4.42 | |
| Bouton poussoir | ||||
| 610 | 30701223005 | 13.40 | 16.08 | |
| Bouton poussoir | ||||
| 620 | 30701311000 | 11.10 | 13.32 | |
| Couvercle de protection | ||||
| 630 | 30219058000 | 5.77 | 6.92 | |
| Interrupteur | ||||
| 640 | 30701281000 | 29.67 | 35.60 | |
| Vis | ||||
| 650 | 43098704330 | 2.51 | 3.01 | |
| Capuchon | ||||
| 660 | 30701224003 | 5.36 | 6.43 | |
| Joint | ||||
| 670 | 30610034008 | 1.67 | 2.00 | |
| Puce RFID | ||||
| 680 | 32217517000 | 1.25 | 1.50 | |
| Écrou | ||||
| 690 | 30798757544 | 2.71 | 3.25 | |
| Cordon | ||||
| 700 | 30798591085 | 27.43 | 32.92 | |
| Roulement à billes | ||||
| 770 | 41798730390 | 20.42 | 24.50 | |
| Rotor | ||||
| 780 | 53298653030 | 142.91 | 171.49 | |
| Roulement à billes | ||||
| 790 | 41798730200 | 16.59 | 19.91 | |
| Anneau de guidage d'air | ||||
| 800 | 31998633060 | 3.90 | 4.68 | |
| Vis | ||||
| 810 | 43098705600 | 1.25 | 1.50 | |
| Stator | ||||
| 830 | 51298653060 | 54.23 | 65.08 | |
| Carter moteur | ||||
| 840 | 31998633010 | 66.35 | 79.62 | |
| Adaptateur | ||||
| 850 | 32498610180 | 7.24 | 8.69 | |
| Vis | ||||
| 870 | 43098706660 | 1.67 | 2.00 | |
| Capuchon | ||||
| 880 | 30798653080 | 1.67 | 2.00 | |
| Balai | ||||
| 890 | 30798653100 | 5.99 | 7.19 | |
| Porte balai | ||||
| 900 | 30798653120 | 9.47 | 11.36 | |
| Vis | ||||
| 910 | 43098705010 | 6.82 | 8.18 | |
| Adaptateur | ||||
| 920 | 32498610160 | 7.24 | 8.69 | |
| Roulement à billes | ||||
| 930 | 41798730120 | 13.72 | 16.46 | |
| Anneau | ||||
| 940 | 42698740120 | 1.67 | 2.00 | |
| Autocollant | ||||
| 945 | 32217406002 | 1.25 | 1.50 | |
| Roue dentée | ||||
| 950 | 33698681030 | 41.47 | 49.76 | |
| Cordon | ||||
| 955 | 30707586010 | 74.80 | 89.76 | |
| Vissage | ||||
| 956 | 30723044003 | 22.97 | 27.56 | |
| Gaine de cordon | ||||
| 957 | 31413007007 | 2.51 | 3.01 | |
| Couvercle de protection | ||||
| 958 | 31413177009 | 1.04 | 1.25 | |
| Pignon | ||||
| 960 | 33698681040 | 21.37 | 25.64 | |
| Tige | ||||
| 970 | 40298742003 | 2.29 | 2.75 | |
| Carter d'engrenage | ||||
| 980 | 31508319000 | 56.14 | 67.37 | |
| Clavette | ||||
| 990 | 40298745040 | 3.13 | 3.76 | |
| Palier intermédiaire | ||||
| 1000 | 31506416000 | 56.10 | 67.32 | |
| Joint | ||||
| 1010 | 32498613000 | 8.50 | 10.20 | |
| Circlips | ||||
| 1020 | 42616023000 | 1.04 | 1.25 | |
| Pignon | ||||
| 1030 | 33698681050 | 29.67 | 35.60 | |
| Arbre, à denture | ||||
| 1040 | 33698681020 | 33.81 | 40.57 | |
| Disque | ||||
| 1050 | 42498720560 | 1.04 | 1.25 | |
| Vis | ||||
| 1060 | 43098705040 | 1.04 | 1.25 | |
| Bague d'étanchéité | ||||
| 1070 | 40698763020 | 5.99 | 7.19 | |
| Roulement à billes | ||||
| 1080 | 41798730450 | 16.59 | 19.91 | |
| Anneau | ||||
| 1090 | 42698741350 | 2.09 | 2.51 | |
| Ejecteur | ||||
| 1100 | 33498621020 | 111.01 | 133.21 | |
| Anneau | ||||
| 1110 | 40698763560 | 3.48 | 4.18 | |
| Anneau | ||||
| 1120 | 31998633080 | 77.84 | 93.41 | |
| Circlips | ||||
| 1130 | 42616000002 | 1.04 | 1.25 | |
| Ressort | ||||
| 1140 | 30998744240 | 4.32 | 5.18 | |
| Poinçon | ||||
| 1150 | 33498223340 | 3.48 | 4.18 | |
| Disque | ||||
| 1160 | 42498726030 | 1.46 | 1.75 | |
| Disque | ||||
| 1170 | 42498726060 | 2.09 | 2.51 | |
| Circlips | ||||
| 1180 | 42698741190 | 1.88 | 2.26 | |
| Embout à olive | ||||
| 1280 | 31498761020 | 6.61 | 7.93 | |
| Vis | ||||
| 1290 | 43098709000 | 1.50 | 1.80 | |
| Couvercle | ||||
| 1300 | 31998630010 | 4.32 | 5.18 | |
| Guide | ||||
| 1330 | 31998631130 | 59.33 | 71.20 | |
| Vis | ||||
| 1340 | 43098706050 | 1.04 | 1.25 | |
| Crémaillère | ||||
| 1350 | 33698680020 | 41.47 | 49.76 | |
| Vis | ||||
| 1360 | 43098705220 | 1.04 | 1.25 | |
| Vis | ||||
| 1370 | 43098704120 | 1.25 | 1.50 | |
| Tige | ||||
| 1380 | 40298742020 | 1.46 | 1.75 | |
| Bloc stator | ||||
| 1400 | 52298690340 | 210.54 | 252.65 | |
| Raccord | ||||
| 1410 | 31698391000 | 40.83 | 49.00 | |
| Poignée | ||||
| 1420 | 32198114000 | 14.36 | 17.23 | |
| Réservoir | ||||
| 1440 | 32198190010 | 22.97 | 27.56 | |
| Tuyau flexible | ||||
| 1450 | 31498760060 | 4.10 | 4.92 | |
| Unité de serrage | ||||
| 2010 | 64298120140 | 9.05 | 10.86 | |
| Raccord | ||||
| 2020 | 31698321000 | 35.73 | 42.88 | |
| Disque | ||||
| 2030 | 42098746000 | 1.04 | 1.25 | |
| Plaque d'Informations | ||||
| 2350 | 32217552000 | 1.04 | 1.25 | |
| KOFFER KBE30 | ||||
| 5000 | 33998140130 | 90.20 | 108.24 | |
| CENTREERSTIFT 100MM | ||||
| 5350 | 63134998310 | 17.88 | 21.46 | |
| Clé | ||||
| 5380 | 62998780030 | 3.13 | 3.76 | |
| Crochet à copeaux | ||||
| 5390 | 64298160400 | 23.29 | 27.95 | |
| Plus disponible, pas de remplacement | ||||
| 6000 | 32198766050 | |||
| Plus disponible, pas de remplacement | ||||
| 7000 | 64107037003 | |||
| Extracteur (SW0016, L 130 MM, M 12) | ||||
| 7010 | 64104150008 | 116.75 | 140.10 | |
| Dispositif de serrage (SW0019, ID 22 MM, M 6) | ||||
| 7020 | 64107022001 | 111.01 | 133.21 | |
| Dispositif de serrage (SW0019, ID 19 MM, M 6) | ||||
| 7090 | 64107019007 | 96.98 | 116.38 | |
