Vous trouverez ici toutes les pièces et dessins disponibles du 'Dewalt D25604K Type 3'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

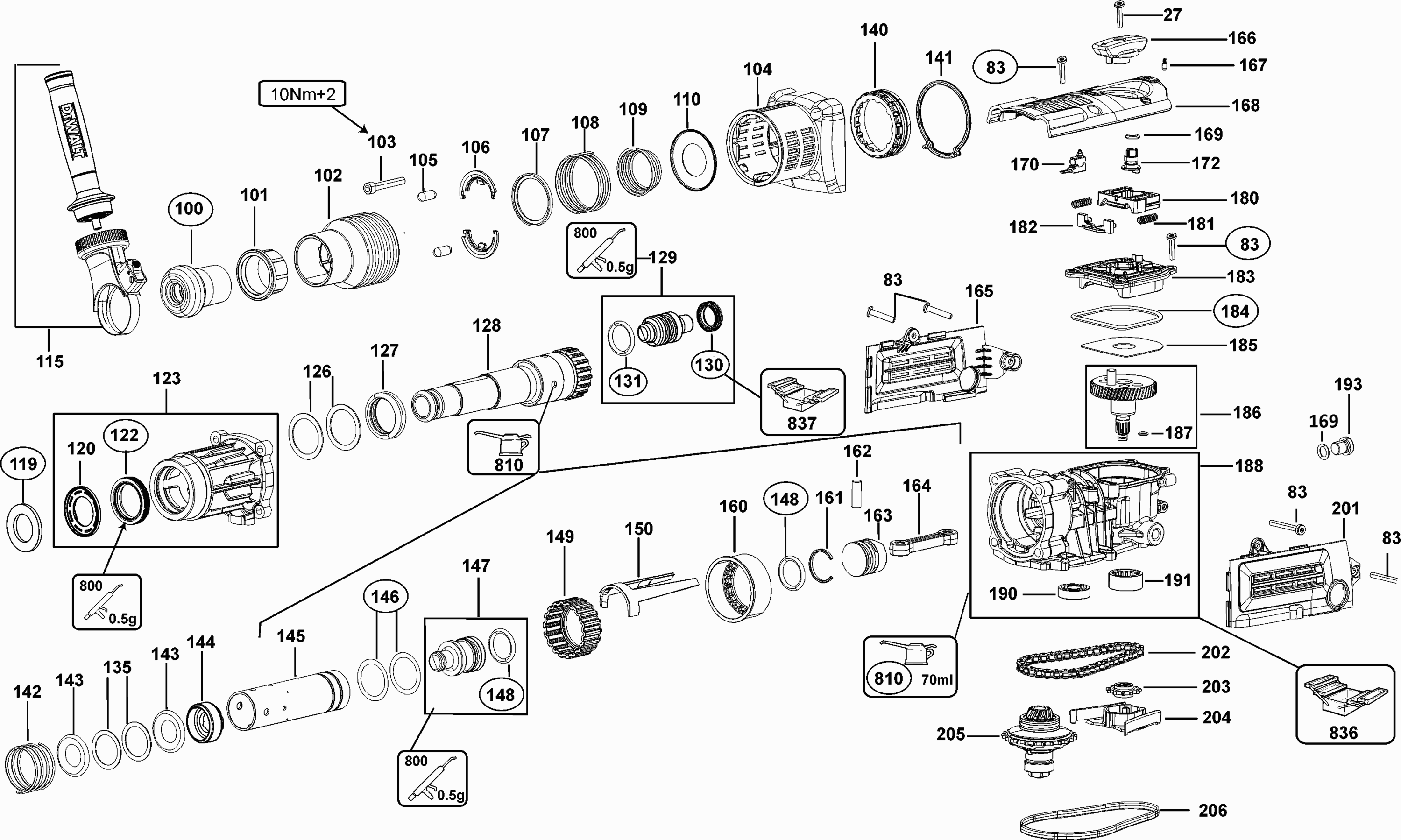

Dessins des Dewalt D25604K Type 3
Liste de pièces de rechange des Dewalt D25604K Type 3
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| ARMATURE 120V | ||||
| 1 | N046419 | 87.91 | 105.49 | |
| FIELD 120V | ||||
| 2 | N041826 | 45.21 | 54.25 | |
| S/E CARTER | ||||
| 3 | N047284 | 22.16 | 26.59 | |
| PALIER | ||||
| 4 | 330003-39 | 5.68 | 6.82 | |
| joint | ||||
| 5 | 327141-03 | 8.12 | 9.74 | |
| ANNEAU | ||||
| 6 | 577746-00 | 1.55 | 1.86 | |
| VIS | ||||
| 9 | 330065-21 | 1.30 | 1.56 | |
| CONNECTEUR | ||||
| 11 | 1007970-00 | 1.55 | 1.86 | |
| PALIER | ||||
| 20 | N110359 | 5.02 | 6.02 | |
| MANCHON | ||||
| 21 | 1007732-00 | 1.55 | 1.86 | |
| PONT | ||||
| 22 | 1007798-00 | 8.12 | 9.74 | |
| BRUSH & HOLDER 115V | ||||
| 23 | N047304 | 18.84 | 22.61 | |
| BRUSH PAIR 120V | ||||
| 24 | N047286 | 15.50 | 18.60 | |
| BRUSH & HOLDER 115V | ||||
| 25 | N047445 | 11.72 | 14.06 | |
| CHICANE | ||||
| 26 | N481200 | 5.68 | 6.82 | |
| VIS | ||||
| 27 | 330065-08 | 1.30 | 1.56 | |
| Plus disponible, pas de remplacement | ||||
| 28 | 1006592-01 | |||
| VIS | ||||
| 29 | 324119-02 | 2.51 | 3.01 | |
| BOUCHON D'EXTREMITE | ||||
| 40 | 1006577-00 | 9.49 | 11.39 | |
| CAPOT MOTEUR | ||||
| 41 | 1006576-02 | 10.36 | 12.43 | |
| GACC MODULE 115V | ||||
| 42 | N565614 | 121.76 | 146.11 | |
| VIS | ||||
| 49 | 1005672-00 | 4.22 | 5.06 | |
| PLAQUE DE COUVERCLE | ||||
| 50 | N532301 | 14.56 | 17.47 | |
| RESSORT | ||||
| 60 | 1007569-00 | 2.32 | 2.78 | |
| COUSSINET | ||||
| 61 | 1007567-00 | 3.29 | 3.95 | |
| SÉCURITÉ | ||||
| 62 | 1007566-00 | 8.63 | 10.36 | |
| SOUFFLETS | ||||
| 63 | 1007565-00 | 3.86 | 4.63 | |
| POIGNEE A INTERRUPTEUR | ||||
| 64 | 1006579-00 | 8.63 | 10.36 | |
| GACHETTE | ||||
| 65 | 587114-01 | 2.32 | 2.78 | |
| INTERRUPTEUR | ||||
| 66 | N467530 | 14.56 | 17.47 | |
| COUVERCLE DE POIGNEE | ||||
| 67 | 1006580-00 | 11.72 | 14.06 | |
| INTERRUPTEUR DE VERROUILLAGE | ||||
| 68 | N518647 | 30.36 | 36.43 | |
| SET OF LEAD WIRES | ||||
| 69 | N046423 | 12.78 | 15.34 | |
| CONNECTEUR | ||||
| 70 | N015311 | 1.55 | 1.86 | |
| VIS | ||||
| 71 | 326619-00 | 1.55 | 1.86 | |
| JEU DE CORDONS | ||||
| 72 | N075436 | 22.16 | 26.59 | |
| FIL DE RACCORDEMENT | ||||
| 75 | N020040 | 3.44 | 4.13 | |
| SOUFFLETS | ||||
| 80 | 1008678-00 | 4.49 | 5.39 | |
| COUSSINET | ||||
| 81 | N038214 | 1.30 | 1.56 | |
| AXE | ||||
| 82 | N062047 | 1.30 | 1.56 | |
| VIS | ||||
| 83 | 324007-11 | 1.30 | 1.56 | |
| COLLIER DE CORDON | ||||
| 85 | 821070 | 1.30 | 1.56 | |
| PROTECTEUR DE CORDON | ||||
| 86 | 323091-01 | 5.02 | 6.02 | |
| COUVERCLE | ||||
| 88 | 1008391-00 | 3.44 | 4.13 | |
| GUIDE | ||||
| 90 | N532302 | 2.32 | 2.78 | |
| JOINT A LEVRE | ||||
| 100 | 329816-00 | 6.19 | 7.43 | |
| COLLIER | ||||
| 101 | 326575-01 | 4.49 | 5.39 | |
| S/E MANCHON | ||||
| 102 | 479247-00 | 8.63 | 10.36 | |
| VIS | ||||
| 103 | 918825-02 | 1.55 | 1.86 | |
| COUVERCLE | ||||
| 104 | 1006572-00 | 6.19 | 7.43 | |
| ROULEAU | ||||
| 105 | 325878-00 | 3.44 | 4.13 | |
| DEMI-RONDELLE | ||||
| 106 | 325929-00 | 2.32 | 2.78 | |
| GUIDE | ||||
| 107 | 327208-00 | 1.30 | 1.56 | |
| RESSORT | ||||
| 108 | 323395-06 | 1.30 | 1.56 | |
| RESSORT | ||||
| 109 | 487118-00 | 2.51 | 3.01 | |
| GUIDE | ||||
| 110 | N313860 | 6.19 | 7.43 | |
| POIGNEE LATERALE | ||||
| 115 | N501145 | 49.35 | 59.22 | |
| TIGE DE PROFONDEUR | ||||
| 116 | N040996 | 6.89 | 8.27 | |
| FEUTRE | ||||
| 119 | N038151 | 2.75 | 3.30 | |
| COUSSINET | ||||
| 120 | N045793 | 2.75 | 3.30 | |
| JOINT | ||||
| 122 | 1007828-00 | 11.72 | 14.06 | |
| CARTER | ||||
| 123 | N041835 | 37.82 | 45.38 | |
| RONDELLE AVANT | ||||
| 126 | 1005982-00 | 1.30 | 1.56 | |
| AMORTISSEUR | ||||
| 127 | 496191-00 | 3.44 | 4.13 | |
| AXE | ||||
| 128 | N041834 | 95.67 | 114.80 | |
| POUSSOIR | ||||
| 129 | N041847 | 37.82 | 45.38 | |
| JOINT | ||||
| 130 | N244259 | 15.50 | 18.60 | |
| JOINT TORIQUE | ||||
| 131 | 323711-10 | 2.75 | 3.30 | |
| RONDELLE AVANT | ||||
| 135 | N064329 | 1.55 | 1.86 | |
| COUSSINET | ||||
| 140 | 494857-00 | 4.22 | 5.06 | |
| JOINT STATIQUE | ||||
| 141 | 1006283-00 | 4.49 | 5.39 | |
| RESSORT | ||||
| 142 | 1005748-00 | 2.75 | 3.30 | |
| JOINT TORIQUE | ||||
| 143 | N210233 | 3.86 | 4.63 | |
| COUSSINET | ||||
| 144 | 1006778-00 | 2.75 | 3.30 | |
| CYLINDRE | ||||
| 145 | N041846 | 24.65 | 29.58 | |
| JOINT TORIQUE | ||||
| 146 | 577744-00 | 4.22 | 5.06 | |
| VERIN | ||||
| 147 | N041845 | 22.16 | 26.59 | |
| JOINT TORIQUE | ||||
| 148 | 576232-01 | 6.89 | 8.27 | |
| MANCHON | ||||
| 149 | N041844 | 14.56 | 17.47 | |
| FOURCHETTE DE SELECTEUR | ||||
| 150 | 1005749-00 | 2.75 | 3.30 | |
| S/E EMBRAYAGE | ||||
| 160 | N551770 | 91.70 | 110.04 | |
| PIECE DE RETENUE | ||||
| 161 | 325905-00 | 2.32 | 2.78 | |
| AXE | ||||
| 162 | 330041-22 | 3.44 | 4.13 | |
| PISTON | ||||
| 163 | N041843 | 8.63 | 10.36 | |
| TIGE CONIQUE | ||||
| 164 | 494724-00 | 6.19 | 7.43 | |
| COUVERCLE C. DROIT | ||||
| 165 | N482797 | 6.89 | 8.27 | |
| SELECTEUR | ||||
| 166 | 1006786-00 | 3.44 | 4.13 | |
| CRAN DE VERROUILLAGE | ||||
| 167 | 326467-00 | 1.30 | 1.56 | |
| COUVERCLE SUPERIEUR | ||||
| 168 | 1006575-00 | 8.12 | 9.74 | |
| JOINT TORIQUE | ||||
| 169 | 323711-57 | 1.30 | 1.56 | |
| MICRORUPTEUR | ||||
| 170 | N516505 | 12.78 | 15.34 | |
| EXCENTRIQUE | ||||
| 172 | 496856-00 | 1.30 | 1.56 | |
| GLISSIERE | ||||
| 180 | 1006784-00 | 2.75 | 3.30 | |
| RESSORT | ||||
| 181 | 323395-32 | 1.30 | 1.56 | |
| CONNECTEUR | ||||
| 182 | 1006783-00 | 1.55 | 1.86 | |
| COUVERCLE | ||||
| 183 | 496857-00 | 5.68 | 6.82 | |
| JOINT TORIQUE | ||||
| 184 | 323711-59 | 1.55 | 1.86 | |
| PLAQUE | ||||
| 185 | 1006785-00 | 3.29 | 3.95 | |
| VILEBREQUIN | ||||
| 186 | N041841 | 49.35 | 59.22 | |
| JOINT TORIQUE | ||||
| 187 | 323711-26 | 1.30 | 1.56 | |
| S/E CARTER | ||||
| 188 | N527066 | 85.38 | 102.46 | |
| BEARING,BALL | ||||
| 190 | 577745-01 | 8.63 | 10.36 | |
| BEARING,NEEDLE | ||||
| 191 | 586301-00 | 9.49 | 11.39 | |
| SCREW.SPECIAL | ||||
| 193 | 1008427-00 | 3.29 | 3.95 | |
| COUVERCLE C. GAUCHE | ||||
| 201 | N482796 | 6.89 | 8.27 | |
| CHAINE | ||||
| 202 | N041839 | 10.36 | 12.43 | |
| PIGNON | ||||
| 203 | N041837 | 5.68 | 6.82 | |
| GUIDE | ||||
| 204 | 1006280-00 | 3.86 | 4.63 | |
| S/E EMBRAYAGE | ||||
| 205 | N551770 | 91.70 | 110.04 | |
| JOINT STATIQUE | ||||
| 206 | 1006282-00 | 5.68 | 6.82 | |
| Plus disponible, pas de remplacement | ||||
| 800 | 870889-02 | |||
| TUBE D'HUILE | ||||
| 810 | N040237 | 18.84 | 22.61 | |
| ETIQUETTE MARQUE | ||||
| 816 | N064908 | 1.30 | 1.56 | |
| ETIQUETTE SIGNALETIQUE | ||||
| 821 | N567558 | 4.22 | 5.06 | |
| OUTIL D'ENTRETIEN | ||||
| 836 | 1003938-99 | 154.97 | 185.96 | |
| OUTIL DE POSE DE JOINT S.T. | ||||
| 837 | 559645-99 | 117.01 | 140.41 | |
| BOITE DE KIT | ||||
| 861 | 574931-22 | 56.91 | 68.29 | |
