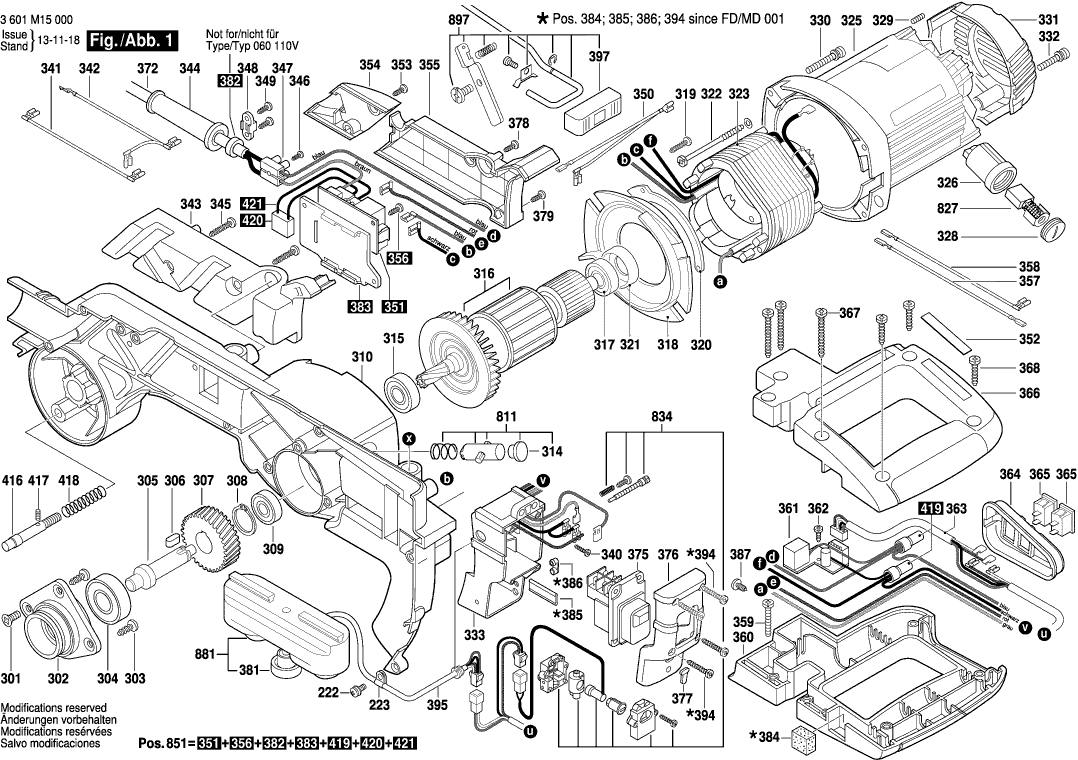

Dessins des Bosch 3601M15000 ( GTM12 )
Liste de pièces de rechange des Bosch 3601M15000 ( GTM12 )
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Vis M 8x0.8-10 | ||||
| 1 | 2610911466 | 0.83 | 1.00 | |
| Plaque Taraudee | ||||
| 2 | 2610910844 | 0.83 | 1.00 | |
| Presentoir Annexe | ||||
| 3 | 2610907826 | 9.53 | 11.44 | |
| VIS C M4X34 | ||||
| 4 | 2610356733 | 0.83 | 1.00 | |
| Ecrou Hex | ||||
| 5 | 2610910794 | 0.83 | 1.00 | |
| Jeu De Cles | ||||
| 6 | 2610911470 | 3.31 | 3.97 | |
| Cle A Douille Hexagonale | ||||
| 7 | 1619P04000 | 3.31 | 3.97 | |
| Tige Filetée M8x1,25-30 | ||||
| 8 | 2610992377 | 0.83 | 1.00 | |
| Plaque De Base | ||||
| 9 | 1619P04817 | 148.65 | 178.38 | |
| Note D’avertissement | ||||
| 10 | 2610909006 | 2.71 | 3.25 | |
| Plaque Dusure | ||||
| 12 | 2610907854 | 1.18 | 1.42 | |
| Plus disponible, pas de remplacement | ||||
| 13 | 1609203L65 | |||
| Plaque De Recouvrement | ||||
| 14 | 1609203G92 | 2.24 | 2.69 | |
| Plus disponible, pas de remplacement | ||||
| 15 | 1619P03548 | |||
| Plus disponible, pas de remplacement | ||||
| 17 | 2610910774 | |||
| Disque | ||||
| 18 | 2610309996 | 0.83 | 1.00 | |
| Plus disponible, pas de remplacement | ||||
| 20 | 2610910775 | |||
| Vis | ||||
| 21 | 2610910776 | 0.83 | 1.00 | |
| Vis | ||||
| 23 | 2615303029 | 0.83 | 1.00 | |
| Plaque d’extrémité | ||||
| 24 | 2610910833 | 4.70 | 5.64 | |
| Tôle | ||||
| 25 | 2610916122 | 5.33 | 6.40 | |
| Boulon De Serrage | ||||
| 26 | 1619P04214 | 4.10 | 4.92 | |
| Ecrou | ||||
| 27 | 2610934688 | 1.18 | 1.42 | |
| Plaque Echelle | ||||
| 28 | 2610907846 | 1.18 | 1.42 | |
| Table De Sciage | ||||
| 29 | 1619P04013 | 101.94 | 122.33 | |
| Rondelle | ||||
| 30 | 2610908270 | 0.83 | 1.00 | |
| Vis | ||||
| 31 | 2610910777 | 0.83 | 1.00 | |
| Ecrou Hex | ||||
| 32 | 2610912549 | 0.83 | 1.00 | |
| VIS C M4X34 | ||||
| 33 | 2610355267 | 0.83 | 1.00 | |
| Tige Filetée | ||||
| 34 | 2610910778 | 1.18 | 1.42 | |
| Vis sans tête | ||||
| 35 | 2610910786 | 0.83 | 1.00 | |
| Ecrou | ||||
| 36 | 2610912551 | 0.83 | 1.00 | |
| Arbre | ||||
| 37 | 2610908288 | 0.83 | 1.00 | |
| Rondelle | ||||
| 38 | 2610910779 | 0.83 | 1.00 | |
| Ecrou | ||||
| 39 | 2610358172 | 0.83 | 1.00 | |
| Aiguille | ||||
| 40 | 2610907852 | 1.18 | 1.42 | |
| Vis | ||||
| 41 | 2610910782 | 0.83 | 1.00 | |
| Plus disponible, pas de remplacement | ||||
| 42 | 1619P03782 | |||
| Vis | ||||
| 43 | 2610910781 | 1.18 | 1.42 | |
| Bouton | ||||
| 45 | 1619P04002 | 1.70 | 2.04 | |
| Plus disponible, pas de remplacement | ||||
| 46 | 1619P04003 | |||
| Vis | ||||
| 47 | 2610910793 | 2.24 | 2.69 | |
| Bouton | ||||
| 50 | 1619P04004 | 4.70 | 5.64 | |
| Plus disponible, pas de remplacement | ||||
| 54 | 1619P04005 | |||
| Plus disponible, pas de remplacement | ||||
| 55 | 1619P04006 | |||
| Vis | ||||
| 56 | 1619P04164 | 1.18 | 1.42 | |
| Vis | ||||
| 57 | 1619P04165 | 0.83 | 1.00 | |
| Vis | ||||
| 58 | 1619P04166 | 0.83 | 1.00 | |
| Couvercle De Protection | ||||
| 59 | 1619P04007 | 36.85 | 44.22 | |
| Ecrou Hex | ||||
| 60 | 2610912549 | 0.83 | 1.00 | |
| Vis | ||||
| 61 | 2610912548 | 2.24 | 2.69 | |
| Ecrou | ||||
| 62 | 1619P04167 | 2.24 | 2.69 | |
| Rondelle | ||||
| 63 | 1609902582 | 0.83 | 1.00 | |
| Coussinet | ||||
| 64 | 1619P04008 | 15.71 | 18.85 | |
| Pivot | ||||
| 65 | 1619P04009 | 60.65 | 72.78 | |
| Joint torique | ||||
| 66 | 2610912553 | 0.83 | 1.00 | |
| Axe De Blocage | ||||
| 67 | 2610907847 | 1.94 | 2.33 | |
| Bouton | ||||
| 68 | 2610912554 | 0.83 | 1.00 | |
| Rondelle | ||||
| 69 | 2610910792 | 0.83 | 1.00 | |
| Ecrou Carre | ||||
| 70 | 2610355332 | 1.18 | 1.42 | |
| Rondelle plate | ||||
| 71 | 2610355264 | 1.94 | 2.33 | |
| Rondelle De Butee | ||||
| 72 | 2615297329 | 0.83 | 1.00 | |
| Douille | ||||
| 73 | 2610910766 | 4.10 | 4.92 | |
| Plus disponible, pas de remplacement | ||||
| 74 | 2610910838 | |||
| Ressort De Compression | ||||
| 75 | 2610910765 | 0.83 | 1.00 | |
| Vis | ||||
| 76 | 2610910762 | 3.31 | 3.97 | |
| Bague Pour Palier | ||||
| 77 | 1619P04010 | 4.70 | 5.64 | |
| Ressort De Torsion | ||||
| 78 | 1619P04011 | 4.70 | 5.64 | |
| Boulon | ||||
| 79 | 1619P03482 | 1.70 | 2.04 | |
| Plus disponible, pas de remplacement | ||||
| 80 | 1609203G78 | |||
| Plus disponible, pas de remplacement | ||||
| 82 | 1609203G77 | |||
| Segment de retenue | ||||
| 83 | 1619P04168 | 1.94 | 2.33 | |
| Ecrou | ||||
| 84 | 1619P04169 | 0.83 | 1.00 | |
| Plus disponible, pas de remplacement | ||||
| 85 | 1619P04012 | |||
| Rondelle De Butee | ||||
| 87 | 1619P03689 | 0.83 | 1.00 | |
| Vis De Butee | ||||
| 89 | 1619P04017 | 1.18 | 1.42 | |
| Piece D’articulation | ||||
| 92 | 1619P04019 | 7.58 | 9.10 | |
| Vis | ||||
| 93 | 1619P04171 | 1.18 | 1.42 | |
| Vis D’arret | ||||
| 94 | 1619P04020 | 5.83 | 7.00 | |
| Vis | ||||
| 95 | 1619P04172 | 1.18 | 1.42 | |
| Poignee | ||||
| 96 | 1619P04021 | 4.70 | 5.64 | |
| Boulon | ||||
| 97 | 1619P04022 | 9.53 | 11.44 | |
| Vis | ||||
| 99 | 1619P04173 | 0.83 | 1.00 | |
| Ecrou Hex | ||||
| 101 | 2610912549 | 0.83 | 1.00 | |
| Vis D’arret | ||||
| 102 | 1619P04024 | 2.24 | 2.69 | |
| Vis | ||||
| 103 | 1619P04172 | 1.18 | 1.42 | |
| Poignee | ||||
| 104 | 1619P04021 | 4.70 | 5.64 | |
| Boulon | ||||
| 106 | 1619P04175 | 0.83 | 1.00 | |
| Vis | ||||
| 113 | 1619P04027 | 0.83 | 1.00 | |
| Ecrou Hex | ||||
| 119 | 2610912549 | 0.83 | 1.00 | |
| Bouton | ||||
| 120 | 1619P04033 | 3.31 | 3.97 | |
| Vis | ||||
| 121 | 1619P04176 | 1.18 | 1.42 | |
| Rondelle | ||||
| 122 | 1619P04177 | 1.18 | 1.42 | |
| Ressort De Compression | ||||
| 123 | 1619P04034 | 1.70 | 2.04 | |
| Barre | ||||
| 124 | 1619P04035 | 7.58 | 9.10 | |
| Vis | ||||
| 125 | 1619P04178 | 0.83 | 1.00 | |
| Capot De Protection | ||||
| 126 | 1619P04036 | 9.53 | 11.44 | |
| Ecrou | ||||
| 127 | 1619P04179 | 0.83 | 1.00 | |
| Vis | ||||
| 129 | 1619P04180 | 1.18 | 1.42 | |
| Poussoir | ||||
| 136 | 1619P04042 | 11.88 | 14.26 | |
| Agrafe | ||||
| 137 | 1619P04043 | 0.83 | 1.00 | |
| Barre | ||||
| 173 | 1619P04053 | 5.83 | 7.00 | |
| Barre | ||||
| 174 | 1619P04182 | 2.24 | 2.69 | |
| Bouton | ||||
| 176 | 1619P04054 | 0.83 | 1.00 | |
| Element Serrage | ||||
| 184 | 1619P04060 | 0.83 | 1.00 | |
| Plaque De Butee | ||||
| 188 | 1619P04063 | 4.10 | 4.92 | |
| Plus disponible, pas de remplacement | ||||
| 214 | 1619P04082 | |||
| Boulon | ||||
| 217 | 1619P04085 | 1.94 | 2.33 | |
| Rondelle | ||||
| 218 | 1619P04188 | 1.18 | 1.42 | |
| Plus disponible, pas de remplacement | ||||
| 219 | 1619P04086 | |||
| Plus disponible, pas de remplacement | ||||
| 220 | 2610910774 | |||
| Vis | ||||
| 221 | 1619P04027 | 0.83 | 1.00 | |
| Vis M 8x0.8-10 | ||||
| 222 | 2610911466 | 0.83 | 1.00 | |
| Support De Cable | ||||
| 223 | 1619P04088 | 1.94 | 2.33 | |
| Ressort | ||||
| 224 | 1619P04189 | 0.83 | 1.00 | |
| Ressort | ||||
| 231 | 1619P04089 | 0.83 | 1.00 | |
| Couvercle Transparent | ||||
| 232 | 1619P04090 | 2.24 | 2.69 | |
| Rondelle | ||||
| 264 | 1619P04097 | 0.83 | 1.00 | |
| Entretoise | ||||
| 265 | 1619P04015 | 0.83 | 1.00 | |
| Vis | ||||
| 268 | 1619P04014 | 1.70 | 2.04 | |
| Vis | ||||
| 301 | 1619P04191 | 0.83 | 1.00 | |
| Collier De Fixation De P | ||||
| 302 | 1619P04095 | 20.42 | 24.50 | |
| Vis | ||||
| 303 | 1619P04192 | 0.83 | 1.00 | |
| Roulement A Billes | ||||
| 304 | 2610910789 | 9.53 | 11.44 | |
| Arbre Du Doigt | ||||
| 305 | 1619P04154 | 15.71 | 18.85 | |
| Clavette-Disque | ||||
| 306 | 1619P04155 | 1.70 | 2.04 | |
| Roue D’engrenage | ||||
| 307 | 1619P04156 | 26.84 | 32.21 | |
| Bague de verrouillage | ||||
| 308 | 2610355320 | 4.70 | 5.64 | |
| Roulement A Billes | ||||
| 309 | 2610910787 | 8.45 | 10.14 | |
| Carter D’engrenages | ||||
| 310 | 1619P04096 | 101.94 | 122.33 | |
| Bouton | ||||
| 314 | 1619P04100 | 0.83 | 1.00 | |
| Roulement A Billes Rigide | ||||
| 315 | 1609902600 | 5.33 | 6.40 | |
| Plus disponible, pas de remplacement | ||||
| 316 | 1619P04101 | |||
| Roulement A Billes Rigide 6200-2Z DIN 625 | ||||
| 317 | 1900905232 | 18.19 | 21.83 | |
| Deflecteur D’air | ||||
| 318 | 1619P04103 | 1.94 | 2.33 | |
| Vis | ||||
| 319 | 1619P04194 | 0.83 | 1.00 | |
| Plaque De Recouvrement | ||||
| 320 | 1619P04104 | 2.24 | 2.69 | |
| Plus disponible, pas de remplacement | ||||
| 321 | 2610911485 | |||
| Vis | ||||
| 322 | 1619P04196 | 0.83 | 1.00 | |
| Plus disponible, pas de remplacement | ||||
| 323 | 1619P04105 | |||
| Plus disponible, pas de remplacement | ||||
| 325 | 1619P04107 | |||
| Porte-Balais | ||||
| 326 | 1619P04108 | 8.45 | 10.14 | |
| Plus disponible, pas de remplacement | ||||
| 328 | 1619P03545 | |||
| Vis | ||||
| 329 | 1619P04195 | 0.83 | 1.00 | |
| Vis | ||||
| 330 | 1619P04197 | 0.83 | 1.00 | |
| Couvercle De Carter | ||||
| 331 | 1619P04109 | 6.54 | 7.85 | |
| Vis | ||||
| 332 | 1619P04198 | 1.18 | 1.42 | |
| Boitier D’interrupteur | ||||
| 333 | 1619P04110 | 11.88 | 14.26 | |
| Vis | ||||
| 340 | 1619P04200 | 1.70 | 2.04 | |
| Cable | ||||
| 341 | 1619P04115 | 2.71 | 3.25 | |
| Cable | ||||
| 342 | 1619P04116 | 1.18 | 1.42 | |
| Carter De Regulateur | ||||
| 343 | 1619P04117 | 6.54 | 7.85 | |
| Passe-Cables | ||||
| 344 | 1609203J00 | 1.18 | 1.42 | |
| Vis | ||||
| 345 | 1619P04201 | 1.18 | 1.42 | |
| Vis | ||||
| 346 | 1619P04202 | 0.83 | 1.00 | |
| Bloc D’assemblage | ||||
| 347 | 1609902081 | 0.83 | 1.00 | |
| Collier De Fixation | ||||
| 348 | 1609203J01 | 0.83 | 1.00 | |
| Vis | ||||
| 349 | 1619P03662 | 0.83 | 1.00 | |
| Cable | ||||
| 350 | 1619P04118 | 2.71 | 3.25 | |
| MODULE DE DÉMARRAGE DOUX | ||||
| 351 | 1607233401 | 67.25 | 80.70 | |
| Note D’avertissement | ||||
| 352 | 1619P04340 | 1.94 | 2.33 | |
| Vis | ||||
| 353 | 1619P03662 | 0.83 | 1.00 | |
| Couvercle De Carter | ||||
| 354 | 1619P04121 | 5.33 | 6.40 | |
| Couvercle De Carter | ||||
| 355 | 1619P04122 | 9.53 | 11.44 | |
| Vis | ||||
| 356 | 1619P04194 | 0.83 | 1.00 | |
| Cable | ||||
| 357 | 1619P04123 | 1.18 | 1.42 | |
| Cable | ||||
| 358 | 1619P04124 | 1.18 | 1.42 | |
| Vis | ||||
| 359 | 1619P04203 | 0.83 | 1.00 | |
| Poignee | ||||
| 360 | 1619P04125 | 11.88 | 14.26 | |
| Circuit Imprime | ||||
| 361 | 1619P04842 | 18.19 | 21.83 | |
| Vis | ||||
| 362 | 1619P04204 | 1.18 | 1.42 | |
| Cable | ||||
| 363 | 1619P04127 | 8.45 | 10.14 | |
| Couvercle De Carter | ||||
| 364 | 1619P04128 | 4.10 | 4.92 | |
| Interrupteur | ||||
| 365 | 1619P04129 | 8.45 | 10.14 | |
| Poignee | ||||
| 366 | 1619P04130 | 11.88 | 14.26 | |
| Vis | ||||
| 367 | 1619P04205 | 0.83 | 1.00 | |
| Vis | ||||
| 368 | 1619P04206 | 0.83 | 1.00 | |
| Câble d alimentation | ||||
| 372 | 1619P04133 | 20.42 | 24.50 | |
| Commutateur | ||||
| 375 | 1619P04138 | 49.56 | 59.47 | |
| Couvercle De Carter | ||||
| 376 | 1619P04140 | 6.54 | 7.85 | |
| Bouchon En Caoutchouc | ||||
| 377 | 1619P04141 | 0.83 | 1.00 | |
| Vis | ||||
| 378 | 1619P04209 | 0.83 | 1.00 | |
| Vis | ||||
| 379 | 1619P04166 | 0.83 | 1.00 | |
| Bouton | ||||
| 381 | 1619P04142 | 2.24 | 2.69 | |
| Inductance | ||||
| 382 | 2610007056 | 0.83 | 1.00 | |
| Plateau De Retenue | ||||
| 383 | 2610007054 | 0.83 | 1.00 | |
| Joint | ||||
| 384 | 2610008578 | 0.83 | 1.00 | |
| Plaque De Base | ||||
| 385 | 2610008579 | 0.83 | 1.00 | |
| Bouchon | ||||
| 386 | 2610008580 | 0.83 | 1.00 | |
| Vis | ||||
| 387 | 2610008581 | 0.83 | 1.00 | |
| Vis | ||||
| 394 | 1619P04210 | 1.18 | 1.42 | |
| Serre-Cable | ||||
| 395 | 1619P04148 | 0.83 | 1.00 | |
| Bouton-Poussoir | ||||
| 397 | 1619P04152 | 1.70 | 2.04 | |
| Boulon | ||||
| 416 | 1619P04030 | 4.70 | 5.64 | |
| Tige Ressort | ||||
| 417 | 1619P04159 | 0.83 | 1.00 | |
| Ressort De Compression | ||||
| 418 | 1619P04032 | 1.18 | 1.42 | |
| Borne | ||||
| 419 | 1619PA0385 | 5.83 | 7.00 | |
| Plus disponible, pas de remplacement | ||||
| 420 | 2610015692 | |||
| Plus disponible, pas de remplacement | ||||
| 421 | 2610015693 | |||
| Collier De Serrage | ||||
| 653 | 2610014395 | 23.75 | 28.50 | |
| Plus disponible, pas de remplacement | ||||
| 810 | 1619P05643 | |||
| Bride | ||||
| 811 | 1619P04162 | 2.71 | 3.25 | |
| Plus disponible, pas de remplacement | ||||
| 827 | 1619P04451 | |||
| Table | ||||
| 830 | 1619P04029 | 271.34 | 325.61 | |
| Laser | ||||
| 834 | 1619P04111 | 33.45 | 40.14 | |
| Tringlerie | ||||
| 842 | 1619P04048 | 10.73 | 12.88 | |
| Plus disponible, pas de remplacement | ||||
| 844 | 2610011065 | |||
| MODULE DE DÉMARRAGE DOUX | ||||
| 851 | 2610015691 | 60.65 | 72.78 | |
| Bloc D’unite D’eclairage | ||||
| 881 | 1619P04158 | 29.75 | 35.70 | |
| Butee Longitudinale | ||||
| 887 | 1619P04153 | 130.32 | 156.38 | |
| Tringlerie | ||||
| 897 | 1619P04163 | 12.41 | 14.89 | |
