Vous trouverez ici toutes les pièces et dessins disponibles du 'Bosch 3600J10800 ( GHP5-75X )'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

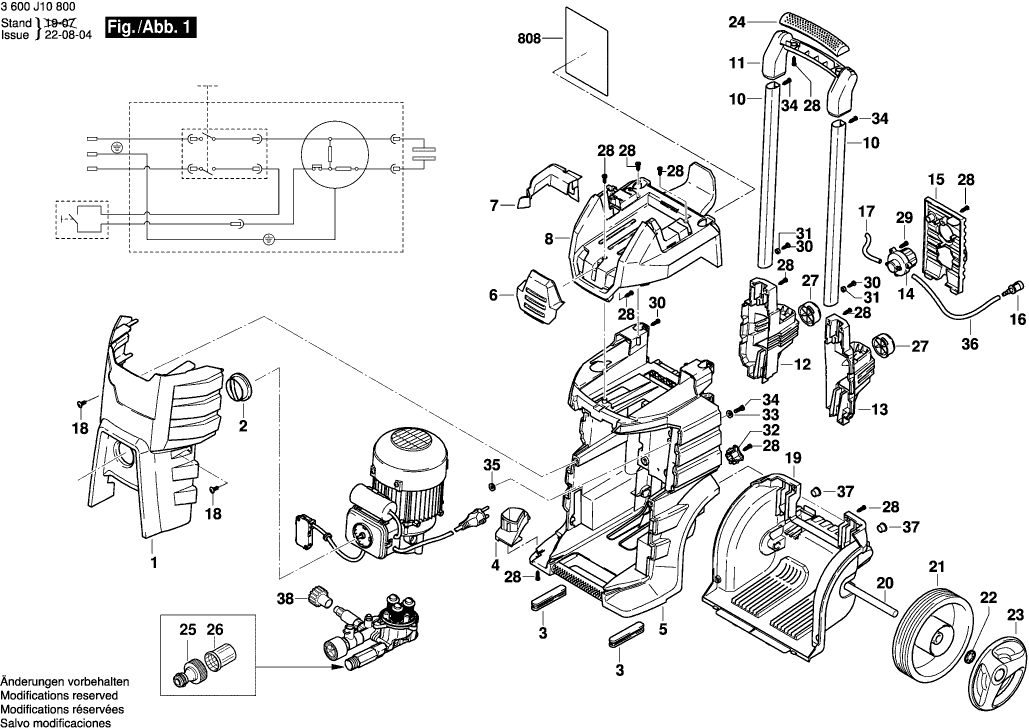

Dessins des Bosch 3600J10800 ( GHP5-75X )
Liste de pièces de rechange des Bosch 3600J10800 ( GHP5-75X )
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Carter | ||||
| 1 | F016L73329 | 18.19 | 21.83 | |
| Bouton | ||||
| 2 | F016L72008 | 4.10 | 4.92 | |
| Pied En Caoutchouc | ||||
| 3 | F016L73028 | 6.54 | 7.85 | |
| Tablette D’accessoire | ||||
| 4 | F016L73029 | 5.83 | 7.00 | |
| Carter | ||||
| 5 | F016L73284 | 40.61 | 48.73 | |
| Recouvrement | ||||
| 6 | F016L73031 | 5.83 | 7.00 | |
| Crochet | ||||
| 7 | F016L73032 | 4.10 | 4.92 | |
| partie du boîtier | ||||
| 8 | F016L73033 | 18.19 | 21.83 | |
| Barre | ||||
| 10 | F016L73356 | 12.41 | 14.89 | |
| Poignee | ||||
| 11 | F016L73036 | 11.88 | 14.26 | |
| Tablette D’accessoire | ||||
| 12 | F016L73037 | 10.73 | 12.88 | |
| Tablette D’accessoire | ||||
| 13 | F016L73038 | 9.53 | 11.44 | |
| Bouton De Mise Au Point | ||||
| 14 | F016L73039 | 6.54 | 7.85 | |
| Plaque De Recouvrement | ||||
| 15 | F016L73040 | 9.53 | 11.44 | |
| Filtre à eau | ||||
| 16 | F016L73041 | 6.54 | 7.85 | |
| Tuyau D’aspiration | ||||
| 17 | F016L73239 | 2.71 | 3.25 | |
| Vis | ||||
| 18 | F016L73053 | 1.18 | 1.42 | |
| Carter | ||||
| 19 | F016L73044 | 18.19 | 21.83 | |
| Roue A Aube | ||||
| 20 | F016L73045 | 9.53 | 11.44 | |
| Roue | ||||
| 21 | F016L73046 | 15.71 | 18.85 | |
| Rondelle plate | ||||
| 22 | F016L73047 | 2.24 | 2.69 | |
| Recouvrement | ||||
| 23 | F016L73048 | 9.53 | 11.44 | |
| Couvercle De Protection | ||||
| 24 | F016L72122 | 8.45 | 10.14 | |
| Raccord De Tuyau | ||||
| 25 | F016L72010 | 2.24 | 2.69 | |
| Filtre | ||||
| 26 | F016L73591 | 1.70 | 2.04 | |
| Pied En Caoutchouc | ||||
| 27 | F016L72119 | 5.83 | 7.00 | |
| Vis | ||||
| 28 | F016L72012 | 0.83 | 1.00 | |
| Vis | ||||
| 29 | F016L72187 | 0.83 | 1.00 | |
| Vis-Raccord De Montage | ||||
| 30 | F016L73337 | 0.83 | 1.00 | |
| Rondelle plate | ||||
| 31 | F016L73051 | 2.71 | 3.25 | |
| Manchon | ||||
| 32 | F016L72109 | 1.18 | 1.42 | |
| Rondelle plate | ||||
| 33 | F016L72120 | 1.94 | 2.33 | |
| Vis | ||||
| 34 | F016L73711 | 0.83 | 1.00 | |
| Amortisseur Vibrations | ||||
| 35 | F016L73100 | 1.94 | 2.33 | |
| Tuyau D’aspiration | ||||
| 36 | F016L73338 | 4.10 | 4.92 | |
| Bouchon | ||||
| 37 | F016L73278 | 1.18 | 1.42 | |
| Bouton Rotatif | ||||
| 38 | F016L72169 | 10.73 | 12.88 | |
| Vis | ||||
| 39 | F016L73710 | 0.83 | 1.00 | |
| Bouchon | ||||
| 101 | F016L72124 | 5.33 | 6.40 | |
| Tête de pompe | ||||
| 102 | F016L72170 | 113.29 | 135.95 | |
| Vis | ||||
| 103 | F016L72126 | 1.70 | 2.04 | |
| Joint torique | ||||
| 104 | F016L72035 | 0.83 | 1.00 | |
| Adaptateur | ||||
| 105 | F016F04381 | 13.93 | 16.72 | |
| Joint torique | ||||
| 106 | F016L72014 | 0.83 | 1.00 | |
| Adaptateur | ||||
| 107 | F016L73357 | 15.71 | 18.85 | |
| Joint torique | ||||
| 108 | F016L72074 | 1.18 | 1.42 | |
| Soupape | ||||
| 109 | F016L72129 | 6.54 | 7.85 | |
| Joint | ||||
| 110 | F016L72130 | 3.31 | 3.97 | |
| Joint torique | ||||
| 111 | F016L72131 | 1.18 | 1.42 | |
| Coussinet | ||||
| 112 | F016L72132 | 9.53 | 11.44 | |
| Coussinet | ||||
| 113 | F016L72133 | 5.83 | 7.00 | |
| Vis | ||||
| 115 | F016L72134 | 2.24 | 2.69 | |
| Guidage De Piston | ||||
| 116 | F016L72135 | 13.93 | 16.72 | |
| Ressort | ||||
| 117 | F016L72136 | 4.10 | 4.92 | |
| Piston 3 Stück | ||||
| 118 | F016F04323 | 13.93 | 16.72 | |
| Plateau Oscillant | ||||
| 119 | F016L72137 | 1.94 | 2.33 | |
| Vis | ||||
| 121 | F016L72139 | 6.54 | 7.85 | |
| Bouchon | ||||
| 122 | F016L72138 | 5.83 | 7.00 | |
| Joint torique | ||||
| 124 | F016L72141 | 1.18 | 1.42 | |
| Manometre | ||||
| 125 | F016L72045 | 12.41 | 14.89 | |
| Ressort | ||||
| 126 | F016L72072 | 1.18 | 1.42 | |
| Bille | ||||
| 127 | F016L72073 | 1.18 | 1.42 | |
| Joint torique | ||||
| 128 | F016L72074 | 1.18 | 1.42 | |
| Mamelon-Nipple | ||||
| 129 | F016L72143 | 5.33 | 6.40 | |
| Joint torique | ||||
| 130 | F016L72019 | 0.83 | 1.00 | |
| Element De Soupape | ||||
| 131 | F016L72018 | 7.58 | 9.10 | |
| Ressort | ||||
| 132 | F016L72017 | 1.70 | 2.04 | |
| Joint torique | ||||
| 133 | F016L72016 | 0.83 | 1.00 | |
| Injecteur | ||||
| 134 | F016L73332 | 9.53 | 11.44 | |
| Joint torique | ||||
| 135 | F016L72065 | 0.83 | 1.00 | |
| Joint torique | ||||
| 136 | F016L72030 | 1.70 | 2.04 | |
| Broche | ||||
| 137 | F016L72066 | 8.45 | 10.14 | |
| Ressort | ||||
| 138 | F016L72067 | 2.24 | 2.69 | |
| Rondelle plate | ||||
| 139 | F016L72068 | 1.18 | 1.42 | |
| Joint torique | ||||
| 140 | F016L72069 | 0.83 | 1.00 | |
| Adaptateur | ||||
| 141 | F016L72070 | 7.58 | 9.10 | |
| Adaptateur | ||||
| 142 | F016L72071 | 9.53 | 11.44 | |
| Douille Filetee | ||||
| 143 | F016L72174 | 12.41 | 14.89 | |
| Joint torique | ||||
| 144 | F016L72030 | 1.70 | 2.04 | |
| Piston | ||||
| 145 | F016L72031 | 12.41 | 14.89 | |
| Piston | ||||
| 146 | F016L72032 | 12.41 | 14.89 | |
| Joint torique | ||||
| 147 | F016L72033 | 1.70 | 2.04 | |
| Joint torique | ||||
| 148 | F016L72030 | 1.70 | 2.04 | |
| Bague Entretoise | ||||
| 149 | F016L72034 | 1.18 | 1.42 | |
| Joint torique | ||||
| 150 | F016L72035 | 0.83 | 1.00 | |
| Joint torique | ||||
| 151 | F016L72014 | 0.83 | 1.00 | |
| Guidage De Piston | ||||
| 152 | F016L72036 | 13.93 | 16.72 | |
| Plateau Oscillant | ||||
| 153 | F016L72037 | 3.31 | 3.97 | |
| Ressort | ||||
| 154 | F016L72038 | 4.10 | 4.92 | |
| Plateau Oscillant | ||||
| 155 | F016L72039 | 1.70 | 2.04 | |
| Broche | ||||
| 156 | F016L72040 | 1.18 | 1.42 | |
| Insert | ||||
| 157 | F016L72041 | 12.41 | 14.89 | |
| Bouchon | ||||
| 158 | F016L72042 | 0.83 | 1.00 | |
| Ecrou | ||||
| 159 | F016L72043 | 0.83 | 1.00 | |
| Bouton | ||||
| 160 | F016L73290 | 5.83 | 7.00 | |
| Soupape | ||||
| 161 | F016F04355 | 49.56 | 59.47 | |
| Tête de pompe | ||||
| 162 | F016L73333 | 209.26 | 251.11 | |
| Bouchon | ||||
| 163 | F016L73362 | 13.93 | 16.72 | |
| Collier De Serrage | ||||
| 164 | F016L73360 | 4.70 | 5.64 | |
| Joint torique | ||||
| 165 | F016L72219 | 0.83 | 1.00 | |
| Joint torique | ||||
| 166 | F016L73709 | 0.83 | 1.00 | |
| Roulement A Billes | ||||
| 401 | F016L72144 | 12.41 | 14.89 | |
| Plateau Oscillant | ||||
| 402 | F016L72176 | 8.45 | 10.14 | |
| Roulement A Billes | ||||
| 403 | F016L72146 | 13.93 | 16.72 | |
| Bague D’etancheite | ||||
| 404 | F016L73063 | 4.70 | 5.64 | |
| Vis | ||||
| 405 | F016L72177 | 2.24 | 2.69 | |
| Pompe | ||||
| 406 | F016L72149 | 18.19 | 21.83 | |
| Roulement A Billes | ||||
| 407 | F016L72150 | 9.53 | 11.44 | |
| Recouvrement | ||||
| 408 | F016L72151 | 13.93 | 16.72 | |
| Joint | ||||
| 409 | F016L72152 | 1.70 | 2.04 | |
| Joint torique | ||||
| 410 | F016L72153 | 0.83 | 1.00 | |
| Ventilateur | ||||
| 411 | F016L72154 | 7.58 | 9.10 | |
| Canalisation D’air | ||||
| 412 | F016L73065 | 9.53 | 11.44 | |
| Rondelle plate | ||||
| 413 | F016L72156 | 0.83 | 1.00 | |
| Vis | ||||
| 414 | F016L72157 | 0.83 | 1.00 | |
| Joint torique | ||||
| 415 | F016L72158 | 0.83 | 1.00 | |
| Carter | ||||
| 416 | F016L72159 | 6.54 | 7.85 | |
| Rondelle plate | ||||
| 417 | F016L72160 | 0.83 | 1.00 | |
| Vis | ||||
| 418 | F016L72161 | 0.83 | 1.00 | |
| Recouvrement | ||||
| 419 | F016L73339 | 5.83 | 7.00 | |
| Commutateur | ||||
| 420 | F016L72087 | 12.41 | 14.89 | |
| Manchon | ||||
| 421 | F016L72092 | 4.10 | 4.92 | |
| Câble d alimentation | ||||
| 422 | F016L73340 | 23.75 | 28.50 | |
| Joint torique | ||||
| 423 | F016L72163 | 1.18 | 1.42 | |
| Condenseur | ||||
| 424 | F016F05927 | 13.93 | 16.72 | |
| Condenseur | ||||
| 424 | F016L72178 | 13.11 | 15.73 | |
| Moteur | ||||
| 425 | F016F05935 | 209.26 | 251.11 | |
| Moteur | ||||
| 425 | F016L73324 | 197.04 | 236.45 | |
| Collier De Serrage | ||||
| 426 | F016L72094 | 6.54 | 7.85 | |
| Module Electronique | ||||
| 427 | F016L72093 | 15.71 | 18.85 | |
| Vis | ||||
| 428 | F016L72086 | 0.83 | 1.00 | |
| Manchon | ||||
| 429 | F016L72096 | 4.10 | 4.92 | |
| Joint torique | ||||
| 430 | F016L72260 | 4.70 | 5.64 | |
| Joint torique | ||||
| 431 | F016L73343 | 0.83 | 1.00 | |
| Recouvrement | ||||
| 501 | F016L73367 | 4.10 | 4.92 | |
| Bague | ||||
| 502 | F016L73368 | 0.83 | 1.00 | |
| Adaptateur | ||||
| 503 | F016L73369 | 15.71 | 18.85 | |
| Collier De Serrage | ||||
| 504 | F016L73370 | 4.70 | 5.64 | |
| Recouvrement | ||||
| 505 | F016L73371 | 8.45 | 10.14 | |
| Recouvrement | ||||
| 506 | F016L73372 | 8.45 | 10.14 | |
| Vis | ||||
| 507 | F016L73373 | 0.83 | 1.00 | |
| Recouvrement | ||||
| 508 | F016L73374 | 12.41 | 14.89 | |
| Joint torique | ||||
| 509 | F016L72101 | 0.83 | 1.00 | |
| Adaptateur | ||||
| 510 | F016L73375 | 15.71 | 18.85 | |
| Bague | ||||
| 511 | F016L72286 | 0.83 | 1.00 | |
| Flexible Haute Pression | ||||
| 512 | F016L73376 | 73.72 | 88.46 | |
| Recouvrement | ||||
| 513 | F016L73377 | 11.88 | 14.26 | |
| Moyeu | ||||
| 514 | F016L73378 | 20.42 | 24.50 | |
| Vis | ||||
| 515 | F016L73053 | 1.18 | 1.42 | |
| Crochet | ||||
| 516 | F016L72282 | 5.33 | 6.40 | |
| Levier | ||||
| 517 | F016L73379 | 8.45 | 10.14 | |
| Vis | ||||
| 518 | F016L72203 | 0.83 | 1.00 | |
| Bouton | ||||
| 519 | F016L73380 | 2.71 | 3.25 | |
| Flexible Haute Pression | ||||
| 520 | F016L73381 | 15.71 | 18.85 | |
| Porte-Tugau | ||||
| 521 | F016L73382 | 187.62 | 225.14 | |
| Trigger | ||||
| 601 | F016L73068 | 33.45 | 40.14 | |
| Trigger | ||||
| 601/1 | 1619PA9742 | 13.93 | 16.72 | |
| Ressort | ||||
| 601/2 | 1619PA9743 | 6.54 | 7.85 | |
| Fermeture | ||||
| 601/3 | 1619PA9744 | 8.45 | 10.14 | |
| Lance | ||||
| 602 | F016L73327 | 33.45 | 40.14 | |
| Joint torique 9,5x1,5 | ||||
| 602/815 | 1619PB2119 | 1.70 | 2.04 | |
| Rotolanze | ||||
| 603 | F016L73384 | 60.65 | 72.78 | |
| Joint torique 9,5x1,5 | ||||
| 603/815 | 1619PB2119 | 1.70 | 2.04 | |
| Filtre | ||||
| 611 | F016L73351 | 18.19 | 21.83 | |
| Filtre | ||||
| 612 | F016L73352 | 18.19 | 21.83 | |
| Plaque signalétique | ||||
| 808 | F016F05917 | 0.83 | 1.00 | |
| Joint | ||||
| 814 | F016F04324 | 11.88 | 14.26 | |
| Jeu Pieces D’usure | ||||
| 880 | F016L73319 | 13.93 | 16.72 | |
