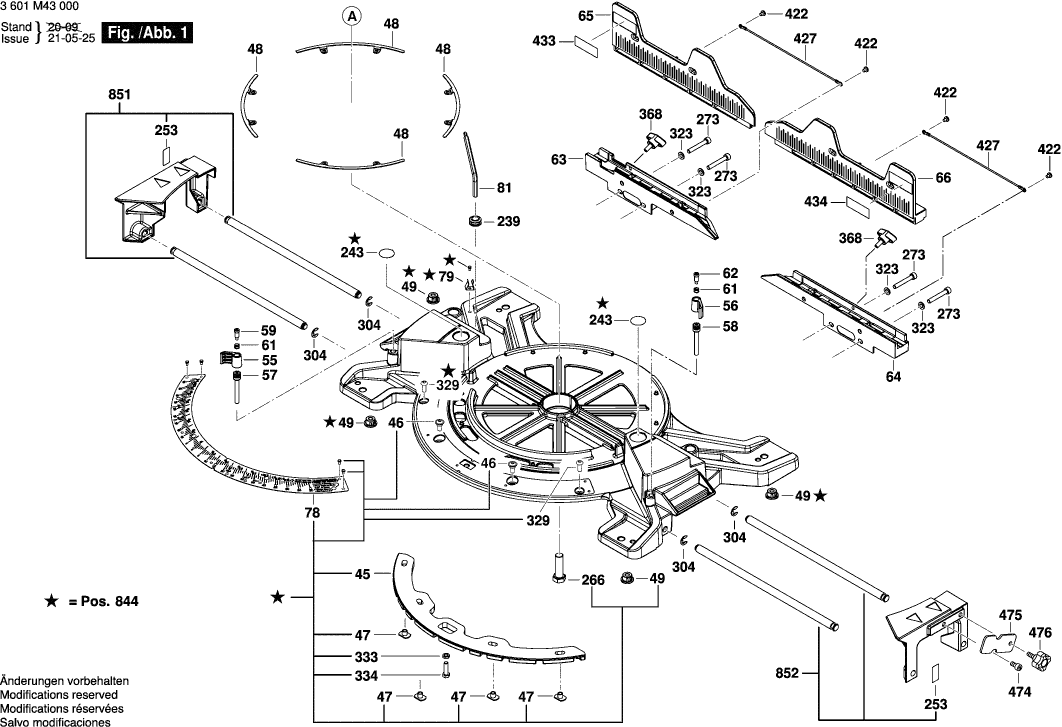

Dessins des Bosch 3601M43000 (GCM18V-305GDC)
Liste de pièces de rechange des Bosch 3601M43000 (GCM18V-305GDC)
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Moteur DC sans charbon | ||||
| 2 | 160702267D | 173.95 | 208.74 | |
| Interrupteur | ||||
| 4 | 2607202510 | 13.13 | 15.76 | |
| Module Electronique | ||||
| 17 | 16072335FM | 197.62 | 237.14 | |
| Feuille d'Isolation | ||||
| 18 | 1609B06759 | 1.00 | 1.20 | |
| Arrêt d'angle Winkelanschlag AGC 18 | ||||
| 19 | 1609B06449 | 1.00 | 1.20 | |
| Étiquette d'Avertissement | ||||
| 20 | 1609B06748 | 2.40 | 2.88 | |
| Module Electronique | ||||
| 21 | 16072335GD | 31.42 | 37.70 | |
| Module électronique | ||||
| 22 | 1600A016CZ | 9.67 | 11.60 | |
| Module électronique | ||||
| 23 | 1600A013WF | 34.82 | 41.78 | |
| Éponge en caoutchouc | ||||
| 24 | 1609B06287 | 1.00 | 1.20 | |
| Couvercle De La Boîte | ||||
| 25 | 1609B06433 | 2.86 | 3.43 | |
| Couvercle De La Boîte | ||||
| 26 | 1609B06434 | 2.86 | 3.43 | |
| Couvercle De La Boîte | ||||
| 27 | 1609B06435 | 2.86 | 3.43 | |
| Porte-Batterie for 10.8 V | ||||
| 28 | 1609B06440 | 3.44 | 4.13 | |
| Boîte de boîtier DUO 110 - Ensemble | ||||
| 29 | 1609B06444 | 1.00 | 1.20 | |
| Cache TURBO II | ||||
| 30 | 1609B06445 | 1.00 | 1.20 | |
| Plaque Dusure | ||||
| 31 | 1609B00201 | 5.81 | 6.97 | |
| Goupille De Rotule | ||||
| 32 | 1609B06456 | 2.40 | 2.88 | |
| Ressort de torsion TSF 55 | ||||
| 33 | 1609B06457 | 2.08 | 2.50 | |
| COUSSINET DE PALIER | ||||
| 34 | 1609B06487 | 1.00 | 1.20 | |
| Plaque Dusure | ||||
| 35 | 1609B00206 | 1.90 | 2.28 | |
| Chaine | ||||
| 36 | 1609B05166 | 14.94 | 17.93 | |
| Bride | ||||
| 37 | 1609B06557 | 9.67 | 11.60 | |
| Bride | ||||
| 39 | 1609B00210 | 3.44 | 4.13 | |
| Boulon De Flasque | ||||
| 41 | 1609B00211 | 4.18 | 5.02 | |
| Rondelle | ||||
| 42 | 1609B00212 | 1.00 | 1.20 | |
| Tôle de positionnement | ||||
| 45 | 1609B04487 | 8.35 | 10.02 | |
| Vis | ||||
| 46 | 1609B00223 | 1.49 | 1.79 | |
| Ecrou | ||||
| 47 | 1609B00225 | 3.44 | 4.13 | |
| Tole Coulissante | ||||
| 48 | 1609B04471 | 1.49 | 1.79 | |
| Pied-Support | ||||
| 49 | 1609B01431 | 2.08 | 2.50 | |
| Levier De Verrouillage | ||||
| 55 | 1609B00232 | 1.49 | 1.79 | |
| Levier De Verrouillage | ||||
| 56 | 1609B00233 | 1.00 | 1.20 | |
| Vis | ||||
| 57 | 1609B00234 | 4.18 | 5.02 | |
| Vis | ||||
| 58 | 1609B00235 | 4.18 | 5.02 | |
| Vis D’ajutage | ||||
| 59 | 1609B00236 | 1.49 | 1.79 | |
| Ressort De Compression | ||||
| 61 | 1609B00237 | 1.00 | 1.20 | |
| Vis D’ajutage | ||||
| 62 | 1609B00238 | 1.49 | 1.79 | |
| Regle-Glissiere A Onglets | ||||
| 63 | 1609B04462 | 21.30 | 25.56 | |
| Regle-Glissiere A Onglets | ||||
| 64 | 1609B04463 | 23.90 | 28.68 | |
| Regle-Glissiere A Onglets | ||||
| 65 | 1609B04493 | 23.90 | 28.68 | |
| Regle-Glissiere A Onglets | ||||
| 66 | 1609B04494 | 23.90 | 28.68 | |
| Arrêt d'angle Winkelanschlag AGC 18 | ||||
| 67 | 1609B06468 | 1.00 | 1.20 | |
| CORDON | ||||
| 68 | 1609B06831 | 14.94 | 17.93 | |
| CORDON | ||||
| 68 | 1609B06470 | 2.18 | 2.62 | |
| Lampe LED | ||||
| 69 | 1609B06471 | 2.86 | 3.43 | |
| Câble à rubans | ||||
| 70 | 1609B06472 | 4.94 | 5.93 | |
| Câble ruban | ||||
| 71 | 1609B06473 | 4.94 | 5.93 | |
| Câble ruban | ||||
| 72 | 1609B06474 | 2.86 | 3.43 | |
| Verre Protecteur | ||||
| 74 | 1609B06478 | 2.08 | 2.50 | |
| BANDE | ||||
| 75 | 1609B06486 | 1.00 | 1.20 | |
| Ressort De Compression | ||||
| 76 | 1609280477 | 1.49 | 1.79 | |
| Cadran Gradue | ||||
| 78 | 1609B00254 | 23.90 | 28.68 | |
| Plus disponible, pas de remplacement | ||||
| 79 | 1609B00255 | |||
| Ferrite CS 70 | ||||
| 80 | 1609B06758 | 7.46 | 8.95 | |
| Douille | ||||
| 81 | 1609B00256 | 2.08 | 2.50 | |
| Plaque d’appui | ||||
| 83 | 1609B04470 | 2.86 | 3.43 | |
| Arbre Du Doigt | ||||
| 84 | 1609B00273 | 4.18 | 5.02 | |
| Bouton | ||||
| 85 | 1609B04725 | 4.94 | 5.93 | |
| Bouton | ||||
| 96 | 1609B00284 | 2.40 | 2.88 | |
| Equerre-Support | ||||
| 97 | 1609B00285 | 2.86 | 3.43 | |
| Came | ||||
| 98 | 1609B00286 | 6.73 | 8.08 | |
| Tringlerie | ||||
| 99 | 1609B04488 | 7.46 | 8.95 | |
| Etrier De Guidage | ||||
| 101 | 1609B00289 | 1.00 | 1.20 | |
| Ressort De Compression | ||||
| 103 | 1609B00291 | 1.00 | 1.20 | |
| Levier De Verrouillage | ||||
| 104 | 1609B00292 | 11.37 | 13.64 | |
| Axe De Levier | ||||
| 105 | 1609B00293 | 5.81 | 6.97 | |
| Came | ||||
| 106 | 1609B00294 | 1.49 | 1.79 | |
| Equerre-Support | ||||
| 107 | 1609B00295 | 8.35 | 10.02 | |
| Equerre-Support | ||||
| 108 | 1609B00296 | 5.81 | 6.97 | |
| Tirant | ||||
| 109 | 1609B00297 | 11.37 | 13.64 | |
| Tube | ||||
| 111 | 1609B00298 | 13.13 | 15.76 | |
| Etrier De Guidage | ||||
| 112 | 1609B00299 | 1.00 | 1.20 | |
| Recouvrement | ||||
| 114 | 1609B04380 | 1.00 | 1.20 | |
| Axe D’arret | ||||
| 115 | 1609B00302 | 3.44 | 4.13 | |
| Ressort De Compression | ||||
| 116 | 1609B00303 | 1.00 | 1.20 | |
| Boulon | ||||
| 118 | 1609B00305 | 2.40 | 2.88 | |
| Ressort De Compression | ||||
| 119 | 1609B00306 | 1.00 | 1.20 | |
| Aiguille | ||||
| 124 | 1609B04480 | 1.49 | 1.79 | |
| Cadran Gradue | ||||
| 125 | 1609B02988 | 2.86 | 3.43 | |
| Plaque | ||||
| 126 | 1609B00312 | 2.40 | 2.88 | |
| CHARNIERE | ||||
| 129 | 1609B06734 | 58.03 | 69.64 | |
| Charniere | ||||
| 134 | 1609B00335 | 47.53 | 57.04 | |
| Arbre | ||||
| 136 | 1609B00337 | 11.37 | 13.64 | |
| Arbre | ||||
| 137 | 1609B00338 | 10.90 | 13.08 | |
| Boulon | ||||
| 142 | 1609B00342 | 2.40 | 2.88 | |
| Coussinet | ||||
| 143 | 1609B00343 | 4.94 | 5.93 | |
| Levier De Verrouillage | ||||
| 144 | 1609B00345 | 10.90 | 13.08 | |
| Ressort De Serrage | ||||
| 145 | 1609B00346 | 1.49 | 1.79 | |
| Axe De Reglage | ||||
| 146 | 1609B00347 | 1.00 | 1.20 | |
| BANDE | ||||
| 147 | 1609B06447 | 1.49 | 1.79 | |
| Broche De Verrouillage | ||||
| 149 | 1609B06448 | 1.49 | 1.79 | |
| Vis D’ajutage | ||||
| 151 | 1609B00351 | 1.00 | 1.20 | |
| Cran | ||||
| 152 | 1609B02371 | 18.94 | 22.73 | |
| Tole De Support Amovible | ||||
| 153 | 1609B00353 | 1.49 | 1.79 | |
| Tole De Support Amovible | ||||
| 154 | 1609B00354 | 1.49 | 1.79 | |
| Plateau De Frein | ||||
| 155 | 1609B00355 | 1.49 | 1.79 | |
| Entretoise | ||||
| 156 | 1609B00356 | 1.00 | 1.20 | |
| Aiguille | ||||
| 157 | 1609B00357 | 2.08 | 2.50 | |
| Aiguille | ||||
| 158 | 1609B00358 | 2.08 | 2.50 | |
| Axe De Reglage | ||||
| 159 | 1609B00359 | 2.08 | 2.50 | |
| EQUERRE | ||||
| 161 | 1609B06480 | 2.08 | 2.50 | |
| Butee Elastique | ||||
| 162 | 1609B00362 | 2.08 | 2.50 | |
| Arbre | ||||
| 164 | 1609B00364 | 7.46 | 8.95 | |
| Bouchon En Caoutchouc | ||||
| 168 | 1609B00368 | 1.49 | 1.79 | |
| Bouchon En Caoutchouc | ||||
| 169 | 1609B00369 | 1.49 | 1.79 | |
| BRAS | ||||
| 171 | 1609B06464 | 52.45 | 62.94 | |
| Bouton | ||||
| 172 | 1609B00382 | 4.94 | 5.93 | |
| Plaque | ||||
| 174 | 1609B04810 | 1.49 | 1.79 | |
| Arbre de Sortie | ||||
| 175 | 1609B04809 | 9.67 | 11.60 | |
| Garniture Plate | ||||
| 179 | 1609B06459 | 2.40 | 2.88 | |
| Vis Sans Fin | ||||
| 182 | 1609B04811 | 1.49 | 1.79 | |
| Ressort De Compression | ||||
| 183 | 1609B04838 | 2.08 | 2.50 | |
| Poignee D’interrupteur | ||||
| 184 | 1609B06431 | 8.35 | 10.02 | |
| Touche | ||||
| 185 | 1609B00390 | 1.49 | 1.79 | |
| Remplisseur | ||||
| 186 | 1609B06482 | 1.00 | 1.20 | |
| Etiquette | ||||
| 191 | 1609B06747 | 1.00 | 1.20 | |
| Ressort De Compression | ||||
| 194 | 1609B00417 | 1.00 | 1.20 | |
| Couvercle De Protection | ||||
| 203 | 1609B06462 | 2.40 | 2.88 | |
| Tringlerie | ||||
| 204 | 1609B06446 | 2.40 | 2.88 | |
| Vis D’ajutage | ||||
| 205 | 1609B00448 | 2.86 | 3.43 | |
| Coussinet | ||||
| 206 | 1609B00449 | 1.00 | 1.20 | |
| Vis D’ajutage | ||||
| 211 | 1609B04876 | 1.00 | 1.20 | |
| Vis | ||||
| 212 | 1609B00454 | 1.00 | 1.20 | |
| Butee Elastique | ||||
| 214 | 1609B02467 | 1.00 | 1.20 | |
| Rondelle | ||||
| 215 | 1609B00457 | 1.00 | 1.20 | |
| Fermeture Instantanee | ||||
| 216 | 1609B00458 | 1.00 | 1.20 | |
| Vis | ||||
| 219 | 1609B03361 | 1.00 | 1.20 | |
| Vis | ||||
| 220 | 1609B04117 | 1.00 | 1.20 | |
| Coussin De Caoutchouc | ||||
| 235 | 1609B00523 | 2.40 | 2.88 | |
| Douille Caoutchouc | ||||
| 239 | 1609B00533 | 1.00 | 1.20 | |
| Vis | ||||
| 240 | 1609B01483 | 1.00 | 1.20 | |
| Ecriteau Avertisseur | ||||
| 243 | 1609B00543 | 2.40 | 2.88 | |
| Etiquette Adhesive | ||||
| 244 | 1609B02120 | 2.08 | 2.50 | |
| Etiquette | ||||
| 245 | 1609B06749 | 2.40 | 2.88 | |
| Ecriteau Avertisseur | ||||
| 247 | 1609B00549 | 2.40 | 2.88 | |
| Boulon | ||||
| 248 | 1609B06483 | 1.00 | 1.20 | |
| Etiquette Adhesive | ||||
| 253 | 1609B02122 | 2.40 | 2.88 | |
| Clé | ||||
| 258 | 1609B00592 | 1.49 | 1.79 | |
| Palier-Coussinet | ||||
| 262 | 1609B00597 | 9.67 | 11.60 | |
| Palier-Coussinet | ||||
| 263 | 1609B00596 | 12.82 | 15.38 | |
| Joint torique | ||||
| 265 | 1609B02941 | 1.00 | 1.20 | |
| Boulon | ||||
| 266 | 1609B00602 | 1.49 | 1.79 | |
| Ecrou De Calage | ||||
| 267 | 1609B00603 | 1.00 | 1.20 | |
| Ecrou De Calage | ||||
| 268 | 1609B00604 | 1.49 | 1.79 | |
| Ecrou De Calage | ||||
| 269 | 1609B00605 | 1.00 | 1.20 | |
| Boulon | ||||
| 272 | 1609B00609 | 1.00 | 1.20 | |
| Vis | ||||
| 273 | 1609B00610 | 1.49 | 1.79 | |
| Vis | ||||
| 274 | 1609B00612 | 1.00 | 1.20 | |
| Vis sans tête | ||||
| 275 | 1609B00614 | 1.00 | 1.20 | |
| Vis sans tête | ||||
| 277 | 1609B00616 | 1.00 | 1.20 | |
| Vis sans tête | ||||
| 279 | 1609B00618 | 1.49 | 1.79 | |
| Vis sans tête | ||||
| 281 | 1609B00620 | 1.00 | 1.20 | |
| Vis sans tête | ||||
| 282 | 1609B00621 | 1.49 | 1.79 | |
| Vis | ||||
| 285 | 1609B00624 | 1.00 | 1.20 | |
| Vis | ||||
| 288 | 1609B00627 | 2.08 | 2.50 | |
| Vis | ||||
| 289 | 1609B00630 | 1.00 | 1.20 | |
| Vis | ||||
| 294 | 1609B03179 | 1.00 | 1.20 | |
| Vis à Tôle | ||||
| 297 | 1609B00637 | 1.00 | 1.20 | |
| Tige Ressort | ||||
| 298 | 1609B00638 | 1.00 | 1.20 | |
| Anneau élastique | ||||
| 301 | 1609B00641 | 1.49 | 1.79 | |
| Anneau élastique | ||||
| 303 | 1609B00643 | 1.00 | 1.20 | |
| Anneau élastique | ||||
| 304 | 1609B00644 | 2.08 | 2.50 | |
| Vis | ||||
| 306 | 1609B00647 | 1.49 | 1.79 | |
| VIS C M4X34 | ||||
| 311 | 1609B06469 | 1.00 | 1.20 | |
| Rondelle Elastique | ||||
| 315 | 1609B00658 | 1.00 | 1.20 | |
| Rondelle | ||||
| 316 | 1609BP7042 | 1.00 | 1.20 | |
| Rondelle | ||||
| 320 | 1609B00664 | 1.00 | 1.20 | |
| Rondelle | ||||
| 321 | 1609B00665 | 1.00 | 1.20 | |
| Rondelle | ||||
| 322 | 1609B00667 | 1.00 | 1.20 | |
| Rondelle | ||||
| 323 | 1609B00669 | 1.00 | 1.20 | |
| Ecrou De Calage | ||||
| 325 | 1609B00672 | 1.00 | 1.20 | |
| Ecrou De Calage | ||||
| 326 | 1609B00673 | 1.00 | 1.20 | |
| Rondelle | ||||
| 327 | 1609B00674 | 1.00 | 1.20 | |
| Rondelle | ||||
| 328 | 1609B00675 | 1.00 | 1.20 | |
| Vis | ||||
| 329 | 1609B00678 | 1.00 | 1.20 | |
| Vis | ||||
| 330 | 1609B00680 | 1.00 | 1.20 | |
| Butee | ||||
| 331 | 1609B00681 | 5.81 | 6.97 | |
| Vis | ||||
| 332 | 1609B00682 | 1.00 | 1.20 | |
| Ecrou De Reglage | ||||
| 333 | 1609B04227 | 1.00 | 1.20 | |
| Boulon Six Pans | ||||
| 334 | 1609B02145 | 1.00 | 1.20 | |
| Rondelle | ||||
| 336 | 1609B00688 | 1.00 | 1.20 | |
| Vis | ||||
| 337 | 1609B00689 | 1.49 | 1.79 | |
| Tole De Frein | ||||
| 338 | 2610919073 | 8.35 | 10.02 | |
| Rondelle | ||||
| 339 | 2610919281 | 3.44 | 4.13 | |
| Galet | ||||
| 340 | 1609BP7124 | 1.49 | 1.79 | |
| Arbre Du Doigt | ||||
| 341 | 1609B00370 | 1.49 | 1.79 | |
| Anneau élastique | ||||
| 342 | 1609B00690 | 1.00 | 1.20 | |
| Rondelle | ||||
| 345 | 1609B00288 | 1.00 | 1.20 | |
| Coussinet | ||||
| 347 | 1609B01607 | 2.08 | 2.50 | |
| Vis | ||||
| 348 | 1609B02178 | 1.00 | 1.20 | |
| Vis | ||||
| 349 | 1609B05179 | 2.40 | 2.88 | |
| VIS C M4X34 | ||||
| 350 | 1609B06479 | 1.00 | 1.20 | |
| Vis de plaque | ||||
| 351 | 1609BP7137 | 1.00 | 1.20 | |
| Vis | ||||
| 352 | 1609B00623 | 1.00 | 1.20 | |
| Rondelle | ||||
| 354 | 1609B00676 | 1.49 | 1.79 | |
| Partie Inferieure De La | ||||
| 358 | 1609B04872 | 13.13 | 15.76 | |
| Vis | ||||
| 362 | 1609B01693 | 1.00 | 1.20 | |
| Bouton | ||||
| 368 | 1609B02991 | 1.00 | 1.20 | |
| VIS C M4X34 | ||||
| 385 | 1609B06455 | 1.00 | 1.20 | |
| Cache TURBO II | ||||
| 388 | 1609B06458 | 1.49 | 1.79 | |
| Cache TURBO II | ||||
| 398 | 1609B06460 | 1.00 | 1.20 | |
| Noix en T | ||||
| 411 | 1609B02468 | 1.00 | 1.20 | |
| Ressort A Lame | ||||
| 412 | 1609B04477 | 1.00 | 1.20 | |
| Barre | ||||
| 414 | 1609B04479 | 2.86 | 3.43 | |
| Plaque | ||||
| 415 | 1609B04481 | 1.00 | 1.20 | |
| Arrêt d'angle Winkelanschlag AGC 18 | ||||
| 418 | 1609B06443 | 1.00 | 1.20 | |
| Vis sans tête | ||||
| 419 | 1609B03777 | 1.00 | 1.20 | |
| Touche | ||||
| 420 | 1609B06441 | 1.00 | 1.20 | |
| Vis | ||||
| 422 | 1609B00780 | 1.00 | 1.20 | |
| Cable | ||||
| 427 | 1609B05115 | 2.08 | 2.50 | |
| Axe De Butee | ||||
| 428 | 1609B03776 | 1.00 | 1.20 | |
| Ecrou Hex | ||||
| 429 | 1609B01041 | 1.00 | 1.20 | |
| Étiquette d'Avertissement | ||||
| 433 | 1609B06743 | 1.00 | 1.20 | |
| Étiquette d'Avertissement | ||||
| 434 | 1609B06744 | 2.40 | 2.88 | |
| Ressort De Compression | ||||
| 435 | 1609B01530 | 1.00 | 1.20 | |
| Vis | ||||
| 474 | 1609B00678 | 1.00 | 1.20 | |
| Plaque De Butee | ||||
| 475 | 1609B02365 | 1.49 | 1.79 | |
| Vis | ||||
| 476 | 1609B00263 | 2.08 | 2.50 | |
| Axe D’arret | ||||
| 802 | 1609B02310 | 4.18 | 5.02 | |
| Plaque signal tique | ||||
| 808 | 1609BN0389 | 2.40 | 2.88 | |
| Cran | ||||
| 813 | 1609B02966 | 4.18 | 5.02 | |
| ARBRE | ||||
| 828 | 1609B06772 | 13.13 | 15.76 | |
| Charniere | ||||
| 831 | 1609B02303 | 88.83 | 106.60 | |
| Charniere | ||||
| 832 | 1609B02304 | 71.68 | 86.02 | |
| Charniere | ||||
| 833 | 1609B02305 | 58.03 | 69.64 | |
| Serre joint | ||||
| 834 | 1609B06203 | 12.82 | 15.38 | |
| CHARNIERE | ||||
| 835 | 1609B06755 | 47.53 | 57.04 | |
| Socle | ||||
| 844 | 1609B02968 | 197.62 | 237.14 | |
| Presentoir Annexe | ||||
| 851 | 1609B02964 | 23.90 | 28.68 | |
| Presentoir Annexe | ||||
| 852 | 1609B02965 | 21.30 | 25.56 | |
| Plus disponible, pas de remplacement | ||||
| 853 | 1609B05025 | |||
| Boulon | ||||
| 869 | 1609B05017 | 16.79 | 20.15 | |
| Couvercue De Chaine | ||||
| 873 | 1609B06754 | 39.14 | 46.97 | |
| S/E TRANSMISSION | ||||
| 876 | 1609B06756 | 31.42 | 37.70 | |
| Table | ||||
| 882 | 1609B02967 | 173.95 | 208.74 | |
| Module laser | ||||
| 887 | 1609B06753 | 43.12 | 51.74 | |
| Sac A Poussiere | ||||
| 888 | 1609B05010 | 6.73 | 8.08 | |
