Vous trouverez ici toutes les pièces et dessins disponibles du 'Bosch 3600H77A01 (AQUATAK150PRO)'. De là, vous pouvez commander directement toutes les pièces souhaitées.De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

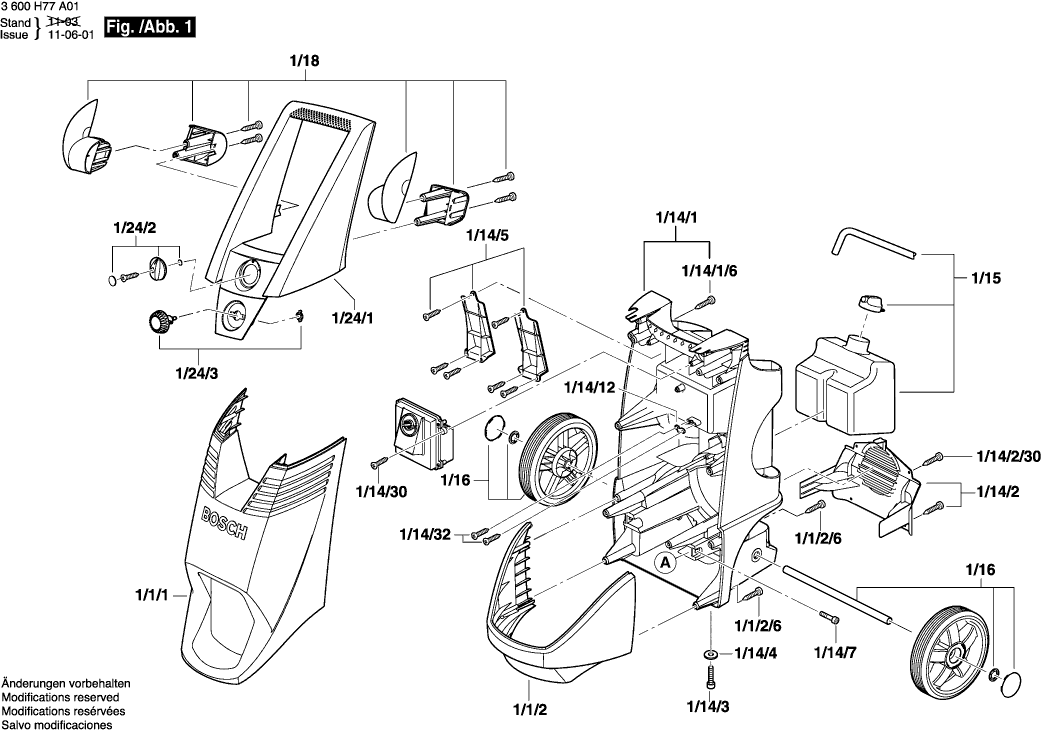

Dessins des Bosch 3600H77A01 (AQUATAK150PRO)
Liste de pièces de rechange des Bosch 3600H77A01 (AQUATAK150PRO)
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Recouvrement | ||||
| 1/1/1 | F016F03499 | 43.12 | 51.74 | |
| Carter | ||||
| 1/1/2 | F016F03500 | 39.14 | 46.97 | |
| Vis | ||||
| 1/1/2/6 | F016F03343 | 2.08 | 2.50 | |
| Jeu De Pieces | ||||
| 1/10 | F016F03562 | 197.62 | 237.14 | |
| Vis 3,9x16 | ||||
| 1/10/103 | F016F03026 | 1.00 | 1.20 | |
| Plus disponible, pas de remplacement | ||||
| 1/10/104 | F016F03101 | |||
| Joint torique 37,82x1,78 | ||||
| 1/10/105 | F016F03024 | 1.00 | 1.20 | |
| Carter | ||||
| 1/10/106 | F016F03337 | 3.44 | 4.13 | |
| Câble d alimentation | ||||
| 1/10/15 | F016F03478 | 64.67 | 77.60 | |
| Jeu De Pieces | ||||
| 1/11 | F016F03076 | 31.42 | 37.70 | |
| Moteur | ||||
| 1/13 | F016F03477 | 446.77 | 536.12 | |
| Vis M6x20 | ||||
| 1/13/112 | F016F03009 | 1.49 | 1.79 | |
| Carter | ||||
| 1/14/1 | F016F03511 | 155.51 | 186.61 | |
| Vis | ||||
| 1/14/1/6 | F016F03343 | 2.08 | 2.50 | |
| Piece De Serrage | ||||
| 1/14/12 | F016F03035 | 3.44 | 4.13 | |
| Vis | ||||
| 1/14/17 | F016F03512 | 1.00 | 1.20 | |
| Carter | ||||
| 1/14/2 | F016F03567 | 11.37 | 13.64 | |
| Vis | ||||
| 1/14/2/30 | F016F03517 | 2.40 | 2.88 | |
| Vis | ||||
| 1/14/3 | F016F03512 | 1.00 | 1.20 | |
| Vis | ||||
| 1/14/30 | F016F03517 | 2.40 | 2.88 | |
| Vis 4;8x16 ZINC | ||||
| 1/14/32 | F016F03034 | 1.00 | 1.20 | |
| Rondelle De Butee | ||||
| 1/14/4 | F016F03513 | 1.00 | 1.20 | |
| Recouvrement | ||||
| 1/14/5 | F016F03568 | 6.73 | 8.08 | |
| Reservoir | ||||
| 1/15 | F016F03571 | 47.53 | 57.04 | |
| Roue | ||||
| 1/16 | F016F03520 | 43.12 | 51.74 | |
| Soupape | ||||
| 1/17 | F016F03054 | 12.82 | 15.38 | |
| Piece De Serrage | ||||
| 1/18 | F016F03569 | 16.79 | 20.15 | |
| Jeu De Pieces | ||||
| 1/19 | F016F03563 | 34.82 | 41.78 | |
| Commutateur 20A | ||||
| 1/19/107 | F016F03020 | 11.37 | 13.64 | |
| Joint | ||||
| 1/19/75 | F016F03457 | 23.90 | 28.68 | |
| Tete De Commande | ||||
| 1/2 | F016F03430 | 173.95 | 208.74 | |
| Rondelle De Butee | ||||
| 1/2/12 | F016F03482 | 1.00 | 1.20 | |
| Joint torique 8,73x1,78 MM | ||||
| 1/2/13 | F016F03483 | 1.00 | 1.20 | |
| Joint torique | ||||
| 1/2/15 | F016F03484 | 1.00 | 1.20 | |
| Rondelle De Butee | ||||
| 1/2/16 | F016F03485 | 1.00 | 1.20 | |
| Joint torique 12,42x1,78 MM | ||||
| 1/2/25 | F016F03486 | 1.00 | 1.20 | |
| Joint torique 14,0x1,78 MM | ||||
| 1/2/26 | F016F03487 | 1.00 | 1.20 | |
| Vis | ||||
| 1/2/3 | F016F03433 | 2.40 | 2.88 | |
| Manometre | ||||
| 1/2/34 | F016F03432 | 31.42 | 37.70 | |
| Joint torique | ||||
| 1/2/65 | F016F03431 | 1.00 | 1.20 | |
| Recouvrement | ||||
| 1/20 | F016F03476 | 10.90 | 13.08 | |
| Plus disponible, pas de remplacement | ||||
| 1/21 | F016F03441 | |||
| Carter | ||||
| 1/24/1 | F016F03501 | 43.12 | 51.74 | |
| Bouton | ||||
| 1/24/2 | F016F03570 | 2.40 | 2.88 | |
| Bouton De Mise Au Point | ||||
| 1/24/3 | F016F03502 | 14.94 | 17.93 | |
| Soupape | ||||
| 1/5 | F016F03011 | 11.37 | 13.64 | |
| Culasse | ||||
| 1/6 | F016F03435 | 98.18 | 117.82 | |
| Vis | ||||
| 1/6/1 | F016F03436 | 1.49 | 1.79 | |
| Joint torique | ||||
| 1/6/49 | F016F03437 | 1.49 | 1.79 | |
| Joint torique 14x22x6 schwarz | ||||
| 1/6/61 | F016F03438 | 6.73 | 8.08 | |
| Raccord A Visser | ||||
| 1/7 | F016F03014 | 14.94 | 17.93 | |
| Carter | ||||
| 1/8 | F016F03439 | 98.18 | 117.82 | |
| Joint torique | ||||
| 1/8/53 | F016F03564 | 1.00 | 1.20 | |
| Joint torique | ||||
| 1/8/54 | F016F03565 | 1.49 | 1.79 | |
| Joint torique 80,60x2,62 | ||||
| 1/8/57 | F016F03016 | 1.49 | 1.79 | |
| Capuchon De Fermeture | ||||
| 1/8/66 | F016F03070 | 9.67 | 11.60 | |
| Vis | ||||
| 1/8/67 | F016F03440 | 1.00 | 1.20 | |
| Roulement A Billes | ||||
| 1/9 | F016F03017 | 31.42 | 37.70 | |
| Poignee | ||||
| 2/1 | F016F03544 | 64.67 | 77.60 | |
| Tuyau | ||||
| 2/11 | F016F03543 | 197.62 | 237.14 | |
| Lance | ||||
| 2/6 | F016F03545 | 52.45 | 62.94 | |
| Plus disponible, pas de remplacement | ||||
| 2/6/1 | F016F03533 | |||
| Buse | ||||
| 2/8 | F016F03546 | 64.67 | 77.60 | |
